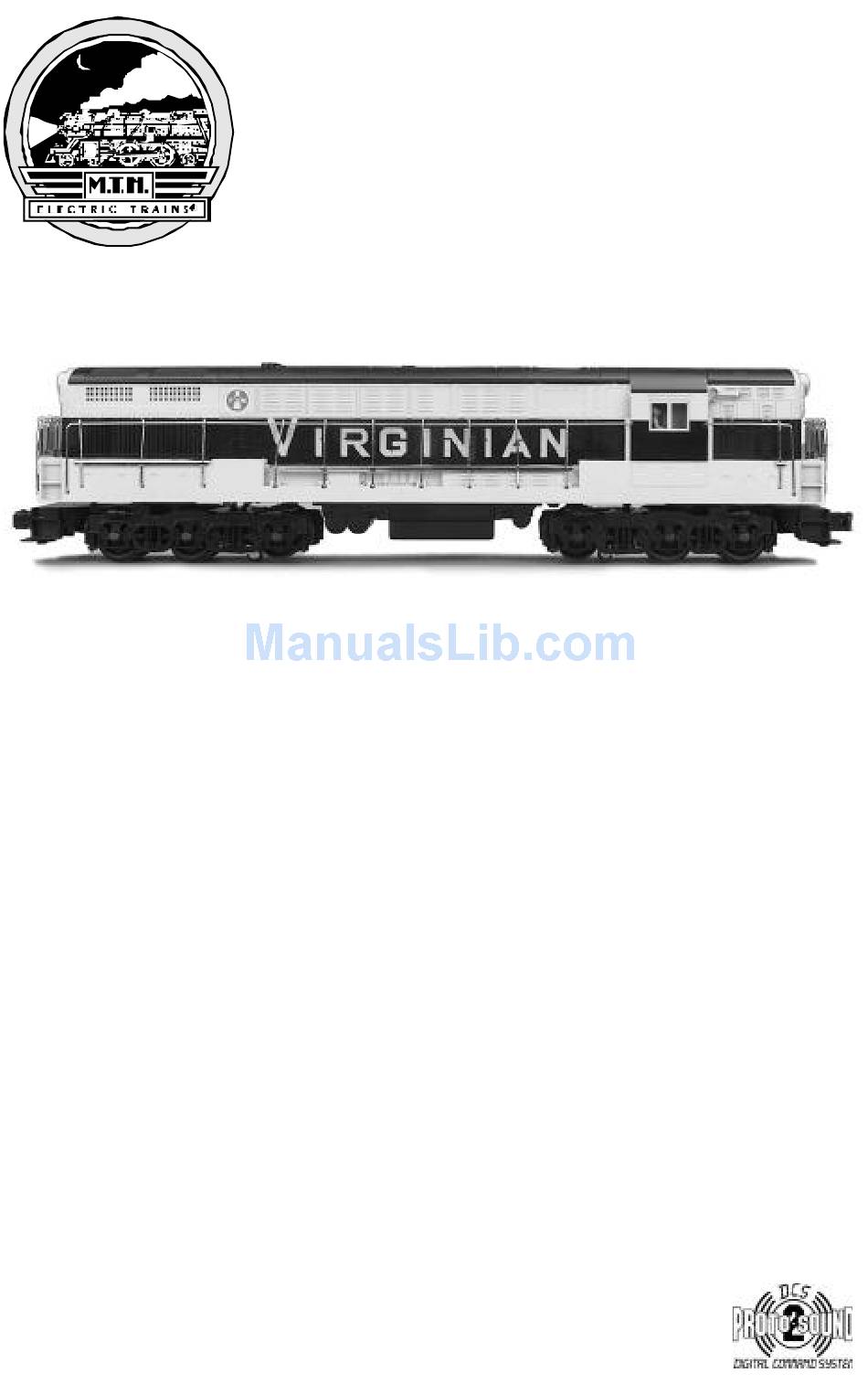

PREMIER
FM TRAINMASTER
OPERATING INSTRUCTIONS
This Premier Trainmaster Diesel engine is of sturdy ABS construction and operates on
any O-31 track system. It contains state-of-the-art electronics with many built-in
automatic features for incredibly realistic operation. Despite these advanced features, the
locomotive is easy to operate with any compatible standard AC transformer that is
equipped with whistle and bell buttons (see the compatibility chart on page 20), and is
compatible with most other 3-rail locomotives, rolling stock, and accessories.
This locomotive is equipped with Proto-Sound 2.0 with Digital Command System
(DCS). This new system will allow you to operate your locomotive in Command mode
(when used with the DCS Remote Control System, sold separately) or Conventional
mode. Conventional operating features are described in the following pages, while the
DCS operating features are covered in the set of operating instructions that
accompanies the DCS equipment. While Conventional Mode operation of this
locomotive is much simpler than operation of original Proto-Sound engines, we
recommend that for your own safety and that of your equipment, please read the
instructions before you operate this engine.
Advertisement
Table of Contents
Related Manuals for M.T.H. PREMIER FM TRAINMASTER
Summary of Contents for M.T.H. PREMIER FM TRAINMASTER
-
Page 1: Operating Instructions
PREMIER FM TRAINMASTER OPERATING INSTRUCTIONS This Premier Trainmaster Diesel engine is of sturdy ABS construction and operates on any O-31 track system. It contains state-of-the-art electronics with many built-in automatic features for incredibly realistic operation. Despite these advanced features, the locomotive is easy to operate with any compatible standard AC transformer that is equipped with whistle and bell buttons (see the compatibility chart on page 20), and is compatible with most other 3-rail locomotives, rolling stock, and accessories. -
Page 2: Table Of Contents
Cleaning the Wheels, Tires and Track Locomotive Traction Tire Replacement Locomotive Light Bulb Replacement Self-Charging Battery Back-Up Troubleshooting Compatibility Transformer Compatibility Chart Additional Features with DCS Remote Control System Safety Precautions Service and Warranty Information Premier FM Trainmaster Operating Instructions... -
Page 3: Set Up
See the “ProtoSmoke Unit Operation” section of this book for more information on smoke unit maintenance. At this point, you are ready to put your engine on the track and begin running Premier FM Trainmaster Operating Instructions... -
Page 4: Basic Operation
(see Fig. 1). Proto-Sound 2.0 Volume Adjustment Knob Figure 1. Proto-Sound 2.0 Volume Adjustment Knob Premier FM Trainmaster Operating Instructions... -
Page 5: Proto-Sound 2.0 Operation
Fire the Front Coupler 1 Bell, 4 Whistles Speed Control On/Off 1 Whistle, 2 Bells (From Neutral Only) Lock into a Direction/Unlock 1 Whistle, 3 Bells Reset to Factory Defaults 1 Whistle, 5 Bells (From Neutral Only) Premier FM Trainmaster Operating Instructions... -
Page 6: Freight Yard Sounds (Fys)
Note: The engine will move based on the current throttle setting. Verify the throttle is set correctly before the engine begins to move. Premier FM Trainmaster Operating Instructions... -
Page 7: Tips On Using Fys
Proto-Sound FYS, you may choose to disable it when used in double-heading operations, so you will not experience competing FYS sounds. To disable FYS in an original Proto-Sound engine, see the operating instructions for that engine. Premier FM Trainmaster Operating Instructions... -
Page 8: Proto-Coupler® Operation
Note: When speed control is turned off, the Proto-Sound 2.0 system will limit the volume in order to operate more smoothly at lower voltages. Full volume is restored upon reactivating speed control. Premier FM Trainmaster Operating Instructions... -
Page 9: Lock Into A Direction State
Squealing Brakes play when the engine’s speed is decreased rapidly. Cab Chatter plays when the engine idles in neutral. Engine Start-up and Shut-down sounds play when the engine is initially powered on or is powered off for five seconds or more. Premier FM Trainmaster Operating Instructions... -
Page 10: Maintenance
After removing the engine from storage, add another 25 drops of fluid, letting the wick soak up the fluid for 15 minutes prior to operation. Premier FM Trainmaster Operating Instructions... - Page 11 Inspection Cover and inspect the wick. If it is darkly Screws discolored and hard, it should be replaced. Replacement wicks are available from the M.T.H. Parts Department. Figure 4. Inspecting the Smoke Unit Premier FM Trainmaster Operating Instructions...
-
Page 12: Lubrication And Greasing Instructions
5. After repeating the procedure for the other motor, reassmble the chassis and body, being careful that the wire harnesses are not caught between the chassis and body and reinstall the chassis screws. Premier FM Trainmaster Operating Instructions... -
Page 13: Locomotive Traction Tire Replacement
If there are visible Phillips screw heads between the truck frame and truck block, go to step A. If not, go to step B. A. Remove the two Phillips screws that attach the truck sides to the truck block. Premier FM Trainmaster Operating Instructions... - Page 14 5. Reassemble in the reverse order. One set of replacement tires is packaged with your model. Additional sets are available directly from the M.T.H. Parts Department. Remove 2 truckside mounting screws Figure 8. Locations of Truckside Mounting Screws Premier FM Trainmaster Operating Instructions...
-
Page 15: Locomotive Light Bulb Replacement
1. Follow the body removal instructions found in the Lubrication and Greasing Instructions. 2. Gently disconnect the bulb harness from the socket on the constant voltage circuit and replace the bulb. Replaceable Lights Figure 9. Location of Lights Premier FM Trainmaster Operating Instructions... -
Page 16: Self-Charging Battery Back-Up
Do NOT use a 6-cell 7.2v battery like those found in most convenience stores. Unhook Wires, Remove and Replace Battery Figure 10. Battery Replacement Instructions Premier FM Trainmaster Operating Instructions... -
Page 17: Troubleshooting
Do NOT uncouple on the fly. use oil. The coupler does not fire or stay The coupler needs to be cleaned. coupled. Wipe with denatured alcohol (not rubbing alcohol) and let dry. Premier FM Trainmaster Operating Instructions... - Page 18 Because there are a limited number of sound clips available in each FYS sequence, it is probable that some of these sound clips will be repeated from time to time. Premier FM Trainmaster Operating Instructions...
-
Page 19: Compatibility
FYS cycle. play or the engine does not come out of FYS after fourth press of the Wait at least 30 seconds in each FYS direction button. sound clip before pressing the direction button. Premier FM Trainmaster Operating Instructions... -
Page 20: Transformer Compatibility Chart
Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW * Conventional Mode Only Premier FM Trainmaster Operating Instructions... -
Page 21: Additional Features With Dcs Remote Control System
Doppler Operation, including setting distance points for Doppler start, repeat, and stop modes. • Independent Volume Control of Engine Sounds, Bell, Horn & Whistle for each Locomotive . • Control up to 50 different DCS-equipped locomotives at one time with multiple TIUs . Premier FM Trainmaster Operating Instructions... - Page 22 Programming Digital Command Operations for up to 250 Accessories and 250 Individual Switches. • User Can Script, Record and Playback Train Routes. Operating instructions for all DCS Command features will accompany the DCS remote control equipment. Premier FM Trainmaster Operating Instructions...
-
Page 23: Safety Precautions
In the event such conditions exist, the transformer should not be used until properly repaired. - As with all electrical appliances, this product should not be left in operation when unattended. Premier FM Trainmaster Operating Instructions... -
Page 24: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
