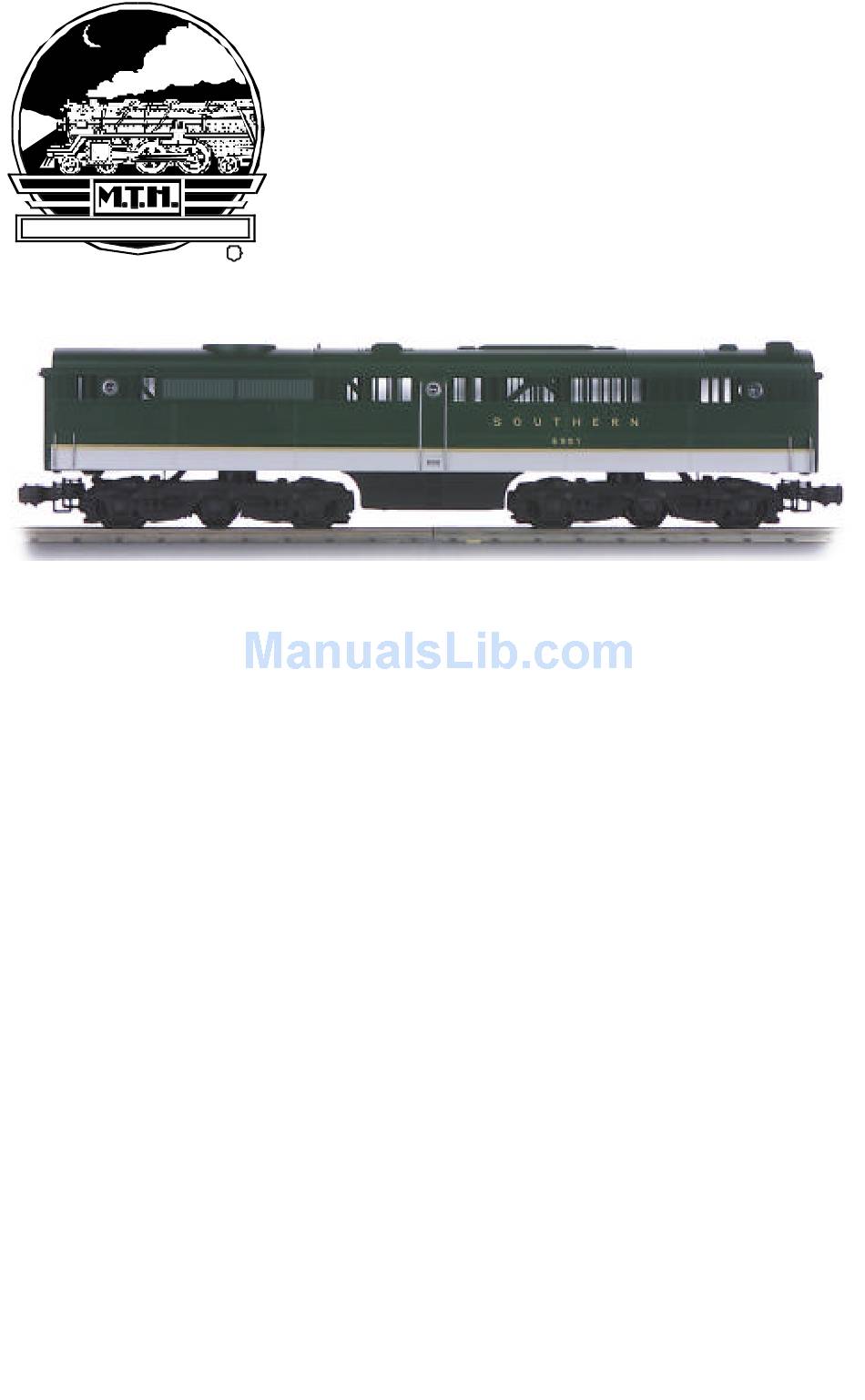

E L E C T R I C
T R A I N S
Thank you for purchasing the MTH Electric Trains PA B-Unit locomotive.
This ¼" scale reproduction of the famous PA B-Unit locomotive measures
over 16 1/2" in length and weighs over 4.5 pounds. Despite its scale size, the
locomotive is capable of operating on O-31 3-rail track with any compatible
AC transformer (see the chart on page 10 for a complete list of compatible
transformers and wiring instructions) and is completely compatible with past
MTH PA AA and ABA diesel sets.
The locomotive is equipped with several deluxe features that are simple and
fun to operate. Each feature is described among the following pages which
should be read before the engine is operated. For those of you who can't wait
to get started, the Quick Start Basic Operating Instructions found on Pages 3
and 4 should be read so that you understand the basics of the operating system.
Notice: This PA B Unit should only be run with engines equipped with
original Proto-Sound from QSI. It will not work with engines equipped
with Proto-Sound 2.0
MTH PA POWERED B-UNIT
OPERATING INSTRUCTIONS
R
Advertisement
Table of Contents
Related Manuals for M.T.H. PA B-Unit
Summary of Contents for M.T.H. PA B-Unit
-
Page 1: Operating Instructions
E L E C T R I C T R A I N S Thank you for purchasing the MTH Electric Trains PA B-Unit locomotive. This ¼” scale reproduction of the famous PA B-Unit locomotive measures over 16 1/2” in length and weighs over 4.5 pounds. Despite its scale size, the... -
Page 2: Table Of Contents
USING YOUR POWERED PA B UNIT WITH PFA/FYS EQUIPPED PA AA OR ABA OIL & LUBRICATION INSTRUCTIONS TRACTION TIRE REPLACEMENT INSTRUCTIONS O-31 OPERATION SMOKE UNIT OPERATION TRANSFORMER WIRING CHART SERVICE AND WARRANTY INFORMATION HOW TO GET SERVICE LIMITED ONE YEAR WARRANTY Premier PA B-Unit Operating Manual... -
Page 3: Quick Start - Basic Operation
Quick Start - Basic Operation The MTH PA B Unit contains state-of-the art electronics with several built-in automatic features for incredibly realistic operation. The PA B-Unit is easy to operate with your existing MTH PA AA or ABA units using any compatible standard AC transformer (see the compatibility chart on page 8). -
Page 4: Equipped Pa Aa Or Aba
Because the ProtoSound® system or DCRU® reverse unit found in your powered MTH PA A unit is not directly connected to the DCRU® unit in your powered PA B-Unit, you must cycle the power on and off slowly to maintain proper synchronization between each powered unit’s reverse unit. -
Page 5: Oil & Lubrication Instructions
Phillips motor mount screw on the bottom of each truck block (See Fig. 4). Once the motor mount screw has been removed, pull the motor away from Grease Idler Gear (G) Grease Idler Gear (G) Figure 3: Greasing The Chassis Trucks Premier PA B-Unit Operating Manual... -
Page 6: Traction Tire Replacement Instructions
We suggest you follow the disassembly instructions found in the Lubrication section on the preceding pages to dissemble the chassis and truck blocks from the body. Body Mount Screws Body Mount Screws Motor Mount Screw Figure 4: Removing The body From The Cahssis Premier PA B-Unit Operating Manual... -
Page 7: O-31 Operation
MTH Electric Trains. O-31 Operation While the MTH PA B-Unit is more than capable of operating on O-31 curves and switches, you may find that certain light freight cars are prone to derailing when being pulled or pushed by the MTH PA through O-31 switches. -
Page 8: Smoke Unit Operation
After removing the engine from storage, add another 25 drops of fluid, letting the wick soak up the fluid for 15 minutes prior to operation. Figure 7. Smoke Unit Inspection Cover Premier PA B-Unit Operating Manual... - Page 9 If it is darkly discolored and hard, it should be replaced. Replacement parts and wick replacement instructions are available directly from the M.T.H. Parts Department (phone: 410-381-2580; e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532). Premier PA B-Unit Operating Manual...
-
Page 10: Transformer Wiring Chart
Transformer Wiring Chart Premier PA B-Unit Operating Manual... - Page 11 Premier PA B-Unit Operating Manual...
-
Page 12: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
