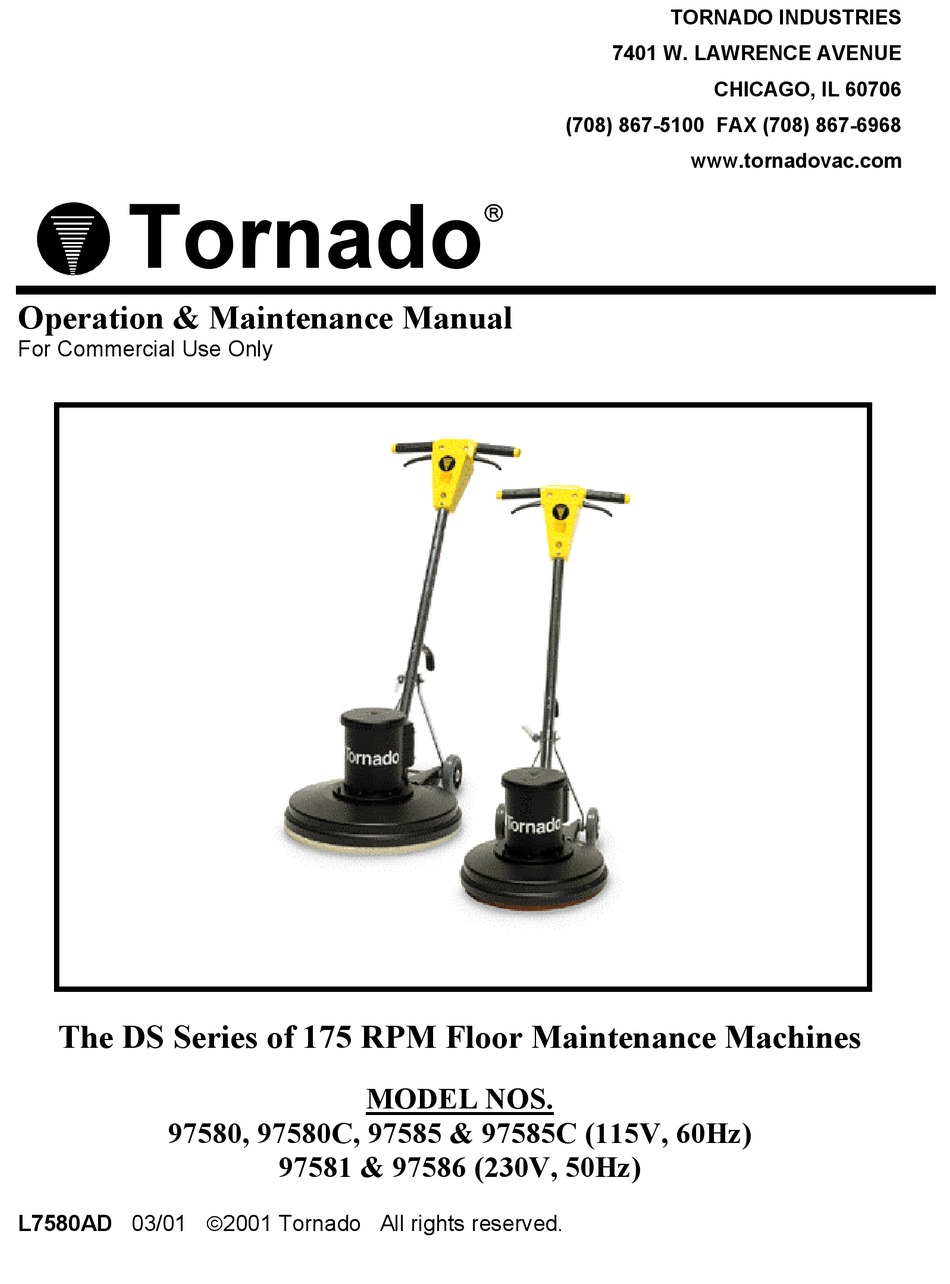

Tornado
Operation & Maintenance Manual
For Commercial Use Only

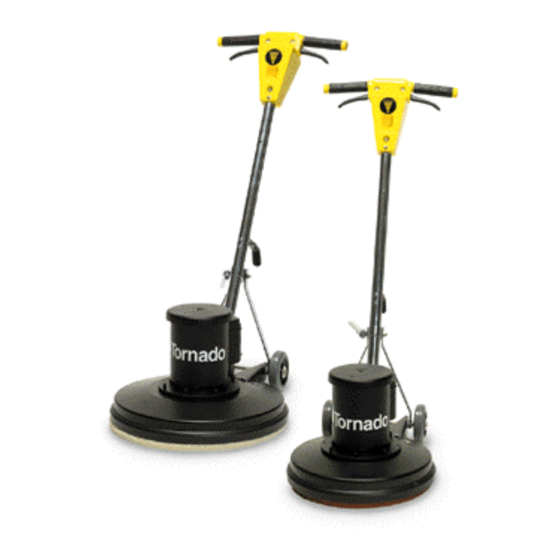

The DS Series of 175 RPM Floor Maintenance Machines
MODEL NOS.
97580, 97580C, 97585 & 97585C (115V, 60Hz)
97581 & 97586 (230V, 50Hz)
L7580AD 03/01 2001 Tornado All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS Series of 175 RPM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tornado DS Series of 175 RPM

Summary of Contents for Tornado DS Series of 175 RPM

  • Page 1 Tornado  Operation & Maintenance Manual For Commercial Use Only The DS Series of 175 RPM Floor Maintenance Machines MODEL NOS. 97580, 97580C, 97585 & 97585C (115V, 60Hz) 97581 & 97586 (230V, 50Hz) L7580AD 03/01 2001 Tornado All rights reserved.
  • Page 2 NOTES...
  • Page 3 This instruction book covers: 97580 97580C 97581 CATALOG NO. SERIES SIZE 17” (43cm) 17” (43cm) 17” (43cm) Steel base Steel base Steel base 1-1/2 1-1/2 1-1/2 HORSE POWER 115V 115V 230V VOLTS AMPS Optional Optional Optional MANUAL SOLUTION TANK CE pending CERTIFICATION 97585 97585C...
  • Page 4 All plastic tanks and rotationally-molded bodies Warranties do not cover 2 Years: components subject to normal wear or abuse and misuse, and Parts on all Tornado and Tornado/Karcher cleaning have other limitations not 1) 2) equipment specified here. For full details ,...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS FOR COMMERCIAL USE WHEN USING AN ELECTRICAL APPLIANCE, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY: Do not leave machine unattended when plugged in. Unplug from outlet when not in use and before changing pads or attempting any maintenance or adjustment.

  • Page 6: Grounding Instructions

    GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 7: Before Operating The Machine

    FAX: 708/867-6968 All information and specifications printed in the manual and parts list are current at the time of printing. However, because of Tornado’s policy of continual product improvement, we reserve the right to make changes at any time without notice.

  • Page 8: General Precautions

    • Do not attempt to repair warranted operation instructions from your safety machines. All repairs must be done by a director or your authorized Tornado qualified and authorized repair center. distributor. Non warranted repairs will be billed back to the owner of the unit.
  • Page 9 Tank is available for all DS Series Floor then lift off. For long life and best results Machines. The 97790 is furnished with always use genuine Tornado accessories. is own Assembly and Operating Instructions. OPERATING THE FLOOR MACHINE •...

  • Page 11: Ds Series 1-1/2 Hp Floor Machines

    MOTOR/GEAR UNIT ASS’Y 1 - ½ HP 115V ( 97580, 97580C, 97585 & 98585C) 31035 MOTOR/GEAR UNIT ASS’Y 1 - ½ HP 230V ( 97581, 97586 ) 30817 DECAL TORNADO W/ LOGO 30836 BASE 20 INCH BLACK 30835 BASE 17 INCH BLACK...

  • Page 12: Handle Assembly

    DS MACHINES EXPLODED VIEW 97580, 97581, 97585 & 97586 HANDLE ASSEMBLY...
  • Page 13 DS SERIES FLOOR MACHINES 97580 & 97585 (115V), 97581 & 97586 (230V) HANDLE ASSEMBLY ITEM NO PART NO DESCRIPTION 00067 NUT-HEX.LOCK(KEPS) 5/16-18 00685 NUT-ACORN 1/4-20(NICKEL) 01477 NUT-FINISHED HEX #10-24 (ZP) 01574 WASHER-LOCK(H/S)1/4" 01589 NUT-FINISHED HEX 5/16-18 (ZP) 01608 RING-HOG 01713 WASHER-LOCK(H/S)#10 03361 SCREW-HEX HD CAP 5/16-18 X 1.00 (ZP)
  • Page 14 DS MACHINES EXPLODED VIEW 97580C & 97585C HANDLE ASSEMBLY...
  • Page 15 DS SERIES FLOOR MACHINES 97580C & 97585C (115V) HANDLE ASSEMBLY ITEM NO PART NO DESCRIPTION 00067 NUT-LOCK 5/16-18 00685 NUT-ACORN 1/4-20 (NICKEL) 01477 NUT-FINISHED HEX #10-24 01574 LOCK WASHER 1/4" 01589 NUT-FINISHED HEX 5/16-18 01608 RING-HOG 01713 WASHER-LOCK (H/S) #10 02958 NUT-HEX LOCK (KEPS) #6-32 03361...
  • Page 16 Common Options and Attachments For the DS Series of Floor Machines Part No. Description 97790 4.5 Gallon Solution Tank 94300 Brush Yoke Only 98619 17” Pad Holder 98118 17” Poly. Scrub Brush 94717 17” Nylon Shampoo Brush 98620 20” Pad Holder 98538 20”...
