ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter

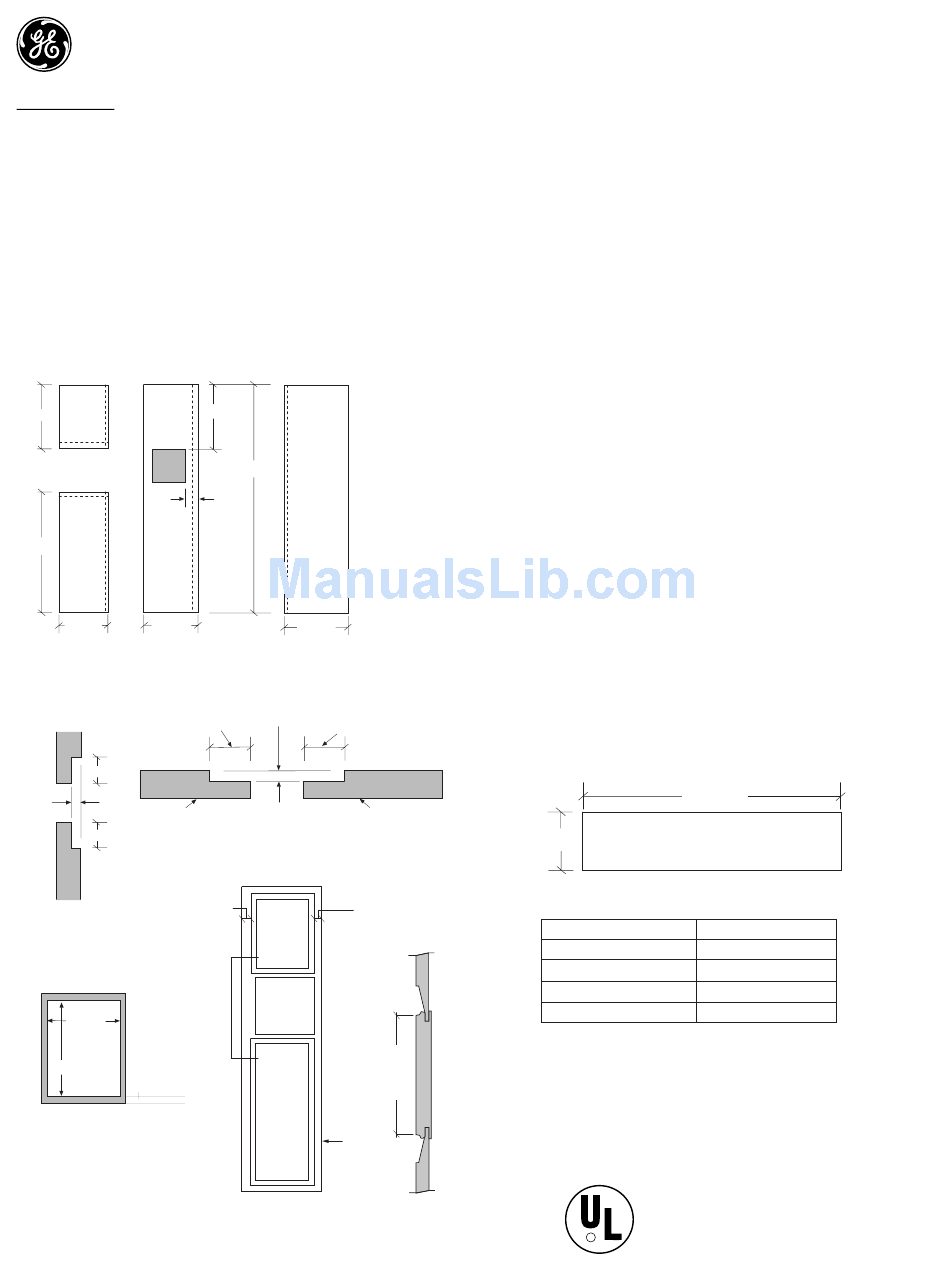

Dimensions and Specifications (in inches)
Custom Door Panel Dimensions When Using Trim Kit
ZKT36 3/4" thick panel with custom handle and/or
ZWCD1 custom collar trim.
Freezer Panel Freezer Panel
Standard Custom
Dispenser Dispenser
16-11/16"
37"
15-5/16" 15-5/16"
Detail A
Rout panels to specification below on
Upper
Freezer
1-13/16"
Panel
1"
3/32"
Freezer Door Face
1"
Panel
Face
Lower
Freezer
Panel
Detail C
Custom Dispenser Cutout
9 7/16"
12 5/16"
7/8" wide rout
The Cutout is 9 7/16" wide
by 12 5/16" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep 7/8" wide.
(shaded area)
Specification Created 12/99
™
Fresh Food
Panel
17-11/16"
67-15/16"
2-9/16"
19-5/16"
Detail B
the handle side of each panel
1-13/16"
1/4"
Fresh Food Door Face
max
Detail D
Raised Panel Design
*3"
*2 3/16" Stile
Stile Right Side
Left
Side
A
Hole is
Cut After
Door
Fabrication
A
Handle
Side
ZKT36 and ZKHT1 installed together provides for the installation of 3/4"
custom door and grille panels, using a custom handle of your choice. Cut
panels to size, rout the handle side of the panels as shown below and
install (see detail B). For ZKHTSS1, tubular stainless steel handle kit, cut
panels to size and rout the handle side of the panels as shown in detail B.
For standard dispenser trim: Cut panels to size, rout the handle side of the
panels as shown in detail B, rout the bottom of the upper freezer panel and
the top of the lower freezer panel to allow placement of support brackets
(see detail A) and install.
For custom dispenser trim ZWCD1 kit must be used: Cut panels to size,
refer to detail C for dispenser cutout routing instructions and install. When
a raised panel design is used, custom width stiles and custom middle rail is
required. A 13-1/2" wide middle rail must be used because the custom
collar trim must be located within the raised portion of the panel. This area
must be 3/4" thick. See Detail D for raised panel.
When using the standard full-width dispenser trim, the length of the custom
handle, top to bottom cannot exceed 11-3/4". Locate the handle a minimum
of 3/4" and a maximum of 1-1/2" from the edge of the panel. There are no
length restrictions on handles for models using a custom collar dispenser
trim (ZWCD1).
A
Grille Panel height can vary to fill installation height.
X
Installation Height
Important: Maintian 1-1/2" minimum gap between
13 1/2"
top of doors and bottom of grille panel.
Wide
Middle
Rail
Section AA
Custom Grille Panel
(not to scale)
35 1/2"
Over 1/4" Thick (3/4" max) Panel
Dimension A
83"
83-1/2"
84"
84-1/2"
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
Listed by
Underwriters
Laboratories
R
8-1/4"
8-3/4"
9-1/4"
9-3/4"
®
™
