Monogram. ™

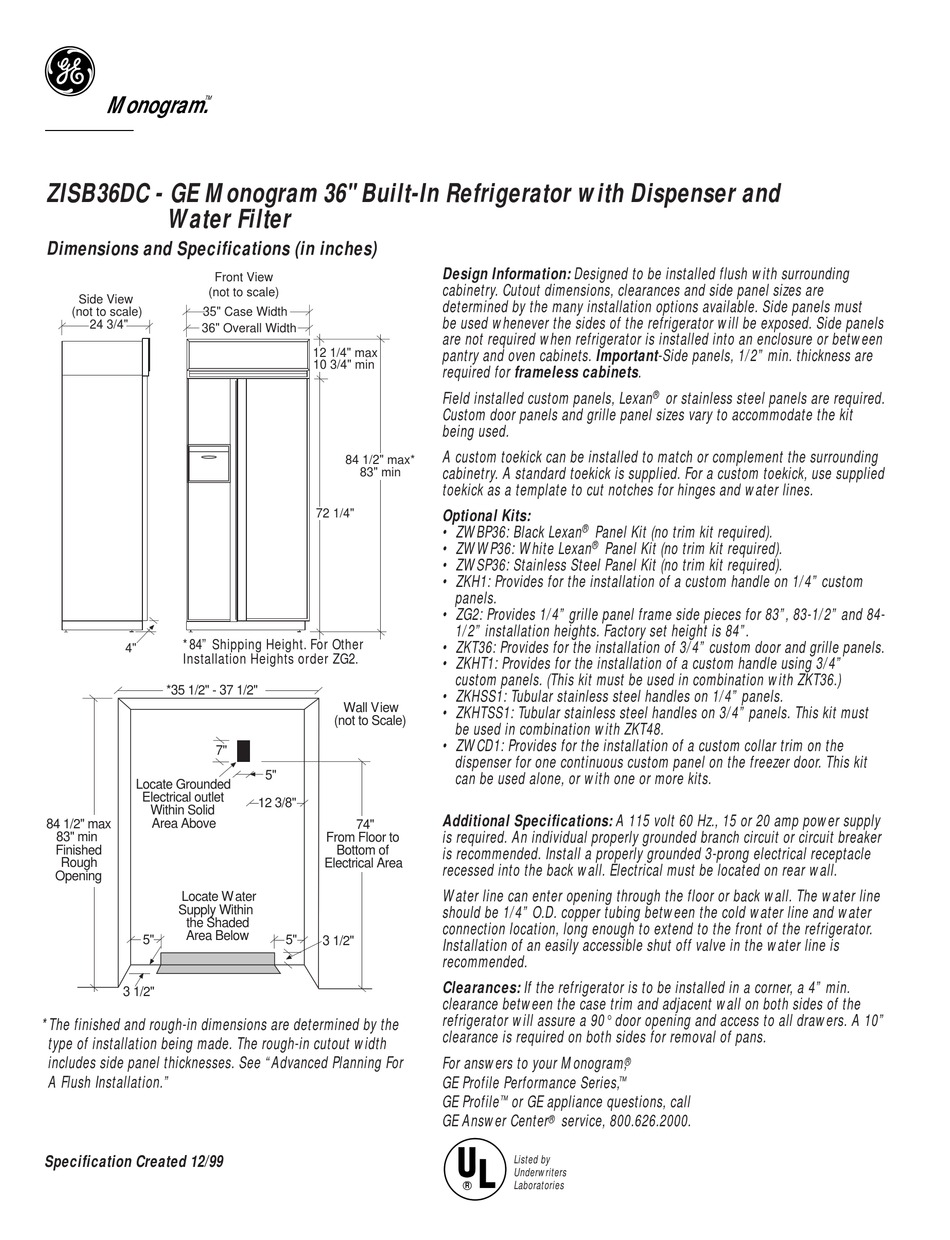

ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Dimensions and Specifications (in inches)
Front View
(not to scale)
Side View
(not to scale) 35" Case Width
24 3/4"
36" Overall Width
*84" Shipping Height. For Other *84" Shipping Height. For 84-1/2"
4"
Installation Heights order ZG2.
Height Installation order ZG2.
*35 1/2" - 37 1/2"
Locate Grounded
Electrical outlet
Within Solid
84 1/2" max Area Above
83" min
Finished
Rough
Opening
Locate W ater
Supply Within
the Shaded
Area Below
5"
3 1/2"
*The finished and rough-in dimensions are determined by the
type of installation being made. The rough-in cutout width
includes side panel thicknesses. See "Advanced Planning For
A Flush Installation."
Specification Created 12/99
12 1/4" max
10 3/4" min
84 1/2" max*
83" min
72 1/4"
Wall View
(not to Scale)
7"
5"
12 3/8"
74"
From Floor to
Bottom of
Electrical Area
5"
3 1/2"
Design Information: Designed to be installed flush with surrounding
cabinetry. Cutout dimensions, clearances and side panel sizes are
determined by the many installation options available. Side panels must
be used whenever the sides of the refrigerator will be exposed. Side panels
are not required when refrigerator is installed into an enclosure or between
pantry and oven cabinets. Important-Side panels, 1/2" min. thickness are
required for frameless cabinets.
Field installed custom panels, Lexan
Custom door panels and grille panel sizes vary to accommodate the kit
being used.
A custom toekick can be installed to match or complement the surrounding
cabinetry. A standard toekick is supplied. For a custom toekick, use supplied
toekick as a template to cut notches for hinges and water lines.
Optional Kits:
®
• ZWBP36: Black Lexan Panel Kit (no trim kit required).
®
• ZWWP36: White Lexan Panel Kit (no trim kit required).
• ZWSP36: Stainless Steel Panel Kit (no trim kit required).
• ZKH1: Provides for the installation of a custom handle on 1/4" custom
panels.
• ZG2: Provides 1/4" grille panel frame side pieces for 83", 83-1/2" and 84-
1/2" installation heights. Factory set height is 84".
• ZKT36: Provides for the installation of 3/4" custom door and grille panels.
• ZKHT1: Provides for the installation of a custom handle using 3/4"
custom panels. (This kit must be used in combination with ZKT36.)
• ZKHSS1: Tubular stainless steel handles on 1/4" panels.
• ZKHTSS1: Tubular stainless steel handles on 3/4" panels. This kit must
be used in combination with ZKT48.
• ZWCD1: Provides for the installation of a custom collar trim on the
dispenser for one continuous custom panel on the freezer door. This kit
can be used alone, or with one or more kits.
Additional Specifications: A 115 volt 60 Hz., 15 or 20 amp power supply
is required. An individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be located on rear wall.
Water line can enter opening through the floor or back wall. The water line
should be 1/4" O.D. copper tubing between the cold water line and water
connection location, long enough to extend to the front of the refrigerator.
Installation of an easily accessible shut off valve in the water line is
recommended.
Clearances: If the refrigerator is to be installed in a corner, a 4" min.
clearance between the case trim and adjacent wall on both sides of the
refrigerator will assure a 90° door opening and access to all drawers. A 10"
clearance is required on both sides for removal of pans.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
Listed by
Underwriters
Laboratories
R
®
or stainless steel panels are required.
®
™
