Monogram ZISW48D Dimension And Installation Manual page 3

36" built-in refrigerator with dispenser and water filter

Advertisement

Monogram.
ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter

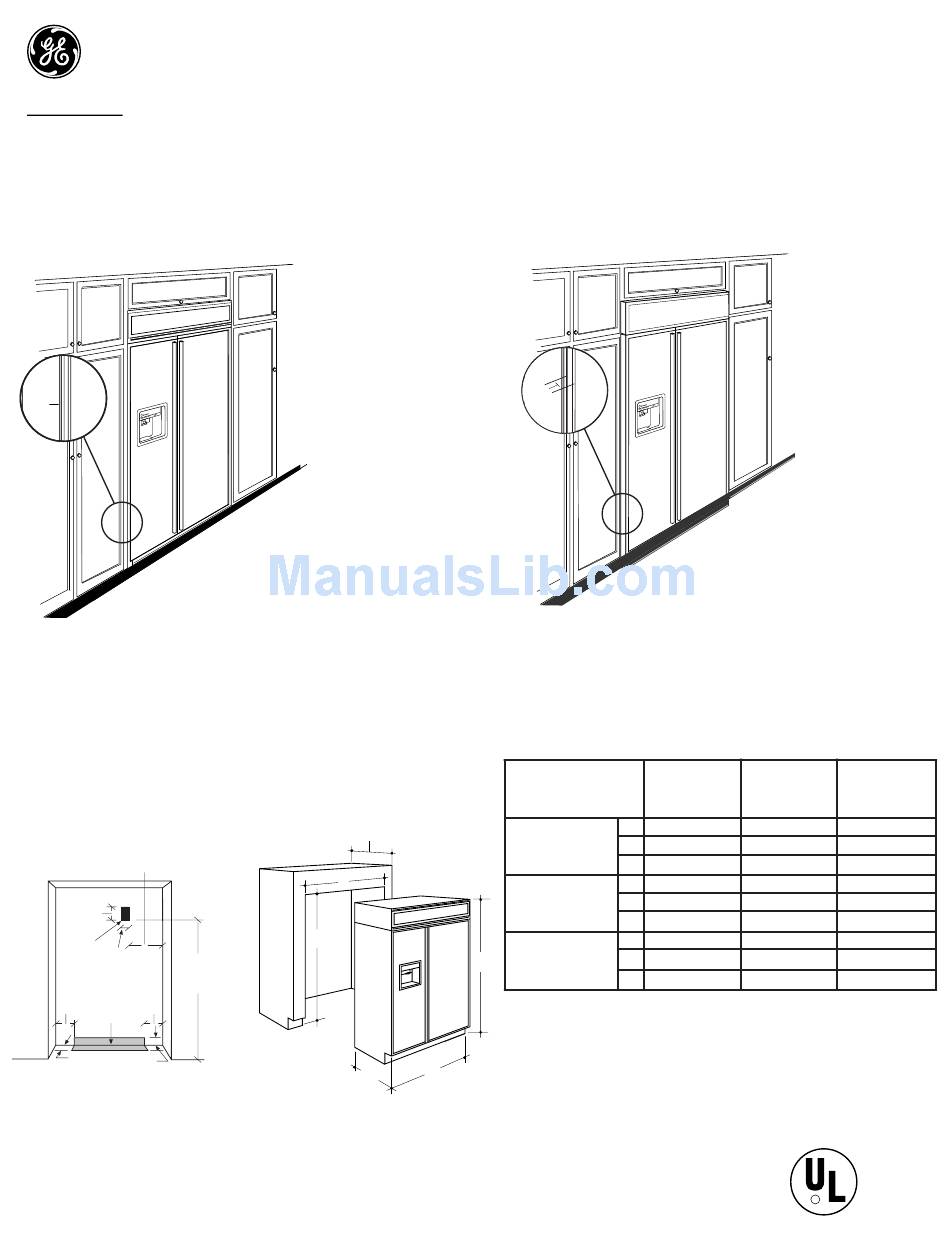

True Flush Installation
0"
Advantage
The flush appearance allows the refrigerator to blend into the
surrounding cabinetry or wall.
The flush fit uses less floor space.
A custom continuous toekick may be used to form an unbroken line
at the base of cabinetry.
Disadvantage
The enclosure must be constructed accurately and perfectly
square, otherwise, gaps between case trim and surrounding
cabinetry will show.
36" Models 12-3/8"
42" Models 18-3/8"
48" Models 20-3/8"
7"
Electrical
5"
Area
74" From Floor
to Bottom
of Electrical
5"
5"
Water Supply
3 1/2"
3 1/2"
See Installation Instructions for Details, Order Pub. No. 49-6964-2
for ZIS36 models, Pub. No. 49-6963-2 for ZIS42 models and Pub.
No. 49-6962-2 for ZIS48 models.
Specification Created 12/99
In a flush installation, the
refrigerator doors will align
evenly with the front-face
of adjacent cabinet doors.
F
E
D
C
Semi-Flush Installation
3/4"
Advantage
If cabinetry or enclosure is not perfectly square, the case
trim will cover the surrounding cabinetry edges.
Disadvantage
The refrigerator will project forward, approximately
3/4" beyond the front face of surrounding cabinetry. The
top grille panel will project forward of upper cabinetry
or soffit.
PRODUCT
DIMENSIONS
FINISHED
FLUSH
ENCLOSURE
FINISHED
SEMI-FLUSH
A
ENCLOSURE
*Factory set installation height is 84". Height adjustments are
accomplished with optional grille panel frame kits.
Order ZG2 grille panel kit for all ZIS models.
Side panels are not required when installing into an enclosure.
B
Side panels are required whenever the sides of the refrigerator are
exposed. If side panels are used, add side panel thickness to
calculate finished cutout width.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile
or GE appliance questions, call
GE Answer Center
semi-flush into an enclosure
using the minimum cutout
width. The case trim provides
a frame around the refrigerator.
ZISW48D
ZISW42D
ZISB48D
ZISB42D
ZIS48N
ZIS42N
A*
83"
83"
B
48"
42"
C
24-3/4"
24-3/4"
D*
84"
84"
E
48" Min.
42" Min.
F
24-3/4" Min.
24-3/4" Min.
D*
84"
84"
E
47-1/2" Min.
41-1/2" Min.
F
24" Min.
24" Min.
®
®
service, 800.626.2000.
These refrigerators
can also be installed
ZISW36D
ZISB36D
ZIS36N
83"
36"
24-3/4"
84"
36" Min.
24-3/4" Min.
84"
35-1/2" Min.
24" Min.
Listed by
Underwriters
Laboratories
R
