Monogram ZISW48D Dimension And Installation Manual

Monogram. ™

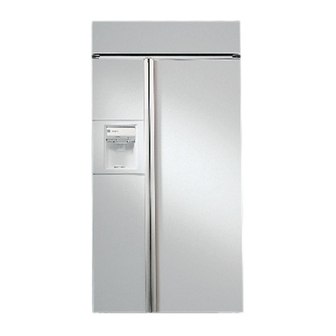

ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Design Information

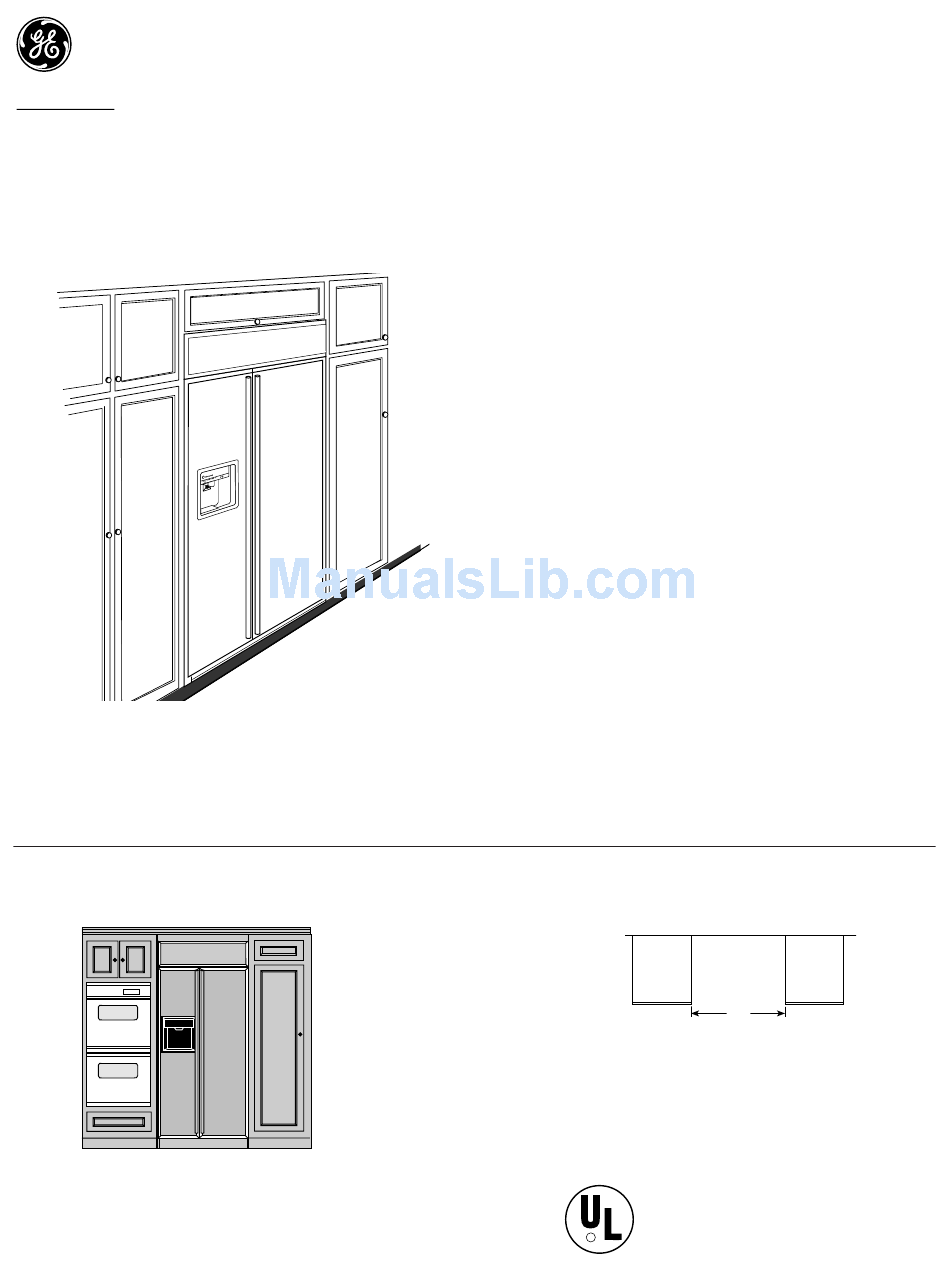

Advanced Planning for a Flush Installation
Monogram built-in refrigerators are designed to be
installed with typical 24-3/4" deep cabinetry.
In a flush installation, the refrigerator doors will align
evenly with the front face of adjacent cabinets.
Installation Between Wall Oven and Pantry Cabinet
Specification Created 12/99
Side Panels Requirements:
• Side panels are not required whenever the refrigerator
is installed into an enclosure or between pantry and
oven cabinets.
• Side panels are required whenever the sides of the
refrigerator are exposed.
• Side panel sizes vary depending on type of installation
being made.
For a flush installation, you must:
1. Determine the need for side panels.
2. Determine side panel thickness.
3. Order matching side panels from the cabinet
manufacturer. Be sure to provide the exact dimensions.
The following cutout dimensions examples will provide a flush fit. If
you have a unique installation situation (other than those illustrated
here), see Product Dimensions to calculate the rough-in dimensions.
Side panels are not required
whenever the refrigerator
is installed into an enclosure or
between pantry and oven
cabinets.
The minimum cutout for a
custom enclosure should be:
84"Hx36"Wx24-3/4"D
36"
Finished Dimension
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
