ZISB36DC - GE Monogram 36" Built-In Refrigerator with Dispenser and
Water Filter
Dimensions and Specifications (in inches)

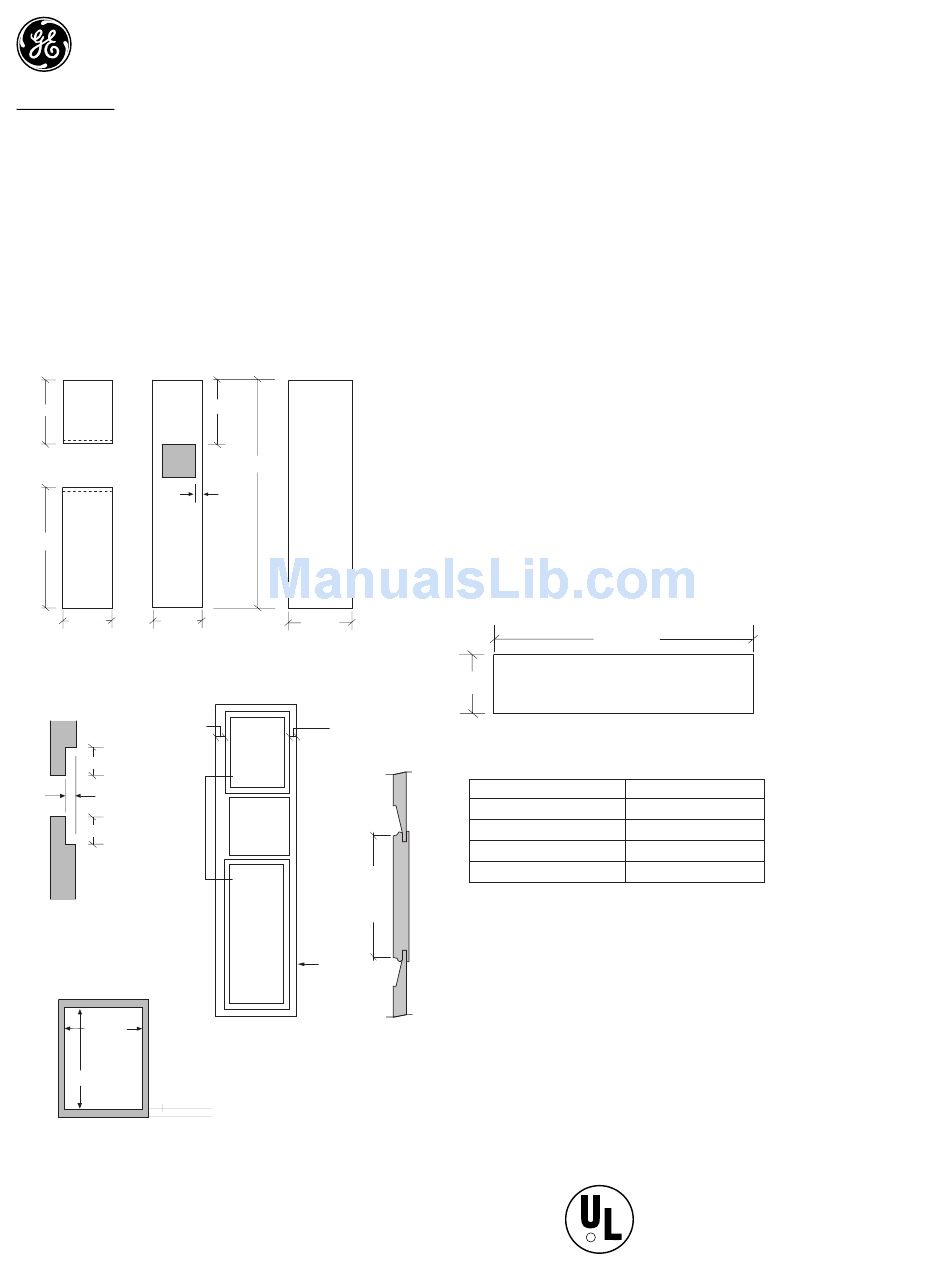

Custom Door Panel Dimensions When Using Trim Kit
ZKT36, 3/4" thick panel with standard handle and/or ZWCD1
custom collar trim (not to scale)
Freezer Panel Freezer Panel
Standard Custom
Dispenser Dispenser
16-11/16"
37"
15-1/16" 15-1/16"
Detail A
Upper
Freezer
Panel
Stile
Left
1"
Side
3/32"
1"
Panel
Face
Lower
Freezer
Panel
Detail B
Custom Dispenser Cutout
9 7/16"
12 5/16"
7/8" wide rout
The Cutout is 9 7/16" wide
by 12 5/16" high. 3/4" panels
must be routed on all four
sides of the cutout. Rout
the back side of the panel
1/4" deep 7/8" wide.
(shaded area)
Specification Created 12/99
™
Fresh Food
Panel
17-11/16"
67-15/16"
2-5/16"
19-1/16"
Detail C
Raised Panel Design
*3"
*2 3/16" Stile
Right Side
A
Hole is
Cut After
Door
Fabrication
13 1/2"
A
Wide
Middle
Rail
Handle
Side
Section AA
The ZKT36 trim kit provides for the installation of 3/4" custom door and
grille panels, using the standard full-length handle. Cut panels to size and
install.
For standard dispenser trim: Cut panels to size, rout the bottom of the upper
freezer panel and the top of the lower freezer panel to allow placement of
support brackets and install (see detail A).
For custom dispenser trim ZWCD1 kit must be used: Cut panels to size,
refer to detail B for dispenser cutout routing instructions and install. When
a raised panel design is used, custom width stiles and custom middle rail
is required. A 13-1/2" wide middle rail must be used because the custom
collar trim must be located within the raised portion of the panel. This area
must be 3/4" thick. See Detail C for raised panel.
Custom Grille Panel
(not to scale)
35 1/2"
A
Over 1/4" Thick (3/4" max) Panel
Grille Panel height can vary to fill installation height.
X
Installation Height
83"
83-1/2"
84"
84-1/2"
Important: Maintain 1-1/2" minimum gap between
top of doors and bottom of grille panel.
