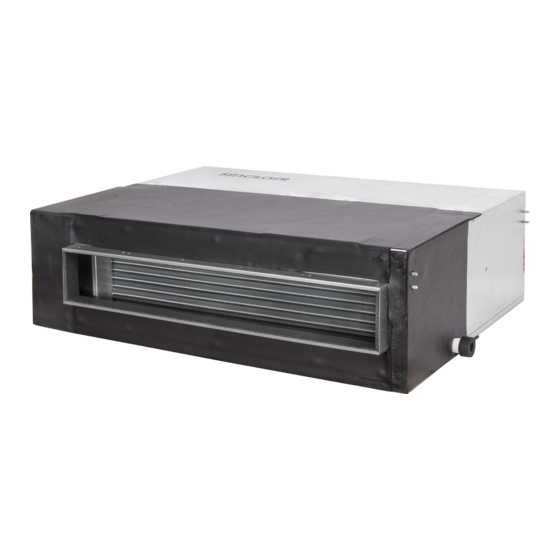

- Page 1 USER'S MANUAL UNI DC INVERTER DUCT ASD-18AIA, ASD-24AIA, ASD-36AIA, ASD-42AIA ASGE-18AIA WK, ASGE-24AIA WK, ASGE-36AIA WK ASGE- 36 AIA-3 WK, ASGE-42AIA-3 WK...
-
Page 2: User Notice
User Notice ● Ensure unified power supply for each indoor unit. ● Never install wired controller in wet place or under sunlight directly. ● Shielding twisted pair line must be adopted as signal line or wiring (communication) of wired controller once the unit is installed in the place where there is electromagnetic interference. -
Page 3: Table Of Contents
CONTENT Safety Considerations ..................... 1 1. Displaying Part ....................3 1.1 LCD Display of Wired Controller ................3 1.2 Instruction to LCD Display ..................4 2. Buttons ........................ 5 2.1 Silk Screen of Buttons ....................5 2.2 Instruction to Function of Buttons ................5 3. - Page 4 5. Error Display ......................23 6.Remote Control Operation Procedure(standard fitting) ..........26 7. Unit Function ......................31 7.1 Setting of Double Indoor Room Sensors ..............31 7.2 Checking of Outdoor Ambient Temperature ............... 31 7.3 Fresh Air Control ......................32 8. Installation Instructions ..................33 8.1 Instructions of Unit Installation ..................
-
Page 5: Safety Considerations
DC Inverter Duct Type Air Conditioner Installation and Operation Manual Safety Considerations Please read this manual carefully before use and operate correctly as instructed in the manual. You are specially warned to note the two symbols below: A symbol indicating that improper operation might cause human death or severe injury; A symbol indicating that improper operation might cause human property damage. - Page 6 DC Inverter Duct Type Air Conditioner Installation and Operation Manual ● The appliance shall be installed in accordance with national wiring regulations. ● The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
-
Page 7: Displaying Part
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 1. Displaying Part Fig. 1 Outline of wired controller 1.1 LCD Display of Wired Controller Fig.2 LCD display... -
Page 8: Instruction To Lcd Display
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 1.2 Instruction to LCD Display Table 1 Instruction to LCD Display Description Instruction to Displaying Contents Swing ＊ Swing function Air exchange function Sleep Sleeping states Each kind of running mode of in Each kind of running mode of indoor Running mode unit (auto mode) Cooling... -
Page 9: Buttons
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 2. Buttons 2.1 Silk Screen of Buttons Fig.3 Silk Screen of Buttons 2.2 Instruction to Function of Buttons Table 2 Instruction to Function of Buttons Description Function of Button ① Function selection and canceling; Enter/Cancel ②... -
Page 10: Installation Of Wired Controller
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 3. Installation of Wired Controller Fig.4 Sketch for Installation of Wired Controller Socket’s base box Soleplate of Front panel of × × Description Screw M4 Screw ST2.2 installed in the wall controller controller Fig.4: Sketch for Installation of Wired Controller. -
Page 11: Instruction To Operation
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 4. Instruction to Operation 4.1 On/Off Press On/Off button to turn on the unit. Repress this button to turn off the unit. Note: The state shown in Fig.5 indicates off-state of the unit after energization. The state shown in Fig.5 indicates on-state of the unit after energization. -
Page 12: Temperature Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 4.3 Temperature Setting Press ▲ or ▼button to increase or decrease of setting temperature under on-state of the unit. If press either of them continuously, temperature will be increased or decreased by 1°C every 0.5s. In Cooling, Dry, Fan and Heating mode, temperature setting range is 16°C~30°C. - Page 13 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Fig.10 Swing control function setting...
-
Page 14: Timer Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 4.6 Timer Setting Press Timer button to set timer off of the unit. Under off-state of the unit, press Timer button to set timer on of the unit in the same way. Timer on setting: Under off-state of the unit without timer setting, if Timer button is pressed, LCD will display xx. -
Page 15: Air Exchange Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual Continued Fig.11 Timer setting under on state of the unit Timer range: 0.5-24hr. Every press of▲ or ▼ button will make setting time increased or decreased by 0.5hr. If press either of them continuously, setting time will automatically increase/ decrease by 0.5hr every 0.5s. Note: 1. - Page 16 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Fig.12 Air exchange device Note:In air exchange mode, press Function button or there is not any operation within 5s after the last button operation, the system will be quit from air exchange setting and current energy-saving data won’t be memorized.
-
Page 17: Sleep Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 4.8 Sleep Setting Sleep on: Press Function button under on-state of the unit into sleep function and then press Enter/Cancel button to turn on sleeping function. Sleep off: During sleep on-state, press Function button to go to the sleep function and then press Enter/ Cancel button to turn off this function. -
Page 18: Turbo Function Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual Sleep setting is clear after power failure and then power recovery. There is not sleep function in fan and auto mode. Note: In cooling and dry mode, if the unit with sleep function has run for 1 hour, the preset temperature will be increased by 1°C and 1°C in another 1 hour. -
Page 19: Save Function Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual (continued) Fig.14 Turbo Function Setting Note: TURBO function will be turned off after power failure and then recovery. In dry, fan and auto mode, TURBO function can not be set and TURBO mark won’t be displayed. TURBO function will be automatically canceled after setting of quiet function. - Page 20 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Fig.15 Energy Saving Setting...
-
Page 21: E-Heater Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual Note: 1. In Auto running mode with save function on, the unit will be forcibly quit Auto running Mode and change to current operation mode, After setting of save, sleep function will be canceled. 2. -
Page 22: Blow Function Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual (continued) Fig.16 Auxiliary Electric Heating Function Setting Note: E-HEATER can not be set in cooling, dry and fan mode, E-HEATER mark won’t be displayed. The setting is shown in Fig.16. 4.12 Blow Function Setting BLOW function: After the unit is turned off, water in evaporator of indoor unit will be automatically evaporated to avoid mildew. - Page 23 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Fig.17 Blow function setting...
-
Page 24: Quiet Function Setting
DC Inverter Duct Type Air Conditioner Installation and Operation Manual Note: After setting BLOW function, turn off the unit by pressing On/Off button on remote controller, indoor fan will run at low fan speed for 10 min. (BLOW shows).Meanwhile, if BLOW function is canceled indoor fan will be turned off directly. -
Page 25: Field Functions
DC Inverter Duct Type Air Conditioner Installation and Operation Manual (continued) Fig.18 Quiet function setting Note: 1. During quiet function, fan speed is un-adjustable. 2. When turning on auto quiet function, the unit will enter quiet running state according to temperature difference between room temperature and setting temperature. -
Page 26: Other Functions
DC Inverter Duct Type Air Conditioner Installation and Operation Manual medium grades. Press Enter/Cancel button to save the setting and quit after setting. If there is not any operation within 20s after the system responds to the last button operation in this interface, the system will quit this menu and display normal off-state;... -
Page 27: Error Display
DC Inverter Duct Type Air Conditioner Installation and Operation Manual Note: 1. During long-distance monitoring, the unit on /off cannot be controlled by the card, but the mark will also show after plugging in the card. 2. The unit cannot be controlled by button operation after plugging out the card. 5. - Page 28 DC Inverter Duct Type Air Conditioner Installation and Operation Manual The LED Indicator Display on the Main Board of Outdoor Unit (09K/12K) This table is applicable to the electric control box of the 09K and 12K C Series DC inverter air conditioners. Some of the items are not malfunction;...
- Page 29 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Definition of Malfunction Codes of DC Inverter General Outdoor Unit (V1.6) This table is applicable to the electric control box of the other models of C-Series DC inverter air conditioners. Outdoor unit display of dual 8 Malfunction Item Indoor Unit Display...
-
Page 30: Remote Control Operation Procedure(Standard Fitting)
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 6.Remote Control Operation Procedure(standard fitting) Names and Functions of Remote Controller Keys Precautions: ● This remote controller is a general-purpose remote controller, which can be used in various types (functions) air conditioner. The keys not applicable to this air conditioner are not explained here. ●... - Page 31 DC Inverter Duct Type Air Conditioner Installation and Operation Manual ① Cooling Mode Operation Connect the unit to power supply. Press the “ON/OFF” key. Press the “MODE” key to select “Cooling” mode. Use the “Temperature” key to adjust the set temperature for the room. Refer to Fig.21. ② Heating Mode Operation Connect the unit to power supply.
- Page 32 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Fig. 22 Heating Mode Operation Fig.23 Dehumidifying Mode Operation...
- Page 33 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Fig.24 Fan Mode Operation ③ DRY (Dehumidifying) Mode Operations Connect the unit to power supply. Press the “ON/OFF” key. Press the “MODE” key to select “DRY (Dehumidifying)” mode. Use the “Temperature” key to adjust the set temperature for the room. Refer to Fig.23. ④ Fan Mode Operation Connect the unit to power supply.
- Page 34 DC Inverter Duct Type Air Conditioner Installation and Operation Manual OPEN Fig.25 Replacing Batteries for Remote ⑤ Loading Batteries Into Remote Controller Refer to Fig.25 for the methods and steps of installing batteries into the remote controller.
-
Page 35: Unit Function
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 7. Unit Function 7.1 Setting of Double Indoor Room Sensors This series of ducted air-conditioning unit has two indoor room sensors. One is located at the air intake of the indoor unit and the other one is located inside the wire controller. User can select one from the two indoor room sensors on the basis of the engineering requirement. -
Page 36: Fresh Air Control
(Refer to the section of wire controller instructions for detailed operation.). Fig.28 The head of delivery of the condensate drainage pump can reach 1.1m, so that the engineering installation is very convenient and prompt. ASD-18AIA, ASD-24AIA Fig.29... -
Page 37: Installation Instructions
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 8. Installation Instructions 8.1 Instructions of Unit Installation 8.1.1 Profile Dimensions of Indoor Unit ASD-18AIA Fig.30 ASD-24AIA ASD-36AIA ASD-42AIA Fig.31... - Page 38 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Table 6 Unit: mm Item Model ASD-18AIA 1101 1159 1270 1002 ASD-24AIA ASD-36AIA 1011 1115 1226 ASD-42AIA Item Connecting Pipe (inch) Drainage pipe(Outer Diameter × wall thickness) (mm) Liquid Model φ30×1.5 (with Optional Pump:φ26×3)
- Page 39 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Dimension Requirement of the Installation Space of Indoor Unit. ASD-18AIA Fig.33 ASD-24AIA ASD-36AIA ASD-42AIA Fig.34...
- Page 40 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Warning:The height of installation for the indoor unit should be 2.5m above. 8.1.2 Profile dimensions of outdoor unit Fig. 36 Table 7 Unit: mm Item Model ASGE-18AIA WK ASGE-24AIA WK ASGE-36AIA WK 1107 1100...
-
Page 41: Installation Of Indoor Unit
DC Inverter Duct Type Air Conditioner Installation and Operation Manual 2. The installation site must have good ventilation, so that the outdoor unit can take in and exhaust enough air. Ensure that there is no obstacle for the air intake and exhaust of the outdoor unit. If there is any obstacle blocking the air intake or exhaust, remove it. - Page 42 DC Inverter Duct Type Air Conditioner Installation and Operation Manual wire controller, indoor unit and outdoor unit) must be ready before the installation, so as to achieve smooth installation. 2. Drill an opening on the ceiling. Maybe it is required to support the ceiling to ensure the evenness of it and avoid the vibration of it.
- Page 43 DC Inverter Duct Type Air Conditioner Installation and Operation Manual he edge of the air intake pipe must be at least 150mm away from the wall. The air intake must be covered with filter. Silencing and shock absorption shall be considered in the design and installation of the air pipes. Additionally, the noise source must be far away from where people stay.
- Page 44 Indoor Unit and (For Extra Length of Model Liquid Outdoor Unit Pipe) 30g/m ASD-18AIA, ASGE-18AIA WK ASD-24AIA, ASGE-24AIA WK ASD-36AIA, ASGE-36AIA WK 60 g/m ASD-36AIA, ASGE-36AIA-3 WK ASD-42AIA, ASGE-42AIA-3 WK Note: 1. The standard pipe length is 5m. When the length (L) of the connecting pipe is less than or equals 7m, there is no need to add refrigerant.
- Page 45 DC Inverter Duct Type Air Conditioner Installation and Operation Manual 8.2.9 Connection of Pipeline 1. Align the flared end of the copper pipe with the center of the thread joint. Manually tighten the flared end nut. 2. Use torque spanner to tighten the flared end nut until the spanner clatters (Fig.44). Fig.44 The following table describes the torques for tightening nuts of different pipe diameters.
- Page 46 DC Inverter Duct Type Air Conditioner Installation and Operation Manual 2. Gap Leakage Check Check if it leaks or not by applying soapsuds on every joint and then inspect carefully. After the check, wipe them off completely. Cover the indoor unit joint with pipe insulation and four plastic bands to prevent condensing at joints.
- Page 47 DC Inverter Duct Type Air Conditioner Installation and Operation Manual ② Use thermal insulation tape to wrap the pipes from the bottom of the outdoor unit until the upper end of the pipe where the pipe enters the wall. When wrapping thermal insulation tape, the later circle of tape must cover half of the front circle of tape (Refer to Fig.50).
-
Page 48: Electrical Installation
DC Inverter Duct Type Air Conditioner Installation and Operation Manual Cautions: 1. The communication distance between the main board and the wire controller is 8 meters. 2. The wire controller shall not be installed in a place where there is water drop or large amount of water vapor. - Page 49 DC Inverter Duct Type Air Conditioner Installation and Operation Manual 2. Air-conditioning unit with 3-phase power supply ① Remove the front-side panel of the outdoor unit. ② Attach rubber ring to the cable-cross hole of the outdoor unit. ③ Pass the cable through rubber ring. ④ Connect the power cable to the terminal marked “L1,L2,L3 &...
- Page 50 DC Inverter Duct Type Air Conditioner Installation and Operation Manual ASGE-18AIA WK+ASD-18AIA ASGE-24AIA WK+ASD-24AIA ① Power cord 3×4.0 mm (H07RN-F) ② Power cord 3×1.0 mm (H05VV-F) ③ Communication Cords ASGE-36AIA-3 WK+ASD-36AIA ASGE-42AIA-3 WK+ASD-42AIA ① Power cord 5×2.5 mm (H07RN-F) ② Power cord 3×1.0 mm (H05VV-F) ③...
- Page 51 Table.10 Capability of Air Minimum Sectional Area Power Model Switch(A) Of Earth Wire (mm Supply (Outdoor/Indoor) (Outdoor/Indoor) 20/6 4.0/1.0 ASGE-18AIA WK ASD-18AIA ASD-24AIA 20/6 4.0/1.0 ASGE-24AIA WK 220-240V ～ 50Hz ASD-36AIA 25/6 4.0/1.0 ASGE-36AIA WK ASD-36AIA 16/6 2.5/1.0 ASGE-36AIA-3 WK 380-415V 3N ～...
- Page 52 DC Inverter Duct Type Air Conditioner Installation and Operation Manual Table 11 Rated Parameters and Outline Dimensions of the Fuse Unit Code Rated parameter Dimensions 46010023 250V/30A ASGE-18AIA WK ASGE-24AIA WK 46010023 250V/30A ASGE-36AIA WK 46010023 250V/30A 46010014 250V/3.15A ASGE-36AIA-3 WK 46010014 250V/3.15A ASGE-42AIA-3 WK...
-
Page 53: Troubleshooting And Maintenance
After carrying out the check of the above items and taking relevant measures to solve the problems found but the air-conditioning unit still does not function well, please stop the operation of the unit immediately and contact the local service agency designated by Sinclair. Only ask professional serviceman to check and repair the unit. - Page 54 DC Inverter Duct Type Air Conditioner Installation and Operation Manual ① Check the air inlet and outlet of the indoor and outdoor units to confirm there is no blockage. ② Check to see if the grounding wire is in good condition ;( Operating by the professional) ③ Check to see if the line connection is in good condition ;( Operating by the professional) ④ Check if there is any word displaying on the LCD of the wire controller after connecting the unit to power supply.
