INSTRUCTION MANUAL
MT-175N
136-174 MHz VHF FM / 16CH / 5W
PROFESSIONAL 2-WAY RADIO
PC PROGRAMMABLE
MT-465N
420-470 MHz UHF FM / 16CH / 4W
PROFESSIONAL 2-WAY RADIO
PC PROGRAMMABLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT-465N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intek MT-465N

Summary of Contents for Intek MT-465N

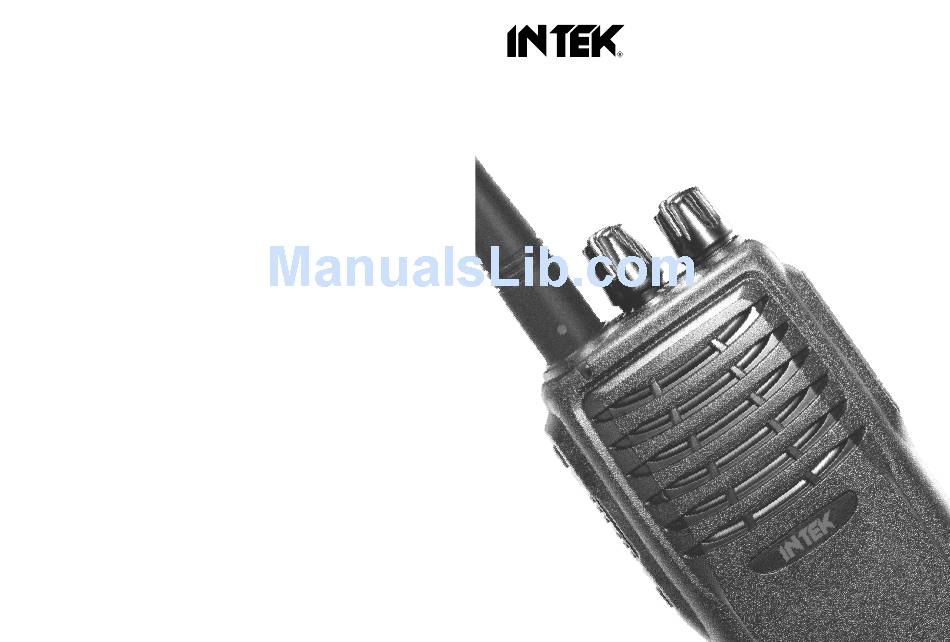

  • Page 1 MT-175N 136-174 MHz VHF FM / 16CH / 5W PROFESSIONAL 2-WAY RADIO PC PROGRAMMABLE MT-465N 420-470 MHz UHF FM / 16CH / 4W PROFESSIONAL 2-WAY RADIO PC PROGRAMMABLE INSTRUCTION MANUAL...
  • Page 2 INTEK two-way radio can meet your demands for reliable communication. Precautions in Use...

  • Page 3: Table Of Contents

    QT/DQT..................16 to use the product. INTEK S.R.L. declines any responsibility concerning any modification of the User Solution..................16 product, made by the user or by a third party, after delivery of the product.

  • Page 4: Notice

    PREPARATION UNPACKING AND CHECKING EQUIPMENT CHARGING THE BATTERY PACK Carefully unpack the radio. We recommend that you identify the items listed in the following table before discarding the Plug the power adapter into the proper AC wall packing material. If any damage has occurred during shipment, outlet;...

  • Page 5: Notice

    INSTALLING THE ANTENNA - Do not recharge the battery if it has been fully charged or the battery power doesn't become low, otherwise it might affect the battery life or performance. Remove the battery from the charger after charging. Screw the antenna into the connector at - The built-in protection circuit in the battery will cut off power when the top of the radio by holding the power appears low.

  • Page 6: Radio Overview

    Radio Overview 5. Side Button 1 (Programmable Button) 6. Side Button 2 (Programmable Button) 7. Top Button (Programmable Button) 8. Speaker/Microphone Jacks Used to connect the optional speaker/microphone. BASIC OPERATION Switch On S w i t c h o n t h e r a d i o b y t u r n i n g t h e Power/Volume switch clockwise till a click is heard, then the radio will be in the state of 1.

  • Page 7: Programmable Button Function

    Adjustable Squelch Scan Make a Call Scrambler To make a call, select the desired channel, press Scrambler Backup and hold the PTT button, and speak in normal Cancel Squelch voice. Please keep your mouth 3~8 cm away from Instantaneously Cancel Squelch the microphone.
  • Page 8 level. Press once to increase one level (cycle of 9-0; when at level Individual Working Press the side button set as "Individual Working" to enter 0 a beep sounds and squelch is activated) and store the change. individual working mode, which ensures the user's security when the radio is in individual working.
  • Page 9 When pressing PTT button during the scanning pause, the radio will transmit from the currently working channel Scrambler Backup 5) Last called Press the button set as "Scrambler Backup" to prevent the third party When pressing PTT button, the radio will transmit from the last from hearing clear what you are talking;...

  • Page 10: Wired Cloning Mode

    Wired Cloning Mode Battery Power Indication When you press the button set as "Battery Power Indication", If the wired cloning mode has been set, the radio won't exit indication tone "1", "2" , "3"or "4" sounds to indicate the current automatically after it entering the wired cloning mode.

  • Page 11: Auxiliary Functions

    Auxiliary Functions Battery Save Types: 1:1, 1:2, 1:4 and OFF. Battery save function can decrease the battery power consumption. TOT (Time-out Timer) 1) TOT (Time-out Timer) Low Power Warning a) Time-out timer is to prevent any caller from occupying one Low power warning tone sounds and LED flashes red when the certain channel and radio transmitting overlong.

  • Page 12: Busy Channel Lockout (Bcl)

    SP Un-mute a) An encoding template consists of at least one and at most 3 The dealer can the conditions to activate the speaker. There are 6 encoding sequences. The setting of each sequence has options 5- Tone, 2-Tone, and DTMF. If it is set at 5-Tone or DTMF, you need options: to program its content.

  • Page 13: 2-Tone

    1) 5-Tone Decoding TROUBLE SHOOTING GUIDE When receiving proper 5-tone signaling, squelch will be activated according to the "SP un-mute" mode defined by the user. You can receive the call and LED flashes orange. PROBLEM SOLUTION After decoding successfully, the radio will work according to the decoding call response set by the dealer.

  • Page 14: Major Specifications

    Frequency Frequency Spacing Solution replace the battery pack. loud. Beyond the efficient communication range. Major Specifications MT-174N MT-465N Frequency Range 136-174 420-470 (MHz) RF Power 5W / 2W / 0.5W 4W / 2W / 0.5W Spurious and Harmonics £ -70 dB Frequency Stability ±...

  • Page 15: Declaration Of Conformity

    Declaration of Conformity MT-175N Declaration of Conformity MT-465N EC Certificate of Conformity EC Certificate of Conformity (to EC Directive 2006/95, 2004/108, 99/5) (to EC Directive 2006/95, 2004/108, 99/5) DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY With the present declaration, we certify that the following products :...
