IWILL KK266plus-R Quick Installation

KK266plus-R Quick Installation
Information contained in this publication has been carefully checked for accuracy and
reliability. In no event will IWILL Computer Corporation be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data, or other malady
resulting from errors or inaccuracies in this publication. The information
in this publication is subject to change without notice.
Copyright IWILL Computer Corporation, 2001. All rights reserved.
No part of this manual may be reproduced or translated without
prior written consent from IWILL Computer Corporation.
All registered and unregistered trademarks and company names contained in this
manual are the property of their respective companies including,
but not limited to the following:
KK266plus-R and MicroStepping are trademarks of IWILL Computer Corporation.
AMD Athlon and Duron are trademarks of the AMD Corporation.
VIA KT133A is a trademark of VIA Corporation.
Windows is a registered trademark of Microsoft Corporation.
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Archives serial number:FB02351050000
IWILL KK266plus-R Quick Installation Manual IWILL KK266plus-R Quick Installation Manual
KK266plus-R Quick Installation
The IWILL KK266plus-R motherboard is a high-performance desktop motherboard
based on the VIA KT133A chipset. The KK266plus-R is a high quality and
performance motherboard designed for Socket 462 AMD Athlon and Duron CPUs. The
KK266plus-R uses IWILL's patented MicroStepping technology to support CPU
speeds of 700 MHz through 1.6 GHz and higher at host bus speeds of 100 to 266MHz in
1MHz increments.
For latest CPU compatibility support, please refer to the CPU compatibility chart in the
IWILL FAQ at our Support Web Site: http://support.iwill.net
Hardware Installation Steps:
1. Set Jumpers to Hardware Defaults for CPU and Other Devices.
2. Install CPU, heat sink, and CPU Cooling Fan.
3. Install Memory Modules Beginning with DIMM0
4. Mount Motherboard in Chassis.
5. Connect IDE and Floppy Drives
6. Install Add-On Cards
7. Connect PS/2, Serial, and Parallel Devices.
8. Connect Power Supply to motherboard.
9. Power on the system
BIOS Setup and Software Installation Steps:
1. Access the BIOS Setup program by pressing the "Delete" key at system startup.
2. <Load Defaults Setting> for initial system configuration and setup or to restore
default settings if your system is experiencing setup or configuration problems.
3. <Load Optimal Defaults> will configure preset options designed for maximum
performance, but may not work for all applications or hardware configurations.
4. Save BIOS settings, exit setup and then install Operating System Software.
Drivers and Patch Installation Steps:
1. The IWILL Power Installer CD contains all drivers and applications for the
KK266plus-R.
2. Insert the Power Installer in your CDROM drive to auto detect the IWILL
motherboard version and the CD Installation Menu.
3.Press <Auto Installation> to install drivers and applications for this board.
IWILL KK266plus-R Quick Installation Manual
PS/2 Keyboard PS/2 Mouse
Install a CPU
USB 0
USB 1
Parallel Port
Com1
PIN 1
Make sure that the heatsink is mounted tightly
against the CPU. Make sure also that there is
Com2
sufficient air circulation across the CPU's heatsink
by regularly checking that your CPU fan is working.
Without sufficient circulation, the CPU and
motherboard could overheat and demage.
Socket 462 Processor Installation Notes
Front-Speaker
Line In
Joystick
Mic
CENTER
Install 6 Channel Speaker
BASS
6 Speaker Introduction
With a maximum of 6 separate or "discrete" channels, the left, Center
and right channels located in front of you provide precise, clear
Front Front
positioning of dialogue. Two separate channels located behind you
deliver immersive ambient sounds whilst the BASS/effects
L R
channel sends an explosive punch during action sequences. The
Line Out
combination of 5 discrete channels and 1 BASS is commonly
know as the 6 configuration.
How to enjoy it?
The six speakers function will only be supported in R
softwares that use DirectX and Creative EAX, for
example, the game titles, DVD player and MP3 player.
Rear Rear
L
SuperAudio 6 Channel Audio
J10
Exchange BASS/Center Channel
Rear Speaker Rear Speaker
BASS channel
Center/BASS Center/BASS
Center channel 1 4 1 4
2 5 J10 2 5 J10
3 6 3 6
RCA Out
1 4
2 5
3 6 RCA In J7, CD IN (SPDIF )
Default
J5 J5
SPDIF Out
Center channel
BASS channel SPDIF In
1 4
2 5
3 6

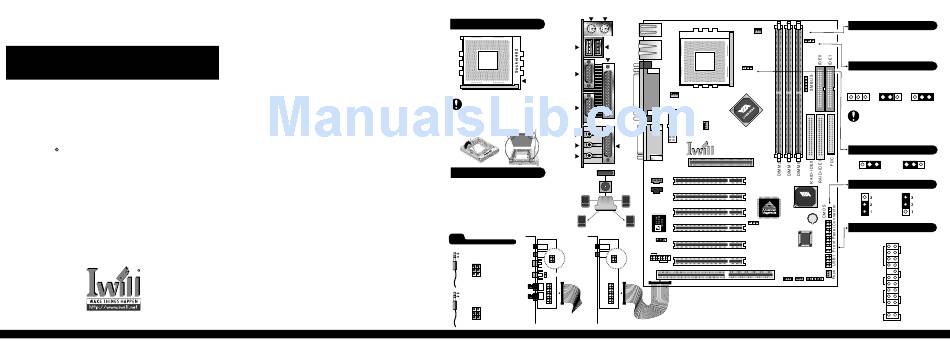

IWILL KK266plus-R Quick Installation Manual
Socket462
FAUX
VIO
FSB
FCPU
FAUX
PWR
KK266plus
AGP
PCI1
AUX_IN
PCI2
CD_IN
VT82C686B
PCI3
PCI4
RAID-IDE
PCI5
Audio
6 CH bracket
PCI6
SPDIF
ISA
WOM WOL IR
ACPI
( Advanced Configuration and Power Interface) is a
power management specification that allows the O.S.
to control the power distributed to the other devices.
Devices not in use can be turned off and save more
energy.
IWILL KK266plus-R Quick Installation Manual IWILL KK266plus-R Quick Installation Manual
Install Memory
KK266plus-R motherboard has 3 memory module
(DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the
memory module, just push it vertically into the
DIMM Slot .The DIMM module can only fit in one
direction due to the two notch.
Maximum memory up to 1.5GHz
VIO Setting
VIO allows you to select the voltage supplied to
the clock generator and chipset.
(for Overclocking Only)The default value should
be used for better system reliability.
1 2 3 1 2 3 1 2 3
Normal(Default) Increase 5% Increase 10%
WARNING!
Using a higher voltage may help when overclocking
but may result in the shortening of motherboard
component's life and damage the CPU. It is strongly
recommended that leave these setting on their
default.
FSB select jumper
3 2 1 3 2 1
FSB 100MHz(Default) FSB 133MHz
Clear CMOS Function
Normal(Default) Clear CMOS
Front Panel Connector
Reset
Speaker
IDE LED
Keyboard Lock
System LED
ACPI
Power On
