KX12
4.

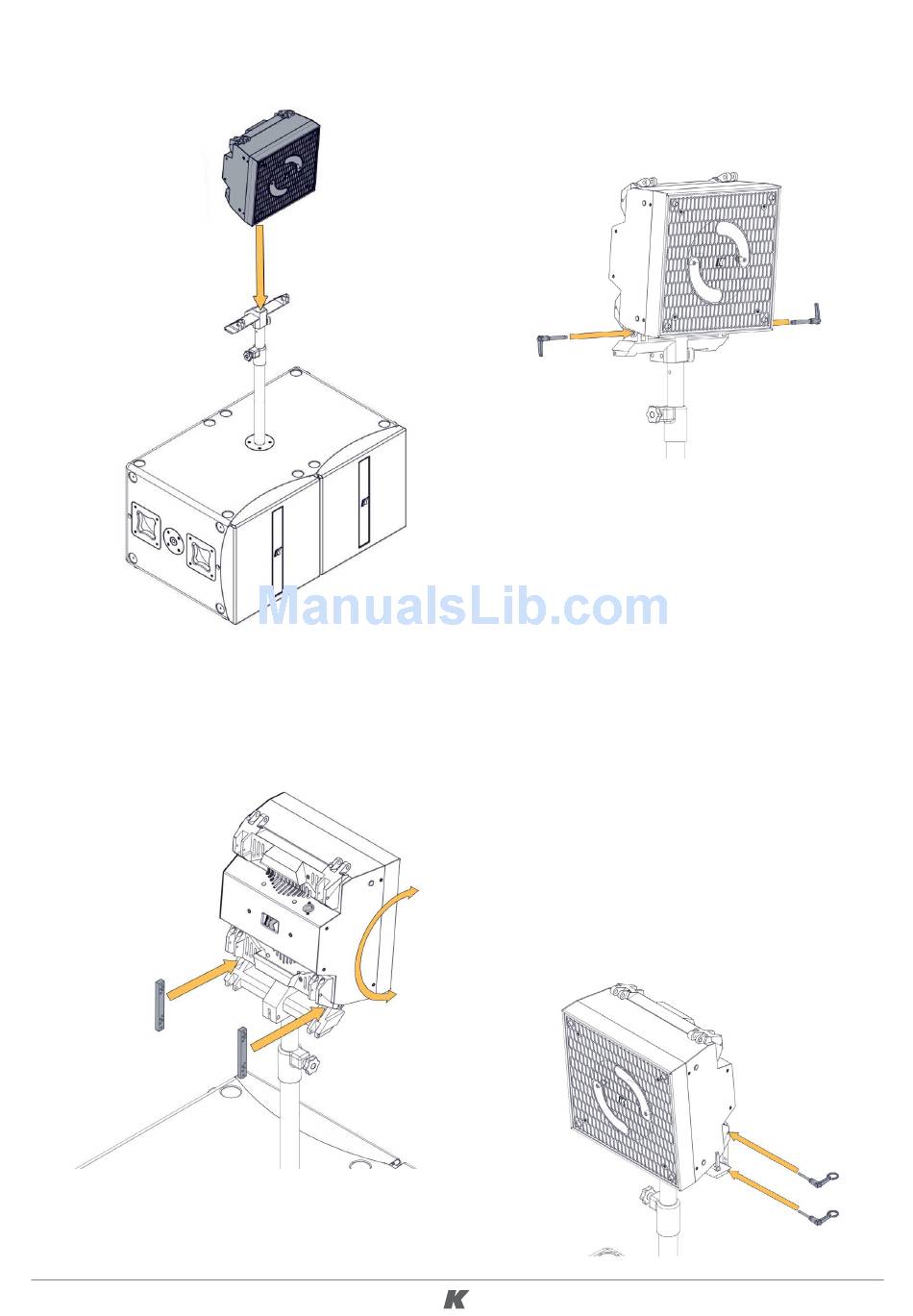

Insert the first KX12 unit. Secure with the two 8x40 piston pins provided with the system.
5.
Insert two joint blocks and secure each of them with the two 5x30 piston pins provided with the
system. The orientation of the joint blocks and the holes used will affect the angle between the
K-FLY22 and the KX12, as shown in the next page.
Ver. 1.4
18
