Makita DLS713 Instruction Manual

Cordless slide compound miter saw
Hide thumbs

Advertisement

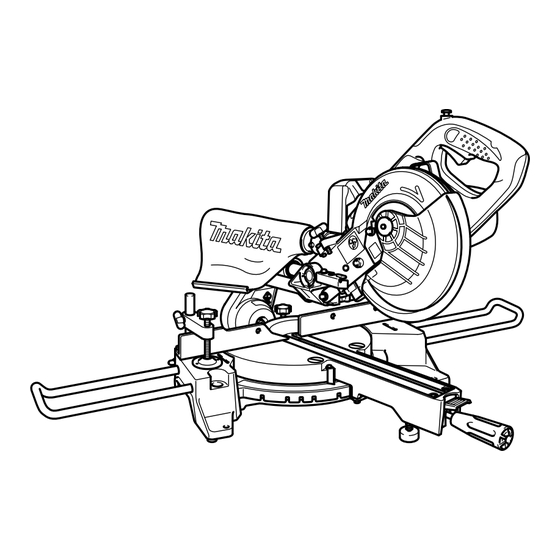

INSTRUCTION MANUAL
Cordless Slide Compound Miter Saw
DLS713
011234
IMPORTANT: Read Before Using.
1

Advertisement

loading

  Related Manuals for Makita DLS713

  Summary of Contents for Makita DLS713

  • Page 1 INSTRUCTION MANUAL Cordless Slide Compound Miter Saw DLS713 011234 IMPORTANT: Read Before Using.
  • Page 2: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model DLS713 Blade diameter 190 mm Blade body thickness 1.3 mm - 2.0 mm Hole (arbor) diameter 20 mm Max. Miter angle Left 47° , Right 57° Max. Bevel angle Left 45°, Right 5° Max. Cutting capacities (H x W) with blade 190 mm in diameter.
  • Page 3: Ec Declaration Of Conformity

    EC Declaration of Conformity It will do the job better and safer at the rate for which it was intended. We Makita Corporation as the responsible manufacturer Use the right tool. declare that the following Makita machine(s): Do not force small tools or attachments to do the Designation of Machine: job of a heavy duty tool.
  • Page 4: Additional Safety Rules For Tool

    10. Secure the work. spare parts, otherwise this may result in Use clamps or a vice to hold the work. It is safer considerable danger to the user. than using your hand and it frees both hands to 20. Disposal of battery. operate the tool.
  • Page 5 19. Hold the handle firmly. Be aware that the saw 38. Use only saw blades recommended by the moves up or down slightly during start-up and manufacturer which conform to EN847-1. stopping. 39. Wear gloves for handling saw blade (saw 20.
  • Page 6: Installation

    Charge the battery cartridge with room temperature FUNCTIONAL DESCRIPTION at 10 ゚ C - 40 ゚ C (50 ゚ F - 104 ゚ F). Let a hot battery cartridge cool down before charging it. Charge the battery cartridge once in every six WARNING: months if you do not use it for a long period of time.
  • Page 7: Blade Guard

    Overloaded: For European countries • The tool is operated in a manner that causes 1. Blade guard A it to draw an abnormally high current. 2. Blade guard B In this situation, release the trigger switch on the tool and stop the application that caused the tool to become overloaded.
  • Page 8: Maintaining Maximum Cutting Capacity

    Do not remove spring holding blade guard. If 2. Guide fence guard becomes damaged through age or UV light 3. Turn base exposure, contact a Makita service center for a new guard. DO NOT DEFEAT OR REMOVE GUARD. Positioning kerf board 1. Thumb screw 2.
  • Page 9: Stopper Arm

    Stopper arm 1. Pointer 2. Bevel scale 1. Adjusting screw 3. Arm 2. Stopper arm 011301 To adjust the bevel angle, loosen the lever at the rear of 011241 the tool counterclockwise. The lower limit position of the blade can be easily Push the handle to the left to tilt the saw blade until the adjusted with the stopper arm.
  • Page 10 • in unintentional operation and serious personal tool, always check to see that the switch trigger injury. Return tool to a Makita service center for actuates properly and returns to the "OFF" proper repairs BEFORE further usage. position when released. Do not pull the switch...
  • Page 11 4. Saw blade up of the tool may result in serious personal injury. CAUTION: Use only the Makita hex wrench provided to install • or remove the blade. Failure to do so may result in overtightening or insufficient tightening of the hex 011244 socket bolt.
  • Page 12: Securing Workpiece

    contacts the guide fence, install the screw on the NOTE: opposite side of vise arm. Make sure that no part of the If you connect a vacuum cleaner to your saw, cleaner tool contacts the vise when lowering the handle fully and operations can be performed.
  • Page 13: Operation

    During a slide cut, gently push the carriage toward Holders and holder assembly • the guide fence without stopping. If the carriage (optional accessories) movement is stopped during the cut, a mark will be left in the workpiece and the precision of the cut will 1.
  • Page 14 Slide (push) cutting (cutting wide workpieces) Bevel cut 011245 011246 Loosen two clamp screws which secure the slide Loosen the lever and tilt the saw blade to set the poles counterclockwise so that the carriage can bevel angle (Refer to the previously covered slide freely.
  • Page 15: Compound Cutting

    There are crown and cove molding joints which are Compound cutting made to fit "Inside" 90° corners ((1) and (2) in Fig. Compound cutting is the process in which a bevel A) and "Outside" 90° corners ((3) and (4) in Fig. A). angle is made at the same time in which a miter angle is being cut on a workpiece.
  • Page 16 In the case of right bevel cut CAUTION: Use the straight wood of even thickness as the • Table (A) wood facing. Bevel angle Miter angle Molding WARNING: position in 52/38° type 45° type 52/38° type 45° type Fig. A Use screws to attach the wood facing to the •...
  • Page 17: Carrying Tool

    Groove cutting 1. Cut grooves with blade 012715 Make sure that the battery cartridge is removed. Secure 001563 the blade at 0° bevel angle and the turn base at the full A dado type cut can be made by proceeding as right miter angle position.
  • Page 18: Adjusting The Cutting Angle

    Adjusting the cutting angle Bevel angle This tool is carefully adjusted and aligned at the factory, 0° bevel angle but rough handling may have affected the alignment. If Push the carriage toward the guide fence and your tool is not aligned properly, perform the following: tighten two clamp screws to secure the carriage.
  • Page 19: Replacing Carbon Brushes

    Misuse of an accessory or attachment may result in serious personal injury. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Carbide-tipped saw blades • Vise assembly (Horizontal vise) •...
  • Page 20 Makita Corporation Anjo, Aichi, Japan www.makita.com 885295-220...
