Lionel RS-11 Owner's Manual

Hide thumbs Also See for RS-11:
Table of Contents

Advertisement

Quick Links

72-8544-250
9/03
Lionel
Lionel

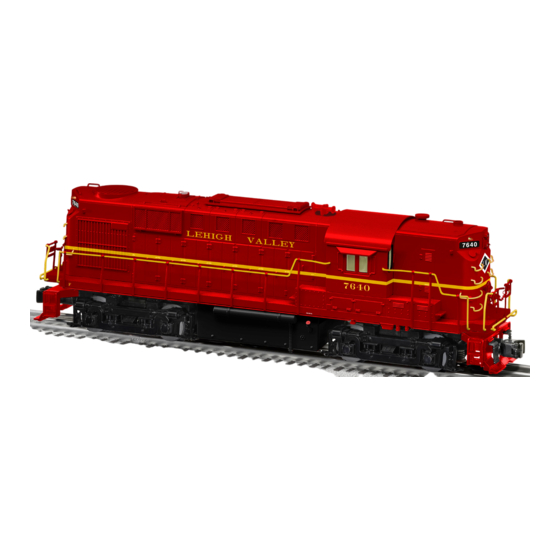

RS-11 Diesel Locomotive
RS-11 Diesel Locomotive
Owner's Manual
Owner's Manual
featuring
and
SYSTEM

Advertisement

Table of Contents
loading

Related Manuals for Lionel RS-11

Summary of Contents for Lionel RS-11

  • Page 1 72-8544-250 9/03 Lionel Lionel RS-11 Diesel Locomotive RS-11 Diesel Locomotive Owner’s Manual Owner’s Manual featuring SYSTEM...
  • Page 2 System-equipped RS-11 diesel locomotive built by Lionel. From the crisp detail and expert decoration on the outside to the brute power under the hood, the RS-11 is ready for duty on your model railroad. Experience the superiority of today’s Lionel.

  • Page 3: Table Of Contents

    Table of contents Transformer operations Running your locomotive with a Lionel transformer Locking your locomotive into a single operational state Using your locomotive’s ElectroCouplers in the non-Command environment Installing a Lionel Sound Activation Button RailSounds sound system operations Your locomotive’s RailSounds sound system—the basics Experiencing the range of your locomotive’s RailSounds sound system...

  • Page 4: Transformer Operations Running Your Locomotive With A Lionel Transformer

    Move ‘em out! Get your locomotive moving. Press the DIRECTION button on your Lionel transformer. This sequences the Command reverse unit to the next operating state. Adjust track voltage until your locomotive moves at your desired speed. To increase speed, increase track voltage.

  • Page 5: Locking Your Locomotive Into A Single Operational State

    ElectroCouplers in the non- coupled to your locomotive Command environment, you must rely on a piece of rolling stock equipped with Lionel magnetic couplers coupled directly to your locomotive’s ElectroCouplers. The magnetic coupler on the rolling stock will then react to the magnetic field...

  • Page 6: Installing A Lionel Sound Activation Button

    Installing a Lionel Sound Activation Button o activate the bell and whistle sounds when operating your locomotive with conventional transformers, you may need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) if your transformer is not equipped to activate these features. Connect the button(s) as shown below.

  • Page 7: Railsounds Sound System Operations Your Locomotive's Railsounds Sound System-The Basics

    RailSounds sound system operations Your locomotive’s RailSounds sound system—the basics he Lionel RailSounds sound system is the most realistic model railroad sound system in the world. Your locomotive features digital samples from real-life diesel locomotives for the ultimate in realism.

  • Page 8: Experiencing The Range Of Your Locomotive's Railsounds Sound System

    • Reverse unit reset sound. Power down your track, wait for three to five seconds, and listen for the air-release sound—that’s the locomotive telling you that its Lionel Command reverse unit has just reset to forward operation.

  • Page 9: Odyssey System Operations The Odyssey System

    Odyssey System operations The Odyssey System he Odyssey System is a “cruise control” for your engine. Once the speed is set (see below), your engine will maintain a constant speed, no matter what loads the locomotive pulls or what grades you have on your layout. This digitally-controlled system also allows for extremely slow movement that will amaze any “scale”...

  • Page 10: Trainmaster Command Operations The Command Control Environment

    TrainMaster Command operations The Command Control environment rainMaster Command Control is the advanced model railroad control system from Lionel. TrainMaster Command Control gives you the power to operate multiple Command- equipped locomotives on the same track, at the same time.

  • Page 11: Running Your Locomotive In The Trainmaster Command Environment

    PowerMaster to slow down or stop. electrical output on Release BRAKE and your railroad. Stops all return to the previous speed. Command-equipped Squealing brake sounds. Lionel locomotives in operation. Beneath this panel Note! only in emergency situations. HALT...

  • Page 12: Cab-1 Remote Controller Numeric Keypad Commands For Your Locomotive

    TrainMaster Command operations CAB-1 Remote Controller numeric keypad commands for your locomotive hen you press AUX1 on your CAB-1 Remote Controller, you START-UP turn the numeric keypad into ten command buttons. The CREW TALK keypad lets you control extra command features (until you press any VOLUME SHUT top-row button like SW, ACC, RTE, TR, or ENG).

  • Page 13: Tuning Your Locomotive's Performance

    TrainMaster Command operations Tuning your locomotive’s performance MOMENTUM TrainMaster Command’s momentum feature simulates the labored performance of a locomotive pulling a heavy load. Press L, M, or H (located under your CAB-1 Remote Controller’s removable panel) for light, medium, or heavy momentum. The locomotive’s Command reverse unit remembers this setting until you change it.

  • Page 14: Assigning Your Locomotive A New Id

    Assigning your locomotive a new ID# s your fleet of Command-equipped Assign a new ID# to your Example Lionel locomotives grows, you’ll want Command-equipped locomotive to give your locomotive a more Set the Command reverse unit switch individualized number. Choose from any to PGM between 1 and 99.

  • Page 15: Reprogramming The Command Reverse Unit To Restore Features

    TrainMaster Command operations Reprogramming the Command reverse unit to restore features ue to the inevitable derailments and static, it is possible that your Command reverse unit could someday lose its setup program. The symptom of this condition would be unresponsiveness in Command mode. This can be easily remedied by “reprogramming” your Command reverse unit using the following steps.

  • Page 16: Building A Lash-Up

    TrainMaster Command operations Building a lash-up rainMaster Command Control allows you to couple your Command Control equipped locomotives together, forming a multiple unit lash-up. Just like with the real railroads, lash-ups allow you to pull longer trains and climb up steeper grades. You will find that the lighting operates prototypically—the lead unit's headlight and interior lights are illuminated when the train is in forward, and the rear unit's headlight and interior lights are illuminated when the train is in reverse.

  • Page 17: Maintaining And Servicing Your Locomotive Adding Fluid To Your Locomotive's Smoke Generator

    The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. Pierce the tube end with a pin. Then add 10-15 drops of fluid into the locomotive’s duct.

  • Page 18: Lubricating Your Locomotive

    We recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your Lionel dealer. Two basic rules to keep in mind: never over-lubricate (a small amount will do), and avoid getting grease or oil on the locomotive’s wheels or your track. You’ll know your locomotive requires lubrication when visual inspection reveals dryness on the parts indicated in Figure 5.

  • Page 19: Replacing Your Locomotive's Leds

    Because you must remove the trucks and the side frames to access the wheels, we recommend that you have the traction tires replaced by your authorized Lionel Service Center. See the Lionel Service section on page 20 for more information.

  • Page 20: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
