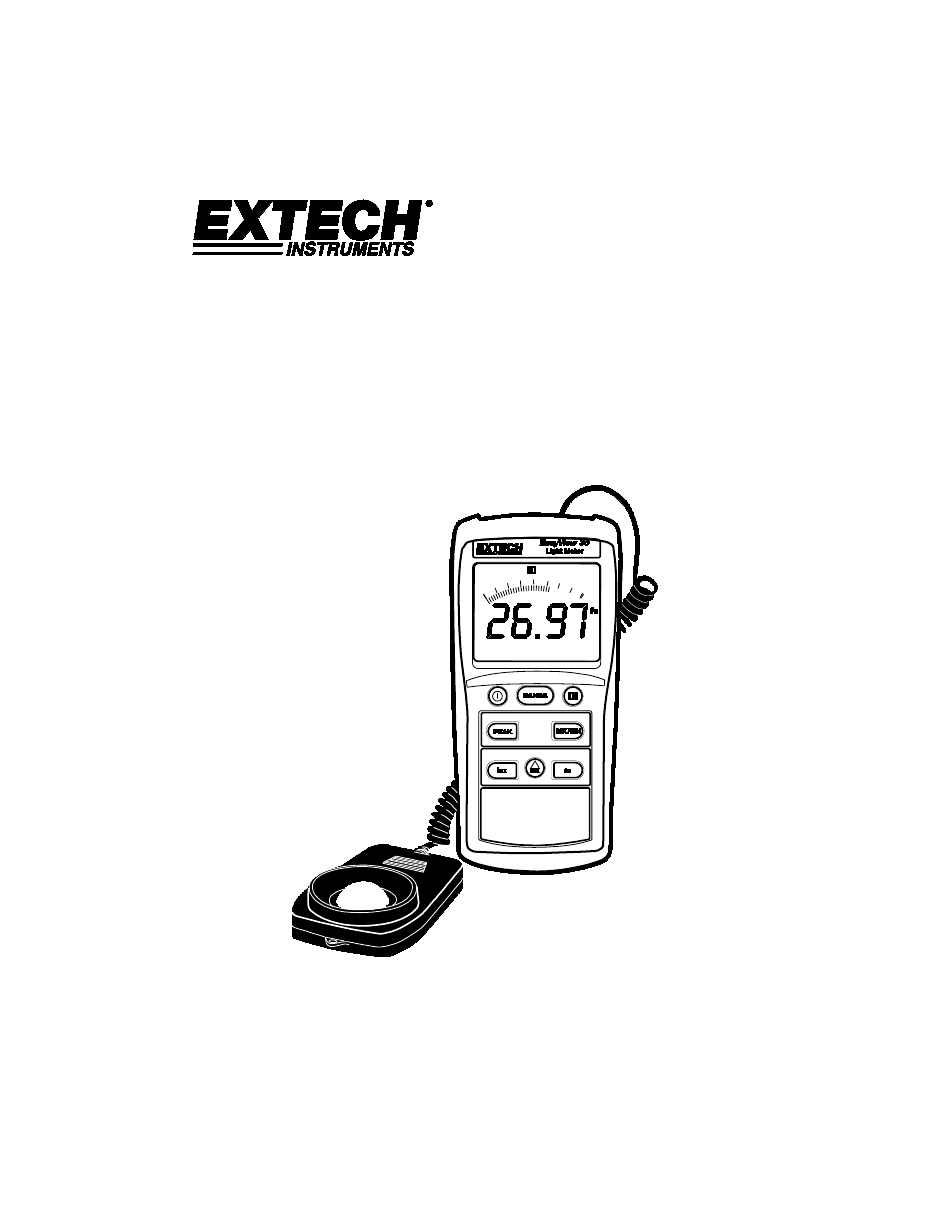

- Page 1 User Manual EasyView Digital Light Meter Model EA30 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Meter Description

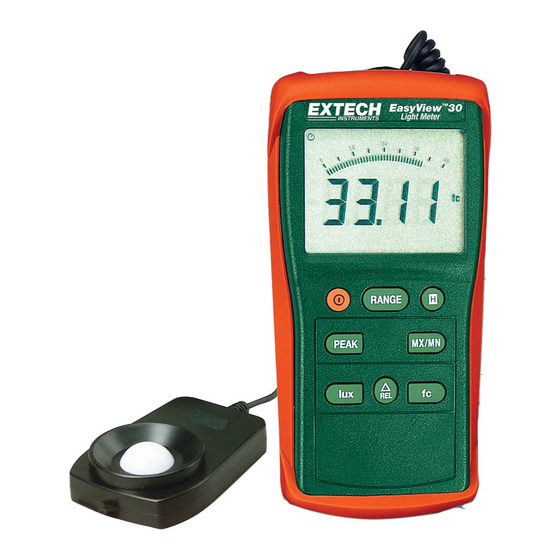

Introduction Thank you for selecting the Extech EasyView Digital Light Meter which measures light level (luminance). This device measures up to 40,000 Fc and 400,000 Lux. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Meter Description LCD display Range button... -
Page 3: Operation
Operation Turn Power ON or OFF 1. Press the button to turn power on or off. The meter will perform a short self-test when turned on. Light sensor 1. The light sensor is permanently attached to the meter. A coiled cable attaches the sensor to the meter. -
Page 4: Maintenance
Maintenance Cleaning and storage 1. The white plastic sensor dome should be cleaned with a damp cloth when necessary. 2. Store the meter in an area with moderate temperature and humidity (refer to the operating and storage range in the specifications chart earlier in this manual). Battery Replacement When the battery power falls low, the ‘BT’... - Page 5 Appendix Typical Light Levels Foot Foot Candles Candles Factories Home 20-75 Emergency Stairs, Warehouse 100-150 10-15 Washing 75-150 7-15 Exit/Entrance Passages 150-200 15-20 Recreational Activities 150-300 15-30 Packing Work 200-300 20-30 Drawing Room, Table 300-750 30-75 Visual Work: Production Line 300-500 30-50 Makeup...
- Page 6 Spectral Sensitivity Wavelength (nm) _____ - - - - - Light Meter Response CIE Response EA30-en-GB_v3.4 5/17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
