Lo-RideR
UNVENTED
VENT-FREE FIREBOXES
INSTALLATION AND OPERATING
INSTRUCTIONS
MODELS: 32LCUF-F, 32LCUF-R, 36LCUFC-R
For use with a listed gas-fired
unvented decorative room heater
not to exceed 40,000 BTU/hr. Do
Not Build a Wood Fire.
Carefully review the instructions
supplied with the decorative type
unvented room heater for the mini-
mum fireplace size requirement.
DO NOT INSTALL AN APPLIANCE
IN THIS FIREBOX UNLESS THIS
FIREBOX MEETS THE MINIMUM
DIMENSIONS REqUIRED FOR
THE INSTALLATION.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
If the information in this manual is not followed exactly,
property damage, personal injury or loss of life.
a fire or explosion may result causing property damage,
personal injury or loss of life.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
–
Do not store or use gasoline or other flammable
other appliance.
vapors and liquids in the vicinity of this or any other
appliance.
– WHAT TO DO IF YOU SMELL GAS
–
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
• Do not touch any electrical switch; do not use any
• Immediately call your gas supplier from a
• Immediately call your gas supplier from a neighbor's
• If you cannot reach your gas supplier, call the fire
• If you cannot reach your gas supplier, call the
–
Installation and service must be performed by
– Installation and service must be performed by
a qualified installer, service agency or the gas
a qualified installer, service agency or the gas
supplier.
supplier.
READ AND SAVE THESE INSTRUCTIONS
WARNINGS
WARNINGS
WARNINGS
any phone in your building.
phone in your building.
neighbor's phone. Follow the gas supplier's
phone. Follow the gas supplier's instructions.
instructions.
department.
fire department.
Advertisement
Table of Contents
Related Manuals for Majestic 32LCUF-F
Summary of Contents for Majestic 32LCUF-F

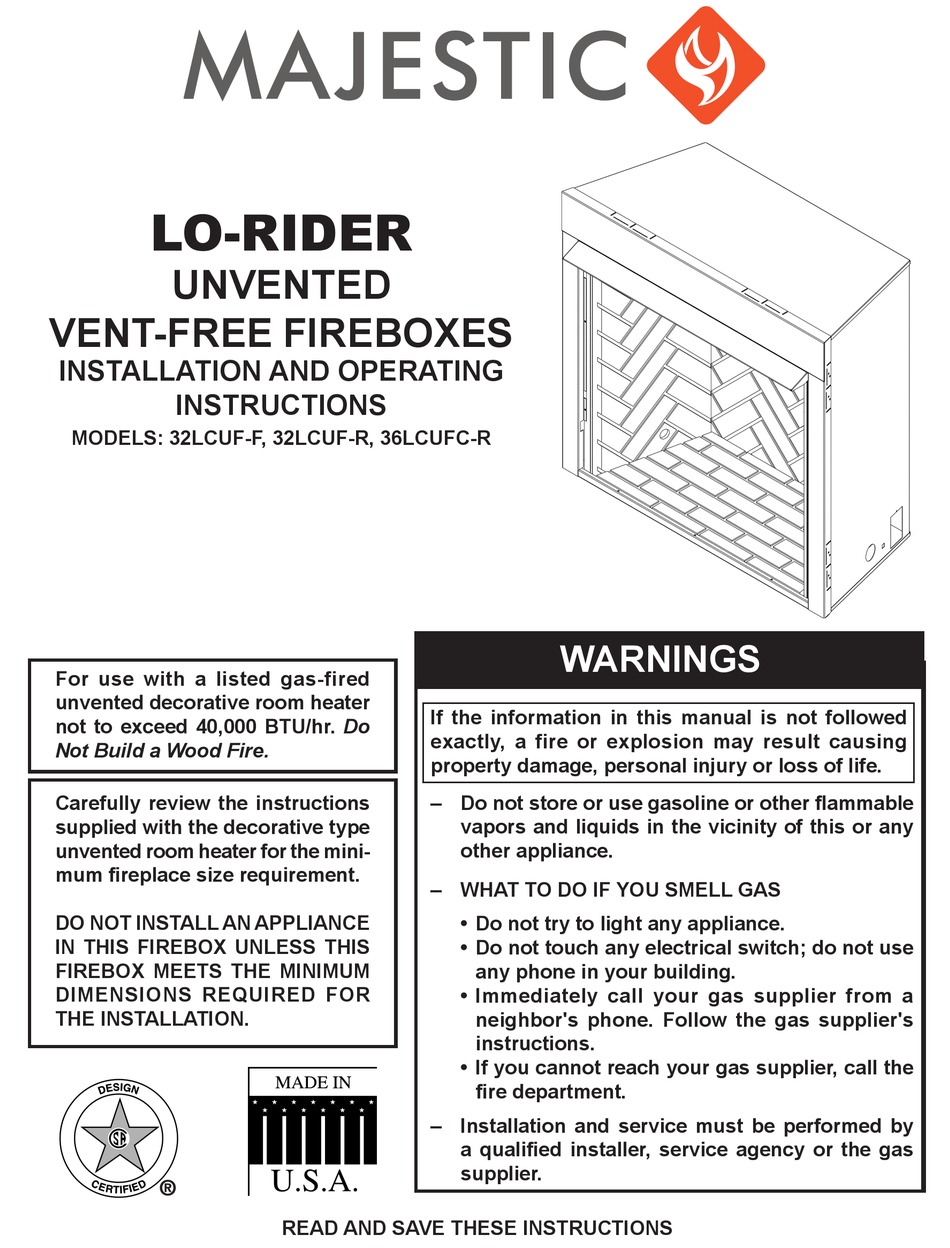

- Page 1 Lo-RideR UNVENTED VENT-FREE FIREBOXES INSTALLATION AND OPERATING INSTRUCTIONS MODELS: 32LCUF-F, 32LCUF-R, 36LCUFC-R WARNINGS WARNINGS For use with a listed gas-fired WARNINGS unvented decorative room heater If the information in this manual is not followed not to exceed 40,000 BTU/hr. Do exactly, a fire or explosion may result causing Not Build a Wood Fire.
-
Page 2: Table Of Contents
CONTENTS Firebox Framing .............10 Important Safety Information ......... 3 Product Features ............5 Gas Line Installation ..........12 Before You Start .............5 Canopy Installation ..........13 General Installation Information ......6 Optional Equipment ..........14 Firebox External Dimensions .........6 Illustrated Parts Breakdown ........14 Minimum Hearth Dimensions .........7 Using Optional Outside Air Kit ......15 Location of Firebox ..........7 Warranty ..........Back Cover Clearances and Height Requirements ....8... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION INSTALLER OWNER Please leave these instructions with the appliance. Please retain these instructions for future reference. IMPORTANT Read these instructions carefully before installing or trying to operate a vent-free gas heater in this firebox. • Any change to this heater or its controls can be dangerous. • Improper installation or use of the heater can cause serious injury or death from fire, burns, explosion or carbon monoxide poisoning. - Page 4 IMPORTANT SAFETY INFORMATION Continued from page 3 24. Never burn solid fuels in a fireplace where a unvented room heater is installed. 16. Keep room area clear and free from combustible materi- als, gasoline and other flammable vapors and liquids. 25. Always have a fireplace screen in place when the appli- ance is in operation, and unless other provisions for 17. Unvented gas heaters are a supplemental zone heater. combustion air are provided, the screen shall have an They are not intended to be a primary heating appli- opening(s) for induction of combustion air. ance. 26. Do not fill spaces around the firebox with insulation or 18. Unvented gas heaters emit moisture into the living area.
-
Page 5: Product Features
PRODUCT FEATURES Do not attempt to burn solid wood fuels, vented gas log sets, or any other combustible in this unvented firebox. Also, do not install a vent-free gas log set in this firebox if the minimum clearance and height requirements of the log set are too large for the firebox. -
Page 6: General Installation Information
GENERAL INSTALLATION INFORMATION In planning the installation for the appliance it is necessary to determine where the unit is to be installed and whether optional accessories are desired. Gas supply piping should also be planned. The following steps represent the normal sequence of installation. Each installation is unique, however, and might require a different sequence. 1. Position firebox prior to framing or into prepared framing. 2. Plumb gas line. (Gas connections should only be performed by an experienced, licensed/certified tradesman). 3. Install vent-free gas log heater per the instructions provided with the vent-free gas log heater. 4. Complete finish wall material, surround and optional hearth extension to your individual taste. 32LCUFF 36LCUFC-R 7" 1" " 6" 16" 18" FIREBOX EXTERNAL DIMENSIONS 28⅞" " 18⅝" 0½" ¼" 7¼" 8½" 0¼" 29⅞" 33⅞" 5⅜" 5⅜"... -
Page 7: Minimum Hearth Dimensions
GENERAL INSTALLATION INFORMATION LOCATION OF FIREBOX MINIMUM HEARTH DIMENSIONS 32LCUFF 36LCUFC-R 22⅜" 25⅞" 1¾" 15" 28⅝" ½" 8" 0¼" 23¼" 25⅝" Figure 2 - Minimum Hearth Dimensions LOCATION OF FIREBOX Carefully select the best location for installation of your vent-free firebox. The following factors should be taken into consideration: • Clearance to side wall, ceiling, woodwork and windows. See “Clearances/Height Requirements on page 8. Minimum clearances to combustibles must be maintained. -
Page 8: Clearances And Height Requirements
CLEARANCES HEIGHT REqUIREMENTS Ensure that minimum clearances shown in Figures 4 through 7 are main- tained. Left and right clearances are determined when facing the front of the firebox. " n i m Follow these instructions carefully to ensure safe installation. Failure to follow these requirements may create a fire hazard. Sidewall clearances: The clearance from the inside of the appliance 6 " n i m to any combustible wall should not be less than 6". See Figure 4. Ceiling clearance: The ceiling must be at least 42” from the top of 6 " the firebox opening. See Figure 4. n i m 3. Back wall clearance: The appliance may be placed against a com- bustible back wall. -
Page 9: Height Requirements
CLEARANCES HEIGHT REqUIREMENTS Mantel clearances: The canopy supplied with the unit must be installed. If a combustible mantel is installed, it must meet the clearance requirements as shown in Figure 7A. However, if lower mantel height is desired, see page 14 and Figure 7B for canopy options. 1" 10" Combustible material can contact top of 8" fireplace. 6" " 1" " 19" 16" 1" Non-combustible material only if needed to cover radiant top face above Figure 7A - Mantel Clearances Figure 7B - Mantel Clearances for Wide Profile Canopy Only WALL FIREPLACE... -
Page 10: Firebox Framing
FIREBOX FRAMING Firebox framing can be built before or after the appliance is set in place. Construct firebox framing following Figures 9 through 12 and the chart below for your specific installation requirements. See Figure 1 on Page 6 for firebox dimensions. The framing headers may rest on the top of the firebox standoffs. The firebox may be installed directly on a combustible floor or raised on a platform of an appropriate height. When the firebox is installed directly on carpeting, tile, or other combustible material, other than wood flooring, the firebox shall be installed on a metal or wood panel extending the full width and depth of the enclosure. The classification "noncombustible material" includes, but is not limited to: stone, brick, and mortar. Noncombustibles are safe to overlay the black-painted metal face, including radiant plates, and do not pose a fire hazard. Any noncombustible finish material must not extend past or interfere with the fireplace opening. The classification "combustible material" incudes, but is not limited to: plywood, drywall, and particle board. Combustible materials may contact the sides, bottom, or back of the firebox. Do not overlay the black painted face with combustible matierals. Do not fill spaces around firebox with insulation or other materials. this could cause a fire. Figure 9 - Corner Installation "... -
Page 11: Clearances And Height Requirements
FIREBOX FRAMING When finishing a custom cabinet, mantel, or other built-in enclosure, the open- ing size to accommodate the fireplace with trim installed is as follows: 32LCUFF with trim 36LCUFC-R with trim K 7¾" 1¾" 35⅜" 38⅞" This appliance is approved for the installation of drywall or other combustible materials against the sides or top of the black-painted firebox face. Noncombustible facings will not burn when exposed to heat coming off this fireplace. The classification, “Noncombustible material” includes brick and mortar, stone or marble. These are safe to overlay the black-painted metal face and do not pose a fire hazard. Never overlap the firelace opening. Figure 13 - Custom Cabinet the fireplace must be installed giving full consideration to the clearance and height requirements identified in this manual. -
Page 12: Gas Line Installation
GAS LINE INSTALLATION plumbing connections should only be performed by a qualified, licensed plumber. Main gas supply must be off when plumbing gas line to fireplace or performing service. Consult all local codes. All gas piping must be installed to comply with local codes, or in the absence of local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1/NFPA54. The " gas line may enter either from the left side or right side of the firebox. Gas access holes are provided on both sides of the firebox. A listed manual shutoff valve must be installed upstream of the appliance. A union tee and plugged " NPT pressure tapping point should be installed upstream of hte appliance. IMPORTANT: Install main gas valve (equipment shutoff valve) in an accessible location. The main gas valve is for turning on or shutting off the gas to the fireplace. -
Page 13: Canopy Installation
CANOPY INSTALLATION INSTALLING CANOPY A canopy is furnished with each firebox and MUST be installed for safe operation. See Figure 15. the firebox canopy must not be modified or replaced with a canopy that may be provided with the unvented decorative room heater. 1. Remove the three (3) screws from the top front frame assembly. Also remove the two (2) screws on the side frames. See Figure 15. 2. Align the canopy with the holes in the top frame. 3. Replace the screws previously removed. 4. Tighten side screws. Make sure the canopy is level and secure. Close fireplace screen panel before Figure 15 - Installing Canopy operating a decorative type unvented room heater. -
Page 14: Optional Equipment
OPTIONAL EqUIPMENT ILLUSTRATED PARTS LIST OPTIONAL WIDE CANOPY The optional wide canopy can be installed. See installation instructions provided with kit. ITEM DESCRIPTION 32LCUF-F 32LCUF-R 36LCUFC-R Canopy 71D00 71D00 71D0500 Screen Panel 0709 0709 6D56 Screen Rod 6D018 6D018 6D01K ACCESSORIES In KItS Standard Brass Canopy BRCU BRCU BRCU6 Wide Brass Canopy BRC BRC BRC6 Brass Trim Curved Design BRTKC BRTKC BRTKM6C... -
Page 15: Using Optional Outside Air Kit
USInG OptIOnAL AK-4 OUtSIDE AIR KIt COMBUSTION AIR 1. Locate combustion air assembly at an exterior location which is not likely to be accidentally blocked in any manner. Locate assembly a min. of 12" above the snow line to prevent blockage by snow accumulation. 2. Never mount the combustion air inlet assemblyin a garage or storage area where combustible fumes such as gasoline might be drawn into the fireplace. 3. Combustion air can be drawn from the crawl space under a house when an adequate supply of air is provided by open ventilation. 4. CAUTION: Do not take combustion air from attic space or garage space. 5. Locate air supply inlet at least 3' away from any applaince vent terminal. 6. Avoid extremely long runs and numerous turns in the duct leading from the fireplace to the combustion air assembly. These conditions increase the resistance to the free flow of air through the duct. See Figures 16 through 19 for methods of installing the outside air for combustion assemblies. Note: Fireplace model in illustrations may not be representative of your appliance. - Page 16 USInG OptIOnAL AK-4 OUtSIDE AIR KIt The use of outside air for combustion is optional unless required by building codes. It is only necessary to supply outside combustion air to one side of the fireplace. Use the model AK4 combustion air kit. MODEL AK-4 COMbUStIOn AIR ASSEMbLy DO NOT remove the 1. Remove the cover plate from the 4" outlet opening location on the left or cover if the outside air right outside of the fireplace. will not be connected. 2. Place the insulation ring between the AK-4 starting collar and fire- place wall.
- Page 17 USInG OptIOnAL AK-4 OUtSIDE AIR KIt MODEL AK-4 COMbUStIOn AIR ASSEMbLy (CONtINueD) Approximately 7. If the duct is the insulated type, push the insulation back from one end of " the duct approximately 2". See Figure 23. Duct Connector 8. Slip the exposed end of the duct over the starting collar on the fireplace. 9. Using the sheet metal screws provided, secure the duct end to the collar attached to the fireplace. 10. Nail or screw the combustion air assembly to the surface of the wall. Insulation Note: If the wall covering is brick or stone, use appropriate masonry fasteners.
- Page 18 NOTES 26D4751...
-
Page 19: Warranty
LIMITED LIFETIME WARRANTY POLICY The following components are warranted for life to the original owner, subject of proof of purchase: Firebox, Combustion Chamber, Heat Exchanger, Grate, and Stainless Steel Burners. FIVE YEAR WARRANTY The following components are warranted for 5 years to the original owner, subject of proof of purchase: Vent Free Ceramic Fiber Logs, Catalytic Filter and Aluminized Burners. BASIC WARRANTY MHSC warrants the components and materials in your gas appliance to be free from manufacturing and material defects for a period of two years from date of installation. After installation, if any of the components manufactured by MHSC in the appliance are found to be defective in materials or workmanship, MHSC will, at its option, replace or repair the defective components at no charge to the original owner. MHSC will also pay for reasonable labor costs incurred in replacing or repairing such components for a period of two years from the date of installation. Any products presented for warranty repair must be accompanied by a dated proof of purchase. This Limited Lifetime Warranty will be void if the appliance is not installed by a qualified installer in accordance with the installation instructions. The Limited Lifetime Warranty will also be void if the appliance is not operated and maintained according to the operating instructions supplied with the appliance, and does not extend to (1) firebox/burner assembly damage by accident, neglect, misuse, abuse, alteration, negligence of others, including the installation thereof by unqualified installers, (2) the costs of removal, reinstallation or transportation of defec- tive parts on the appliance, or (3) incidental or consequential damage. All service work must be performed by an authorized service representative. This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fitness for purpose and of all other obligations or liabilities. MHSC does not assume for it any other obligations or liability in connection with the sale or use of the appliance. In states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of exclusions may not apply to you. You may also have additional rights not covered in this Limited Lifetime Warranty. MHSC reserves the right to investigate any and all claims against the Limited Lifetime Warranty and decide upon method of settlement. IF WARRANTY SERVICE IS NEEDED... 1. Contact your supplier. Make sure you have your warranty, your sales receipt and the model/serial number of your MHSC product. - Page 20 MHSC 19 Cleveland Drive • Paris, Kentucky 061 www.mhsc.com AUGUST 2008 26D4751 • Rev. 10...
