Summary of Contents for Pride Mobility LEGEND XL

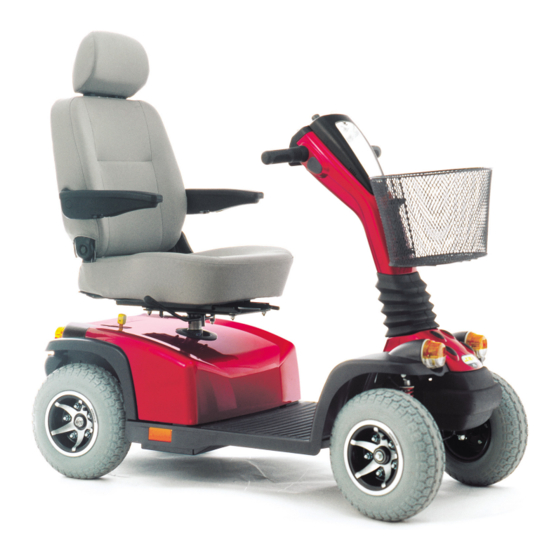

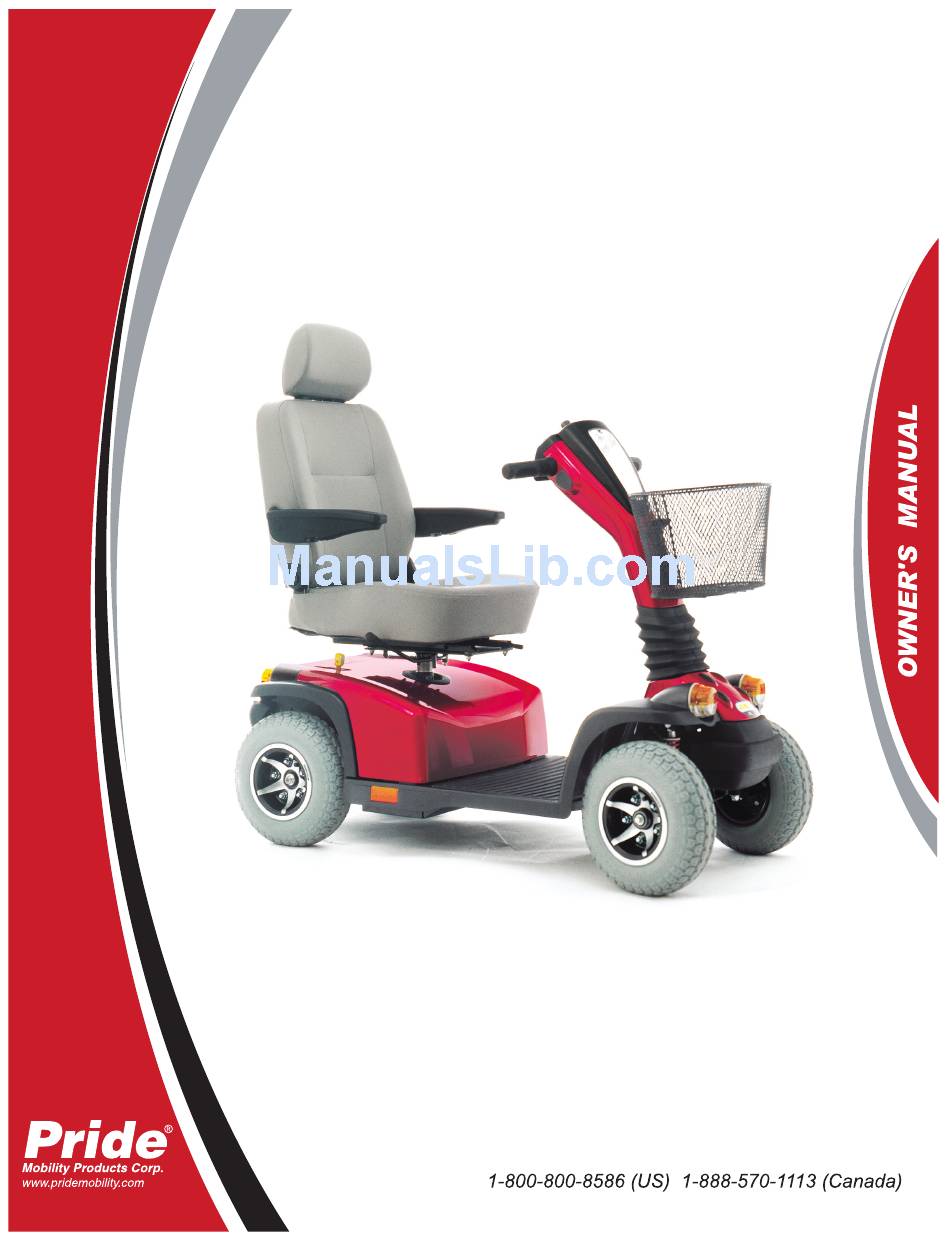

  • Page 1 LEGEND XL...
  • Page 2 INTENDED USE The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capabilty of operating a scooter. Please fill out the following information for quick reference:...

  • Page 3: Table Of Contents

    INTRODUCTION ........................4 SAFETY ............................5 III. YOUR SCOOTER ........................19 IV. BATTERIES AND CHARGING ..................23 OPERATION ..........................28 VI. COMFORT ADJUSTMENTS ....................30 VII. DISASSEMBLY AND ASSEMBLY ..................33 VIII. BASIC TROUBLESHOOTING ..................36 IX. CARE AND MAINTENANCE ....................38 APPENDIX I - SPECIFICATIONS ....................41 Legend XL www.pridemobility.com...

  • Page 4: Introduction

    I . I N T R O D U C T I O N SAFETY Welcome to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of the-art components with safety, comfort, and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 Pinch/Crush points created during assembly. Corrosive chemicals contained in battery. EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Read and follow the information in the owner’s manual. Maximum seating weight. Legend XL www.pridemobility.com...
  • Page 6 Locked and in drive mode. Front-to-rear plug orientation. Wear safety goggles. Do not mistake the tiller adjustment lever for a brake. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. www.pridemobility.com Legend XL...
  • Page 7 Keep tools and other metal objects away from battery terminals. Contact with tools can cause electrical shock. When on any sort of an incline or decline, never place the scooter in freewheel mode while seated on it or standing next to it. Legend XL www.pridemobility.com...
  • Page 8 Battery charger for indoor use only. Disposal and recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Contains Lead. www.pridemobility.com Legend XL...
  • Page 9 PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely. Legend XL www.pridemobility.com...
  • Page 10 When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. Avoid sudden stops and starts. www.pridemobility.com Legend XL...
  • Page 11 WARNING! Never carry an oxygen tank weighing more than 15 lbs (6.8 kg). Never fill the front or rear basket with contents exceeding 15 lbs. (6.8 kg). Legend XL www.pridemobility.com...
  • Page 12 Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the center/stop position. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. www.pridemobility.com Legend XL...
  • Page 13 See figures 3 and 4. WARNING! Do not attempt to negotiate a curb that has a height greater than 2 in (5 cm). Figure 3. Correct Curb Approach Figure 4. Incorrect Curb Approach Legend XL www.pridemobility.com...

  • Page 14: Your Scooter

    Use your hand to turn the knob or push the handle or push-bar. Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly backwards to pull the door open. www.pridemobility.com Legend XL...
  • Page 15 PREVENTING UNINTENDED MOVEMENT WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. Legend XL www.pridemobility.com...
  • Page 16 PROHIBITED! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. www.pridemobility.com Legend XL...
  • Page 17 Every electrically-powered mobility vehicle has an immunity (or resistance) to EMI. The higher the immunity level, the greater the protection against EMI. This product has been tested and has passed at an immunity level of 20 V/M. Legend XL www.pridemobility.com...
  • Page 18 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact your authorized Pride Provider to report the incident. www.pridemobility.com Legend XL...
  • Page 19 Turn the key counterclockwise to power down (turn off) your scooter. Although the key can be left in the key switch when the scooter is powered down, we recommend remov- ing it to prevent unauthorized use of your scooter. Legend XL www.pridemobility.com...
  • Page 20 The fuses used in your scooter are the same type used in automobiles. See figure 5A. RIGHT RUNNING LIGHT See XI. “Care and Maintenance” for fuse LEFT RUNNING LIGHT replacement. LEFT TURN SIGNAL RIGHT TURN SIGNAL Figure 5A. Tiller Console Fuses www.pridemobility.com Legend XL...

  • Page 21: Rear Section

    2. Push forward on the manual freewheel lever to disable the drive system and the brake system. You may now push your scooter. 3. Pull back on the manual freewheel lever to reengage the drive and the brake systems and take your scooter out of freewheel mode. Legend XL www.pridemobility.com...
  • Page 22 If the breaker trips frequently, you may need to charge the batteries more often or have your authorized Pride Provider perform a load test on the batteries. If the main circuit breaker trips repeatedly, see your authorized Pride Provider for service. www.pridemobility.com Legend XL...

  • Page 23: Batteries And Charging

    If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to the difference in environmental conditions before use indoors. Refer to the manual supplied with the battery charger for more information. Legend XL www.pridemobility.com...
  • Page 24 Ensure the red (+) and black (-) battery cables are connected properly to the battery terminals. Ensure both battery harnesses that extend from the batteries are plugged into their mating harness leading to the charger. Ensure both ends of the charger power cord are inserted fully. www.pridemobility.com Legend XL...
  • Page 25 Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on each tire. Plan your route ahead to avoid as many hills, cracked, broken, or soft surfaces as possible. Limit your baggage weight to essential items. Try to maintain an even speed while your scooter is in motion. Legend XL www.pridemobility.com...
  • Page 26 NOTE: If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag. Contact your local waste disposal agency or your authorized Pride Provider for instructions on disposal and battery recycling, which is our recommended course of action. www.pridemobility.com Legend XL...
  • Page 27 What about public transportation? If you intend to use public transportation with your scooter, you must contact the transportation provider in advance to determine their specific requirements. Legend XL www.pridemobility.com...

  • Page 28: Operation

    Set the speed adjustment dial to your desired speed. Press your thumb against the appropriate side of the throttle control lever. The electromechanical disc park brake automatically disengages and the scooter accelerates smoothly to the speed you preselected with the speed adjustment dial. www.pridemobility.com Legend XL...
  • Page 29 Although the controller is shut down, power will still be supplied to the scooter’s lighting system. If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Turn the key to the “off” position. 2. Turn the key back to the “on” position. Legend XL www.pridemobility.com...

  • Page 30: Comfort Adjustments

    1. Move the seat sliding lever outward. 2. While holding the lever out, slide the seat for- ward or rearward. SEAT SLIDING LEVER 3. Release the seat sliding lever once the seat is in the desired position. Figure 11. Seat Adjustment www.pridemobility.com Legend XL...
  • Page 31 Reinstall the other washer and bolt-nut and tighten. 6. Reinstall the shroud. 7. Reinstall and secure the seat into place. Figure 12. Seat Height Adjustment Legend XL www.pridemobility.com...
  • Page 32 Do not attempt to raise or lower the seat while in motion! Do not drive your scooter unless the power seat is fully retracted (in lowest position). It is recommended that the scooter be driven only with the seat in the lowest position. www.pridemobility.com Legend XL...

  • Page 33: Disassembly And Assembly

    BATTERIES BASKET Figure 13. The Legend XL Disassembled No tools are required to disassemble or assemble your scooter. Always disassemble or assemble your scooter on a level, dry surface with sufficient room for you to work and move around your scooter. Keep in mind that the disassembled sections of the scooter take up more floor space than the assembled scooter.
  • Page 34 3. Lift the front section up until the lower pegs are no longer in the slots. See figure 17. 4. Carefully move the front section away from the rear section. SLOT Figure 16. Frame Positioning Figure 17. Separating The Frame Sections Legend XL www.pridemobility.com...
  • Page 35 Push back on the toggle latch so it locks into place. 6. Reinstall the batteries into the battery wells and reconnect the battery strap. 7. Connect the front-to-rear harness and both T-handle battery harnesses. 8. Reinstall the shroud. 9. Reinstall the seat and secure it into place. Legend XL www.pridemobility.com...

  • Page 36: Basic Troubleshooting

    Assembly.” Be sure the power down timer feature hasn’t been activated. See V. “Operation.” Check the 3-amp fuse located on the lower portion of the tiller console. See IX. “Care and Mainte- nance” for fuse replacement. www.pridemobility.com Legend XL...
  • Page 37 Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your scooter that you are not able to solve, immediately contact your authorized Pride Provider for information, maintenance, and service. Legend XL www.pridemobility.com...

  • Page 38: Care And Maintenance

    BATTERY TERMINAL CONNECTIONS Make certain that the terminal connections remain tight and uncorroded. The batteries must sit flat in the battery wells. The battery terminals should face towards the inside of the scooter. www.pridemobility.com Legend XL...
  • Page 39 3. Insert a new fuse of the same rating. WARNING! The replacement fuse must exactly match the rating of the fuse being replaced. Failure to use properly rated fuses may cause damage to the electrical system. Figure 19. Working Fuse Figure 20. Blown Fuse (Replace) Legend XL www.pridemobility.com...
  • Page 40 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Pride Provider for information on proper disposal of pack- aging, metal frame components, plastic components, electronics, and batteries. www.pridemobility.com Legend XL...

  • Page 41: Appendix I - Specifications

    AGM or Gel-Cell type required. See IV. “Batteries and Charging.” Battery weight may vary based on battery manufacturer. NOTE: This product conforms to all applicable ANSI-RESNA testing requirements and ISO 7176 series EN12184 standards. All specifications subject to change without notice. Legend XL www.pridemobility.com...
  • Page 42 4 in. (10 cm) 52 in. (132 cm) 18 in. (45 cm) 18 in. (45 cm) 24 in. (61 cm) 19 in. (48 cm) 65 in. (165 cm) TURNING RADIUS 24 in. (61 cm) Figure 21. Legend XL Dimensions Legend XL www.pridemobility.com...
  • Page 43 N O T E S www.pridemobility.com Legend XL...
  • Page 44 *INFMANU2233*...
