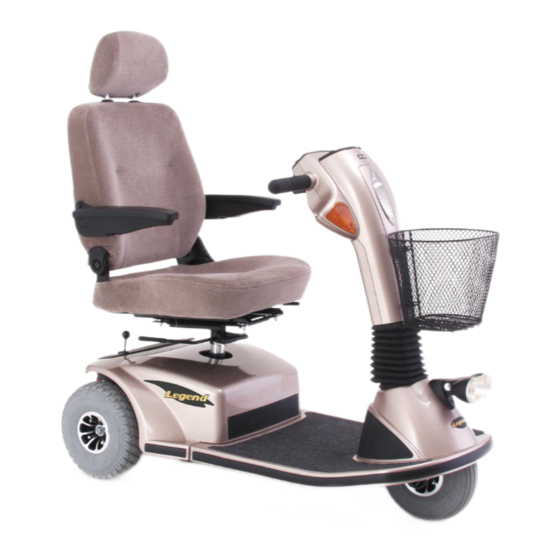

Pride Mobility Legend Classic 3-Wheel Scooter Owner's Manual

Hide thumbs Also See for Legend Classic 3-Wheel Scooter:

Owner's manual (44 pages)

Owner's manual (37 pages)

Owner's manual (38 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Legend Classic 3-Wheel Scooter and is the answer not in the manual?

Questions and answers

Summary of Contents for Pride Mobility Legend Classic 3-Wheel Scooter

Page 1 Owner’s Manual ATTENTION: Read everything in this manual before operating your scooter Legend Classic 3-Wheel Scooter Legend Classic 4-Wheel Scooter The Ultimate In Style & Performance ® Unit 106, Heyford Park Camp Road Upper Heyford, Oxfordshire OX25 5HA www.pridemobility.com...
Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your scooter. Copyright © 2003 Pride Mobility Products Ltd. INFMANU2012...
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ......................... 4 SAFETY ............................6 III. SPECIFICATIONS ........................15 IV. YOUR LEGEND CLASSIC ..................... 17 BATTERIES AND CHARGING .................... 21 VI. OPERATION ..........................25 VII. COMFORT ADJUSTMENTS....................26 VIII. DISASSEMBLY AND ASSEMBLY ..................29 IX.
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products Ltd. (Pride). Congratulations on the purchase of your new Pride Scooter. Your scooter design combines the most advanced state-of-the-art components with modern, attractive styling. We are certain that the design features and trouble-free operation will add convenience to your daily living and ensure complete satisfaction.
Page 5 I N T R O D U C T I O N My Authorised Pride Provider Is: Name:_______________________________________________________________________________ Address:_____________________________________________________________________________ Phone Number:________________________________________________________________________ Quick Reference Information: Scooter Model:________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your product registration card or this owner’s manual, write or e-mail us and we will be glad to send you a new one immediately.
Page 6 I I . S A F E T Y GENERAL WARNING! Do not operate your new scooter for the first time without completely reading and understanding this owner’s manual. Your Legend Classic is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the scooter user.
Page 7 I I . S A F E T Y PRE-RIDE SAFETY CHECK Get to know the feel of your Legend Classic and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely. For details on how to perform these necessary inspections, see XI.
Page 8: Safety
I I . S A F E T Y When climbing an incline, try to keep your scooter moving. If you must stop, start up again slowly, and then accelerate cautiously. When driving down an incline, do so by setting the speed adjustment dial to the slowest setting and driving in the forward direction only.
Page 9 I I . S A F E T Y When you approach an incline, it is best to lean forward. See figures 2 and 2A. This shifts the center of gravity of you and your scooter toward the front of the scooter for improved stability. WARNING! Do not exceed the incline guidelines or any other specifications presented in this manual.
Page 10 I I . S A F E T Y OUTDOOR DRIVING SURFACES Your Legend Classic is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop, or asphalt. However, Pride recognizes that there will be times when you will encounter other surface types.
Page 11 I I . S A F E T Y STREETS AND ROADWAYS WARNING! You should not operate your scooter on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your scooter. Obey all local pedestrian traffic rules.
Page 12 I I . S A F E T Y STAIRS AND ESCALATORS Legend Classics are not designed to travel up or down stairs or escalators. Always use a lift. WARNING! Do not use your scooter to negotiate steps or escalators. You may cause injury to yourself and to others and damage your Legend Classic.
Page 13 I I . S A F E T Y MOTOR VEHICLE TRANSPORT Currently, there are no standards approved for tie-down systems in a moving vehicle of any type to transport a person while seated in a Legend Classic. Although your scooter may be equipped with a positioning belt, this belt is not designed to provide proper restraint during motor vehicle transport.
Page 14 I I . S A F E T Y REACHING AND BENDING Avoid reaching or bending while driving your Legend Classic. When reaching, bending, or leaning while seated on your Legend Classic, it is important to maintain a stable center of gravity and keep the scooter from tipping. Pride recommends that the scooter user determine his/her personal limitations and practice bending and reaching in the presence of a qualified healthcare professional.
Page 15: Specifications
I I I . S P E C I F I C A T I O N S 50 cm (20") 23 cm (9") 43 - 53 cm (17" - 21") 9 cm (3.5") 18" 3-wheel 115.5 cm (45.5") 46 cm (18") 4-wheel 119 cm (47") 16"...
Page 16 I I I . S P E C I F I C A T I O N S Class of Use Model Numbers 3-wheel: SCUK3000, 4-wheel: SCUK3400 Painted: Red, Blue, Available Colours 3-wheel: 115.5 cm (45.5 in.), 4-wheel: 119 cm (47 in.) Overall Length Overall Width 61 cm (24 in.)
Page 17: Your Legend Classic
I V . Y O U R L E G E N D C L A S S I C TILLER CONSOLE The tiller console houses all of the controls needed to drive your scooter, including the speed adjustment dial, throttle control levers, battery condition meter, running lights switch, headlight switch, hazard lights switch, turn indicator buttons, on/off indicator LED, and horn buttons.
Page 18 I V . Y O U R L E G E N D C L A S S I C Running Lights Switch This switch controls your scooter’s front (upper and lower) and rear running lights. n Toggle the switch forward to turn on your scooter’s running lights. n Toggle the switch rearward to turn off your scooter’s running lights.
Page 19 I V . Y O U R L E G E N D C L A S S I C REAR SECTION The batteries (not shown), the main circuit breaker reset button, the ammeter, the manual freewheel lever, the anti- tip wheels, the rear fuses, and the motor/transaxle assembly are located on the rear section of your Legend Classic.
Page 20 I V . Y O U R L E G E N D C L A S S I C Manual Freewheel Lever Whenever you need or want to push your scooter for short distances, you can put it in freewheel mode. n The manual freewheel lever is located on the end of the motor/transaxle assembly at the right rear of the Legend Classic.
Page 21: Batteries And Charging
V . B A T T E R I E S A N D C H A R G I N G Your Legend Classic requires two sealed, maintenance free, 12-volt, deep cycle batteries. n Charge the batteries prior to using your scooter for the first time. n Keeping the batteries fully charged will keep your scooter running smoothly.
Page 22 V . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING-FREQUENTLY ASKED QUESTIONS (FAQS) How does the charger work? When your scooter’s battery voltage is low, the charger works harder and sends more electrical current to the batteries to bring up their charge.
Page 23 V . B A T T E R I E S A N D C H A R G I N G How can I get maximum range or distance per charge? Rarely will you have ideal driving conditions—smooth, flat, hard driving surfaces with no wind or curves. You will often face hills, pavement cracks, uneven and loosely packed surfaces, curves, and wind.
Page 24 V . B A T T E R I E S A N D C H A R G I N G We work closely with our battery manufacturer to provide batteries that best suit your scooter’s specific electrical demands. Fresh batteries arrive daily at Pride and are shipped fully charged to our customers. During shipping, the batteries may encounter temperature extremes that may influence their initial performance.
Page 25: Operation
V I . O P E R A T I O N BEFORE GETTING ONTO YOUR SCOOTER n Have you fully charged the batteries? See V. “Batteries and Charging.” n Is the manual freewheel lever in the drive (down) position? Never leave the manual freewheel lever in the up position unless you are manually pushing your scooter.
Page 26: Comfort Adjustments
V I I . C O M F O R T A D J U S T M E N T S WARNING! Remove the key from the key switch before adjusting the tiller or the seat. Never attempt to adjust the tiller or the seat while the scooter is in motion. TILLER ANGLE ADJUSTMENT Your scooter is equipped with a pivoting tiller that allows adjustment to several positions from the scooter...
Page 27 V I I . C O M F O R T A D J U S T M E N T S SEATBACK ADJUSTMENT WARNING! Do not operate your scooter with the seatback in a reclined position. To adjust your Legend Classic's reclining seat, perform these steps. See figure 10A. 1.
Page 28 V I I . C O M F O R T A D J U S T M E N T S POWER SEAT (OPTIONAL) Your Legend Classic may be equipped with a power seat. The power seat actuator is designed to raise or lower the seat automatically with minimal effort on the part of the operator.
Page 29: Disassembly And Assembly
V I I I . D I S A S S E M B L Y A N D A S S E M B L Y DISASSEMBLY You can disassemble the scooter into seven pieces: the seat, the front section, the rear section, the rear shroud, the basket, and the batteries.
Page 30 V I I I . D I S A S S E M B L Y A N D A S S E M B L Y 6. Unplug both black and white 2-pin battery harnesses and remove the batteries. See figure 15. 7.
Page 31 V I I I . D I S A S S E M B L Y A N D A S S E M B L Y ASSEMBLY 1. Position the front and rear sections of your scooter as shown in figure 21. 2.
Page 32: Optional Accessories
I X . O P T I O N A L A C C E S S O R I E S OPTIONAL ACCESSORIES For information concerning these optional accessories, contact your authorised Pride provider. •SINGLE CANE/CRUTCH HOLDER • DOUBLE CANE/CRUTCH HOLDER •...
Page 33: Basic Troubleshooting
B A S I C T R O U B L E S H O O T I N G Any electromechanical device occasionally requires some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the batteries are not fully charged or because the batteries are worn down and can no longer hold a charge.
Page 34: Care And Maintenance
X I . C A R E A N D M A I N T E N A N C E Your scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorised Pride provider.
Page 35 X I . C A R E A N D M A I N T E N A N C E STORAGE See V. “Batteries and Charging.” FUSE REPLACEMENT In the event a fuse should cease to work: n Remove the fuse by pulling it out of its slot. n Examine the fuse to be sure it is blown.
Page 36: Warranty
X I I . W A R R A N T Y TWO-YEAR LIMITED WARRANTY Structural frame components, including: platform, fork, seat post, and frame welds. Drive train, including: differential, motor, and brake. ONE-YEAR LIMITED WARRANTY Your Pride Scooter is fully guaranteed for twelve (12) months from the date of purchase against faults arising due to defects in manufacture or materials.
