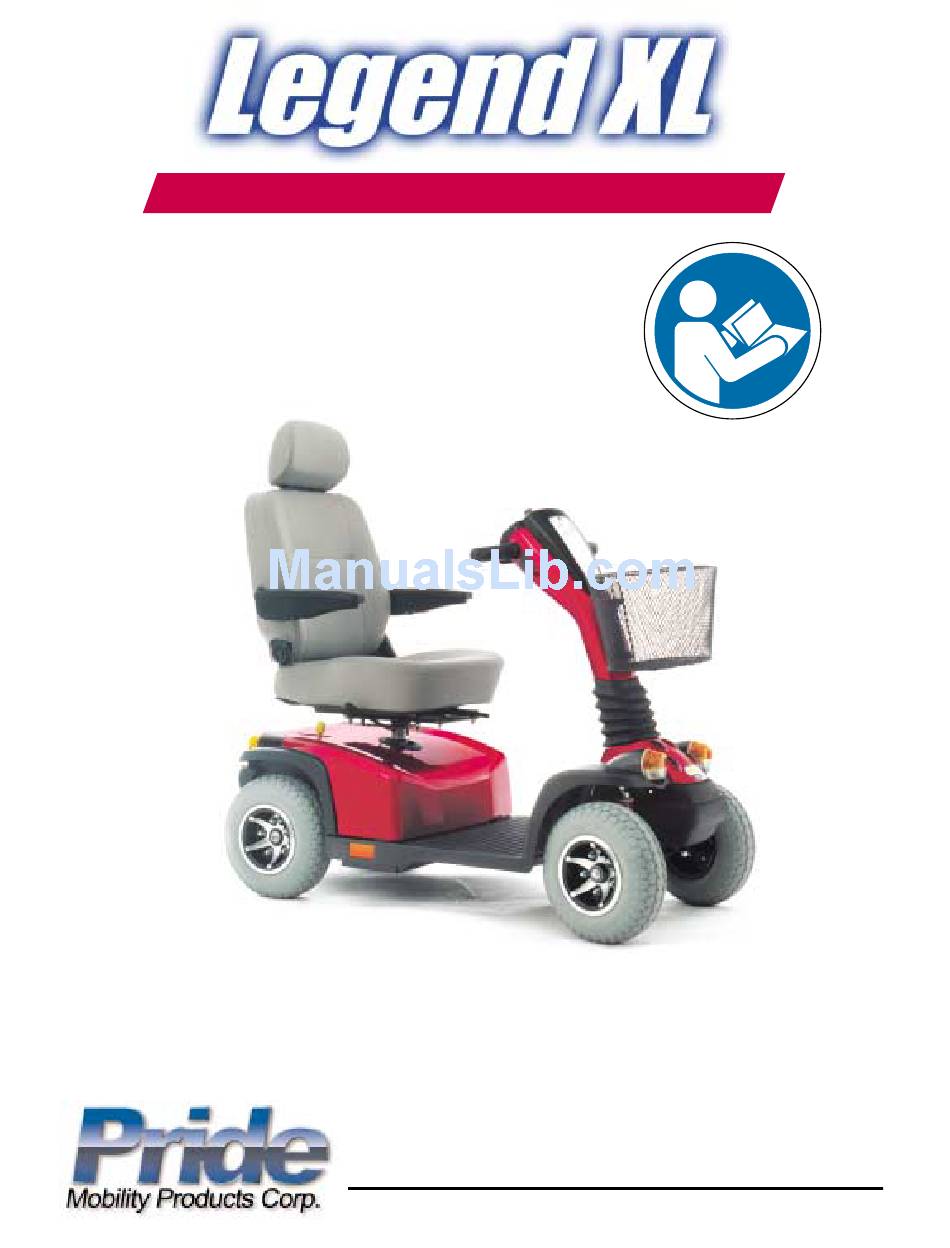

- Page 1 Owner’s Manual The Ultimate In Style & Performance ® Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
- Page 2 We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. Copyright ©2004 Pride Mobility Products Corp. INFMANU2233/Rev C/December 2004...
-
Page 3: Table Of Contents
YOUR SCOOTER ........................20 VI. BATTERIES AND CHARGING .................... 24 VII. OPERATION ..........................29 VIII. COMFORT ADJUSTMENTS....................31 IX. DISASSEMBLY AND ASSEMBLY ..................34 BASIC TROUBLESHOOTING ..................... 36 XI. CARE AND MAINTENANCE ....................38 XII. WARRANTY..........................40 Legend XL www.pridemobility.com... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state of the art components with safety, comfort and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities. - Page 5 Unlocked and in freewheel mode. Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Locked and in drive mode. Use only AGM or Gel-Cell batteries. Legend XL www.pridemobility.com...
- Page 6 3-pronged adapter to an electrical outlet having 2-pronged plug access. Failure to heed could result in personal injury and/or property damage. Prevent personal injury and equipment damage. Do not connect an extension cord to the AC/DC converter or the battery charger. www.pridemobility.com Legend XL...
- Page 7 REMOVABLE PARTS WARNING! Do not attempt to lift or move your scooter by any of its removable parts. Personal injury and damage to the scooter may result. Legend XL www.pridemobility.com...
- Page 8 When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. n Avoid sudden stops and starts. www.pridemobility.com Legend XL...
- Page 9 1 may put your scooter in an unstable position and cause it to tip, resulting in personal injury. WARNING! Never carry an oxygen tank weighing more than 15 lbs. Never fill the rear basket with contents exceeding 15 lbs. Legend XL www.pridemobility.com...
-
Page 10: Safety
Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. n (Optional) Handbrake: Gives you additional stopping power when squeezed. www.pridemobility.com Legend XL... - Page 11 WARNING! Be sure your scooter is traveling perpendicular to any curb you may be required to ascend or descend. See figures 3 and 3A. WARNING! Do not attempt to negotiate a curb that has a height greater than 2 in. Figure 3. Correct Curb Approach Figure 3A. Incorrect Curb Approach Legend XL www.pridemobility.com...
- Page 12 Failure to heed the above could result in personal injury and/or damage to your scooter. An added feature built into the Legend XL is “push-too-fast” protection which safeguards the scooter against gaining excessive speed while in freewheel mode.
- Page 13 If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and call your authorized Pride Provider for instructions on disposal. Your authorized Pride Provider will also have the necessary informa- tion on battery recycling, which is our recommended course of action. Legend XL www.pridemobility.com...
- Page 14 Keep your hands away from the tires when driving. WARNING! Prevent personal injury! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. www.pridemobility.com Legend XL...
- Page 15 The scooter user must exercise care and common sense when operating his/her scooter. This includes awareness of safety issues while under the influence of alcohol. WARNING! Do not operate your scooter while you are under the influence of alcohol, as this may impair your ability to drive safely. Legend XL www.pridemobility.com...
-
Page 16: Emi/Rfi
Has anyone been injured by the erratic, unintended motion of an electric mobility vehicle? The FDA has reports of injuries that resulted from uncontrolled motion of electric mobility vehicles, but it is not clear just how many of those injuries were actually caused by EMI/RFI. www.pridemobility.com Legend XL... - Page 17 If unintended motion or unintended brake release occurs, turn off your mobility vehicle (by removing the key) as soon as it is safe to do so. If my mobility vehicle moves unintentionally, where should I report the incident? Call Pride Customer Care at 1-800-424-8205 to report the incident. Legend XL www.pridemobility.com...
- Page 18 S P E C I F I C A T I O N S 20.5" 16.5" - 19.5" 4" 52" 18" 18" 24" 19" 65" TURNING RADIUS 24" Figure 4. Legend XL Dimensions 4" 13" Figure 4A. Legend XL Tire Dimensions (Front And Rear) www.pridemobility.com Legend XL...
-
Page 19: Specifications
Two 12 volt, deep cycle, AGM or Gel-Cell type recommended Battery Requirements Size: 55 AH, NF-22 Weight: 38 lbs. each Battery Charger Off-board * Varies with user weight, terrain type, battery charge, battery condition, and tire condition. Legend XL www.pridemobility.com... -
Page 20: Your Scooter
Turn the key counterclockwise to power down (turn off) your scooter. WARNING! If the key is moved to the “off” position while your scooter is in motion, the electronic brakes engage and your scooter will come to an abrupt stop! www.pridemobility.com Legend XL... - Page 21 See figure 5A. See XI. “Care and Maintenance” for fuse replacement. RIGHT RUNNING LIGHT LEFT RUNNING LIGHT LEFT TURN SIGNAL RIGHT TURN SIGNAL Figure 5A. Tiller Console Fuses Legend XL www.pridemobility.com...
- Page 22 Push forward on the manual freewheel lever to disable the drive system and the brake system. n You may now push your scooter. n Pull back on the manual freewheel lever to reengage the drive and the brake systems and take your scooter out of freewheel mode. www.pridemobility.com Legend XL...
- Page 23 If the breaker trips frequently, you may need to charge the batteries more often or have your authorized Pride Provider perform a load test on the batteries. n If the main circuit breaker trips repeatedly, see your authorized Pride Provider for service. Legend XL www.pridemobility.com...
-
Page 24: Batteries And Charging
3. Make certain that the manual freewheel lever is in the drive position. 4. Plug the 3-pin charger power cord into the off-board charger port. See figures 9 and 10. 5. Extend the charger power cord and plug it into the wall outlet. www.pridemobility.com Legend XL... - Page 25 The scooter will not run and the battery con- dition meter will not operate while the batteries are charging. PLUGS INTO THE OFF-BOARD CHARGER PORT ON/OFF SWITCH PLUGS INTO WALL OUTLET Figure 9. Off-Board Charger OFF-BOARD CHARGER PORT Figure 10 . Off-Board Charger Port Legend XL www.pridemobility.com...
- Page 26 Fully charged deep-cycle batteries provide reliable performance and extended battery life. Keep your scooter’s batteries fully charged whenever possible. Batteries that are regularly and deeply discharged, infrequently charged, or stored without a full charge may be permanently damaged, causing unreliable performance and limited service life. www.pridemobility.com Legend XL...
- Page 27 If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and call your authorized Pride Provider for instructions on disposal. Your authorized Pride Provider will also have the necessary informa- tion on battery recycling, which is our recommended course of action. Legend XL www.pridemobility.com...
- Page 28 What about public transportation? If you intend to use public transportation with your scooter, you must contact the transportation provider in ad- vance to determine their specific requirements. www.pridemobility.com Legend XL...
-
Page 29: Operation
Set the speed adjustment dial to your desired speed. n Press your thumb against the appropriate side of the throttle control lever. n The electromechanical disc park brake automatically disengages and the scooter accelerates smoothly to the speed you preselected with the speed adjustment dial. Legend XL www.pridemobility.com... - Page 30 If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Turn the key to the “off” position. 2. Turn the key back to the “on” position. www.pridemobility.com Legend XL...
- Page 31 1. Move the seat sliding lever outward. 2. While holding the lever out, slide the seat forward or rearward. 3. Release the seat sliding lever once the seat is in the desired position. SEAT SLIDING LEVER Figure 12. Seat Adjustment Legend XL www.pridemobility.com...
-
Page 32: Comfort Adjustments
BOLT-NUT ADJUSTMENT BOLT upper and lower seat posts. Reinstall the other washer and bolt-nut and tighten. LOWER SEAT POST 6. Reinstall the shroud. 7. Reinstall and lock the seat into place. Figure 13. Seat Height Adjustment www.pridemobility.com Legend XL... - Page 33 It is recommended that the scooter be driven only with the seat in the lowest position. Failure to comply with the above instructions, warnings and safety rules for power seat use could result in serious personal injury and damage to your mobility device. Legend XL www.pridemobility.com...
- Page 34 7. Unplug the front-to-rear harness. See figure 15. WARNING! Failure to unplug both T- handle battery harnesses and the front- to-rear harness prior to separating the front and rear sections could result in permanent damage to the scooter. Figure 15. Harness Connections www.pridemobility.com Legend XL...
- Page 35 6. Reinstall the batteries into the battery wells and reconnect the battery strap. 7. Connect the front-to-rear harness and both T-handle battery harnesses. 8. Reinstall the shroud. FRONT-TO-REAR HARNESS 9. Reinstall the seat, and lock it into place. Figure 19. Frame Sections Legend XL www.pridemobility.com...
- Page 36 When the manual freewheel lever is pushed forward, the brakes are disengaged and all power to the motor/ transaxle assembly is cut. n Pull back on the manual freewheel lever, turn the scooter off, and then turn the scooter on to return to normal scooter operation. www.pridemobility.com Legend XL...
-
Page 37: Basic Troubleshooting
Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your scooter that you are not able to solve, immediately contact your authorized Pride Provider for information, maintenance, and service. Legend XL www.pridemobility.com... -
Page 38: Care And Maintenance
AXLE BEARINGS AND THE MOTOR/TRANSAXLE ASSEMBLY These items are all prelubricated, sealed, and require no subsequent lubrication. MOTOR BRUSHES The motor brushes are housed inside of the motor transaxle/assembly. They should be inspected periodically for wear by your authorized Pride Provider. www.pridemobility.com Legend XL... - Page 39 For prolonged storage, you may wish to place several boards under the frame of your scooter to raise it off of the ground. This takes the weight off the tires and reduces the possibility of flat spots developing on the areas of the tires contacting the ground. Legend XL www.pridemobility.com...
-
Page 40: Warranty
This warranty does not extend to those items which may require replacement due to normal wear and tear. n ABS Plastic shrouds n Motor brushes n Upholstery and seating n Brake Pads n Tires and tubes n Fuses/Bulbs www.pridemobility.com Legend XL... - Page 41 Circumstances beyond the control of Pride n Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically autho- rized, IN ADVANCE, by Pride Mobility Products Corporation n Repairs and/or modifications made to any part without specific consent from Pride...
- Page 42 182 Susquehanna Ave. Exeter, PA 18643 1-800-800-8586 www.pridemobility.com...
