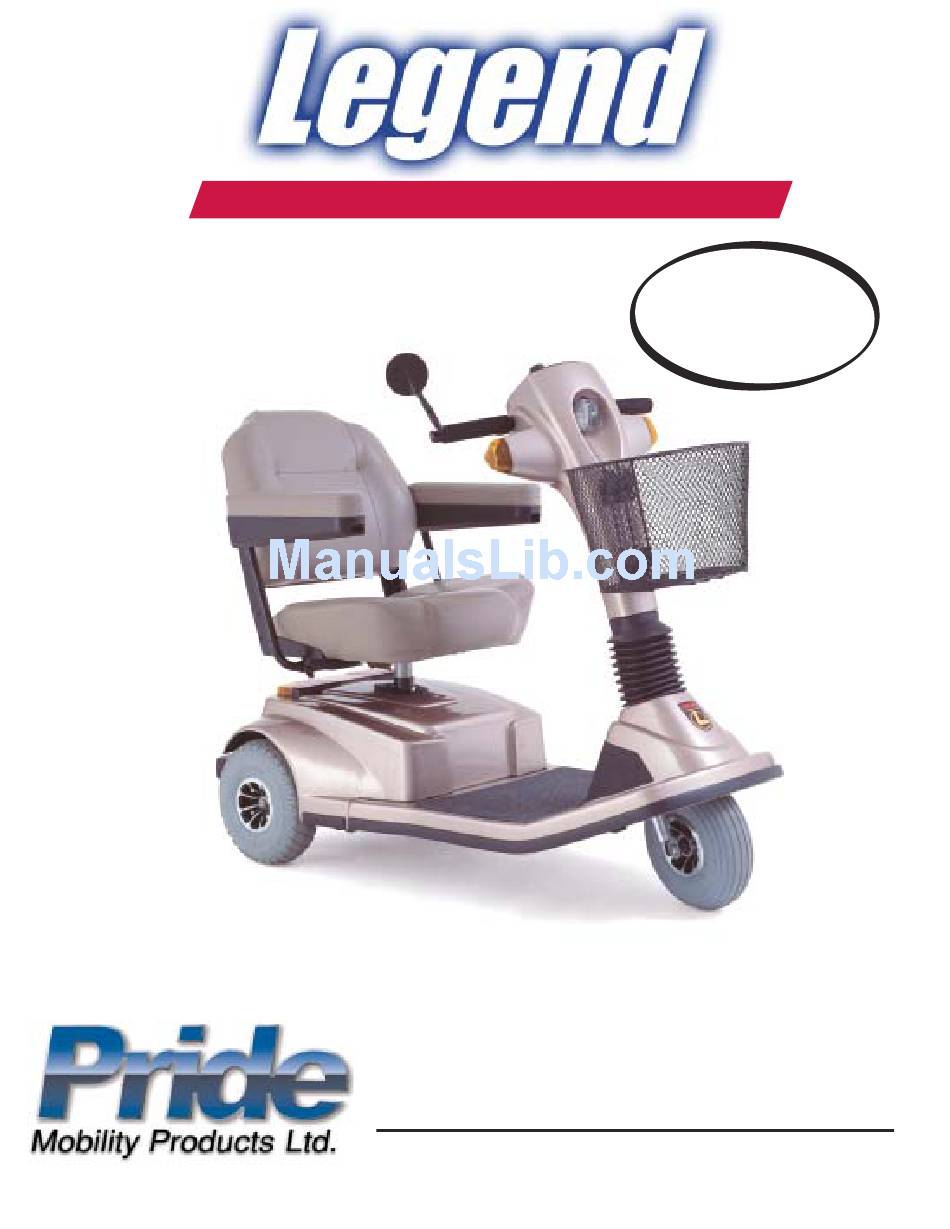

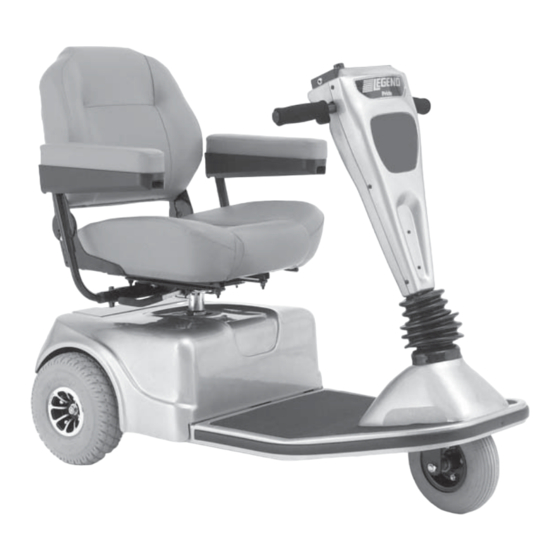

- Page 1 Owner’s Manual ATTENTION: Read everything in this manual before operating your Legend The Ultimate In Style & Performance ® Unit 106 Heyford Park Camp Road Upper Heyford, Oxfordshire OX25 5HA www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your Scooter. Copyright © 2002 Pride Mobility Products, Ltd. INFMANU1501/REV D/OCTOBER 2002 Legend...
-
Page 3: Table Of Contents
III. SPECIFICATIONS ........................9 IV. DESCRIPTION .......................... 11 BATTERIES AND CHARGING ................... 17 VI. OPERATION ..........................21 VII. COMFORT ADJUSTMENTS....................23 VIII. ASSEMBLY AND DISASSEMBLY ..................26 IX. TROUBLESHOOTING ......................29 CARE AND MAINTENANCE ....................31 XI. WARRANTY ..........................33 Legend... -
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products, Ltd. (Pride). Congratulations on the purchase of your new Pride Scooter. Your Scooter design combines the most advanced state-of-the-art components with modern, attractive styling. - Page 5 Name:_______________________________________________________________________________ Address:_____________________________________________________________________________ Phone Number:________________________________________________________________________ Quick Reference Information: Legend Model:__________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your warranty card or owner’s manual,write to us and we will be glad to send you a new one immediately.
-
Page 6: Safety
CAUTION! Secure the batteries before loading your Scooter into another vehicle for transport. CAUTION! Disconnect the batteries if you are not going to operate your Scooter for more than 48 hours. Legend... - Page 7 113 kg 136 kg 11 stone 14-18 stone 21 stone 11 stone 14 stone 18 stone 21 stone 10.5% 8.7% 12.3% 14.1% 12.3% 10.5% 8.7% FIGURE 2. MAXIMUM RECOMMENDED INCLINE FIGURE 1. MAXIMUM RECOMMENDED INCLINE ANGLE 4-WHEEL ANGLE 3-WHEEL Legend...
- Page 8 Avoid tall grass that can become tangled in the running gear. n Packed soil, gravel, driveways, or roads will not present a problem for your Scooter. n Avoid loosely packed gravel and sand. n If you feel unsure about a driving surface, avoid that surface. Legend...
- Page 9 S P E C I F I C A T I O N S 47 cm 20 -31cm Adjustable 42 - 52 cm 90˚,100˚ 102˚,105˚ 8 cm 3 cm FIGURE 5. LEGEND SPECIFICATIONS 128 cm 46 cm 123 cm 41 cm 61 - 71 cm 104 cm 114 cm 3 Wheel Turning Radius...
-
Page 10: Specifications
Freewheel Mechanism: Manual freewheel release lever located on upper-right rear portion of rear shroud Legend Weight: Total weight with batteries: 12-volt 32 AH: 3-wheel: 48 kg; 4-wheel: 51 kg ; or 12-volt 40 AH: 3-wheel: 94 kg; 4-wheel: 102 kg Component Breakdown: Front Section: 3-wheel: 65 kg;... -
Page 11: Description
REAR SECTION BATTERIES REAR SHROUD FRONT BASKET FIGURE 6. LEGEND COMPONENTS CONTROL CONSOLE MODULE The control console module located on the front section houses all nthe controls you need to operate your Scooter. See figure 7. WARNING! Do not expose the control console module to moisture. In the event it does become exposed to moisture, do not attempt to operate your Scooter until it has dried thoroughly. - Page 12 The Status LED alerts you to electrical problems that may occur with the Legend. The LED remains constantly lit while your Scooter is on. If the Legend develops an electrical problem, the status LED will flash a code. See IX. “Troubleshoot- ing”...
- Page 13 You need one 5-amp fuse for the battery charger. WARNING! The replacement fuses must match the rating of the original fuses exactly. If you install a fuse with an incorrect rating, you may damage the electrical system and create a potential fire risk. Legend...
- Page 14 Ammeter When the battery charger is plugged into a wall outlet, the ammeter indicates the charging status of your Scooter’s batteries. n When your Scooter’s batteries are fully charged, the amperage reading is at or near zero (0) amps. Legend...
- Page 15 CAUTION! Do not expose the electronics module to moisture. If it does become exposed to mois- ture, do not attempt to operate your Scooter until it has dried thoroughly. Batteries The batteries store electrical energy that powers your Scooter. For directions on charging your batteries, see V. “Batteries and Charging.” Legend...
- Page 16 For information concerning the optional accessories in figure 9, contact your authorised Pride provider. •SINGLE CANE/CRUTCH HOLDER • DOUBLE CANE/CRUTCH HOLDER • OXYGEN TANK HOLDER • REAR BASKET • WALKER HOLDER • FOREARM CRUTCH HOLDER • CUP HOLDER • SAFETY FLAG FIGURE 9. OPTIONAL ACCESSORIES Legend...
-
Page 17: Batteries And Charging
7. When the batteries are fully charged, unplug the charger power cord from the wall outlet and then from the charger power cord receptacle at the rear of your Scooter. 8. Place the charger power cord in the rear storage compartment for safekeeping. Legend... - Page 18 If you use your Scooter once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time. n Keep your Scooter’s batteries fully charged. n Avoid deeply discharging your Scooter’s batteries. n Do not charge your Scooter’s batteries for more than 24 consecutive hours. Legend...
- Page 19 9. Reconnect the battery cables to the electronics module. 10. Fasten the battery tie-down strap. 11. Refit the rear shroud and the seat. WARNING! Battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling. Legend...
- Page 20 Avoid storing your Scooter where it will be exposed to temperature extremes. WARNING! If your Scooter’s batteries do become frozen, do not attempt to charge them. Cold or frozen batteries should be allowed to warm up for several days prior to recharging. Legend...
-
Page 21: Operation
7. Release the throttle lever to decelerate and come to a complete stop. The electromechanical parking brake automatically engages when your Scooter comes to a stop. 8. To move in reverse, use your thumb to push the left throttle lever to disengage your Scooter’s brakes and move rearward. Legend... - Page 22 6. You can leave the seat facing to the side to facilitate boarding your Scooter the next time you are going to operate it. WARNING! Never attempt to get on or off your Legend without first removing the key from the key switch. This prevents the Scooter from moving if contact with the throttle control lever is made.
-
Page 23: Comfort Adjustments
2. Rotate the seat to the desired position. 3. Release the seat lock lever to lock the seat securely in place. If the seat is not locked into position, gently rock the seat back and forth until you hear the lever click. Legend... - Page 24 5. Insert the screw through the holes in both the height adjustment tube and the armrest upright. 6. Install and tighten the acorn nut. 7. Tighten the setscrew on the side of the height adjust- ment tube. 8. Repeat for the other armrest. Legend...
- Page 25 6. Release the lever when you have attained your desired height. 7. Ensure your seat is in the lowest position and toggle off the power seat switch before you attempt to drive your FIGURE 17. POWER SEAT ACTUATOR (OPTIONAL) Scooter again. Legend...
-
Page 26: Assembly And Disassembly
10. Move the camlock levers to the unlocked, vertical position. See figure 24. 11. Place one hand on the seat post tower, one hand on the front frame handle and gently slide the front and rear sections apart. See figure 25. FIGURE 18. REMOVING THE SEAT FIGURE 19. REMOVING THE SHROUD Legend... - Page 27 V I I I . D I S A S S E M B L Y A N D A S S E M B L Y FIGURE 21. LIFTING THE BATTERY FIGURE 20. UNPLUGGING THE BATTERY HARNESSES FIGURE 22. UNPLUGGING THE FRONT-TO-REAR FIGURE 23. REMOVING THE BALL DETENT PIN CONNECTOR FIGURE 25. SEPARATING THE FRAME SECTIONS FIGURE 24. UNLOCKING THE CAMLOCK LEVERS Legend...
- Page 28 11. Carefully lift the seat and slide the seat post (on the bottom of the seat frame) into the seat post tower. 12. Rotate the seat until it locks into place to complete assembly of your Scooter. Legend...
-
Page 29: Troubleshooting
With the key turned to the “on” position, check the status LED. If the LED flashes three times, a short pause, then two times, this is the manual freewheel lever code and means your Legend is in manual freewheel mode. - Page 30 Have your authorised Pride provider load test each battery. n Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your Legend that you are not able to solve, contact your authorised Pride provider for information, maintenance, and service.
-
Page 31: Care And Maintenance
M A I N T E N A N C E Your Legend requires minimal of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorised Pride provider. The following areas require periodic inspection and/or care and maintenance. - Page 32 For prolonged storage, you may wish to place several boards under the frame of your Scooter to raise it off the ground and take the weight off the tyres. This reduces the possibility of flat spots developing on the areas of the tyres contacting the ground. Legend...
-
Page 33: Warranty
SERVICE CHECKS AND WARRANTY SERVICE Warranty service can be performed by an authorised Pride provider. Please contact your authorised Pride pro- vider for advice on the current cost of a service visit. Legend... - Page 34 N O T E S Legend...
