USER'S MANUAL

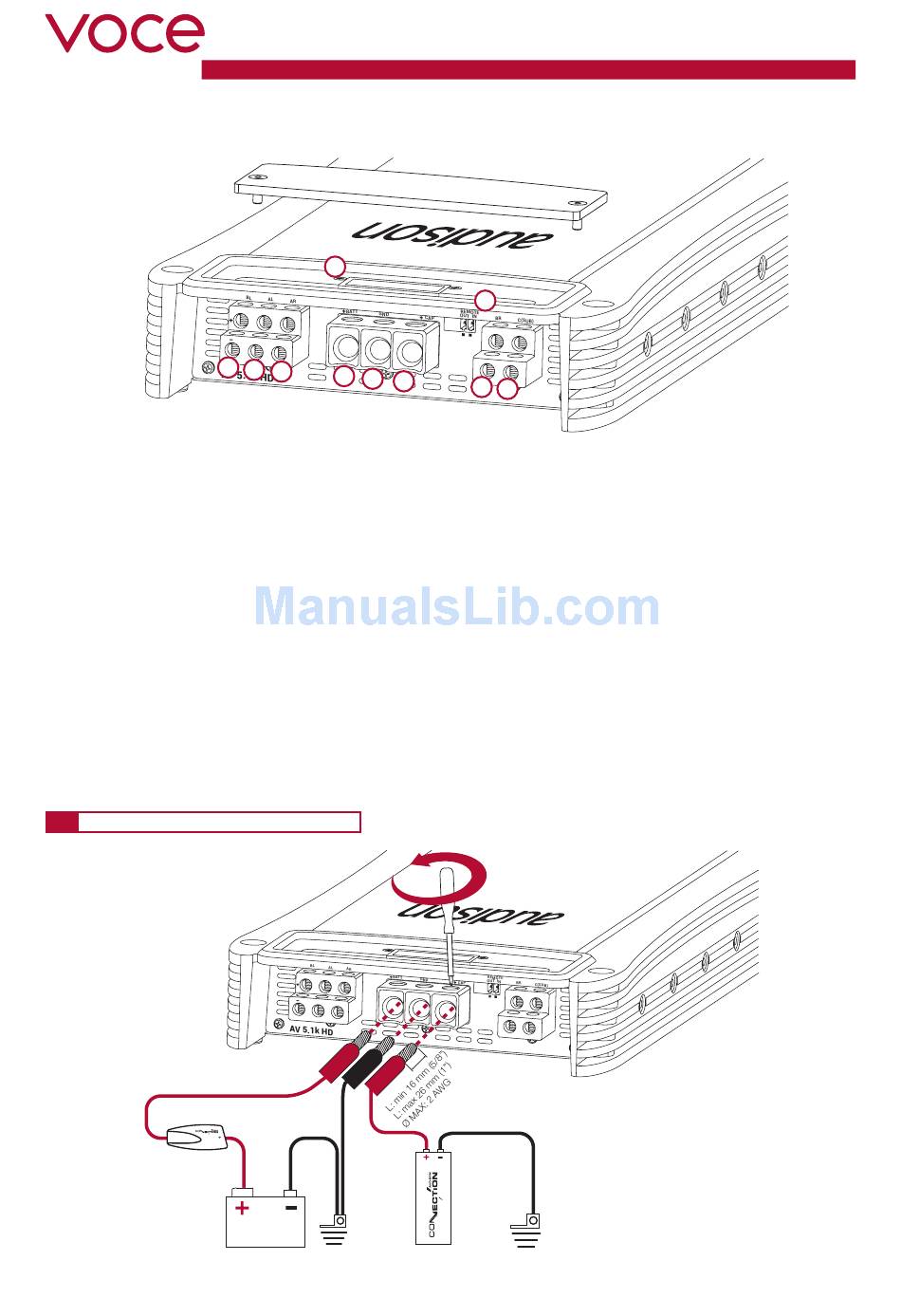

6. REAR PANEL

1. Protection fuse: 100 A;
2. Power (Ground): Terminal block for the amplifier power supply negative pole connection. Insert here the battery
negative cable or wire connected to the vehicle chassis. The plug accepts cables up to 2 A.W.G. For better current
transfer it is recommended to use cables with the maximum cross-section possible and in any case of the same
cross-section of the cable connected to the positive pole;
3. Power (11-15 VDC): Terminal block for the amplifier 11÷15V DC power supply positive pole connection. Insert here
the battery positive cable. The plug accepts cables up to 2 A.W.G. For better current transfer it is recommended to use
cables with the maximum cross-section possible and in any case of the same cross-section of the cable connected to
the negative pole;
4. +CAP: Terminal for connecting the positive pole of an external super capacitor;
5. +/- Left A Speaker Out;
6.
+/- Right A Speaker Out;
7. +/- Left B Speaker Out;
8. +/- Right B Speaker Out;
9. +/- SUB OUT Speaker;
10. Remote IN/OUT:
REMOTE IN: terminal for the remote cable coming from the device which turns on the amplifier. REMOTE OUT:
terminal to launch the remote voltage to turn on other amplifier. The output voltage is 12V 50 mA.
6.1

HOW TO CONNECT POWER CABLES

Fuse
Holder
not provided
1
7
5
6
3
2
Battery Ground
10
4
8
9
Super
Capacitor
not provided
Ground
8
6
AV 5.1k HD /
