Summary of Contents for Audison AV 5.1k HD

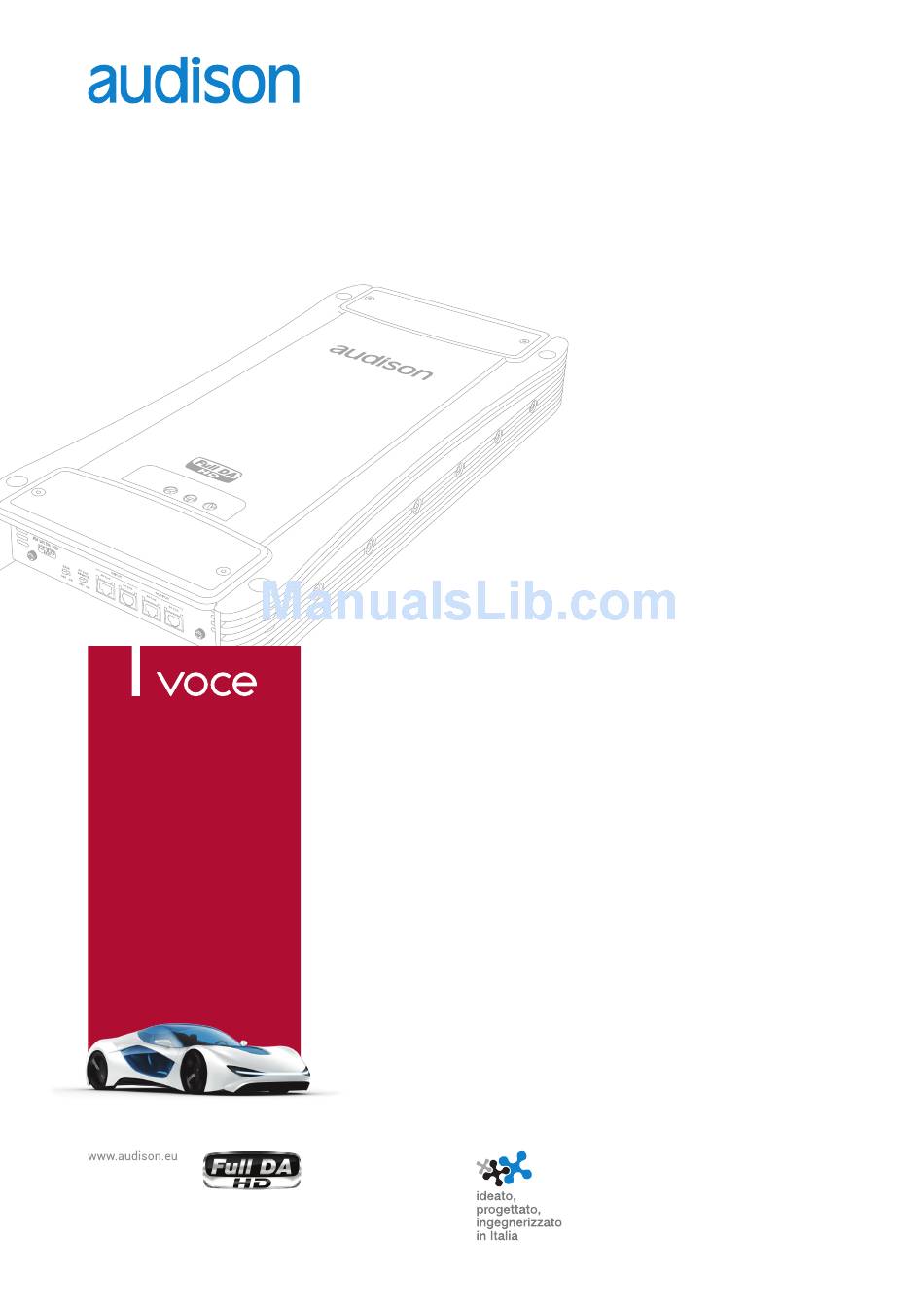

- Page 1 AV 5.1k HD USER’S MANUAL rev. 1.0 a...
-
Page 2: Table Of Contents
7.5 How to insert AV bit IN ................................15 7.6 Full DA Example: Front + Rear + Sub with Audison bit Ten D processor .................16 7.7 Full DA Example: Woofer + Tweeter + Sub with Audison bit Ten D processor ...............17 7.8 Full DA Example: Front + Rear + Sub with Audison bit One processor................18... -
Page 3: Introduction

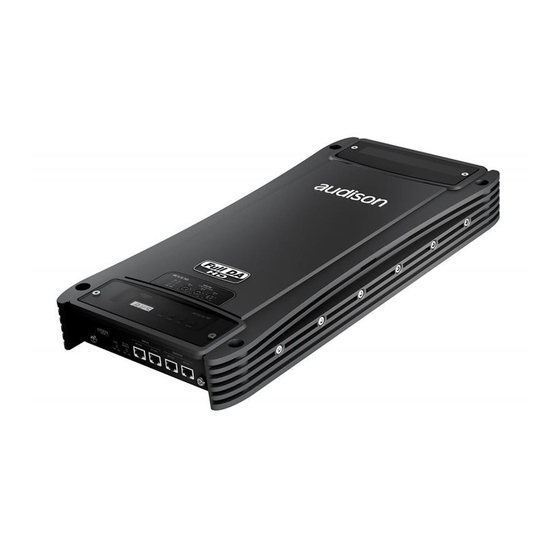

THE AV 5.1K AMPLIFIERS PROJECT AV 5.1k HD, 1650W (RMS) total, 5-channel power audio amplifier: hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels and one 1000 W D Class channel. -
Page 4: Packaging Contents
USER’S MANUAL AV 5.1k HD / 2. PACKAGING CONTENT - AV 5.1k HD amplifier - Quick start guide - Warranty - nr.4 3,9 x 25mm / 0,15” x 0,99 self-tapping cross-headed fixing screws - N. 1 Allen wrench 0,118” - nr.1 100A AFS spare fuse. -
Page 5: Safe Sound
USER’S MANUAL AV 5.1k HD / 3. SAFE SOUND AUDISON AMPLIFIERS CAN BE PART OF A HIGH POWER AUDIO SYSTEM THAT CAN GENERATE VERY HIGH UNDISTORTED SOUND PRESSURE LEVELS. PLEASE REMEMBER THAT LONG EXPOSURE TO AN EXCESSIVELY HIGH SOUND PRESSURE LEVEL MAY DAMAGE YOUR HEARING;... -
Page 6: Precautions
USER’S MANUAL AV 5.1k HD / 4. GENERAL PRECAUTIONS • This symbol indicates that you have to pay attention to these instructions. Disregarding them might cause accidental harms or damage your amplifier. • Before installing the amplifier, make sure you carefully read and understand all instructions. -
Page 7: Installation
USER’S MANUAL AV 5.1k HD / 5. INSTALLATION External size 470 mm / 18.50” inch Mounting size How to mount self-tapping screw 3,9 x 25 mm / 0,15” x 0,99 399 mm / 15,72 inch How to remove the panel Allen wrench 0,118”... -
Page 8: Rear Panel
USER’S MANUAL AV 5.1k HD / 6. REAR PANEL Protection fuse: 100 A; Power (Ground): Terminal block for the amplifier power supply negative pole connection. Insert here the battery negative cable or wire connected to the vehicle chassis. The plug accepts cables up to 2 A.W.G. For better current transfer it is recommended to use cables with the maximum cross-section possible and in any case of the same cross-section of the cable connected to the positive pole;... -
Page 9: How To Replace The Fuse
USER’S MANUAL AV 5.1k HD / HOW TO REPLACE THE FUSE 100 A ASF Fuse (provided) HOW TO CONNECT THE REMOTE IN (only with Audison bit One processor) L: 7 mm (5/16”) REMOTE OUT REMOTE 16 AWG MAX to other amplifier... -
Page 10: Front Panel
Remote-In control. Set switch to OFF if the AV 5.1k HD is connected to a bit One processor. In that case, the Remote-In function on AC Link is not available and the amplifier will have to be turned on via the Remote-In. If an amplifier different from the AV (Thesis TH) is in the AC Link chain, the Remote-In function on AC Link will have to be disabled, setting the switch to OFF. -
Page 11: Control Panel Display
USER’S MANUAL AV 5.1k HD / CONTROL PANEL DISPLAY MENU DOWN ENTER See 7.4: How to configure AV bit IN 1. AV bit IN HD STATUS DISPLAY: This is the visual element of the AV bit IN HD system with a 3-character backlit LCD. - Page 12 USER’S MANUAL AV 5.1k HD / HOW TO CONNECT THE AMPLIFIER TO AN AUDISON bit Ten D PROCESSOR REMOTE OUT IN BATT MONO: +AL / -AR SUB VOL. CONTROL +BL / -BR AV quattro to the other ampli ers REMOTE...
-
Page 13: How To Connect The Amplifier To An Audison Bit Ten D Processor
USER’S MANUAL AV 5.1k HD / HOW TO CONNECT THE AMPLIFIER TO AN AUDISON bit One PROCESSOR REMOTE OUT IN BATT MONO: SUB VOL. +AL / -AR CONTROL +BL / -BR AV quattro REMOTE IN to the other ampli ers... -
Page 14: How To Configure Av Bit In Hd
DRC SRC knob. * * * START MENU DOWN ENTER MENU UP or DOWN To set AV bit IN HD for AV 5.1k HD ampli er MENU ENTER UP or DOWN =A Channel A Ch stereo UP or DOWN = Mono/Stereo ENTER... -
Page 15: How To Insert Av Bit In
USER’S MANUAL AV 5.1k HD / HOW TO INSERT AV BIT IN WARNING: In particularly severe conditions the amplifier can reach temperatures between 80 and 90°C (176 ÷ 194°F). Make sure the temperature is not dangerous before touching it. -
Page 16: Full Da Example: Front + Rear + Sub With Audison Bit Ten D Processor
USER’S MANUAL AV 5.1k HD / FULL DA EXAMPLE: FRONT + REAR + SUB with Audison bit Ten D processor DIGITAL OPTICAL IN to other amplifier REMOTE OUT IN C(SUB) BATT AV 5.1k HD FRONT FRONT LEFT RIGHT REAR REAR... -
Page 17: Full Da Example: Woofer + Tweeter + Sub With Audison Bit Ten D Processor
USER’S MANUAL AV 5.1k HD / FULL DA EXAMPLE: WOOFER + TWEETER + SUB with Audison bit Ten D processor DIGITAL OPTICAL IN to other amplifier REMOTE OUT IN C(SUB) BATT SUB VOL. CONTROL AV 5.1k HD TWEETER TWEETER LEFT... -
Page 18: Full Da Example: Front + Rear + Sub With Audison Bit One Processor
USER’S MANUAL AV 5.1k HD / FULL DA EXAMPLE: FRONT + REAR + SUB with Audison bit One processor DIGITAL REMOTE to other amplifier OPTICAL IN REMOTE OUT IN C(SUB) BATT REMOTE AV 5.1k HD FRONT FRONT LEFT RIGHT REAR... -
Page 19: Full Da Example: Woofer + Tweeter + Sub With Audison Bit One Processor
USER’S MANUAL AV 5.1k HD / FULL DA EXAMPLE: WOOFER + TWEETER + SUB with Audison bit One processor DIGITAL REMOTE to other amplifier OPTICAL IN REMOTE OUT IN C(SUB) BATT REMOTE AV 5.1k HD TWEETER TWEETER LEFT RIGHT SUBWOOFER... -
Page 20: Technical Specifications
USER’S MANUAL AV 5.1k HD / 8. TECHNICAL SPECIFICATIONS POWER SUPPLY Power supply voltage: 11 ÷ 15 VDC Idling current: Idling current when off: 0.02 mA Consumption @ 14.4 VDC (Max Musical Power): 110 A AMPLIFIER STAGE Distortion - THD (1k Hz @ 4Ω ) A, B Ch: 0.05 %... - Page 22 PART OF ELETTROMEDIA - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - www.elettromedia.it...
