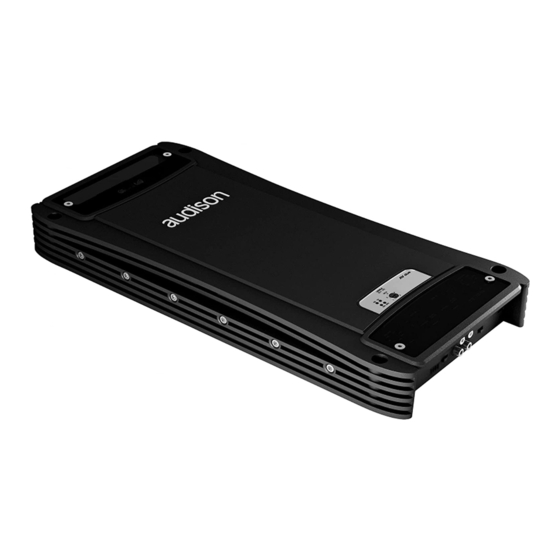

Car audio multichannel amplifier

Advertisement

Quick Links

AV due
AV quattro
AV 5.1k
OWNER'S
MANUAL
CAR AUDIO MULTICHANNEL
AMPLIFIER
www.audison.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV due and is the answer not in the manual?

Questions and answers

Summary of Contents for Audison AV due

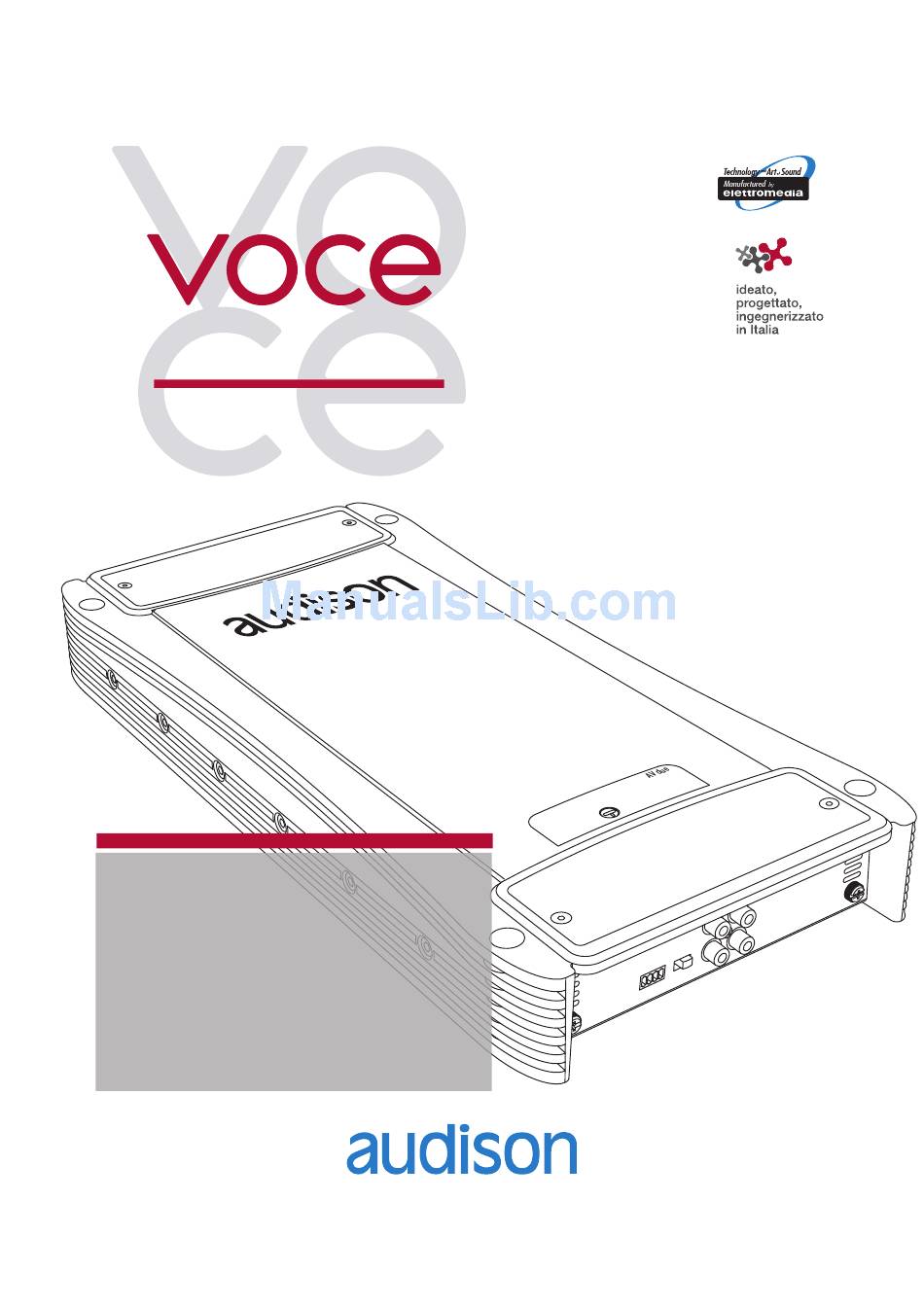

  • Page 1 AV due AV quattro AV 5.1k OWNER’S MANUAL CAR AUDIO MULTICHANNEL AMPLIFIER www.audison.eu...
  • Page 2: Table Of Contents

    OWNER’S MANUAL AV due / Index INTRODUCTION ............................03 2. PACKAGING CONTENTS ..........................04 2.1 Available accessories ..........................04 3. SAFE SOUND ..............................05 4. PRECAUTIONS .............................06 5. INSTALLATION .............................07 6. REAR PANEL ..............................08 6.1 How to connect power cables .........................08 6.2 How to replace the fuse ..........................09 6.3 How to connect the remote switch ......................09...
  • Page 3: Introduction

    THE AV due AMPLIFIER PROJECT AV due is a powerful stereo amplifier. The power supply section and final stage, designed to work also in mono and tri- mode, ensure very high output current, with powers up to 900 W (RMS). AMP constantly checks the operating status system and ART function allows automatic turn-on/off when a remote signal isn’t available from the source.
  • Page 4: Packaging Contents

    OWNER’S MANUAL AV due / 2. PACKAGING CONTENT - AV due amplifier - Quick start guide - Warranty - nr.4 3,9 x 25mm / 0,15” x 0,99 self-tapping cross-headed fixing screws - N. 1 Allen wrench 0,118” - nr.1 60A AFS spare fuse - CD ROM with: This Owner’s manual (.pdf format)
  • Page 5: Safe Sound

    OWNER’S MANUAL AV due / 3. SAFE SOUND AUDISON AMPLIFIERS CAN BE PART OF A HIGH POWER AUDIO SYSTEM THAT CAN GENERATE VERY HIGH UNDISTORTED SOUND PRESSURE LEVELS. PLEASE REMEMBER THAT LONG EXPOSURE TO AN EXCESSIVELY HIGH SOUND PRESSURE LEVEL MAY DAMAGE YOUR HEARING; THEREFORE, PLEASE USE COMMON SENSE AND PRACTICE SAFE SOUND.
  • Page 6: Precautions

    OWNER’S MANUAL AV due / 4. GENERAL PRECAUTIONS • This symbol indicates that you have to pay attention to these instructions. Disregarding them might cause accidental harms or damage your amplifier. • Before installing the amplifier, make sure you carefully read and understand all instructions.
  • Page 7: Installation

    OWNER’S MANUAL AV due / 5. INSTALLATION External size 470 mm / 18,50” Mounting size How to mount self-tapping screw 3,9 x 25 mm / 0,15” x 0,99 399 mm / 15,72” How to remove the panel Allen wrench 0,118”...
  • Page 8: Rear Panel

    OWNER’S MANUAL AV due / 6. REAR PANEL Protection fuse: 60 A; Power (Ground): Terminal block for the amplifier power supply negative pole connection. Insert here the battery negative cable or wire connected to the vehicle chassis. The plug accepts cables up to 2 A.W.G. For better current transfer it is recommended to use cables with the maximum cross-section possible and in any case of the same cross-section of the cable connected to the positive pole;...
  • Page 9: How To Replace The Fuse

    OWNER’S MANUAL AV due / HOW TO REPLACE THE FUSE 60A AFS Fuse (provided) HOW TO CONNECT THE REMOTE SWITCH REMOTE OUT to other amplifier REMOTE OUT...
  • Page 10: Remote Switching Via Spk In

    OWNER’S MANUAL AV due / REMOTE SWITCHING VIA SPK IN REMOTE OUT IN REMOTE OUT to other amplifier FRONT HOW TO CONNECT THE SUB REMOTE VOLUME CONTROL VCRA Sub remote control (optional)
  • Page 11: Front Panel

    OWNER’S MANUAL AV due / 7. FRONT PANEL INPUT (0.3 - 5V): Left and Right analog inputs. PREOUT: Left and Right PREOUT output, corresponding to the Left and Right input signals. SPK IN (1.2V - 20V): High-level Left and Right analog inputs.
  • Page 12: Input Controls

    OWNER’S MANUAL AV due / INPUT CONTROLS...
  • Page 13: How To Connect A Source Via Pre Inputs

    OWNER’S MANUAL AV due / HOW TO CONNECT A SOURCE VIA PRE INPUTS FRONT HOW TO CONNECT A SOURCE VIA THE SPEAKER IN HIGH-LEVEL INPUT FRONT SWITCH ON enables turning the product on from the SPEAKER IN CH A inputs...
  • Page 14: Input Controls

    OWNER’S MANUAL AV due / 8. INPUT CONTROLS CONTROL PANEL: SWITCHES AND ADJUSTMENTS LEVELS (0.3V - 5V): LEVELS (0.3V - 5V): Input sensitivity of the Left and Right channel control. Set the knob on position 1. Use a CD as a source and increase the source volume until you hear distortion, then lower it slightly to eliminate distortion.
  • Page 15: Setting Up Filters

    AV due / SETTING UP FILTERS The AV due amplifier has a filter section versatile and completely independent between various sections. Once you choose a configuration you can easily adjust each pair of channels to your liking, allowing for a user-friendly set-up.
  • Page 16: Amp Lo-Pass @ 12Db

    12 dB/Oct. 12 dB/Oct. MONO 24 dB/Oct. 50÷500 50÷150 50÷1k OWNER’S MANUAL AV due / 12 dB/Oct. 12 dB/Oct. MONO 24 dB/Oct. 50÷150 50÷500 50÷1k AMP LO-PASS @ 12dB Full Range Full Range Full 12 dB/Oct. Full Range Full Range Full 12 dB/Oct.
  • Page 17: Example: Pre Input / Pre Output / Left And Right Speaker

    OWNER’S MANUAL AV due / EXAMPLE: PRE INPUT / PRE OUTPUT / LEFT AND RIGHT SPEAKER AV due INPUT PREOUT SPK IN (1.2 - 20V) PREOUT to other amplifier Front PREOUT SOURCE REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 18: Example: Spk Input / Pre Output / Left And Right Speakers

    OWNER’S MANUAL AV due / EXAMPLE: SPK INPUT / PRE OUTPUT / LEFT and RIGHT Speakers AV due INPUT PREOUT SPK IN (1.2 - 20V) PREOUT to other amplifier SPEAKER WIRE SOURCE REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 19: Example: Pre Input / Pre Output / Subwoofer Speaker

    OWNER’S MANUAL AV due / EXAMPLE: PRE IN / PRE OUT / SUBWOOFER SPEAKER AV due INPUT PREOUT SPK IN (1.2 - 20V) PREOUT to other ampli er Front PREOUT SOURCE REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 20: Example: Spk Input / Pre Output / Subwoofer Speaker

    OWNER’S MANUAL AV due / EXAMPLE: SPK IN / PRE OUT / SUBWOOFER SPEAKER AV due INPUT PREOUT SPK IN (1.2 - 20V) PREOUT to other ampli er SPEAKERS WIRE SOURCE REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 21: Accessories: Av Bit In

    OWNER’S MANUAL AV due / 9. ACCESSORIES: AV BIT IN Digital interface for all AV amplifiers. It allows a seamless digital connection with bit One and bit Ten D processors via the AD Link/AC Link connection. By inserting the AV bit IN “Digital Interface” into AV amplifiers, the digital signal in S/PDIF format, through the AD Link connection, leads directly to the high-quality internal D/A converters.
  • Page 22: How To Insert Av Bit In

    OWNER’S MANUAL AV due / HOW TO INSERT AV BIT IN WARNING: In particularly severe conditions the amplifier can reach temperatures between 80 and 90°C (176 ÷ 194°F). Make sure the temperature is not dangerous before touching it.
  • Page 23: Front Panel

    OWNER’S MANUAL AV due / FRONT PANEL AV bit IN AD Link AC Link 1. AD Link: Digital audio bus that can transmit the signal of 8 channels. It exploits a Class 5 or 6 shielded cable for Ethernet networks normally used in computer networks.
  • Page 24: Control Panel Display

    OWNER’S MANUAL AV due / CONTROL PANEL DISPLAY AV bit IN MENU DOWN ENTER See 9.5: How to configure AV bit IN 1. AV bit IN STATUS DISPLAY: This is the visual element of the AV bit IN system with a 3-character backlit LCD.
  • Page 25: How To Connect The Amplifier Equipped With Av Bit In To The System

    OWNER’S MANUAL AV due / HOW TO CONNECT THE AMPLIFIER EQUIPPED WITH AV BIT IN TO THE SYSTEM...
  • Page 26: How To Configure Av Bit In

    MENU Audison processor (bit Ten D / bit One) UP or DOWN PC software. = rmware View Firmware Version ENTER MENU Esample: Information displayed on the AV bit IN which is dedicated to the AV due amplifier. MENU DOWN ENTER...
  • Page 27: Full Da Example: Front + Rear + Sub With Audison Bit Ten D Processor

    OWNER’S MANUAL AV due / FULL DA EXAMPLE: FRONT + REAR + SUB with Audison bit Ten D processor AV bit IN AD Link AC Link DIGITAL OPTICAL IN to other amplifier REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 28: Full Da Example: Woofer + Tweeter + Sub With Audison Bit Ten D Processor

    OWNER’S MANUAL AV due / FULL DA EXAMPLE: WOOFER + TWEETER + SUB with Audison bit Ten D processor AV bit IN AD Link AC Link DIGITAL OPTICAL IN to other amplifier REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 29: Full Da Example: Front + Rear + Sub With Audison Bit One Processor

    OWNER’S MANUAL AV due / FULL DA EXAMPLE: FRONT + REAR + SUB with Audison bit One processor AV bit IN AD Link AC Link DIGITAL to other amplifier OPTICAL IN REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 30: Full Da Example: Woofer + Tweeter + Sub With Audison Bit One Processor

    OWNER’S MANUAL AV due / FULL DA EXAMPLE: WOOFER + TWEETER + SUB with Audison bit One processor AV bit IN AD Link AC Link DIGITAL to other amplifier OPTICAL IN REMOTE OUT IN BATT SUB VOL. CONTROL AV due...
  • Page 31: Technical Specifications

    OWNER’S MANUAL AV due / 10. TECHNICAL SPECIFICATIONS POWER SUPPLY Power supply voltage: 11 ÷ 15 VDC Idling current: 1.7 A Idling current when off: 0.02 mA Consumption @ 14.4 VDC (Max Musical Power): 65 A AMPLIFIER STAGE Distortion - THD (1kHz @ 4Ω): 0.04 %...
  • Page 32 OWNER’S MANUAL AV due / www.audison.eu PART OF ELETTROMEDIA - 62018 Potenza Picena (MC) Italy - T +39 0733 870870 - F +39 0733 870880 - www.elettromedia.it...
