- Page 1 AV uno AV due AV quattro OWNER’S MANUAL CAR AUDIO MONO AMPLIFIER Release 1.1 AV 5.1k www.audison.eu...
-
Page 2: Table Of Contents
9.5 How to configure AV bit IN ........................26 9.6 Full DA Example: Front + Rear + Sub with Audison bit Ten D processor ..........27 9.7 Full DA Example: Woofer + Tweeter + Sub with Audison bit Ten D processor ..........28 9.8 Full DA Example: Front + Rear + Sub with Audison bit One processor .............29... -
Page 3: Introduction

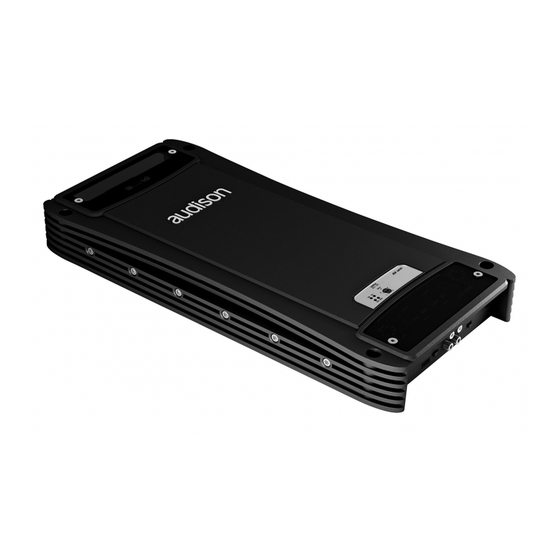

AV uno is a mono amplifier designed to drive the subwoofer but also suitable for high power Dual Mono systems. Power, control and outstanding final stages are capable to unbelievable bass and extraordinary musical quality on the whole frequency range. AV uno also allows you to replace the analog input board with the digital one (AV bit IN). -
Page 4: Packaging Contents
Track_02. white noise (15 min) AV Amplifiers Track_03. pink noise (10 min) Track_04. sine wave 50 Hz - 0 dB (2 min) AV uno, AV due, AV quattro, AV 5.1k Test tracks Track_05. sine wave 1 kHz - 0 dB (2 min) CD ROM Owner’s Manuals... -
Page 5: Safe Sound
OWNER’S MANUAL AV uno / 3. SAFE SOUND AUDISON AMPLIFIERS CAN BE PART OF A HIGH POWER AUDIO SYSTEM THAT CAN GENERATE VERY HIGH UNDISTORTED SOUND PRESSURE LEVELS. PLEASE REMEMBER THAT LONG EXPOSURE TO AN EXCESSIVELY HIGH SOUND PRESSURE LEVEL MAY DAMAGE YOUR HEARING; THEREFORE, PLEASE USE COMMON SENSE AND PRACTICE SAFE SOUND. -
Page 6: Precautions
OWNER’S MANUAL AV uno / 4. GENERAL PRECAUTIONS • This symbol indicates that you have to pay attention to these instructions. Disregarding them might cause accidental harms or damage your amplifier. • Before installing the amplifier, make sure you carefully read and understand all instructions. -
Page 7: Installation
OWNER’S MANUAL AV uno / 5. INSTALLATION External size 470 mm / 18,50” Mounting size How to mount self-tapping screw 3,9 x 25 mm / 0,15” x 0,99 399 mm / 15,72” How to remove the panel Allen wrench 0,118”... -
Page 8: Rear Panel
OWNER’S MANUAL AV uno / 6. REAR PANEL Protection fuse: 100 A; Power (Ground): Terminal block for the amplifier power supply negative pole connection. Insert here the battery negative cable or wire connected to the vehicle chassis. The plug accepts cables up to 2 A.W.G. For better current transfer it is recommended to use cables with the maximum cross-section possible and in any case of the same cross-section of the cable connected to the positive pole;... -
Page 9: How To Replace The Fuse
OWNER’S MANUAL AV uno / HOW TO REPLACE THE FUSE 100A AFS Fuse (provided) HOW TO CONNECT THE REMOTE SWITCH REMOTE OUT to other amplifier REMOTE OUT... -
Page 10: Remote Switching Via Spk In
OWNER’S MANUAL AV uno / REMOTE SWITCHING VIA SPK IN REMOTE OUT IN REMOTE OUT to other ampli er High Level SWITCH ON enables turning the product on from the SPEAKER IN CH A inputs HOW TO CONNECT THE SUB REMOTE VOLUME CONTROL... -
Page 11: Front Panel
OWNER’S MANUAL AV uno / 7. FRONT PANEL AV uno INPUT (0.3 - 5V): Left and Right analog inputs. PREOUT L - R: This jack provides Left and Right INPUT channel pre-amplified outputs to drive a separate amplifier. These output signals are filtered by the Hi-Pass adjustable controls section. -
Page 12: Input Controls
OWNER’S MANUAL AV uno / INPUT CONTROLS... -
Page 13: How To Connect A Source Via Pre Inputs
OWNER’S MANUAL AV uno / HOW TO CONNECT A SOURCE VIA PRE INPUTS PRE OUT HOW TO CONNECT A SOURCE VIA THE SPEAKER IN HIGH-LEVEL INPUT Hi-Level SWITCH ON enables turning the product on from the SPEAKER IN CH A inputs... -
Page 14: Input Controls
OWNER’S MANUAL AV uno / 8. INPUT CONTROLS CONTROL PANEL: SWITCHES AND ADJUSTMENTS AV uno LO PASS SUBSONIC HI PASS BOOST + dB PRE OUT NORMAL REVERSE FULL POLARITY POLARITY LEVELS (0.3V - 5V): LEVELS (0.3V - 5V): Input sensitivity of the Left and Right channel control. Set the knob on position 1. -
Page 15: Amplifier Settings
Turn the amplifier off and check speakers and wiring. AMPLIFIER SETTINGS The AV uno amplifier features a versatile, completely independent filter section. Once you choose a power output configuration, you can adjust the PRE OUT output to your liking. Input Configuration... - Page 16 REVERSE FULL + dB POLARITY POLARITY LO PASS SUBSONIC HI PASS BOOST PRE OUT OWNER’S MANUAL NORMAL REVERSE AV uno / FULL POLARITY POLARITY LO PASS SUBSONIC HI PASS BOOST + dB Full Range PRE OUT 50 Hz÷150 LO PASS...
-
Page 17: Subsonic
OWNER’S MANUAL AV uno / EXAMPLE: PRE INPUT / PREOUT / DOUBLE SUBWOOFER AV uno INPUT PREOUT SPK IN (1.2 - 20V) PREOUT HI-PASS to other ampli er Front PREOUT SOURCE REMOTE OUT IN BATT SUB VOL. CONTROL AV uno... -
Page 18: Example: Dual Mono Pre Input / Preout
OWNER’S MANUAL AV uno / EXAMPLE: DUAL MONO PRE INPUT / PREOUT MONO LEFT MONO RIGHT AV uno AV uno INPUT PREOUT INPUT PREOUT SPK IN SPK IN (1.2 - 20V) (1.2 - 20V) Right PREOUT To other AMPLIFIER Left... - Page 19 OWNER’S MANUAL AV uno / EXAMPLE: SPEAKER INPUT / PREOUT DOUBLE SUBWOOFER AV uno INPUT PREOUT SPK IN (1.2 - 20V) PREOUT HI-PASS to other ampli er SPEAKER WIRE SOURCE REMOTE OUT IN BATT SUB VOL. CONTROL AV uno VCRA...
-
Page 20: Accessories: Av Bit In
OWNER’S MANUAL AV uno / 9. ACCESSORIES: AV BIT IN Digital interface for all AV amplifiers. It allows a seamless digital connection with bit One and bit Ten D processors via the AD Link/AC Link connection. By inserting the AV bit IN “Digital Interface” into AV amplifiers, the digital signal in S/PDIF format, through the AD Link connection, leads directly to the high-quality internal D/A converters. -
Page 21: How To Insert Av Bit In
OWNER’S MANUAL AV uno / HOW TO INSERT AV BIT IN WARNING: In particularly severe conditions the amplifier can reach temperatures between 80 and 90°C (176 ÷ 194°F). Make sure the temperature is not dangerous before touching it. -
Page 22: Front Panel
OWNER’S MANUAL AV uno / FRONT PANEL AV bit IN AD Link AC Link 1. AD Link: Digital audio bus that can transmit the signal of 8 channels. It exploits a Class 5 or 6 shielded cable for Ethernet networks normally used in computer networks. -
Page 23: Control Panel Display
OWNER’S MANUAL AV uno / CONTROL PANEL DISPLAY AV bit IN MENU DOWN ENTER See 9.5: How to configure AV bit IN 1. AV bit IN STATUS DISPLAY: This is the visual element of the AV bit IN system with a 3-character backlit LCD. -
Page 24: How To Connect The Amplifier Equipped With Av Bit In To The System
OWNER’S MANUAL AV uno / HOW TO CONNECT THE AMPLIFIER EQUIPPED WITH AV BIT IN TO THE SYSTEM... -
Page 25: How To Configure Av Bit In
MENU DOWN ENTER MENU UP or DOWN To set AV bit IN for AV uno ampli er To set AV bit IN for UP or DOWN AV due ampli er Set Ampli er Type To set AV bit IN for... - Page 26 OWNER’S MANUAL AV uno / EXAMPLE FULL DA: DOUBLE SUBWOOFER with Audison bit Ten D AV bit IN AD Link AC Link DIGITAL OPTICAL IN to other amplifier REMOTE OUT IN BATT SUB VOL. CONTROL AV uno SPEAKER A SPEAKER B...
- Page 27 OWNER’S MANUAL AV uno / EXAMPLE FULL DA: DUAL MONO with Audison bit Ten D MONO LEFT AV bit IN AD Link AC Link MONO RIGHT AV bit IN AD Link AC Link DIGITAL OPTICAL IN MONO LEFT REMOTE OUT IN BATT SUB VOL.
- Page 28 OWNER’S MANUAL AV uno / EXAMPLE FULL DA: DOUBLE SUBWOOFER with Audison bit One AV bit IN AD Link AC Link DIGITAL to other amplifier OPTICAL IN REMOTE OUT IN BATT SUB VOL. CONTROL AV uno SPEAKER A SPEAKER B...
- Page 29 OWNER’S MANUAL AV uno / EXAMPLE FULL DA: DUAL MONO with Audison bit One MONO LEFT AV bit IN AD Link AC Link MONO RIGHT AV bit IN AD Link AC Link DIGITAL OPTICAL IN MONO LEFT REMOTE OUT IN BATT SUB VOL.
-
Page 30: Technical Specifications
OWNER’S MANUAL AV uno / 10. TECHNICAL SPECIFICATIONS POWER SUPPLY Power supply voltage: 11 ÷ 15 VDC Idling current: Idling current when off: 0.02 mA Consumption @ 14.4 VDC (Max Musical Power): 120 A AMPLIFIER STAGE Distortion - THD (1kHz @ 4Ω): 0.04 %... - Page 32 OWNER’S MANUAL AV uno / www.audison.eu PART OF ELETTROMEDIA - 62018 Potenza Picena (MC) Italy - T +39 0733 870870 - F +39 0733 870880 - www.elettromedia.it...
