Summary of Contents for Audison AV quattro

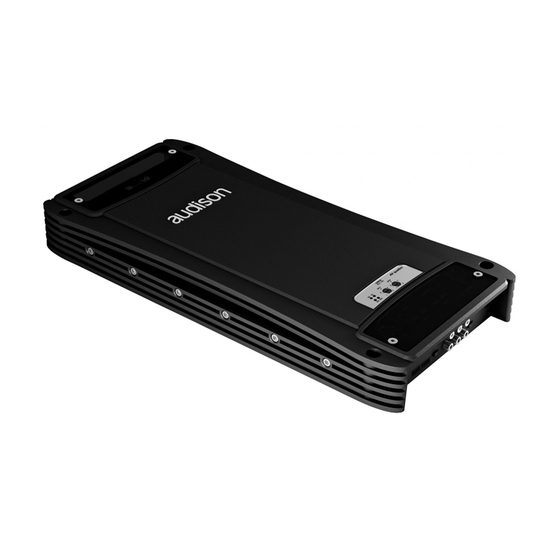

- Page 1 AV quattro OWNER’S MANUAL CAR AUDIO MULTICHANNEL AMPLIFIER www.audison.eu...
-
Page 2: Table Of Contents
OWNER’S MANUAL AV quattro / Index INTRODUCTION ............................03 2. PACKAGING CONTENTS ..........................04 2.1 Available accessories ..........................04 3. SAFE SOUND ..............................05 4. PRECAUTIONS .............................06 5. INSTALLATION .............................07 6. REAR PANEL ..............................08 6.1 How to connect power cables .........................08 6.2 How to replace the fuse ..........................09 6.3 How to connect the remote switch ......................09... -
Page 3: Introduction
Project innovation, advanced design, benchmark performance; the synthesis of consolidated know-how applied to car audio systems. The Voce project was born to make Thesis sound quality available to a wider - but no less demanding - audience. The development of these components took advantage of the major innovations introduced... -
Page 4: Packaging Contents
OWNER’S MANUAL AV quattro / 2. PACKAGING CONTENT - Amplifier AV quattro - Quick start guide - Warranty - nr.4 3,9 x 25mm / 0,15” x 0,99 self-tapping cross-headed fixing screws - N. 1 Allen wrench 0,118” - nr.1 60A AFS spare fuse. -
Page 5: Safe Sound
OWNER’S MANUAL AV quattro / 3. SAFE SOUND AUDISON AMPLIFIERS CAN BE PART OF A HIGH POWER AUDIO SYSTEM THAT CAN GENERATE VERY HIGH UNDISTORTED SOUND PRESSURE LEVELS. PLEASE REMEMBER THAT LONG EXPOSURE TO AN EXCESSIVELY HIGH SOUND PRESSURE LEVEL MAY DAMAGE YOUR HEARING; THEREFORE, PLEASE USE COMMON SENSE AND PRACTICE SAFE SOUND. -
Page 6: Precautions
OWNER’S MANUAL AV quattro / 4. GENERAL PRECAUTIONS • This symbol indicates that you have to pay attention to these instructions. Disregarding them might cause accidental harms or damage your amplifier. • Before installing the amplifier, make sure you carefully read and understand all instructions. -
Page 7: Installation
OWNER’S MANUAL AV quattro / 5. INSTALLATION External size 470 mm / 18,50” Mounting size How to mount self-tapping screw 3,9 x 25 mm / 0,15” x 0,99 399 mm / 15,72” How to remove the panel Allen wrench 0,118”... -
Page 8: Rear Panel
OWNER’S MANUAL AV quattro / 6. REAR PANEL Protection fuse: 60 A; Power (Ground): Terminal block for the amplifier power supply negative pole connection. Insert here the battery negative cable or wire connected to the vehicle chassis. The plug accepts cables up to 2 A.W.G. -
Page 9: How To Replace The Fuse
OWNER’S MANUAL AV quattro / HOW TO REPLACE THE FUSE 60A ASF Fuse (provided) HOW TO CONNECT THE REMOTE SWITCH REMOTE OUT to other amplifier REMOTE OUT... -
Page 10: Remote Switching Via Spk In
OWNER’S MANUAL AV quattro / REMOTE SWITCHING VIA SPK IN REMOTE OUT IN REMOTE OUT to other amplifier LEFT RIGHT HOW TO CONNECT THE SUB REMOTE VOLUME CONTROL VCRA Sub remote control (optional) -
Page 11: Front Panel
OWNER’S MANUAL AV quattro / 7. FRONT PANEL AV quattro IN A IN B PREOUT SPK IN (1.2 - 20V) CH A CH B IN B (IN A) MONO INPUT IN A: Channel A left and right analog inputs. Set the IN B switch to OFF, through this input you can drive channel B left and right inputs. -
Page 12: Input Controls
OWNER’S MANUAL AV quattro / INPUT CONTROLS... -
Page 13: How To Connect A Source Via Pre Inputs
OWNER’S MANUAL AV quattro / HOW TO CONNECT A SOURCE VIA PRE INPUTS FRONT REAR HOW TO CONNECT A SOURCE VIA THE SPEAKER IN HIGH-LEVEL INPUT FRONT REAR SWITCH ON enables turning the product on from the SPEAKER IN CH A inputs... -
Page 14: Input Controls
OWNER’S MANUAL AV quattro / 8. INPUT CONTROLS CONTROL PANEL: SWITCHES AND ADJUSTMENTS LEVELS AV quattro (0.3 - 5V) CH A CH B OVL SPK CH A CH B FILTER FILTER (IN R) (IN R) STEREO MONO STEREO MONO MODE... -
Page 15: Setting Up Filters
Turn the amplifier off and check speakers and wiring. SETTING UP FILTERS The AV quattro amplifier has a filter section versatile and completely independent between various sections. Once you choose a configuration you can easily adjust each pair of channels to your liking, allowing for a user-friendly set-up. -
Page 16: A Channels
OWNER’S MANUAL AV quattro / A Channels CH A CH B CH A CH B CH A CH B FILTER FILTER FILTER FILTER FILTER FILTER CH A CH B CH A CH B Full Range FILTER FILTER FILTER FILTER Full Range... - Page 17 Full Range CH A CH B CH A CH B FILTER FILTER CH A CH B FILTER Full Range OWNER’S MANUAL AV quattro / (IN R) (IN R) MONO STEREO MONO (IN R) (IN R) (IN R) (IN R) MONO STEREO...
-
Page 18: Example 4 Ch: Front + Rear With In A - In B + Preout Inputs
OWNER’S MANUAL AV quattro / EXAMPLE 4 CH: FRONT + REAR WITH IN A - IN B + PREOUT INPUTS AV quattro IN A IN B PREOUT SPK IN (1.2 - 20V) CH A CH B IN B (IN A) -
Page 19: Example 4 Ch: Woofer + Mid Hi With In A + Preout Inputs
OWNER’S MANUAL AV quattro / EXAMPLE 4 CH: WOOFER + MID HI WITH IN A + PREOUT INPUTS AV quattro IN A IN B PREOUT SPK IN (1.2 - 20V) CH A CH B IN B (IN A) MONO INPUT... -
Page 20: Example 3 Ch: Front + Sub With In A + Preout Inputs
OWNER’S MANUAL AV quattro / EXAMPLE 3 CH: FRONT + SUB WITH IN A + PREOUT INPUTS AV quattro IN A IN B PREOUT SPK IN (1.2 - 20V) CH A CH B IN B (IN A) MONO INPUT PREOUT... -
Page 21: Example 2 Ch: Left + Right With In A Right + In B Right Inputs
OWNER’S MANUAL AV quattro / EXAMPLE 2 CH: LEFT + RIGHT WITH IN A RIGHT + IN B RIGHT INPUTS AV quattro IN A IN B PREOUT SPK IN (1.2 - 20V) CH A CH B IN B (IN A) -
Page 22: Example 4 Ch: Front + Rear With Spk In A - Spk In B + Preout Inputs
OWNER’S MANUAL AV quattro / EXAMPLE 4 CH: FRONT + REAR WITH SPK IN A - SPK IN B + PREOUT INPUTS AV quattro IN A IN B PREOUT SPK IN (1.2 - 20V) CH A CH B IN B... -
Page 23: Accessories: Av Bit In
OWNER’S MANUAL AV quattro / 9. ACCESSORIES: AV BIT IN Digital interface for all AV amplifiers. It allows a seamless digital connection with bit One and bit Ten D processors via the AD Link/AC Link connection. By inserting the AV bit IN “Digital Interface” into AV amplifiers, the digital signal in S/PDIF format, through the AD Link connection, leads directly to the high-quality internal D/A converters. -
Page 24: How To Insert Av Bit In
OWNER’S MANUAL AV quattro / HOW TO INSERT AV BIT IN WARNING: In particularly severe conditions the amplifier can reach temperatures between 80 and 90°C (176 ÷ 194°F). Make sure the temperature is not dangerous before touching it. -
Page 25: Front Panel
OWNER’S MANUAL AV quattro / FRONT PANEL AV bit IN AD Link AC Link 1. AD Link: Digital audio bus that can transmit the signal of 8 channels. It exploits a Class 5 or 6 shielded cable for Ethernet networks normally used in computer networks. -
Page 26: Control Panel Display
OWNER’S MANUAL AV quattro / CONTROL PANEL DISPLAY AV bit IN MENU DOWN ENTER See 9.5: How to configure AV bit IN 1. AV bit IN STATUS DISPLAY: This is the visual element of the AV bit IN system with a 3-character backlit LCD. -
Page 27: How To Connect The Amplifier Equipped With Av Bit In To The System
OWNER’S MANUAL AV quattro / HOW TO CONNECT THE AMPLIFIER EQUIPPED WITH AV BIT IN TO THE SYSTEM... -
Page 28: How To Configure Av Bit In
MENU Audison processor (bit Ten D / bit One) UP or DOWN PC software. = rmware View Firmware Version ENTER MENU Esample: Information displayed on the AV bit IN which is dedicated to the AV quattro amplifier. MENU DOWN ENTER... -
Page 29: Full Da Example: Front + Rear + Sub With Audison Bit Ten D Processor
OWNER’S MANUAL AV quattro / FULL DA EXAMPLE: FRONT + REAR + SUB with Audison bit Ten D processor AV bit IN AD Link AC Link DIGITAL OPTICAL IN to other amplifier REMOTE OUT IN BATT MONO: +AL / -AR SUB VOL. -
Page 30: Full Da Example: Woofer + Tweeter + Sub With Audison Bit Ten D Processor
OWNER’S MANUAL AV quattro / FULL DA EXAMPLE: WOOFER + TWEETER + SUB with Audison bit Ten D processor AV bit IN AD Link AC Link DIGITAL OPTICAL IN to other amplifier REMOTE OUT IN BATT MONO: +AL / -AR SUB VOL. -
Page 31: Full Da Example: Front + Rear + Sub With Audison Bit One Processor
OWNER’S MANUAL AV quattro / FULL DA EXAMPLE: FRONT + REAR + SUB with Audison bit One processor AV bit IN AD Link AC Link DIGITAL to other amplifier OPTICAL IN REMOTE OUT IN BATT MONO: +AL / -AR SUB VOL. -
Page 32: Full Da Example: Woofer + Tweeter + Sub With Audison Bit One Processor
OWNER’S MANUAL AV quattro / FULL DA EXAMPLE: WOOFER + TWEETER + SUB with Audison bit One processor AV bit IN AD Link AC Link DIGITAL to other amplifier OPTICAL IN REMOTE OUT IN BATT MONO: +AL / -AR SUB VOL. -
Page 33: Technical Specifications
OWNER’S MANUAL AV quattro / 10. TECHNICAL SPECIFICATIONS POWER SUPPLY Power supply voltage: 11 ÷ 15 VDC Idling current: 1.8 A Idling current when off: 0.02 mA Consumption @ 14.4 VDC (Max Musical Power): 55 A AMPLIFIER STAGE Distortion - THD (1kHz @ 4Ω): 0.04 %... - Page 34 OWNER’S MANUAL AV quattro / www.audison.eu PART OF ELETTROMEDIA - 62018 Potenza Picena (MC) Italy - T +39 0733 870870 - F +39 0733 870880 - www.elettromedia.it...
