- Page 1 Network Camera Installation Manual DC-Y3C14WRX DC-Y8C13WRX DC-Y8C13RX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and video over ethernet. Play) function and embedded mDNS (Multicast DNS) You can use the IDIS Discovery program to change protocol network camera settings or the IDIS Solution Suite • Supports ONVIF protocol (Core specification version Compact program to manage multiple network 2.4.0) -
Page 7: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. DC-Y3C14WRX, DC- DC-Y8C13RX Y8C13WRX Desiccant... -
Page 8: Overview

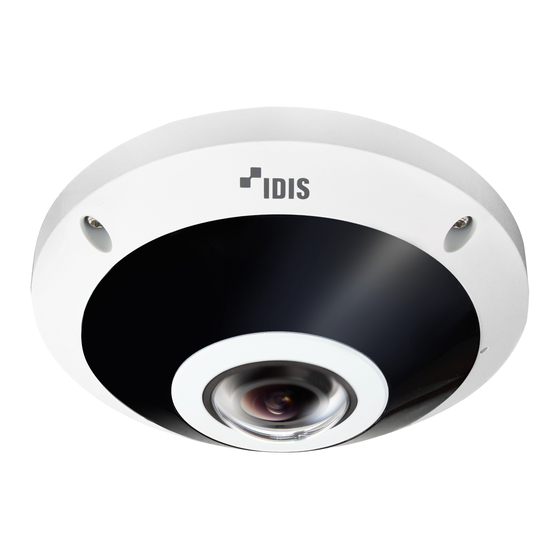

Part 1 – Introduction Overview Body Product color and design may vary depending on the DC-Y3C14WRX model. Top Cover DC-Y3C14WRX / DC-Y8C13WRX DC-Y8C13WRX DC-Y8C13RX DC-Y8C13RX Wall/Ceiling Installation Hole Factory Reset Button Built-in Microphone Top Cover Screw Hole SD Memory Card Slot... -
Page 9: I/O Device Port
A sensor in the middle monitors lighting levels and For more information on network connection setup, activates the IR LED during low-lighting conditions. refer to the IDIS Discovery operation manual. • Lens • FGND (Frame Ground) A lens is mounted. - Page 10 Part 1 – Introduction - Out: It is the BJT (Bipolar Junction Transistor) - open The following table describes the network cable collector output. If the voltage and current exceed specifications. the specification limit (Max. load: 30mA, Max. <The network cable specifications> Voltage: 5VDC), the product could be damaged.
-
Page 11: Factory Reset
It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on factory reset, refer to the IDIS... -
Page 12: Installation
Part 1 – Introduction Remove the top cover. Remove the white paper of the provided insulator and attach it to the wall or ceiling. This may reduce noise which could occur when the camera is Insert a SD memory card into the SD memory card installed on a metalic surface. - Page 13 Part 1 – Introduction Connect external devices, the network cable, and the power adapter. Secure the top cover to the body by turning the screws clockwise with the Allen wrench. After securing the top cover, remove the peel off film from the dome port. Bushing (Only when the insulator is attached)
-
Page 14: Dimensions
Part 1 – Introduction Dimensions Camera_DC-Y3C14WRX / DC-Y8C13WRX Ø155mm(6.1") Camera_DC-Y8C13RX Ø155mm Insulator... -
Page 15: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 16: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 17: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 18: Specifications
Focal Length f=1.98mm/f=1.2mm Aperture F2.8/F2.2 Iris Control Fixed Iris Angular Field of DC-Y3C14WRX H: 180° / V: 168° / D: 180° View DC-Y8C13WRX, H: 180° / V: 180° / D: 180° DC-Y8C13RX Min. Illumination Color : 0.2 lux @ F2.8, F2.2 B/W : 0 lux @ F2.8, F2.2 (IR LED ON) - Page 19 1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC Alarm Out 2 TTL open collector, Max. load: 30mA, Max. voltage: 5VDC General Vandal Resistance Out-door Ready IP67 Operating DC-Y3C14WRX, -10°C ~ +60°C (+14°F ~ +140°F) Temperature DC-Y8C13WRX DC-Y8C13RX -10°C ~ +50°C (+14°F ~ +122°F) Boot Up DC-Y3C14WRX, 0°C ~ +60°C (+32°F ~ +140°F)
- Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
