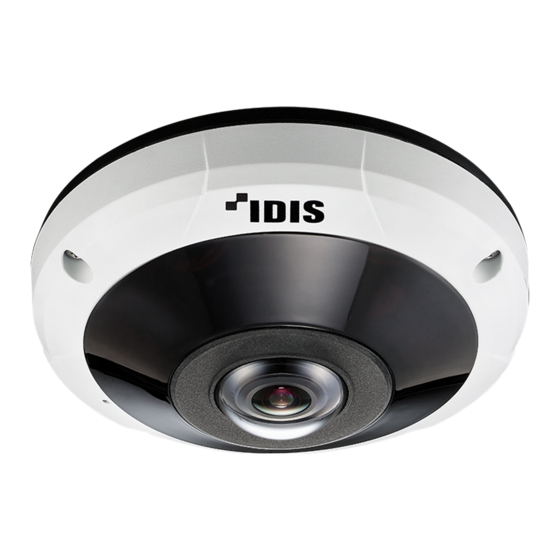

- Page 1 Network Camera Quick Guide DC-Y6516WRX / DC-Y6C16WRX Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Safety Symbols
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. -
Page 4: Camera Installation
Overview I/O Device Port • Product color and design may vary depending on the model. • For more details on each part name, refer to the manual. Top Cover Network Port FGND (Frame Ground) Power Connector Audio Out Audio In Alarm In Alarm out Body... - Page 5 Insert a SD memory card into the SD memory card slot with the ‘micro SD’ print facing upward. Insert the network cable into the waterproof cap, rubber bushing, and waterproof cap body in order. • Push the SD memory card until it disengages from the slot, and then pull it out.
- Page 6 Lock the waterproof cap into the waterproof cap body. Not pulling the cable back may cause water to seep in and damage the product. Installation • Check the wall or ceiling to see if it needs to Connect external devices, the network cable, and be reinforced.
- Page 7 Dimension Ø135mm Network Camera...
-
Page 8: Specifications
Boot Up Temperature 0°C ~ (+32°F ~ ) Operating Humidity 0% ~ 90% Power Source , PoE(IEEE 802.3af, Class 3) Power DC-Y6516WRX , 0.92A, 11W Consumption PoE, IEEE 802.3af(Class 3), 10.3W DC-Y6C16WRX , 0.94A, 11.3W PoE, IEEE 802.3af(Class 3), 10.6W... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
