Installation
Top View
Side View
18
English

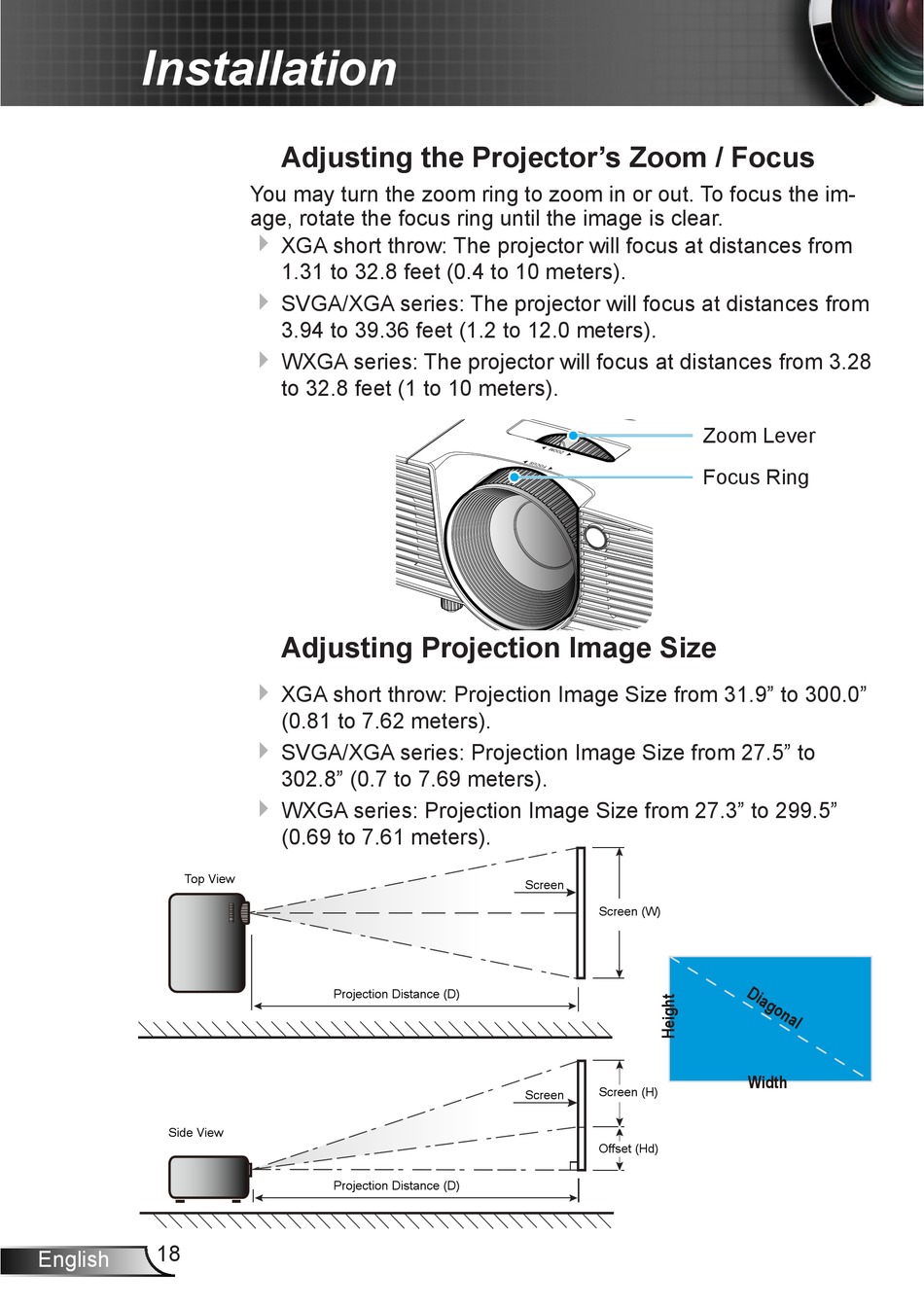

Adjusting the Projector's Zoom / Focus

You may turn the zoom ring to zoom in or out. To focus the im-
age, rotate the focus ring until the image is clear.
4
XGA short throw: The projector will focus at distances from
1.31 to 32.8 feet (0.4 to 10 meters).
4 SVGA/XGA series: The projector will focus at distances from
3.94 to 39.36 feet (1.2 to 12.0 meters).
4 WXGA series: The projector will focus at distances from 3.28
to 32.8 feet (1 to 10 meters).

Adjusting Projection Image Size

4 XGA short throw: Projection Image Size from 31.9" to 300.0"
(0.81 to 7.62 meters).
4 SVGA/XGA series: Projection Image Size from 27.5" to
302.8" (0.7 to 7.69 meters).
4
WXGA series: Projection Image Size from 27.3" to 299.5"
(0.69 to 7.61 meters).
Projection Distance (D)
Projection Distance (D)
Screen
Screen (W)
Screen (H)
Screen
Offset (Hd)
Zoom Lever
Focus Ring
Width
