Water Pump Seals

NOTE: All gaskets, seals and o-rings should be re-
placed as a normal repair procedure during gear
case disassembly.
NOTE: DO NOT use a screwdriver to remove seals
from carrier as carrier may be damaged.

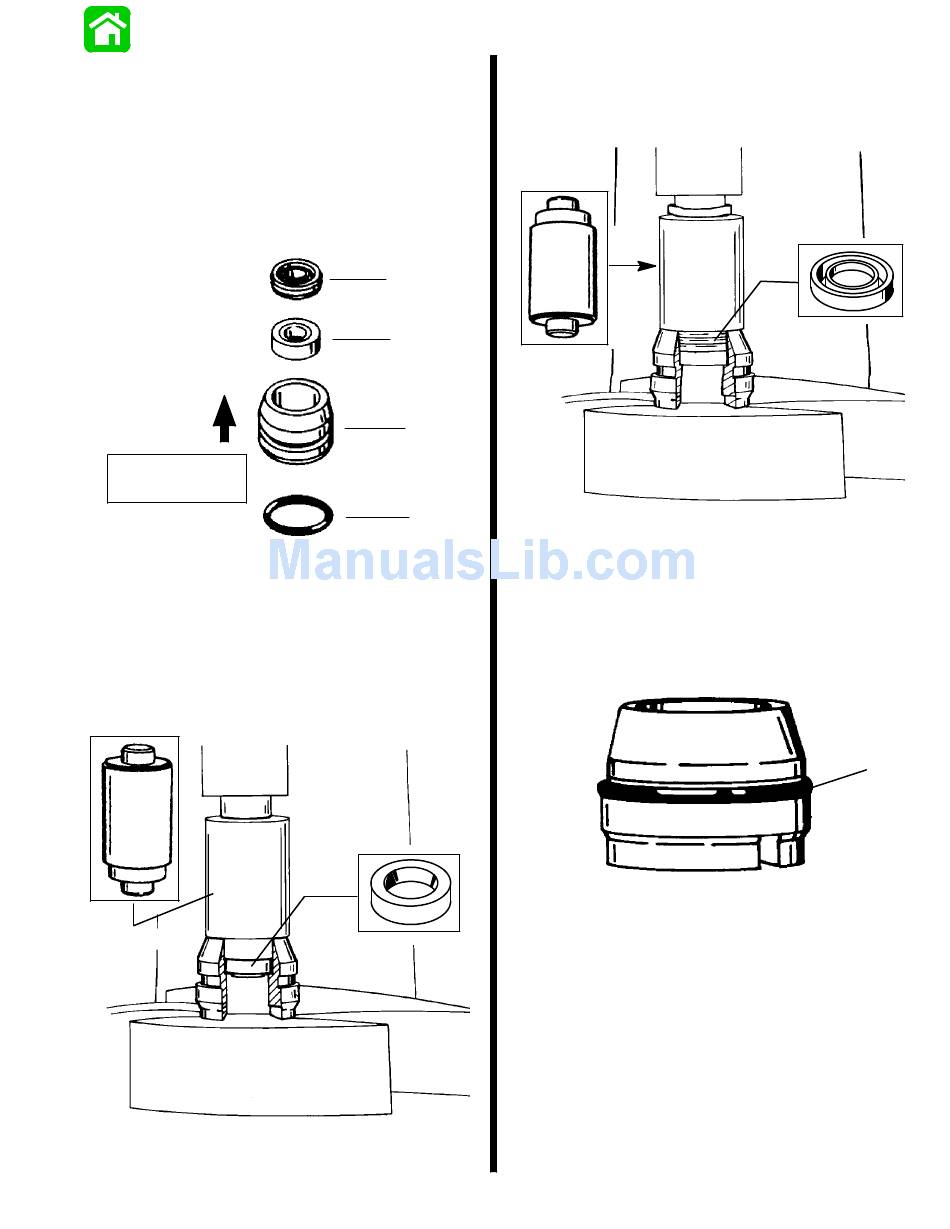

1. Using a suitable mandrel, press both seals from
carrier.
Press Seals Out
In This Direction
a - Neoprene Ribbed Seal
b - Metal Cased Seal
c - Carrier
d - O-ring
2. Apply Loctite 271 to the O.D. of the metal cased
seal. With seal lip facing away from the large
shoulder of MANDREL (91-825197), press seal
into carrier until mandrel bottoms on carrier.
b
a - Seal (Metal Cased)
b - Mandrel (91-825197)
90-826148R2 MARCH 1997
a
b
c
d
52692
a
52850
3. With lip of ribbed neoprene O.D. seal facing to-
wards small shoulder of Mandrel (91-825197),
press seal into carrier until mandrel bottoms on
carrier.
a - Seal (Ribbed Neoprene)
NOTE: Apply a light coat of 2-4-C w/Teflon
(92-825407A12) to the lips of both seals after instal-
lation in carrier.
4. Apply a light coat of 2-4-C w/Teflon to the new o-
ring and install on carrier.
a - O-ring
a
52853
a
52825
LOWER UNIT - 6-15
