USER GUIDE
Aleratec HDD Copy Cruiser
High-Speed WL™
Hard Drive Duplicators and Sanitizers

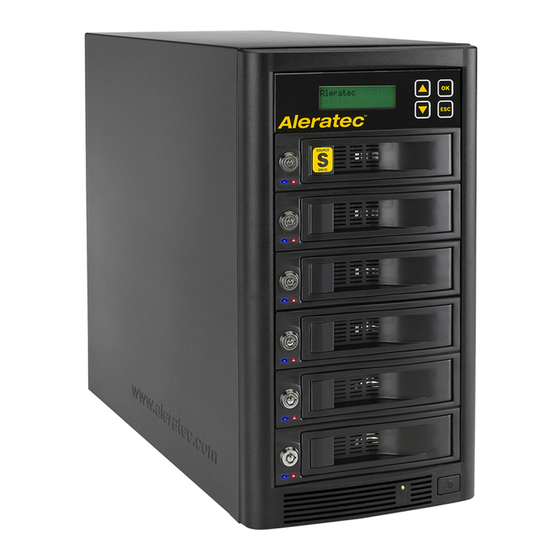

1:5 HDD Copy Cruiser™
Part No. 350135
1:11 HDD Copy Cruiser™ Part No. 350136

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 350135 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aleratec 350135

Summary of Contents for Aleratec 350135

  • Page 1 USER GUIDE Aleratec HDD Copy Cruiser High-Speed WL™ Hard Drive Duplicators and Sanitizers 1:5 HDD Copy Cruiser™ Part No. 350135 1:11 HDD Copy Cruiser™ Part No. 350136...
  • Page 2 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. Aleratec is a registered trademark and 1:5 HDD Copy Cruiser High-Speed WL™ ® and 1:11 HDD Copy Cruiser High-Speed WL™ are trademarks of Aleratec, Inc. Check out Aleratec Online! • google.com/+AleratecInc • YouTube.com/Aleratec • Twitter.com/Aleratec • Facebook.com/Aleratec...
  • Page 3 TV reception. The user is cautioned that changes and/or modifications made to this equipment, without the approval of manufacturer, could void the user’s authority to operate this equipment. www.aleratec.com...
  • Page 4 Safety Regulations WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to authorized personnel only. Make sure that the manually switchable power supply is set to the proper voltage for your region. www.aleratec.com...

  • Page 5: Table Of Contents

    Setup ........................27 Advanced Setup ....................36 Log Manager ......................41 Clear ALL Log ...................42 Setup Password ..................43 Using the Aleratec HDD Duplicator Logging Software ......44 Getting Started ....................44 Using The HDD Duplicator Monitor Functions ..........46 Generating Reports ....................47 Specifications .....................51 Troubleshooting ..................52 Technical Support ..................53...
  • Page 6 www.aleratec.com...

  • Page 7: Introduction

    • Supports 3.5” SATA HDDs and Solid State Drives (SSDs) • Supports 2.5” SATA HDDs and SSDs with optional Aleratec adapters (P/N 350106), not included 2.5” Adapter For 3.5” HDD Drive Bay 2-Pack Aleratec Part # 350106...

  • Page 8: Key Items

    Introduction Key Items 1:5 HDD Copy Cruiser High-Speed WL Part Number: 350135 Display Panel Controller (see page 4) Source Drive Bay Drive Activity Lights Target Drive Bays Drive Bay Locks Power Switch Drive Bay Power LED Handle www.aleratec.com...
  • Page 9 1:11 HDD Copy Cruiser High-Speed WL Part Number: 350136 Display Panel Controller (see page 4) Source Drive Bay Drive Activity Lights Target Drive Bays Drive Bay Locks Target Drive Bays Stand Components Power Drive Bay Power LED Switch Handle www.aleratec.com...

  • Page 10: Hdd Copy Cruiser High Speed Wl Controller Display Panel And Buttons

    ESC button is used to cancel a selected function, or exit a menu UP arrow is used to scroll backward through functions or menus DOWN arrow is used to scroll forward through functions or menus Duplicator Stand Installation Instructions (350136 only) 1. Front Stands 2. Back Stands www.aleratec.com...

  • Page 11: Precautions

    Operating the duplicator immediately after a sudden increase in temperature may result in a malfunction. Transportation Keep the original packing materials for future moving or shipping of the HDD Copy Cruiser High-Speed WL. Replacement packaging may incur charge. www.aleratec.com...

  • Page 12: Overview

    Power Up Sequence During the normal power-up sequence of the HDD Copy Cruiser High-Speed WL, the following information will be displayed. • Figure 1 shows the searching of the station head. Aleratec  • Figure 2 shows the first function. 2014/10/07 09:50 1.

  • Page 13: Main Menu

    Speed WL Controller Display Panel. These are: 2014/10/07 09:50 1. Copy  2014/10/07 09:50 2. Compare  2014/10/07 09:50 3. Copy+Compare  2014/10/07 09:50 4. Overwrite  2014/10/07 09:50 5. Utility  2014/10/07 09:50 6. Setup  2014/10/07 09:50 7. Log Manager  www.aleratec.com...

  • Page 14: Subfunctions

    2. Full Overwrite 3. 3-Pass Overwrite 4. 3-Pass Overwrite + Verify 5. 7-Pass Overwrite 6. Secure Erase The “Utility” menu has three subfunctions. These are: 2014/10/07 09:50 5. Utility  1. Show Disk Info 2. Update System 3. System Info. www.aleratec.com...
  • Page 15 4.2 Skip Unknown 5. Transfer Rate 6.1 Turn On 6. Buzzer 6.2 Mute 7. Language 7.1 English 7.2 Chinese 8. Stop Motor Time 9. Advanced Setup 9.1 Wait HDD Time 9.2 Copy HPA Area 10. Restore Default 9.3 Adjust Clock www.aleratec.com...
  • Page 16 Overview Subfunctions The “Log Manager” menu has one subfunction: 2014/10/07 09:50 7. Log Manager  1.1 Clear ALL Log 1. Advanced Function 1.2 Set Password www.aleratec.com...

  • Page 17: Using The Hdd Copy Cruiser High-Speed Wl

    Press OK to start copying. The system will auto-detect the hard drives. The following information will be displayed. Copy Searching Source  Copy Analyzing Source  Copy Partition #1  Copy 50.9G 1 Ready  www.aleratec.com...
  • Page 18 Note: The copying speed, capacity and duration may vary from one hard drive to another. Once duplication is complete, a job status screen will be displayed. Pass: 1 Fail: 0 Time: 20:18  www.aleratec.com...

  • Page 19: Compare

    Searching Source  Analyzing Source Partition #1  Compare 50.9G 11 Ready  During the compare process, the HDD Copy Cruiser High-Speed WL will display progress information. Press OK to continue. Compare x 11 50.9 G 0:23 937 M  www.aleratec.com...
  • Page 20 Using the HDD Copy Cruiser High-Speed WL Main Menu Compare - Continued When the comparison is completed, a job status screen will be displayed. Pass: 11 Fail: 0 Time: 20:18  www.aleratec.com...

  • Page 21: Compare + Compare

    Press OK to start copying. The system will auto-detect the hard drives. The following information will be displayed. Copy Searching Source  Analyzing Source Partition #1  Copy 50.9G 11 Ready  www.aleratec.com...
  • Page 22 Note: The copying speed, capacity and duration may vary from one source hard drive to another. Once duplication is complete, a job status screen will be displayed. Pass: 11 Fail: 0 Time: 20:18  www.aleratec.com...

  • Page 23: Overwrite

    7-Pass Overwrite, or Security Erase. A. Quick Overwrite A1. To perform a Quick Overwrite, select “Quick Overwrite” and press OK. [ 4. Overwrite ] 1. Quick Overwrite  A2. The loading pattern process for the Quick Overwrite will be displayed. Quick Overwrite Loading Pattern  www.aleratec.com...

  • Page 24: Quick Overwrite

    [ 4. Overwrite ] 2. Full Overwrite  B2. The loading pattern process for the Full Overwrite will be displayed. Full Overwrite Loading Pattern  B3. The estimated time elapsed for the Full Overwrite process will be displayed. Full Overwrite 13:30  www.aleratec.com...

  • Page 25: 3-Pass

    Loading Pattern  C3. The estimated time elapsed for the 3-Pass Overwrite process will be displayed. 3-Pass Overwrite 13:30  C4. When the process is finished, the following screen will be shown. 3-Pass Overwrite Pass: 11 Fail: 0  www.aleratec.com...

  • Page 26: 3-Pass + Verify

    D3. The estimated time elapsed for the 3-Pass Overwrite + Verify process will be displayed. 3-Pass Overwrite + Verify 13:30  D4. When the process is finished, the following screen will be shown. 3-Pass Overwrite + Verify Pass: 11 Fail: 0  www.aleratec.com...

  • Page 27: 7-Pass Overwrite

    Loading Pattern  E3. The estimated time elapsed for the 7-Pass Overwrite process will be displayed. 7-Pass Overwrite 13:30  E4. When the process is finished, the following screen will be shown. 7-Pass Overwrite Pass: 11 Fail: 0  www.aleratec.com...

  • Page 28: Secure Erase

    Pass: 11 Fail: 0  Note: Not all hard disk drives support Secure Erase, although most modern SATA HDDs do. If any of your drives do not support Secure Erase, you will see a “Dev. Not Support” error message. www.aleratec.com...

  • Page 29: Utility

    To display the information about the hard drives in the duplicator, select “Show HDD Info” and press OK. The following information will be displayed. Use the arrow buttons to scroll up and down to view other hard drives. [ 01 ] 232G D 2500  www.aleratec.com...

  • Page 30: Update System

    Using the HDD Copy Cruiser High-Speed WL Main Menu Utility - Update System Before attempting to use this feature, please contact Aleratec Support. Use the arrow buttons (or) to select “Utility”. The following screen will be displayed. 2014/10/07 09:50 5. Utility ...
  • Page 31 2. Create Update HDD  B2. The following information will be displayed. Press OK to confirm. Do FORMAT HDD#1 Confirm?  B3. The following information will be displayed. Format HDD  B4. The formatting is now complete. FORMAT Complete!  www.aleratec.com...

  • Page 32: System Info

    [ 5. Utility ] 5.1 Show HDD Info  Use the arrow buttons (or) to select “System Info” and press OK. [ 5. Utility ] 3. System Info  The following information will be displayed. Aleratec 1-11 Ver: 2.33.4  www.aleratec.com...

  • Page 33: Setup

    2014/10/07 09:50 6. Setup  Use the arrow buttons to scroll between the types of Setup functions: Copy Area, Skip Error, Erase Master, Unknown Format, Transfer Rate, Buzzer, Language, Stop Motor Time, Advanced Setup, and Restore Default. www.aleratec.com...
  • Page 34 [ Copy Area ] ALL Partitions  5. Whole HDD: This function will copy the complete HDD including free space. If you need to also copy HPA, please refer to Advanced Setup on page 38. [ Copy Area ] Whole HDD  www.aleratec.com...
  • Page 35 In the Setup menu, use the arrow buttons (or) to select “Skip Error”. The following screen will be displayed. Press OK to select. [ 6. Setup ] 2. Skip Error  The following information will be displayed. [ Skip Error ]  www.aleratec.com...
  • Page 36 3. Erase Master  Press OK to select. Use the arrow buttons to scroll between Enable or Disable options. 6.3 Erase Master Enable  6.3 Erase Master Disable  Press OK to Enable or Disable the erasing of the master disc. www.aleratec.com...
  • Page 37 Press OK to select. Use the arrow buttons to scroll between the Copy Unknown or Skip Unknown options. [ Unknown Format ] Copy Unknown  [ Unknown Format ] Skip Unknown  Press OK to Copy Unknown or Skip Unknown when formatting hard drives. www.aleratec.com...
  • Page 38 Press OK to select. The following information will be displayed. [ Transfer Rate ] UDMA 5  Use the arrow buttons () to toggle through the available options. Once you change a configuration option, remember to press OK to save it. www.aleratec.com...
  • Page 39  Press OK to select. Use the arrow buttons to scroll between the Turn On and Mute options. [ Buzzer ] Turn On  [ Buzzer ] Mute  Press OK to turn on or mute the buzzer sound. www.aleratec.com...
  • Page 40 Press OK to display the current language selection (the default language is English). [ Language ] English  Use the arrow buttons () to toggle through the available options. Once you change a configuration option, remember to press OK to save it. www.aleratec.com...
  • Page 41 Press OK to select. The following information will be displayed. [ Stop Motor Time ] 5 seconds  Use the arrow buttons () to toggle through the available options. Once you change a configuration option, remember to press OK to save it. www.aleratec.com...

  • Page 42: Advanced Setup

    Using the HDD Copy Cruiser High-Speed WL Main Menu Setup - Advanced Setup The “Advanced Setup” menu contains additional configuration options for the HDD Copy Cruiser High-Speed WL. [ 6. Setup ] 9. Advanced Setup  www.aleratec.com...
  • Page 43 A2. The following information will be displayed. [ Wait HDD Time ] 15 seconds  A3. Use the arrow buttons () to toggle through the available options. Once you change a configuration option, remember to press OK to save it. www.aleratec.com...
  • Page 44 [ Copy HPA Area ]  [ Copy HPA Area ] Setting HPA  [ Copy HPA Area ] Copy and Settings  B3. Press OK to select your perfered option. After changing a setting, remember to press OK to save it. www.aleratec.com...
  • Page 45 3. Adjust Clock  A2. The following information will be displayed. 2014/10/07 09:50:00  A3. Use the arrow buttons () to toggle through the available options. Once you change a configuration option, remember to press OK to save it. www.aleratec.com...
  • Page 46 The following screen will be displayed. [ 6. Setup ] 10. Restore Default  Press OK to select. The following screen will be displayed. Warning: Clear Parameter To Default?  Press OK to clear the parameter to default settings. www.aleratec.com...

  • Page 47: Log Manager

    You will be prompted to enter a password. Select characters by pressing the arrow buttons (or). Press  to scroll through numbers first. Press  to scroll through letters first. Press OK to move to the next character. Enter Password => _  Note: The default password is 123456 www.aleratec.com...

  • Page 48: Clear All Log

    A1. After entering your password, the following screen will be displayed. [ Advanced Setup ] 1. Wait HDD Time  A2. Press OK to select. The following information will be displayed. Warning: Clear ALL log?  A3. Press OK to clear the log, or press ESC to go back. www.aleratec.com...

  • Page 49: Setup Password

    (or). Press  to scroll through numbers first. Press  to scroll through letters first. Press OK to move to the next character. Enter Password => _  B4. Once you are finished entering your new password, press OK to save. www.aleratec.com...

  • Page 50: Using The Aleratec Hdd Duplicator Logging Software

    USB cable. Turn on the HDD Copy Cruiser High-Speed WL. Load the Aleratec installation and user guide CD into the DVD/CD Rom drive in your PC. Double click on Aleratec Logging and Monitoring Software from the menu and follow on-screen prompts to install the application.
  • Page 51 Using the Aleratec HDD Duplicator Logging Software Getting Started - Continued Click on the Change Machine Name button to assign a name to your HDD Duplicator and then press OK. Machine Name www.aleratec.com...

  • Page 52: Using The Hdd Duplicator Monitor Functions

    Using the Aleratec HDD Duplicator Logging Software Using the HDD Duplicator Monitor Functions The HDD Duplicator monitor will track and display the following functions. Copy Compare Copy+Compare Quick Overwrite Full Overwwrite 3-Pass Overwrite 3-Pass Overwrite+Verify 7-Pass Overwrite Secure Erase www.aleratec.com...

  • Page 53: Generating Reports

    Using the Aleratec HDD Duplicator Logging Software Generating Reports Click on the Aleratec Log Viewer icon from your desktop or start menu. Click on the Generate Log Report button. www.aleratec.com...
  • Page 54 Using the Aleratec HDD Duplicator Logging Software Generating Reports - Continued Select the starting date of your report. Select the ending date of your report. www.aleratec.com...
  • Page 55 Using the Aleratec HDD Duplicator Logging Software Generating Reports - Continued Click on the Generate Report button to view the report. To save the report, click on File and choose from the three different formats: Save to Text File Save to CSV File Save to XML File www.aleratec.com...
  • Page 56 Using the Aleratec HDD Duplicator Logging Software Generating Reports - Continued Choose a loction and file name for the report and save it on the computer hard drive or any other secondary storage devices. www.aleratec.com...

  • Page 57: Specifications

    Specifications 1:5 HDD Copy Cruiser High-Speed WL Part Number: 350135 Operating Temperature: 41°F to 122°F / 5°C to 50°C Humidity: 15% - 80% RH Power Requirements 100V-240V AC, 50/60Hz Dimensions 430 mm x 190 mm x 355 mm (depth x width x height) 16.9”...

  • Page 58: Troubleshooting

    HDD Copy Cruiser High- Speed WL to become inoperable. If the system is working normally, do not attempt this operation. If the system is already experiencing problems, please contact Aleratec for repairs. Startup/Shutdown Do not power off the system while it is performing an operation.

  • Page 59: Technical Support

    Technical Support After reading this User Guide, if you need additional assistance with this product, please contact Aleratec Technical Support. Our technical staff will be happy to assist you, but they may need your help to better assist you. Contacting support without all the necessary information can be both time consuming and frustrating.

  • Page 60: Service And Support

    www.aleratec.com...
  • Page 61 www.aleratec.com...
  • Page 62 www.aleratec.com...

  • Page 63: Technical Support Fax Back Form

    I am experiencing the following issues with my HDD Copy Cruiser High-Speed WL: ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ By answering these questions, your problem will be solved more rapidly. Make copies as necessary. You can reach us electronically at: www.aleratec.com on the internet. www.aleratec.com...
  • Page 64 Document Number: 350135-350136_UG_ENG_Rev. A Copyright © 2014 Specifications subject to change without notice. Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. www.aleratec.com...
