Service Manual
Trucks
171–500
Group
Pre-Delivery Inspection
VN, VHD
PV776-TSP147914

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VN Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volvo VN Series

Summary of Contents for Volvo VN Series

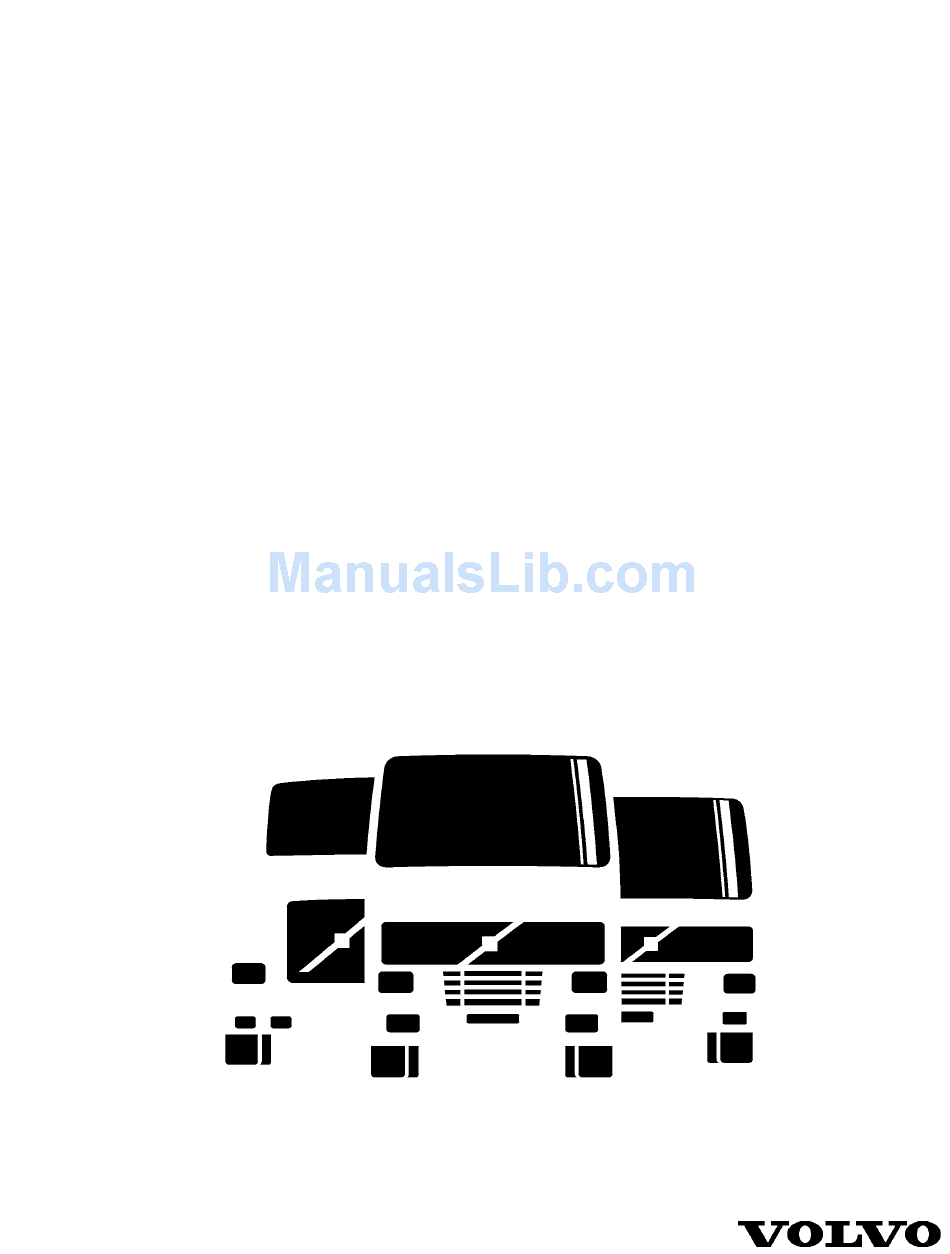

  • Page 1 Service Manual Trucks 171–500 Group Pre-Delivery Inspection VN, VHD PV776-TSP147914...
  • Page 2 Repl: This manual replaces Service Manual 171–500 “Pre-Delivery Inspection”, publication no. PV776–TSP142924 and Supplement 171–500–01, “Axle Shaft Gaskets, Pre-Delivery,” publication no. PV776-TSP144734, of 8/2000. © 2001 Volvo Trucks North America, Inc., Greensboro, NC USA All rights reserved. No part of this publication may be reproduced, stored in...

  • Page 3: Table Of Contents

    Contents General ....................3 Pre-Delivery Inspection ................3 Pre-Delivery Inspection ................. 5 1711–09–02–01 Pre-Delivery Inspection ..........5 Cab Interior ..................5 Cab Exterior Including the Chassis ..........8 Fluid Levels and Lubrication ............12 Test Drive ..................19 Pre-Delivery Inspection Form .............. 22 Feedback...

  • Page 5: General

    W1000076 The Pre-Delivery Service Manual is written for the purpose of assuring the customer and Volvo Trucks North America, Inc. that the vehicle is checked and inspected before actual delivery to the customer. This manual together with the Operator’s Manual for the vehicle are a help to service personnel and should be used with the Pre-Delivery Inspection Sheet at the end of this information.

  • Page 7: Pre-Delivery Inspection

    Group 17 Service Procedures Pre-Delivery Inspection Pre-Delivery Inspection 1711–09–02–01 Pre-Delivery Inspection The “Pre-Delivery Inspection Form” page 22 should be used when doing the Pre-Delivery Inspection. Fill in the form and add a copy to the owner’s package. Cab Interior Vehicle Literature Check the vinyl envelope that is provided with the vehi- cle to see that it contains the following information: •...
  • Page 8 Group 17 Service Procedures Pre-Delivery Inspection Horn(s) Sound the air horn (1) and electric horn (2) to ensure proper operation. Each horn should have a strong, clear tone. W8000947 Safety Belts, Sleeper Restraints Check the safety belts for function and condition. Oper- ate the belt latch and verify that it locks and unlocks properly.
  • Page 9 Group 17 Service Procedures Pre-Delivery Inspection Seats Check both seats for proper function. Operate the switches to verify function. If seat has the heater option, turn on the switch and feel for heat. Note: The heater will only work at ambient temperatures under 103 ±...

  • Page 10: Cab Exterior Including The Chassis

    Group 17 Service Procedures Pre-Delivery Inspection Cab Exterior Including the Chassis Before working on a vehicle, set the parking brakes, place the transmission in neutral, and block the wheels. Failure to do so can result in unexpected vehicle movement and can cause serious personal in- jury or death.
  • Page 11 Group 17 Service Procedures Pre-Delivery Inspection Hood Latch and Tilt Check the hood latches for proper adjustment and oper- ation. Check operation of hood restraint cylinders. Inspect splash shields. Raise and lower the hood to ensure proper operation and make sure that the latches secure the hood when closed.
  • Page 12 Group 17 Service Procedures Pre-Delivery Inspection Fuel Tanks Remove protective coating on polished tanks if tank is exposed. W1000148 Wheel Nuts All disc wheels for the VN or VHD-series have fasteners that require a torque of 450 ft-lb (610 Nm). For dual wheels, the following procedure must be used: Loosen outer nuts.
  • Page 13 Group 17 Service Procedures Pre-Delivery Inspection Exterior Lights Check headlights, marker lights, turn signals, stop, and tail lights for proper operation. Check headlight aim. W3004392 Exhaust Clamp If the exhaust stack has been removed during towing, the clamp must be retorqued after reinstallation of the stack pipe.

  • Page 14: Fluid Levels And Lubrication

    Group 17 Service Procedures Pre-Delivery Inspection Fluid Levels and Lubrication WARNING Before working on a vehicle, set the parking brakes, HOT ENGINE! Keep yourself and your test equipment place the transmission in neutral, and block the clear of all moving parts or hot engine parts and/or wheels.
  • Page 15 Group 17 Service Procedures Pre-Delivery Inspection Rear Axle(s) CAUTION Most rear differentials have a large screw and nut pro- truding from the housing. The screw and nut hold the thrust plate shoe against the ring gear and are not to be confused with the fill/level plug.
  • Page 16 Group 17 Service Procedures Pre-Delivery Inspection Front Axle Hubs CAUTION Do not mix synthetic oils with petroleum-based oils. Mixing synthetic oils with petroleum-based oils can cause component failure and/or component damage. For front axles equipped with oil lubricated wheel bear- ings, check the fluid level in front axle hubs.
  • Page 17 Group 17 Service Procedures Pre-Delivery Inspection Cooling System WARNING Do not remove the coolant fill cap (or cap on the ex- pansion tank) until coolant temperature is less than F (50 C). Otherwise, scalding steam or fluid may escape under pressure, which can cause serious in- jury.
  • Page 18 Group 17 Service Procedures Pre-Delivery Inspection Clutch Reservoir CAUTION Do not mix synthetic oils with petroleum-based oils. Mixing synthetic oils with petroleum-based oils can cause component failure and/or component damage. Check fluid level in the clutch fluid reservoir. Add if nec- W4000749 essary.

  • Page 19: Lubrication Chart

    Group 17 Service Procedures Pre-Delivery Inspection Lubrication Chart Spring hanger (2) Coolant level Note 8 Note 1 Slack adjuster & brake Steering assist cylinder. cam (4) Note 9 Note 18 Steering gear (1) Power steering fluid Note 10 Note 2 Kingpin, upper &...
  • Page 20 NLGI No. 2. Add if necessary. Only use pre-mixed clean water Note: Always grease a Volvo front axle with the and antifreeze in a 50/50 mix. wheels on the ground. Add only the same type antifreeze, that is: extended Note: To grease non-Volvo axles, they are typically life or standard.

  • Page 21: Test Drive

    Group 17 Service Procedures Pre-Delivery Inspection Test Drive Before Test Drive Note: Make sure to note any observations made before, during, and after the test drive on the “Pre-Delivery In- spection Form” page 22. Before the test drive, check the following for proper oper- ation (refer to the Operator’s Manual): •...
  • Page 22 Group 17 Service Procedures Pre-Delivery Inspection Check the clutch for proper operation. The clutch should have smooth operation and engagement when shifting gears. Check the transmission for ease of shifting and proper operation. The lever should move smoothly through the gear pattern.
  • Page 23 Group 17 Service Procedures Pre-Delivery Inspection Check the inter-axle differential lock for proper operation. If equipped, check the inter-wheel differential lock for proper operation. W3000810 After Test Drive Check the Graphic Display for any diagnostic messages. W3000924 Check the exhaust system for leaks. Check the vehicle for any fluid, oil, water or air leaks.

  • Page 24: Pre-Delivery Inspection Form

    Group 17 Service Procedures Pre-Delivery Inspection Pre-Delivery Inspection Form Use the following Pre-Delivery Inspection form to check off the points as they are completed and to note test val- ues.
  • Page 25 Group 17 Service Procedures Pre-Delivery Inspection Pre-Delivery Inspection Customer Truck Model Engine Model & S/N Transm. Model Mileage & S/N Rear Axle Repair Order Model & S/N Date Points of Service Indicate Service Rating ........(OK = , Adjusted = X, Repaired = R) Cab Interior Vehicle Literature Check for correct manuals.
  • Page 26 Group 17 Service Procedures Pre-Delivery Inspection Test Drive Check controls, gauges and indicator lights on dash for proper Before Test Drive function. Check air pressure build-up. Check holding ability of service and parking brakes. Check windshield wipers and washers for proper operation. Check engine for proper performance and operation.

  • Page 27: Feedback

    If you have any comments or suggestions, make a copy of this page, write down your comments and send them to us, either via telefax or mailing directly to the address listed below. From Volvo Trucks North America, Inc................Dept. 516 Service Publications ................
  • Page 28 Volvo Trucks North America, Inc. P.O. Box 26115, Greensboro, NC 27402-6115 Volvo Trucks Canada, Ltd. 6490 Vipond Drive, Mississauga, Ontario L5T 1W8 http://www.volvotrucks.volvo.com PV776-TSP147914 (1000) 04.2001 © Volvo Trucks North America, Inc., 2001...
