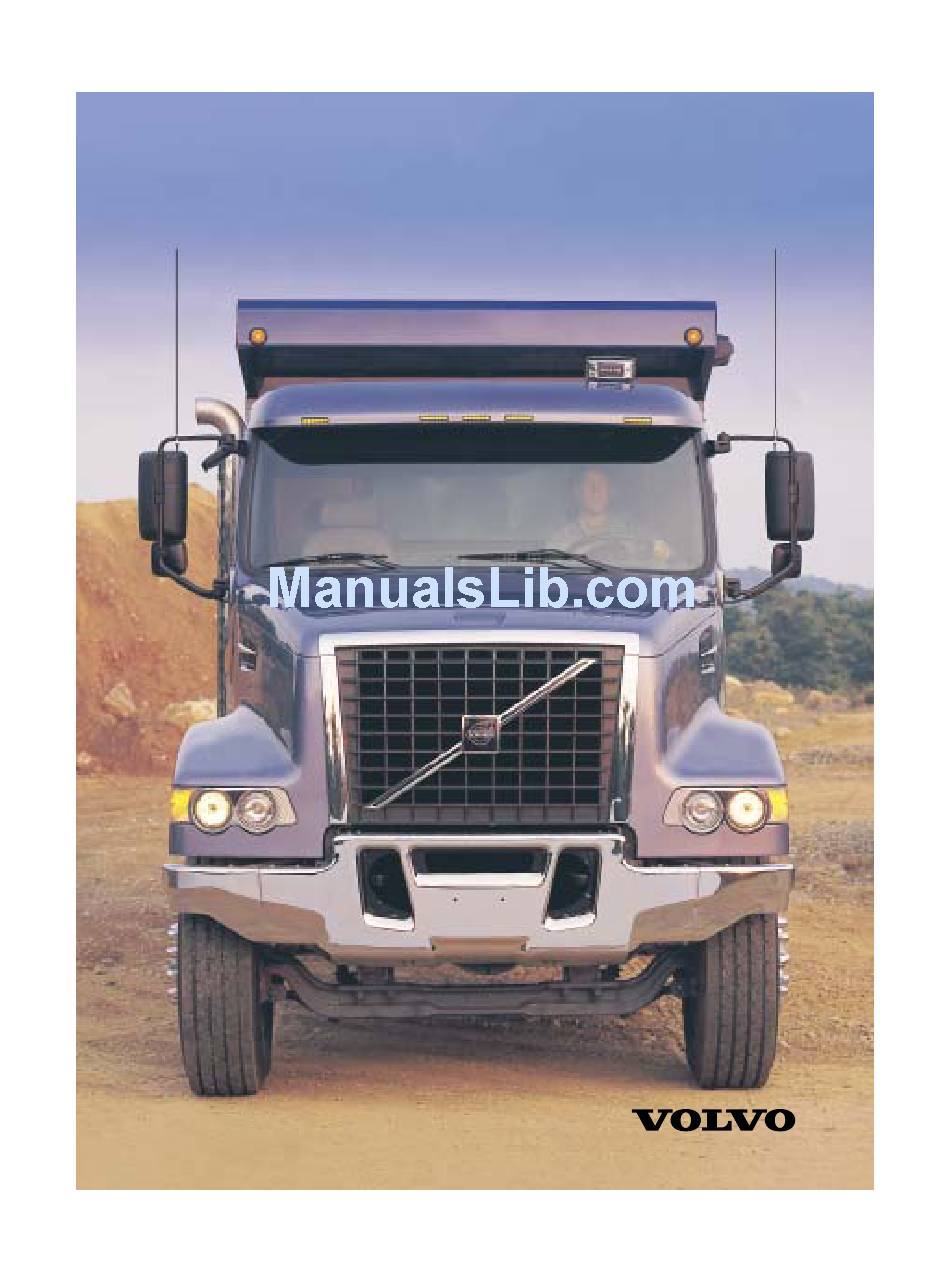

Page 1 OPERATOR’S MANUAL New Roads.
Page 2 Greensboro, NC USA Order number: PV776-20 139484 © 2000 Volvo Trucks North America, Inc., Greensboro, NC USA All rights reserved. No part of this publication may be reproduced, stored in retrieval system, or transmitted in any forms by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Volvo Trucks North America, Inc..
Page 3: Table Of Contents
Acknowledge Information and Stop Messages ... 124 Main Menu: Set-Up Mode ... 126 Main Menu: System Diagnostic ... 131 Main Menu: Data Log Mode (Volvo Engine Only) ... 146 Main Menu: Password Input ... 152 Main Menu: Gauge ... 153 Main Menu: Fuel Economy (option) 157 Main Menu: Time/Distance ...
Page 4 Stereo/Radio ... 188 Communication Equipment ... 189 Fuel Economy Driving ... 190 Fuel Economy ... 190 Engine Start and Operation ... 197 Starting the Engine ... 197 Cold Weather Start and Operation ... 202 Engine Operation ... 209 Cruise Control ... 218 Fuel Tank(s) ...
Page 5: Warning Label Information
Warning Label Information Before driving this vehicle, be certain that you have read and that you fully understand each and every step of the driving and han- dling information in this Operator’s Manual. Be certain that you fully understand and follow all safety warnings. It is extremely im- portant that this information is read and understood before the vehicle is operated.
Page 7: General Information
Establish a Preventive Maintenance Pro- gram with the help of your local Volvo Truck dealer. A Preventive Maintenance Program makes it possible to maximize the amount of time your vehicle is up and run- ning, resulting in longer component life.
Page 8 It contains important operational and safety information that is needed by all drivers and owners of this vehicle. This Operator’s Manual covers Volvo VHD-series vehicles manufactured by Volvo Trucks North America, Inc. with any of the following designations: VHD42 VHD64 VHD84...
Page 9: General Safety Information
If so, you should contact an authorized Volvo Truck dealer to obtain those parts which best ﬁt your own personal needs and preferences. WARNING All items within the cab must be secured before the vehicle is set in motion.
Page 10: Operating In Bobtail Mode
General Information Operating In Bobtail Mode Tractors are equipped with a bobtail air brake proportioning valve which automati- cally redistributes the braking force between front and rear axles when not hooked up to a semitrailer (bobtail operation). When operating in bobtail mode, the rear brake chambers receive reduced or propor- tional brake air pressure.
Page 11 Do Not Overload This vehicle has been designed and assem- bled for a maximum gross vehicle weight rating (GVWR) and a maximum front and rear axle weights rating (FAWR and RAWR). The actual rating for this vehicle can be found on the label attached to the door frame on the driver’s side.
Page 12: Reporting Safety Defects
Contact Volvo Trucks de Mexico by calling or by writing to: Volvo Trucks de Mexico, S.A. de C.V., Prol. Paseo de la Reforma 600, 1er.
Page 13: Modiﬁcations To Vehicle
Drilling is permitted in the frame web in accordance with a speciﬁed hole spacing pattern. Consult a Volvo Truck dealer to obtain approved hole spacing dimensions or refer to the Frame Rail and Cross Member Service Manual.
Page 14: Exhaust And Noise Emissions
General Information Exhaust and Noise Emissions General The Federal Clean Air Act, Section 203 (a) (3), states the following concerning the re- moval of air pollution control devices or modiﬁcation of a certiﬁed engine to a non- certiﬁed conﬁguration: “The following acts and the causing thereof are prohibited: (3) For any person to remove or render in- operative any device or element of design...
Page 15: California Emission Control Warranty Statement
30 days. As the vehicle owner, you should also be aware that Volvo Trucks North America, Inc. may deny you warranty coverage if your vehicle or a part has failed due to abuse, neglect, improper maintenance or unapproved modiﬁcations.
Page 16 ﬁrst placed in service. The emission control system of your new Volvo engine was designed, built and tested us- ing genuine Volvo parts, and the engine is certiﬁed as being in conformity with Federal and California emission control regulations.
Page 17 However, Volvo Trucks North America, Inc. may deny a warranty claim if your failure to perform required maintenance resulted in the failure of a warranted part. Receipts covering the performance of regular maintenance should be retained in the event questions arise con- cerning maintenance.
Page 18 The following is a list of the items that are considered a part of the Emission Control Sys- tems and are covered by the Emission Warranty when installed as original equipment by Volvo Trucks North America, Inc. on vehicles which were built to conform to Environ- mental Protection Agency and California Air Resources Board regulations IMPORTANT - This may not include expendable maintenance items.
Page 19: Noise Emissions
Volvo Trucks North America, Inc., which, at the time it left the control of Volvo Trucks North America, Inc. caused noise emissions to exceed Federal standards, are covered by...
Page 20 General Information Tampering with Noise Control System Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person, other than for purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use;...
Page 21 General Information Fuel System Removing or altering engine speed pro- gramming so as to allow engine speed to exceed manufacturer’s speciﬁcations. Inner Fender Shields and Cab Skirts Removing shields or skirts. Cutting away parts of shields, skirts or dam- aged or loose portions of shields or skirts.
Page 22: Vehicle Data
General Information Vehicle Data Identiﬁcation and Labels It is extremely important that the correct vehicle model and serial number are given whenever replacement parts or service liter- ature are ordered. Using these numbers, as well as giving the major component model and serial numbers, will prevent delay and errors in obtaining the correct material.
Page 23 W0001210 removed. If for any reason a label is dam- aged, contact your Volvo Truck dealer for a replacement. Noise Emission Control Label A Noise Emission Control label is located in the rear of the door frame.
Page 24 General Information Components The Volvo D12 engine serial number is lo- cated on the rear, left side of the cylinder block. There is also a label on the engine elec- tronic control unit that shows the engine serial number. The Volvo D7 engine serial number is lo- cated on the rear, left side of the cylinder block.
Page 25: Vehicle Access
NOTE! The vehicle is delivered with 2 identical keys. If more keys are needed, order them through your Volvo Truck au- thorized dealer. The keys are laser cut and require a special machine for copying, available through the dealer. Record the key code and keep it in a secure place.
Page 26 Vehicle Access The door has a position lock that enables the door to remain open in two different positions. An indented bar is holding the door at approximately 30 and in the fully open position at approximately 85 . To close the door from the inside, place the hand in the handhold and pull the door in.
Page 27: Cab Entry And Exit
Cab Entry and Exit General To avoid personal injury due to a slip and/or fall, observe all the guidelines ex- plained in this section marked Cab Entry and Exit. Do not stand on the steps or any other part of the vehicle while it is in motion. The steps and the back of cab access deck plates are only for entering/exiting the vehicle and not for riding on.
Page 28 Vehicle Access General Entry Guidelines To avoid personal injury due to a slip and/or fall, observe the following guide- lines. Always have three limbs (one foot and two hands or two feet and one hand) in contact with the vehicle at all times when entering or exiting the cab or the area behind the cab.
Page 29 Driver Side Entry/Exit Open the door. Place any hand-carried items on the cab ﬂoor. Grasp the right grab handle with your right hand and the left grab handle with your left hand. Put the right foot fully on the bottom step and pull yourself up to the opening.
Page 30 Vehicle Access Behind the Cab Entry When trailer air and electrical connections can not be coupled from the ground, Fed- eral Regulations require commercial carriers to provide back-of-cab access steps, grab handles and plates. Depending on what option is chosen, grab handles are available in many variations.
Page 31 Vehicle Access Stand on the ground when connecting the air and electrical connections to the trailer. W5000713...
Page 32: Hood
Vehicle Access Hood The hood is locked down by two latches, one on each side of the back end of the hood. The latches are operated by a handle on the bottom edge of the dashboard. Pull the bottom of the handle out to release hood.
Page 33 Manual Hood Opening In the event of a malfunction in the hood opening mechanism, the hood latches can be manually operated through an opening in the wheelwell splash shield. The opening is normally covered by a plate. To access the opening, remove the two screws using a T30 Torx screwdriver.
Page 34: Pre-Trip Inspection And Daily Maintenance
Whenever equipment requires adjustment, replacement, repair or lubrication, refer to the Service Manuals or contact a Volvo Truck dealer for the correct procedures, speciﬁcations and intervals. Take your time going through the pre-trip inspection. Remember that a careful pre-trip inspection saves time by eliminating un- scheduled stops for correcting a faulty item.
Page 35: Pre-Trip Inspection Quick List
Pre-Trip Inspection and Daily Maintenance Pre-Trip Inspection Quick List Inspect the vehicle in a circular manner as shown in the illustration. Numbers between parentheses in the list, re- fer to pages in this manual where component function and necessary inspection is explained in greater detail. Approaching the Vehicle •...
Page 36 Pre-Trip Inspection and Daily Maintenance Step 1: Left Side Of the Cab (cont.) Left Front Brake • Condition of brake drum. With brakes released, look for a noticeable gap be- tween lining and drum (This check cannot be made if dust covers are in place).
Page 37 Pre-Trip Inspection and Daily Maintenance Step 3: Right Side Of Cab Area (cont.) Right Front Suspension • Check condition of spring, spring hangers, shackles, U-bolts: no cracks, breaks or shifting. • Shock absorber condition. Right Front Brake • Condition of brake drum. With brakes released, look for a noticeable gap be- tween lining and drum (This check cannot be made if dust covers are in...
Page 38 Pre-Trip Inspection and Daily Maintenance Condition of Visible Components • Rear of engine: not leaking. • Transmission: not leaking. If equipped with oil cooler, check for leaks or that air-to-air cooler is not blocked. • Check drive shaft. • Exhaust system: secure, not leaking, not touching wires, fuel or air tubing.
Page 39 Pre-Trip Inspection and Daily Maintenance Step 7: Coupling System Area Fifth Wheel • Securely mounted to the frame. • No missing or damaged parts. • Check that trunnion and plate are properly lubricated ( page 265). Sliding Fifth Wheel • Mechanism not worn, bent, damaged or parts missing ( page 267).
Page 40 Pre-Trip Inspection and Daily Maintenance Brakes • Condition of brake drums. With brakes released, look for a noticeable gap be- tween lining and drum (This check cannot be made if dust covers are in place). • Condition of brake hoses: check for any chaﬁng.
Page 41 Pre-Trip Inspection and Daily Maintenance In the Cab • Check steps and grab handles for looseness or breakage ( page 22). Also, clean them if there is any sub- stance that makes them slippery, which makes cab entry/exit hazardous. • Start the engine.
Page 42 Pre-Trip Inspection and Daily Maintenance Hooking Up To Trailer Hook-up Preparation • Check kingpin and mounting plate on trailer, free from wear, bends or dam- age. • Chock trailer wheels. Fifth Wheel Or Trailer Hitch • No visible space between ﬁfth wheel and trailer ( page 273).
Page 43 Pre-Trip Inspection and Daily Maintenance NOTE! Refer to the trailer manufacturer’s manual for speciﬁc information on the trailer checks. Step 9: Trailer Front Area Air and Electrical Connections • Glad hands properly mounted, free from damage and not leaking. • Trailer cord receptacle properly mounted, free of damage;...
Page 44 Pre-Trip Inspection and Daily Maintenance Step 11: Right Rear Trailer Wheel Dual Wheels, One Or Two Axles • Check condition of wheels and rims. Especially look for cracks, missing lockrings, bent or broken spacers, studs, clamps or lugs. • Check condition of tires: properly in- ﬂated, no serious cuts, bulges, tread wear or any signs of misalignment;...
Page 45 Pre-Trip Inspection and Daily Maintenance NOTE! Refer to the trailer manufacturer’s manual for speciﬁc information on the trailer checks. Step 13: Left Rear Trailer Wheels Area Dual Wheels, One Or Two Axles • Check condition of wheels and rims. Especially look for cracks, lockrings missing, bent or broken spacers, studs, clamps or lugs.
Page 46 Pre-Trip Inspection and Daily Maintenance Step 14: Left Side of Trailer Area Landing Gear or Dolly Area • Fully raised; no missing or damaged parts. • Crank handle present and secured. • If power operated, no air/hydraulic leaks. Spare Wheel(s) •...
Page 47: Daily Maintenance
Pre-Trip Inspection and Daily Maintenance Daily Maintenance The following should be checked daily in addition to doing the pre-trip inspection of the truck or tractor and trailer. While checking the ﬂuid levels, visually in- spect hoses, pipes and their connections for signs of leakage.
Page 48 Do not overﬁll! See the “Operator’s Manual, Maintenance and Engine” for correct types of oil used in Volvo engines. CAUTION If the vehicle is equipped with an aero- dynamic bumper, do not step on or press in between the bumper and the wheel.
Page 49 Pre-Trip Inspection and Daily Maintenance Check ﬂuid level in the clutch ﬂuid reser- voir. Fluid level should be between the level marks on the reservoir. If ﬂuid needs to be added, use brake ﬂuid, DOT 4. Check level in the windshield washer reser- voir.
Page 50 NOTE! Make sure that all ﬂuid levels are at their proper levels. If the ﬂuids are not at their proper levels, add as necessary. Refer to the “Operator’s Manual, Maintenance and Engine” for information on what types of ﬂuids are recommended for your Volvo vehicle. W8002766 W3004425...
Page 51 Pre-Trip Inspection and Daily Maintenance WARNING When draining the air tanks, do not look into the area of the draining air. Dirt or sludge particles may be in the air stream that could cause eye injury. Empty out the air tanks daily. With the air system fully charged and with the engine shut off, listen for air leaks.
Page 52: Additional Safety Features
Additional Safety Features Safety Belts General Safety belts must be properly worn at all times by the driver and all passengers while the vehicle is in motion even if the vehicle is equipped with a Supple- mental Restraint System (SRS or air bag).
Page 53 Additional Safety Features Safety belts must be worn by the driver and all passengers at all times. Before adjusting or fastening the safety belt, move the seat forward or rearward and adjust the seat height as necessary. Sit erect and adjust the seat cushion and seat back for a comfort- able driving position.
Page 54 ﬂoor anchor by a seat strap. This seat strap is not adjustable, and does not need to be adjusted. The buckle for the Volvo seat is part of the seat frame. If a comfort clip is used on the safety belt, always adjust the latch so that there is a maximum of 1 in.
Page 55 Inspection Failure to properly inspect and maintain the safety belts can cause serious per- sonal injury or death. It is critical that any time a vehicle has been involved in an accident, the entire safety belt system must be replaced in the vehicle (which also includes the sleeper bunk restraints) if they were in use at the time of the accident.
Page 56 Additional Safety Features The following maintenance guidelines de- tail how to inspect safety belts and tethers for cuts, fraying, extreme or unusual wear of the webbing, etc., and damage to the buckle, retractor, hardware or other factors which indicate that safety belt system re- placement is necessary.
Page 57 Additional Safety Features Check to make sure that the D-loop web guide is rotating properly. If the guide is not rotating properly, the webbing will pull at the wrong angle through the guide, ac- celerating wear. W8002477 If equipped, check the comfort clip for cracks or possible damage.
Page 58 Additional Safety Features The retractor web storage device is mounted on the B-pillar, just behind the door in the cab. The retractor is the heart of the safety belt system and can be damaged if abused, even unintentionally. Check the retractor web storage device operation to ensure that it is not locked and that it spools out and retracts the webbing properly.
Page 59 Additional Safety Features Once replacement of the safety belt has been determined necessary, be certain that it is replaced only with a Volvo original re- placement safety belt. See your authorized Volvo Truck dealer for replacement. Your Volvo safety belt system has been devel- oped and tested speciﬁcally for heavy...
Page 60 Additional Safety Features Comfort Clip Operation When provided, the comfort clip is located on the shoulder strap just below the D-ring. When adjusting the comfort clip, the fol- lowing procedure must be followed for proper adjustment: Pull out only enough webbing to allow slight pressure to the shoulder and chest.
Page 61: Srs Airbag
The Volvo SRS Airbag provides increased protection in frontal collisions, where the vehicle collides with a ﬁxed or heavy object with enough force to activate the sensors which then activates the airbag.
Page 62: Srs System
Additional Safety Features SRS System The inﬂatable airbag is folded into the cen- ter of the steering wheel. It inﬂates in the event of a serious collision above a certain level, where the angle of impact, crash severity, speed and nature of the object in- volved in the collision all play a part in whether or not the airbag is activated.
Page 63 INFO telltale will come on together with the SRS telltale. CAUTION The vehicle should be taken to an autho- rized Volvo Truck dealer immediately if the SRS telltale stays on or lights up when the vehicle is being driven. Additional Safety Features...
Page 64 Additional Safety Features Warning Labels The label attached to the left hand sunvisor shows the year and month when a Volvo Truck dealer should be contacted for a speciﬁc inspection and for a possible re- placement of the airbag. This is done to guarantee the function of the airbag after the stated date.
Page 65 Any queries concerning the SRS system should be directed to a Volvo Truck dealer. There is no maintenance required for the SRS system until the date stated on the warning label located on the left hand sun- visor. Never attempt to repair any part of the SRS system.
Page 66 If the airbag has de- ployed, the following is recommended: • Have the vehicle towed to a Volvo Truck dealer. Even if the vehicle can be driven after a collision, it is not recommended to drive the truck with the airbag deployed.
Page 67 Heart of the Volvo safety system The three-point anchored safety belt is the heart of the Volvo safety system. The belt should be worn at all times. The SRS system is intended as a supplement to the three-point anchored safety belt.
Page 68: Safety Equipment
Additional Safety Features Safety Equipment Safety triangles and ﬁre extinguishers are available as optional equipment. The ﬁre extinguisher should be located by the base of the driver seat, between the seat and the door. Warning Triangles The warning triangles are stored in a box that is strapped to the back wall of the cab.
Page 69: Vorad Collision Warning System
VORAD Collision Warning System The Eaton VORAD computerized Collision Warning System constantly monitors vehi- cles ahead with a front end mounted radar and in a blind spot area with an optional side mounted radar. The Collision Warning System warns the driver of potentially dan- gerous situations by activating visual and audible alerts.
Page 70: Instruments And Controls
Instruments and Controls Dash Overview Air Vents ( page 176) Diagnostic Test Connection Left Switch Cluster ( page 94) Headlight Switch ( page 98) Driving/Fog Lights - option ( page 99) Instrument Light Dimmer ( page 107) Climate Unit Control Panel ( page 168) Hood Latch Handle ( page 26) Pneumatic Switches ( page 104) 10 Cigar Lighter ( page 107)
Page 71: Instrument Cluster Overview
Instrument Cluster Overview General The cluster is available in seven different conﬁgurations, with the speedometer either graded in mph or km/h. The cluster con- sists of three combined sections: Left Section The left section can include pyrometer, en- gine oil pressure gauge, engine coolant temperature gauge, turbo boost pressure gauge and a graphic display for driver information.
Page 72: Telltale Overview
Instruments and Controls Telltale Overview Engine Preheat ( page 72) Yellow INFO Light ( page 73) STOP Light ( page 74) No Charge ( page 75) Left Turn ( page 80) Fifth Wheel Lock ( page 80) Wheel Differential Lock ( page 80) Axle Differential Lock ( page 80)
Page 73: Graphic Display Telltale Overview
Graphic Display Telltale Overview Voltmeter ( page 156) Engine oil temperature ( page 153) Transmission oil temperature ( page 119) Preheating active ( page 72) Acknowledged warning ( page 124) Alarm clock on ( page 161) PTO engaged ( page 96) Cruise control engaged ( page 218) Airbag (SRS) ( page 57) Instruments and Controls...
Page 74: Left Instrument Section
Instruments and Controls Left Instrument Section Pyrometer (option) (this page) Engine Coolant Temperature ( page 69) Engine Oil Pressure ( page 70) Turbo Boost Pressure (option) ( page 71) Graphic Display ( page 108) Telltale Indicators ( page 71) A — Pyrometer (option) An engine pyrometer system indicates the exhaust temperature, which helps the opera- tor get the best efﬁciency from the engine.
Page 75 The gauge indicates engine coolant temper- ature. Normal operating temperature reading is 165 to 205 F (75 to 95 C) for the VOLVO engine. The temperature, under normal driving conditions, must be below the red sector. The temperature range for...
Page 76 Instruments and Controls C — Engine Oil Pressure The gauge indicates oil pressure by a sensor directly connected to the engine lubrication system. Normal oil pressure is 30 to 70 psi (210 to 480 kPa) when the engine is at nor- mal operating temperature.
Page 77 D — Turbo Boost Pressure (option) The gauge indicates intake manifold pres- sure on the engine. The pressure is generated by the turbo. Boost pressure should be the same at a given engine tem- perature, speed and load. Turbo boost pressure will vary for different engines and vehicle models.
Page 78 Instruments and Controls 1 — Engine Preheat Telltale The amber telltale will light when the in- take manifold preheater is operating. The heater is used for better cold starts. Opera- T3008841 tion time of the heater can vary in several steps from 0 to 50 seconds depending on coolant temperature and outside air temper- ature.
Page 79 When ignition is switched on, the telltale goes out unless a defect is detected. NOTE! On vehicles equipped with a Volvo engine, the telltale is on for 3 to 5 seconds after the ignition key switch is turned on.
Page 80: Stop Telltale
Instruments and Controls 3 — STOP Telltale Failure to take necessary action when STOP telltale is on, can ultimately result in automatic engine shutdown and loss of power steering assist. Vehicle crash resulting in personal injury or death can occur. STOP telltale lights up red to alert the operator that a severe problem has been detected and in some cases a preventive ac-...
Page 81 Instruments and Controls 4 — No Charge Telltale The No Charge telltale lights up red when a problem exists in the charging system or when there is no output from the alternator, such as when the engine is not running. T3008832 The No Charge telltale lights up dimly when there are several volts difference be-...
Page 82: Main Instrument Section
Instruments and Controls Main Instrument Section Tachometer ( this page) Speedometer ( page 77) Master Warning Telltale ( page 78) Warning Telltales ( page 79) G — Tachometer The tachometer is electrically driven by a signal from the engine. Monitor the tachometer to guide correct gear shifting and to prevent engine overspeeding when descending steep grades.
Page 83 This is done by repro- gramming the engine or transmission electronic controller. Reprogramming can be performed by your authorized Volvo Truck dealer. The odometer is a Liquid Crystal Display (LCD) mounted in the lower speedometer face.
Page 84 Instruments and Controls J — Master Warning Telltale The Master Warning Telltale and buzzer alerts of a dangerous situation. Air pres- sure is low and the remaining air volume may not be enough for repeated braking. The emergency brakes may engage, causing a wheel lock-up, loss of vehicle control and become a hazard to follow- ing vehicles.
Page 85 K — Warning Telltales, Center Section Left Turn Telltale ( page 80) Fifth Wheel Lock Telltale ( page 80) Wheel Diff. Lock Telltale ( page 80) Interaxle Diff. Lock Telltale ( page 80) High Beam Telltale ( page 81) Safety Belt Telltale ( page 81) Parking Brake Telltale ( page 81) NOTE! All telltales may not be used in all vehicles.
Page 86 Instruments and Controls Left and Right Turn Telltales This lights up green when the turn signal is activated and blinks in time with the out- side turn signal lamps. An audible signal also sounds in time with the telltale. A sin- W3000903 gle short beep is heard when the telltale lights up.
Page 87 High Beam Telltale Any time the high beams are activated, by the high/low beam switch or the high beam ﬂash switch, the telltale lights up blue. For information on switching high/low beam, see page 91. Safety Belt Telltale The telltale lights up red each time the ig- nition is turned on to remind the driver to fasten the safety belt.
Page 88: Air Suspension Telltale
Instruments and Controls ABS Telltale, Tractor and Trailer The telltale lights up amber if the Anti- Lock Brake System (ABS) senses a problem under the following conditions: The system will go through its self test when the ignition switch is turned on and the telltale should continue to be on.
Page 89: Right Instrument Section
Right Instrument Section Forward Drive Axle Oil Temperature (option) ( this page) Rear Drive Axle Oil Temperature (option) ( this page) Fuel Level Gauge ( page 84) Application Air Pressure (option) ( page 84) Air Suspension Pressure (option) ( page 84) Front Brake System Air Pressure ( page 85) Rear Brake System Air Pressure...
Page 90 Instruments and Controls N — Fuel Level Gauge The gauge is connected to a sending unit in the fuel tank. There is only one sender even if the vehicle is equipped with dual tanks. W3003628 O — Application Air Brake Pressure (option) Air gauges are directly connected to the air brake system.
Page 91 P & Q — Front and Rear Brake System Air Pressures The system air gauges are directly con- nected to the front and rear circuit tanks. The two gauges should register equal air pressure. Air brake system pressure should be between 90 to 135 psi (620 to 930 kPa) for normal operation.
Page 92 Instruments and Controls R — Warning Telltales, Right Section Transmission Temperature (this page) Check Transmission (this page) Traction Control System ( page 87) Wait to Start (Not used) Automatic Neutral ( page 88) Water in Fuel (Not used) Transmission Temperature Telltale The Transmission Temperature Telltale is for the Allison WTEC III transmission.
Page 93 Instruments and Controls Traction Control System Telltale The amber telltale will blink only when the Traction Control System (TCS) mud/snow mode is engaged. At all other times, the TCS system operates in the background without indication. The system does not have an on/off switch.
Page 94 Instruments and Controls Auto Neutral Telltale The Auto Neutral Telltale is for the Allison WTEC III transmission. The green indica- tor lights up when the transmission is in auto neutral. Auto neutral is activated just before the vehicle comes to a complete stop (less than 1.5 mph [2.5 km/h]).
Page 95: Changing Telltale Bulbs In Cluster
Changing Telltale Bulbs In Cluster NOTE! Before beginning to work, make sure the vehicle ignition is switched OFF. If possible, adjust the steering column back. Remove the two screws at the top of the instrument cluster and fold the cluster out and let it rest face-down against the steering column so the bulbs are accessible.
Page 96 Instruments and Controls A bulb change tool is included with the ignition keys on the keychain, or can be or- dered from your Volvo Truck dealer under part number 1089953. Use only this tool to change bulbs in the instrument cluster.
Page 97: Steering Column Switches
Instruments and Controls Steering Column Switches Turn Signal/Headlight Beam Change The turn signal is activated by the lever un- der the left side of the steering wheel. If the vehicle is equipped with a cruise con- trol, the controls for this are located on the turn signal lever.
Page 98: Windshield Wiper/Washer
Instruments and Controls Windshield Wiper/Washer The wiper/washer functions are operated by the same switch. The wipers have a normal and a fast speed which are activated by moving the lever down one or two posi- tions. To let the wipers engage for one or two passes, lightly depress the lever until the wipers start and hold it there.
Page 99: Transmission Retarder
Instruments and Controls Transmission Retarder If the vehicle is equipped with an Allison HD or MD transmission, the retarder lever is located in front of the highbeam and windshield wiper/washer lever. You can move this lever to six different positions to set the level.
Page 100: Left Switch Cluster
Instruments and Controls Left Switch Cluster This switch cluster has only one switch po- sition permanently ﬁlled. Other positions are for optional equipment. The standard switch is for the Hazard Lights. Other switches that can be located in this cluster are for Back of Cab Light, Headlight Flash, Power Take Off, Head- light/Snowplow Changeover, and Fresh Air Intake.
Page 101 Instruments and Controls Headlight Flash Switch (option) The headlight ﬂash switch will momentar- ily turn the headlights off when pressed. The switch will return when released, turn- ing headlights on again. This switch functions when either of Daytime Running Lights or low beam headlights are on. W3002306...
Page 102 Instruments and Controls Power Take Off There are two basic types of PTOs avail- able: engine mounted and transmission mounted. The transmission mounted PTO is clutch dependent, which means that opera- tion can be regulated by depressing or releasing the clutch pedal. This type of PTO should not be in use while driving.
Page 103 PTO Speed Adjustment Have the PTO engaged before adjusting the speed. For the PTO speed adjustment to function, the Cruise Control or idle adjust can not be active, brake and clutch pedals must be released, and vehicle speed must be under approximately 5 mph (8 km/h). To set engine speed: Set the PTO/CC switch in the ON po- sition.
Page 104: Driving Light Switches
Instruments and Controls Driving Light Switches Headlights The headlight switch controls parking lights and headlights. It is a two position rotary switch, turning on parking lights, cab marker lamps and taillights in the ﬁrst posi- tion and turning on headlights in the second position.
Page 105 Instruments and Controls Driving and Fog Lights (option) Combinations of driving and fog lights can be mounted in standard locations in the aerodynamic bumper or from the underside of the steel bumper. These are operated by a switch next to the headlight switch. Fog and driving lights are wired so they are turned on only when the headlight switch is W3001356...
Page 106: Right Switch Cluster
Instruments and Controls Right Switch Cluster This switch cluster can hold up to six optional equipment switches. Planned func- tions are Marker Interrupt, Traction Control (TCS), Exhaust or Engine Brake and Heated Mirrors. W3000972 Marker Interrupt Switch The switch interrupts power to the marker lights when held down.
Page 107 Exhaust/Engine Brake When operating your tractor bob-tail without a trailer or on slippery roads, the engine brake switch must be in the “OFF” position. Failure to follow these instructions can result in loss of vehicle control and serious personal injury or death may occur.
Page 108 (1 500 to 2 300 r/min). For proper operation, see page 240. Engine Brake, Volvo Engine — Optional The Volvo Engine Brake (VEB) is a com- pression brake. It works together with the exhaust brake to provide two levels of braking power.
Page 109: Heated Mirror Switch (Option)
Instruments and Controls Heated Mirror Switch (option) The vehicle can be equipped with heated mirrors. The switch turns on an electric heater element that is a part of the mirror glass. The heater is self regulating and will keep a steady temperature after reaching operating temperature.
Page 110: Pneumatic Switch Cluster
Instruments and Controls Pneumatic Switch Cluster The pneumatic switch cluster can have up to four optional equipment switches. They regulate air ﬂow directly to the following equipment: Differential Lock — Wheel and Interaxle, Air Suspension Level and Fifth Wheel Slide. To prevent accidental engagement, each switch has a latch that needs to be pressed down before the switch can be operated.
Page 111 Suspension Level CAUTION The vehicle must never be driven with the air springs deﬂated. Damage to air suspension parts will occur if springs are not inﬂated properly. Tractors with rear air suspension have a control for deﬂating the air springs. Use this when uncoupling from trailers.
Page 112: Optional Switch Cluster
Volvo Truck dealer. Optional switches such as an Eaton Vorad display, Eaton Autoshift display or Allison Transmission Retarder can be installed, or the optional switch panel can be removed and a radio or Volvo Road Relay can be installed. W3000973 W3002419 W3002420...
Page 113: Miscellaneous Switches
Miscellaneous Switches Horn Switches Electric and air horns are standard equip- ment. They are both operated from the steering wheel. The air horn button (1) is located in the middle of the steering wheel. If the vehicle is equipped with an airbag (SRS), the airbag module can be pressed down anywhere around the edge to engage the air horn.
Page 114: Graphic Display
Password protected functions are described in Service Manual “Instrumentation, VN, from 3/99 and VHD” (see page 287 for order information). In order to control a speciﬁc function it is important to know which menu you are working in.
Page 115: Graphic Display Controls
Graphic Display Controls If the vehicle is in motion, use the dis- play controls carefully. Do not lose road concentration. Be familiar with operation of the controls. Shifting concentration to operating the controls can lead to losing control of the vehicle and may result in serious personal injury or death.
Page 116: Changing Settings
Graphic Display Changing Settings The up/down buttons increase or re- duce the set values (e.g. hours and minutes in the adjacent example). Pressing SELECT conﬁrms the choice. If there are several settings to change in the same menu, the cursor is moved to the next setting using the up/down buttons (e.g.
Page 117: Graphic Display Telltales
Graphic Display Telltales Voltmeter ( page 156) Engine oil temperature ( page 153) Transmission oil temperature ( page 119) Preheating active ( page 72) Acknowledged warning ( page 124) Alarm clock on ( page 161) PTO engaged ( page 96) Cruise control engaged ( page 218) Airbag (SRS) ( page 57) Graphic Display...
Page 118: Information And Stop Messages
Graphic Display Information and Stop Messages The information and stop messages work together with the INFO or STOP tell- tales below the Graphic Display. If the engine is running, the buzzer will sound at any time the STOP telltale comes on. Information Telltale NOTE! When the yellow INFO telltale...
Page 119: Information Telltale
Graphic Display Information Telltale General The yellow INFO telltale lights up when an abnormal status is detected by an elec- tronic control unit. A telltale or text, or both, are shown in the display in addition T3008860 to the INFO telltale. For certain telltales, a reference value is also shown.
Page 120 The airbag (SRS) is described on page 57. CAUTION The vehicle should be taken to an autho- rized Volvo Truck dealer immediately if the SRS telltale stays on or lights up when the vehicle is being driven. Instrument Cluster Overheating The symbol is shown when the temperature behind the instrument cluster is too high.
Page 121 T3008843 To replace air ﬁlter, see the Operator’s Manual, Maintenance and Engine. Too Cold for Engine Brake (Volvo Engine Only) Position 2 of the engine brake should not be switched on until the engine has become warm (over 110 F [45 C]). If position 2 is...
Page 122: Transmission Oil Temperature
Graphic Display Transmission Oil Temperature This telltale lights when the transmission oil temperature is too high. It is shown with a text information about the temperature. T3008831 See page 119 for more information. Charging System This telltale lights when there is a problem in the charging system.
Page 123 Text The yellow INFO telltale lights up and information text is shown on the display. The text contains information on where the fault has occurred as well as the type of fault (applies to the data link): Factory installed equipment: Speciﬁc data link fault: Graphic Display CHECK...
Page 124 Graphic Display Data link broken: Not factory installed equipment: The following can be shown if equipment has been added by a customer and con- nected to the data link: MID (Message IDentiﬁer) = controller To ﬁnd more information on the data link diagnostic function, see page 131.
Page 125 Telltale + Text The yellow INFO telltale lights up and information text together with a value is shown on the display. The text contains in- formation on where the fault has occurred and the value will show how much above or below the limit the current conditions are: Transmission Oil Temperature If the transmission oil temperature becomes...
Page 126: Stop Telltale
Graphic Display Stop Telltale In the event of a serious fault, the red STOP telltale lights up and the buzzer sounds (if the engine is on). In addition to STOP telltale, a symbol or text, or both, are shown in the display. A reference value is also shown for certain telltales.
Page 127: Coolant Temperature
Engine Oil Pressure Failure to take necessary action when STOP telltale is on, can ultimately result in automatic engine shutdown and loss of power steering assist. Vehicle crash resulting in personal injury or death can occur. Bring the vehicle to a safe stop where the problem can be checked.
Page 128 Graphic Display Text The red STOP telltale lights up and in- formation text ﬂashes on the display. The buzzer sounds if the engine is running. The text includes information about where the fault has occurred: Speciﬁc data link fault: Factory ﬁtted equipment: Not factory ﬁtted equipment: The following is shown if the customer has ﬁtted equipment which is connected to the...
Page 129 Telltale + Text The red STOP telltale lights up and in- formation text together with a value is shown on the display. The text contains in- formation on where the fault has occurred and the value will show how much above or below the limit the current conditions are: Warning, temperature transmission oil If the temperature of the transmission oil...
Page 130: Acknowledge Information And Stop Messages
Graphic Display Acknowledge Information and Stop Messages By pressing Esc, the display with the fault message is reset and the graphic display re- T3008852 turns to the same status as before the error occurred. An acknowledged fault message is shown as a symbol on the right in the graphic display window.
Page 131 Recall An acknowledged fault message can be re- called, i.e. be shown on the graphic display again. MENU: FAULTS? SELECT conﬁrms the choice of the menu FAULTS? The last acknowl- edged fault message is shown. If there is more than one message, a down ar- row is shown in the right-hand corner.
Page 132: Main Menu: Set-Up Mode
Graphic Display Main Menu: Set-Up Mode The menu Set-up mode has 14 sub-menus where 6 are not protected by passwords and 8 are protected by passwords. • Language • Mi/ F/USgal or km/ C • Clock format • Contrast • Backlight •...
Page 133 Miles/ F/USgal or km/ C MENU: Set-up mode, Mi/ F/USgal or km/ C NOTE! If miles and Fahrenheit are chosen, the fuel consumption is shown in US gal- lons. If kilometers and Celsius are chosen, the consumption is shown in liters. Select the menu Set-up mode, Mi/ F/USgal or km/ C and the fol- lowing diagram is shown on the...
Page 134: Adjust Contrast
Graphic Display Clock format MENU: Set-up mode, Clock format Select the menu Set-up mode, Clock format and the following diagram is shown on the graphic display (with the particular setting highlighted): The up/down buttons move the cursor between the alternatives. Conﬁrm the choice with SELECT.
Page 135 Backlight MENU: Set-up mode, Backlight NOTE! This setting affects the display brightness when the headlights or parking lights are on. When the exterior lights are off, the brightness on the display is con- stant. The graphic display brightness is controlled by the dimmer rheostat setting (which also controls the other instrument cluster light- ing).
Page 136: Night Display
Graphic Display Night display MENU: Set-up mode, Night display Select the menu Night display and the following diagram is shown on the display: With the up/down buttons the setting switches between Normal and Re- verse. With the setting Normal the text is dark and the background light.
Page 137: Main Menu: System Diagnostic
Main Menu: System Diagnostic The menu System diagnostic has 3 sub- menus which are not protected by a password, and 1 sub-menu which is pro- tected by a password. • Fault diagnostic • Cluster self test • Part number Password required: (see page 152) •...
Page 138 Graphic Display The up/down buttons are used to move the cursor in the list. SELECT conﬁrms the selection of ECU or Reset all. During the time that each respective ECU is being called, the display shows the text: No faults in the chosen system: Press Esc to return to the previous menu.
Page 139: Error Messages
Fault codes are shown If there is a fault code or codes the following is shown, for example: Identiﬁcation of ECU Line 1: Line 2: Identiﬁcation of parame- ter/component Line 3: Fault type identiﬁcation ” 1” shows how many times the fault has been registered since the last resetting.
Page 140 1, page 133. When Numeric has been selected the fault codes are shown with numbers: MID: Identiﬁcation of ECU PID: Identiﬁcation of parameter PPID: Volvo unique identiﬁcation of parameter Identiﬁcation of component SID: PSID: Volvo unique identiﬁcation of component FMI: Identiﬁcation of fault type ”...
Page 141: Error Messages
The arrow in the lower, right-hand corner is shown if there is more than one fault code. The up/down buttons move the cursor and the next fault code is shown. If the correct password has been entered, resetting can be done in Reset all, last in the list.
Page 142: Time Stamp
Graphic Display Time stamp To show the time when the fault code was set for the ﬁrst and latest occasion respectively, press SELECT when the particular fault code is presented (does not apply to ABS brakes or SRS airbag). The following menu is shown: Select Time stamp and the following text message is shown: The following is shown (time stamp is...
Page 143 Common Fault Codes MID Messages Supported (with text) Description code Engine Transmission Instrument Cab Controller SRS (Airbag) Additional MID Messages (without text) Brakes, Trailer #1 Brakes, Trailer #2 Brakes, Trailer #3 Trip Recorder Vehicle Navigation Unit Tires, Power Unit Driver Information Center Off-board Diagnostics #1 Data Logging Computer Communication Unit - Satellite...
Page 144 Graphic Display Common Description SID code Controller #2 Power contact device Start enable solenoid CC resume switch CC set switch CC enable switch Clutch pedal switch Brake pedal switch #1 Brake pedal switch #2 Proprietary data link SAE J1922 data link SAE J1708 data link Power supply Calibration module...
Page 145 Brake Description SID code ABS snsr axle 1 L ABS snsr axle 1 R ABS snsr axle 2 L ABS snsr axle 2 R ABS snsr axle 3 L ABS snsr axle 3 R ABS valve axle 1 L ABS valve axle 1 R ABS valve axle 2 L ABS valve axle 2 R ABS valve axle 3 L...
Page 146 Graphic Display PPID (Proprietary Parameter ID) PPID Description Code Buffered Idle Switch Pedal Switches, Supply Cruise Control and Retarder, Supply Switch Accelerator Pedal and Retarder, Supply Sensors Accelerator Control 2 and Pri- mary Tank, Supply Sensors Range Inhibitor, Status Sole- noid Valve Brake Lamps, Status Relay Compressor, Status Solenoid...
Page 147: Cluster Self Test
Cluster Self-Test MENU: System diagnostics, cluster self- test Four sub-menus are available: • Bulb test • Gauge test • Display test • Buzzer test Cancel Test Press Esc in order to cancel the test. Bulb Test MENU: System diagnostic, Cluster self- test, Bulb test Select Bulb test.
Page 148: Gauge Test
Graphic Display Gauge test MENU: System diagnostics, Cluster self- test, Gauge test Select Gauge test. The pointers move back and forth a few times, between the end positions. They stop at the mid-point of the gauge before the test is complete, then return to zero.
Page 149: Buzzer Test
Buzzer test MENU: System diagnostic, Cluster self- test, Buzzer test Select Buzzer test. On the display, the name of the cur- rent sound is shown at the same time as the sound is activated. With the up/down buttons you can switch be- tween the different sounds.
Page 150: Part Number
Graphic Display Part number MENU: System diagnostics, Part number A list of the vehicle’s electronic control units (ECUs) is shown in the menu Part number. Each ECU is identiﬁed by a MID number (Message IDentiﬁer). • ABS Brakes, MID 136 •...
Page 151: Mid 128
The up/down buttons are used to move the cursor in the list. HW: ECU part number If there is a communication error, the following is shown No data (this ex- ample shows HW ID, but same text applies to SW ID exept that HW is re- placed by SW): Graphic Display MID 128...
Page 152: Main Menu: Data Log Mode (Volvo Engine Only)
Graphic Display Main Menu: Data Log Mode (Volvo Engine Only) Menu Data log mode has 4 sub-menus where 3 are not protected by passwords and 1 is protected by a password. • Vehicle ID • Totals • Trip data Password required: (see page 152) •...
Page 153 Totals MENU: Data log mode, Totals Select the menu Data log mode, To- tals. The menus that show Totals can be scrolled to using the up/down but- tons. NOTE! If km and C has been selected, the consumption is shown in liters. Graphic Display Total distance 406.7 mi...
Page 154 Graphic Display If the transfer should fail, the follow- ing message is shown: Cancel operation Press Esc in order to cancel the operation. Total PTO hours 0.5 h Total engine revolutions 1 220 100 r Operation failed...
Page 155: Trip Distance
Trip data (Volvo engine only) MENU: Data log mode, Trip data Select the menu Data log mode, Trip. The information below can be scrolled to using the up/down buttons. NOTE! If Miles and F has been se- lected, the consumption is shown in US gallons.
Page 156 Graphic Display NOTE! If km and C has been se- lected, the consumption is shown in liters. NOTE! If km and C has been se- lected, the consumption is shown in liters. Trip fuel uneconomy rev’s 8.5 gal Trip average speed 67.4 km/h Trip overspeed 0.2 h...
Page 157 NOTE! If km and C has been se- lected, the consumption is shown in liters. If the transfer should fail, the follow- ing message is shown: Cancel operation Press Esc in order to cancel the operation. Graphic Display Trip PTO fuel 20.4 gal Trip cruise 2.5 h...
Page 158: Main Menu: Password Input
(it is also possible to select not to protect functions with password, which can be done by a Volvo Truck dealer): Workshop password Owner password The two passwords give the user access to...
Page 159: Main Menu: Gauge
Main Menu: Gauge When the menu GAUGE has been se- lected, you switch between the various sub-menus with the up/down buttons. • TEMPERATURE, ENGINE OIL • TEMPERATURE, TRANSMISSION OIL (Option) • VOLTMETER Temperature, engine oil MENU: GAUGE, TEMPERATURE EN- GINE OIL The engine oil temperature is shown as in the diagram.
Page 160: Information Message
Graphic Display Temperature, transmission oil (option) MENU: GAUGE, TEMPERATURE, TRANSMISSION OIL The transmission oil temperature is shown as in the diagram. NOTE! The temperature display starts showing only at approximately 150 F (65 C). If the sensor data for Transmission oil temperature is not available, the symbol is shown as well as the text NO DATA.
Page 161: Stop Message
Stop message STOP telltale If the temperature of the transmission oil becomes too high, a ﬂashing stop message is shown automatically with the text TOO HIGH. At the same time the red telltale under the display lights up and the warning signal sounds.
Page 162 Graphic Display Voltmeter MENU: GAUGE, VOLTMETER The battery/charging voltage is shown as in the diagram. If the battery/charging voltage becomes too low (below 9.5 V), the instru- ment cluster will lose power. Information message Yellow INFO telltale If the battery/charging voltage becomes too high, the voltmeter’s value is shown auto- matically as well as the text TOO HIGH.
Page 163: Main Menu: Fuel Economy (Option)
Main Menu: Fuel Economy (option) Menu FUEL ECONOMY has 2 sub- menus: • AVG/INST • LEG FUEL FUEL ECONOMY is chosen and then the up/down buttons are used in order to change between the available sub-menus. AVG/INST Fuel Economy MENU: FUEL ECONOMY, AVG/INST For setting metric or English value dis- plays, see page 126.
Page 164 Graphic Display Reset fuel economy Press SELECT in the menu AVG/INST. A new text message in the form of a question is shown: RESET FUEL DATA? Press SELECT to reset. When the leg’s fuel consumption is reset, the average fuel consumption will also be reset.
Page 165: Main Menu: Time/Distance
Main Menu: Time/Distance Menu TIME/DIST has 4 sub-menus. • CLOCK • ALARM CLOCK • TRIPMETER • AVERAGE SPEED NOTE! Menu TIME/DIST is available even when the ignition key is in the off po- sition. It is activated by keeping one of the control buttons on the wiper stalk pressed down for at least 1 second.
Page 166 Graphic Display Set the second digit in the minutes with the up/down buttons. Conﬁrm the choice with SELECT. Set the AM/PM (if the time format is 12h) with the up/down buttons. Con- ﬁrm the choice with SELECT. Cancel setting When setting hours, Esc cancels the setting and the time is shown according to the pre- vious setting.
Page 167 Alarm clock MENU: TIME/DIST, ALARM CLOCK Setting the alarm clock: To set the alarm clock, press SELECT when the menu ALARM CLOCK is shown in the menu TIME/DIST. Move the cursor to SET using the up/down buttons. Press SELECT. If the speed during the setting exceeds 5 mph (8km/h), the function is can- celled and the graphic display returns to the last active display in the ON po-...
Page 168 Graphic Display Ignition key in the off position When the ignition key is in the OFF posi- tion, if setting the alarm clock takes more than 30 seconds, the time which has been entered then applies. Switch off the alarm clock When the alarm clock goes off, the word ALARM ﬂashes, the current time is shown and a warning signal sounds.
Page 169 Tripmeter MENU: TIME/DIST, TRIPMETER On the display in the menu TRIPMETER the distance driven for Leg 1 and Leg 2 are shown. Reset tripmeter Press SELECT in the menu TRIPME- TER. A new text message with a question about the resetting of the tripmeter is shown.
Page 170: Main Menu: Faults
Graphic Display Main Menu: FAULTS? General When a fault occurs a fault message is shown on the graphic display. There are two types of fault messages: Information messages Stop messages The stop message is always more urgent than information messages. Any information and stop messages as well as the associated symbols are shown auto- matically on the graphic display when...
Page 171 Information message The yellow INFO telltale lights up when an abnormal state or a risk situation is indi- cated. In addition to the telltale, a symbol or text is shown on the graphic display at the same time. For certain symbols, a mea- surement value is also shown.
Page 172: Information Symbols
Graphic Display Information symbols The yellow INFO telltale lights up and a symbol is shown on the graphic display: Airbag For airbag (SRS sys- tem) information, see page 57. Overheating, in- struments The symbol will be shown when the tem- perature in the instrument cluster ex- ceeds 92 C (198 F).
Page 173 ﬁlter sen- T3008843 sor is restricted. Graphic Display Too cold for en- gine brake (VEB) (Volvo engine only) Position 2 on the switch must not be en- gaged before the engine has reached operational temperature. If position...
Page 174: Heating And Air Conditioning
Heating and Air Conditioning General Three levels of the cab climate systems are available. They can be identiﬁed by the ap- pearance of the control panel. The basic system is a heater and defroster unit only. The heater unit has a rating of at least 40 000 Btu.
Page 175: Climate Unit Main Control Panel
Heating and Air Conditioning Climate Unit Main Control Panel Fan Speed Control The fan has four speeds and can also be shut off. With the fan control in the 0 posi- tion, air still ﬂows out of the dash vents if the vehicle is moving at highway speeds and if the Fresh Air Control is set for out- side air intake.
Page 176: Air Distribution Control
Heating and Air Conditioning Air Distribution Control The air distribution control is used to direct the air ﬂow to either the dash vents, ﬂoor vents or defroster vents. The lever has de- tentes in the outer and middle positions so that it can be set without looking at the panel.
Page 177 Heating and Air Conditioning W8001078...
Page 178: Fresh Air Control
Heating and Air Conditioning Fresh Air Control The top slide lever is the Fresh Air/Recirculation Control. The settings can be anywhere from full fresh air intake to only recirculated air. Settings can be chosen anywhere in between to give the desired ﬂow of air.
Page 179: Temperature Control
Heating and Air Conditioning Temperature Control The bottom slide lever is the Temperature Control which operates the coolant control valve. In the leftmost position the ﬂow of coolant is shut off by the control valve, which means no heat from the climate unit. The heat will increase the further to the W8001469 right the control is moved.
Page 180 Heating and Air Conditioning A/C Control When the vehicle is equipped with air con- ditioning, the control panel has a button for engaging the air conditioning compressor. This button is marked with a snowﬂake symbol. When the A/C is engaged, the green LED light in the button is on.
Page 181 Heating and Air Conditioning A/C Automatic Control When the vehicle is equipped with Auto- matic Temperature Control (ATC), the control panel has a button, marked with , for engaging the electronic control unit. When ATC is engaged, the green LED light in the button is on.
Page 182: Air Vents
Heating and Air Conditioning Air Vents Closed Open Lateral Air Flow Vertical Air Flow When heating the cab, all vents should be closed. However, the vents on the outer parts of the dash can be used for defrosting the cab door windows. When operating the air conditioning, all air vents should be completely open and the air ﬂow directed upward.
Page 183: Cab Ventilation
Heating and Air Conditioning Cab Ventilation Ventilation Guidelines If at any time there is any doubt that ex- haust fumes are entering the cab, have the cause of the fumes determined and cor- rected as soon as possible. If the vehicle must be driven under these conditions, drive only with all windows open.
Page 184: Cab Air Filter
Heating and Air Conditioning Cab Air Filter Air going into the cab passes a ﬁlter lo- cated on the right, front side of the cab. Remove the ﬁlter and clean with an air gun (no more than 20 psi pressure) after 40 000 miles (64 000 km), (in dusty conditions as often as every 10 000 miles [16 000 km]).
Page 185: A/C Diagnostic Module
Heating and Air Conditioning A/C Diagnostic Module Problem Codes The diagnostic module has two LED lights (one green and one red) which indicate if a system problem has been detected. If a problem is detected, a fault code or “blink” code is activated to identify the condition.
Page 186: Seats
Before adjusting or fastening the seat belt, move the seat forward or rearward and ad- just the seat height as necessary. Sit erect and adjust the seat cushion and seat back to obtain a comfortable driving position. W8002743 National Standard Seat W8002809 Volvo Standard Seat...
Page 187: National Standard Seat Adjustments
National Standard Seat Adjustments Backrest tilt: By rotating the round handle, the backrest recline angle can be adjusted within 12 degrees. Cushion front tilt and length: Pulling the handle up and out adjusts the tilt and length of the seat cushion. NOTE! Support body weight with your feet while adjusting.
Page 188: Volvo Standard Seat Adjustments
Seats Volvo Standard Seat Adjustments Fore and aft movement: Press the con- trol down to unlock the seat cushion. Move seat cushion fore or aft to a new position. Cushion front tilt: Push the control down and adjust the tilt of the seat cushion.
Page 189: National Stationary Seat
National Stationary Seat For the passenger side, there is the option of a stationary seat. The base of the seat is a storage box that is accessed by lifting the seat cushion up. A bench seat for two pas- sengers is also available. No Passenger Seat (option) Using a temporary passenger seating without the beneﬁt of proper seat...
Page 190: Cab Interior
Cab Interior Interior/Reading Lights Front Of Cab The cab is equipped with separate and com- bined interior and reading lights in various locations in the cab. The front seat overhead lights can be turned on at any time using the switch in the ﬁxture. By turning the switch the other way, the light will be acti- vated by the cab door switches.
Page 191: Storage Compartment
Storage Compartment Heavy objects must be stored secured to the ﬂoor. Storage compartments are de- signed for lighter personal effects only. In the event of a collision, heavy, unse- cured objects in overhead storage can come loose and cause severe personal in- jury or death to the driver or passengers.
Page 192: Cup Holders
Cab Interior Cup Holders There is also a cup holder in the middle of the dash. To open, press the top part of the lid in and the lid will fold out. To close, press the lid in until the latch closes. There are also two cupholders molded into the engine cover.
Page 193: Antenna Multiplexer
Communication and Entertainment Antennas Multiband Antenna There are antennas mounted on the top of the mirror brackets for wideband reception. They receive or send signals for radio, CB and telephone. Each antenna carries multi- ple wire windings that work together with mirror bracket devices to cover the needs of many uses.
Page 194: Stereo/Radio
The multiplexer is accessed through the lower dash panels. Cable routing is as shown in the illustration above. Use only genuine Volvo replacement parts for this multiplexer system; standard antennas will give unsatisfactory performance. The wind- ings in the antennas are speciﬁc to this system: different sections of the antenna are used for the cellular phone, radio and CB.
Page 195: Communication Equipment
Communication and Entertainment Communication Equipment CB Radio There is an optional platform provided for a CB radio on top of the dash. The unit is held in place with a strap which can ac- commodate a variety of sizes. For electrical hook-up, see page 255.
Page 196: Fuel Economy Driving
Fuel Economy Driving Fuel Economy General The absolute fuel consumption (counted in miles per US gallon or liters per 100 kilo- meters) is determined by a large number of circumstances which can be related to one of the following main areas: Build speciﬁcation and equipment Service and maintenance External environment...
Page 197 Fuel Economy Driving Driveline Combination Engine, transmission and ﬁnal drive must be selected in such a way that the engine can operate within the economic speed range at normal driving speed. This range is deﬁned as where the engine makes the best use of the energy content of the diesel fuel.
Page 198: Service And Maintenance
Use the recommended preventive maintenance (PM) program that Volvo Trucks North America, Inc. has developed for the vehicles. This ensures optimal en- ergy efﬁciency from all components that are important to fuel consumption.
Page 199 Axles An axle out of alignment will increase rolling resistance. Regularly check the front wheel alignment and axles on both the trac- tor and trailer/semi-trailer. If they are correct, there will be less rolling resistance and, therefore, lower fuel consumption. A good sign of an axle or wheel out of alignment is uneven tire wear.
Page 200 Fuel Economy Driving External Environment Under unfavorable conditions, the external environment can have a negative effect on fuel consumption. This can be broken down into two main groups: weather and wind; and the nature of the roads. Rain, snow, icy conditions and headwinds have a large neg- ative impact on fuel economy, as do hilly roads and uneven road surfaces.
Page 201 Starting the Engine Start the engine according to the instruc- tions in the Operator’s Manual of the engine manufacturer (for a Volvo engine, see page 198). A proper start, especially during the cold season, saves fuel and re- duces engine wear.
Page 202 Fuel Economy Driving Avoid High Engine Speeds High engine speeds mean high fuel con- sumption. Jerky driving also increases fuel consumption when the vehicle is constantly accelerated and slowed down. Avoid a higher consumption by steady, even driving. Refer to each engine manufacturer’s opera- tor’s manual for information on the engine’s optimum operating range.
Page 203: Starting The Engine
64) for detailed information on how the gauges and telltales work. Do not use ether or similar starting aids in a Volvo or any other engine with start help. The Volvo engine is equipped with a preheater. Introduction of ether or other combustible material in the intake manifold could cause a ﬁre or explosion,...
Page 204 Engine Start and Operation Before starting the engine, perform the engine pre-trip inspection and daily maintenance checks in “Pre-Trip In- spection and Daily Maintenance” starting on page 28. Make sure the parking brakes are en- gaged. Place the transmission in neutral or depress the clutch pedal.
Page 205 Turn the key on to the start position. Release key as soon as the engine has started. For the Volvo engine, the pre- heater can be engaged to help starting in cold temperatures. For switch func- tion, see page 201.
Page 206: Stopping The Engine
Engine Start and Operation Stopping the Engine Allow the engine to slow down and idle for 3 to 5 minutes before shutting it off. This allows the turbo to slow down and the cooling system to dissipate the engine heat. Switch the engine off by turning the igni- tion key to the O, or OFF, position.
Page 207: Ignition Switch
NOTE! The vehicle is delivered with 2 identical keys. If more keys are needed, order them through your Volvo Truck au- thorized dealer. The keys are laser cut and require a special machine for copy- ing, available through your Volvo Truck dealer.
Page 208: Cold Weather Start And Operation
Volvo engines only. For other engine makes, see the manufacturer’s handbook. Do not use ether or similar starting aids in a Volvo or any other engine with start help. The Volvo engine is equipped with a preheater. Introduction of ether or other combustible material in the intake manifold could cause a ﬁre or explosion,...
Page 209 Coolant Preheater Temperature Engagement Time (seconds) Above +120 F (50 C) Above +50 F (10 C) Between +4 F (-15 C) 25 ± 2 to 50 ± 2 and +50 F (10 C) Below +4 F (-15 C) When the engine has started, the preheater may be re-engaged to assist in faster engine warm-up.
Page 210: Ether Start
Engine Start and Operation Ether Start Do not use ether or similar starting aids in a Volvo or any other engine with start help. The Volvo engine is equipped with a preheater. Introduction of ether or other combustible material in the intake manifold could cause a ﬁre or explosion,...
Page 211: Cold Weather Operation
ﬁlters, fuel tank heater, engine block heater, win- terfront, etc. can make winter operation easier. Contact your Volvo Truck dealer for the correct accessories and information about installation. If satisfactory engine temperature is not maintained, increased engine wear will result in higher maintenance cost.
Page 212 Engine Start and Operation • During cold weather, give more atten- tion to the condition of the batteries. Test them frequently to ensure sufﬁ- cient power for starting. A dead battery may freeze. • Fuel cloud point is the temperature at which wax crystals become visible, which is generally above the pour point of the fuel.
Page 213 Engine Start and Operation Oil Pan Heater (option) Oil pan heaters aid low temperature starting by improving oil ﬂow to critical parts in the engine. This helps prevent engine wear. They are similar to block heaters and are wired into the same plug as the engine coolant heater.
Page 214 Engine Start and Operation Winterfront Volvo Trucks North America, Inc. does not recommend the use of winterfronts, shutters or any other shield in front of the grille or radiator package under normal circum- stances. Today’s electronically controlled engines are designed to operate in cold tempera- tures without a winterfront.
Page 215: Engine Operation
Engine Start and Operation Engine Operation General Proper operation, driving techniques and maintenance are key factors in obtaining the maximum life and economy from a modern turbocharged diesel engine. This section has operational information about the components that make up the engine. For the best operation economy, see “Fuel Economy”...
Page 216: Engine Break-In
Engine Break-In Engines used in the VHD-series are run on dynamometers before being shipped from the manufacturer. In most applications, the engine can be put to work immediately, but...
Page 217: Engine Shut-Down System
Engine Shut-Down System Failure to take the necessary precautions when the INFO or STOP telltales are on, can ultimately result in automatic engine shut-down and the loss of power steering. Vehicle crash can occur. The engine shut-down system will automat- ically derate or stop the engine when one or more of the systems listed below reaches a critical stage:...
Page 218: Engine Overspeed
Do not use ether or similar starting aids in a Volvo or any other engine with start help. The Volvo engine is equipped with a preheater. Introduction of ether or other combustible material in the intake manifold could cause a ﬁre or explosion,...
Page 219 Engine Start and Operation Idling All engines in the VHD models are elec- tronically governed engines. The idle speed is pre-programmed from the manufacturer. Low idle speed is adjustable within certain limits (for most engines between 600 to 750 r/min). See page 214 for more information.
Page 220 Engine Start and Operation Low Idle Adjustment If the engine coolant temperature is above 122 F (50 C), the vehicle is stationary (en- gine running; accelerator released; parking brake on) and the PTO not engaged, the en- gine low idle speed can be adjusted with the use of the cruise control function.
Page 221 (Pro-Link) that con- nects to the engine electronic control unit. This is available at your Volvo Truck dealer. The time can be set to these time intervals: Volvo...
Page 222: Uphill Operation
Engine Start and Operation Uphill Operation For best performance, allow engine speed to reach the bottom of the rated torque range before downshifting. Continue to downshift in this manner until a gear is reached that will maintain the desired speed. Continue to operate at the rated torque if the vehicle will make it to the top without a downshift.
Page 223: High Altitude Operation
Engine Start and Operation High Altitude Operation Engines lose power when operated at high altitude because the air is too thin to allow burning as much fuel as at sea level. For naturally aspirated engines, this loss is about 3 percent per 1000 feet (300 m) in- crease in altitude above sea level.
Page 224: Cruise Control
Engine Start and Operation Cruise Control Do not use the cruise control in heavy trafﬁc, with ice/snow on the road or dur- ing other unfavorable conditions. This may lead to a loss of vehicle control, causing a vehicle crash and can result in personal injury or death.
Page 225 Disengaging The cruise control is disengaged if the brake or clutch pedal is depressed, or if the cruise control switch is set to OFF. If the ignition key is turned back to the acces- sories position (R), the cruise control system will automatically be disengaged.
Page 226: Fuel Tank(S)
Engine Start and Operation Fuel Tank(s) Tank Cap Do not remove the fuel tank cap near an open ﬂame. Diesel fuel vapors are com- bustible and can cause an explosion or ﬁre, resulting in severe personal injury or death. The fuel tank caps have a pressure and a thermal relief function built into the cap.
Page 227 Fueling Air is always present inside the fuel tanks, entering mainly through the tank ventila- tion. With the air being heated up and cooled down, condensation is formed and water is mixed in the fuel. To avoid con- densation when the vehicle is parked for longer periods, ﬁll the tanks up to 95% of capacity.
Page 228: Clutch And Transmission
Clutch and Transmission Clutch General Before starting the engine, set the park- ing brakes and place the transmission in neutral. Failure to do so can result in un- expected vehicle movement and can cause serious personal injury and death. Do not allow the clutch to slip excessively. This would cause excessive heat to be gen- erated and the clutch will be damaged and bring on premature failure.
Page 229: Brakes
Brakes Brake Safety Information Do not inspect or adjust parts or compo- nents in the brake system without setting the parking brake, placing the transmis- sion in neutral and securely chocking the wheels. If the vehicle is not secured to prevent uncontrolled vehicle movement, it could roll and cause severe personal injury or death.
Page 230 General All Volvo vehicles are designed to meet or exceed all applicable federal brake stan- dards and regulations. They use a dual circuit, compressed air system. It consists of two independent brake systems that use a single set of brake controls.
Page 231 Both circuits are piped into a dual brake valve, which simultaneously applies front and rear axle service brakes during each brake application. In the event of a failure in either one of the circuits, the other cir- cuit becomes the emergency circuit for applying the brakes.
Page 232: Brake System Controls
Brakes Brake System Controls The air compressor, governor, pressure reg- ulator valve and reservoirs are control devices. Their function is to build up, maintain and control air pressure in the reservoirs. This is so that pressure is held constant between the minimum and maxi- mum range established for air brake operation.
Page 233 From the operator’s viewpoint, operating the foot brake valve of a vehicle equipped with air brakes differs very little from the operation of a conventionally braked vehi- cle. Because the operation of the brake pedal requires scarcely more effort than de- pressing the average throttle pedal, air brakes are naturally much easier to control.
Page 234 Brakes In making a stop or a slow-down, al- low the transmission to remain in gear with the throttle closed, disengaging the clutch only when engine idling speed is reached. When parking the vehicle, place the transmission in neutral and set the parking brake before shutting down the engine.
Page 235 Parking Brake/Trailer Supply Valves Trucks/Tractors may have two air control valves on the instrument panel: • Trailer Supply (red octagonal knob) • System Park (yellow diamond knob) The two air control valves are intercon- nected and interacting. The System Park valve supplies and controls the Trailer Air Supply valve.
Page 236 Brakes Parking Brake Release VHD models have engines equipped with engine electronic control units (EECU). These have two features that may impact the brake system. One is the anti-stall de- vice in the EECU which senses torque demand and automatically controls the en- gine to compensate and maintain speed.
Page 237 Brakes There is also an engine shut-down device in the EECU that shuts the engine down af- ter a pre-programmed time in order to save fuel. This is activated when the yellow parking brake knob is pulled out. There- fore, some drivers park and release the parking brakes using only the red knob to keep the engine running.
Page 238 Brakes Spring Brake For Parking Never leave the vehicle without being certain the parking brakes are set or that other precautions are taken to prevent the vehicle from rolling. Failure to do so can result in serious personal injury or death. The parking brake mechanism uses spring pressure as a separate power medium to ap- ply the service brakes on the driving axles.
Page 239 There are several ways to determine if the parking brakes have been set. By pulling out the yellow knob: • An audible rush of air will be heard when the parking brake knob is pulled. The air exhausts from the park brake valve itself and from the spring brake chambers on the rear axle(s).
Page 240 Brakes Trailer Brake Hand Control The trailer hand brake control is not a parking brake valve and must not be used as one. This brake is not designed to hold the vehicle stationary. Failure to follow these instructions can result in the unintentional movement of the vehicle and may cause personal injury or death.
Page 241 The “121” Brake Standard This manual refers occasionally to “121” brakes. Although some operators believe “121” only applies to vehicles equipped with anti-lock devices, the “121” standard applies to all vehicles that are capable of on-highway operation. The “121” is a Federal requirement also covering alterations or changes to parts or systems related to the “121”...
Page 242: Antilock Braking System (Abs)
Brakes Antilock Braking System (ABS) The vehicle has a standard brake system, equipped with an electronic speed monitor- ing and control system, Antilock Braking System (ABS). ABS monitors wheel speed continuously but is not involved in control- ling the wheel speed unless there is an emergency.
Page 243 Volvo Truck dealer to repair the ABS or brake system. The ve- hicle can still be driven with a problem in the ABS system.
Page 244 Brakes Traction Control System (TCS) (option) The Traction Control System (TCS) uses the same wheel sensors as the ABS to de- termine if one set of drive wheels is spinning much more rapidly than the wheel set on the other side. If the TCS determines that a wheel is spinning (with vehicle speed below 25 mph [40 km/h]), it operates the brake system to apply some brake force to...
Page 245 NOTE! If a Volvo engine is equipped with a Volvo Engine Brake, the brake will not operate with full power until the engine coolant temperature has reached 110 F (45 C).
Page 246 Brakes Volvo Exhaust Brake The exhaust brake is standard on the Volvo D12 engine. It is used to reduce wear on the brake linings. The exhaust brake is most effective at high engine speeds (1500 to 2300 r/min). The exhaust brake is auto- matically disengaged if the engine speed drops to or below 1100 r/min.
Page 247 3 mph (5 km/h) above selected cruise speed. Too Cold for Engine Brake (Volvo Engine Only) Position 2 of the engine brake should not be switched on until the engine has become warm (over 110 F [45 C]).
Page 248 Brakes Jake-Brake Or C-Brake The Jake-Brake or C-Brake is optional equipment for Cummins, and Detroit en- gines. These engine brakes are similar in operation. Three power levels are available by engaging 2, 4, or 6 cylinders when brak- ing (for Cummins M11, only two power levels are available).
Page 249 Transmission Retarder The Transmission Retarder is an option with Allison HD and MD transmissions. It is activated by an on/off switch in the aux- iliary panel and is controlled by a stalk switch mounted in front of the wiper switch. You can set 6 different levels with the stalk switch.
Page 250: Electrical System
NOTE! Do not work on the electric system without proper tools and training. Repair- work to the electrical system must be done by trained professionals. Your Volvo Truck dealer has the right tools and trained tech- nicians.
Page 251: Battery Box
Charging System An alternator with an integrated regulator is used to supply power to the vehicle electri- cal system. The charging system voltage should be checked periodically to prevent overcharging or undercharging the batteries and to detect any voltage drop in the wiring. Battery Box The battery cover may also be a base for the cab steps.
Page 252 Electrical System There may be three or four batteries in- stalled. Always make sure the batteries are fastened properly in the box. When disconnecting battery terminals, al- ways disconnect the main ground terminal ﬁrst. When reconnecting, always connect the main ground terminal last. WARNING Battery posts, terminals and related ac- cessories contain lead compounds,...
Page 253 Battery Jump Starting and Charging To access the batteries on a vehicle equipped with side fairings, open the fair- ing access cover. On the second battery from the front there are special, longer posts installed to accept jumper cables. When jumping batteries to start an engine, it is important that the jumper cables are connected directly from one set of batteries in one vehicle to the other set of batteries...
Page 254: Jump Starting The Engine
Re- pairwork to the electrical system must always be done by trained professionals. Your Volvo Truck dealer has the right tools and trained technicians. Jump Starting the Engine If the batteries are discharged to the point...
Page 255: Electronic Components
Electronic Components CAUTION Electronic circuits and components are designed to sense voltage differences smaller than 1 volt. While static electric- ity is not normally dangerous to humans, it can seriously damage electronic cir- cuits and components. Circuit boards mounted in the instrument cluster may not fail immediately after being hit with a static discharge.
Page 256 Electrical System CAUTION If there are other ground cables con- nected to the battery (such as engine ECU, etc.), disconnect those ground ca- bles ﬁrst, then remove the main battery ground cable. Electronic modules may be damaged when additional grounds are connected/disconnected without the main battery ground connected.
Page 257 • Attach the welder ground cable as close to the weld area as possible (6 inches or less from the place being welded). • Do not connect the welder ground ca- ble to the EECU or its cooling plate. • Welding cables should not be allowed to lay on, near or cross over any elec- trical wiring or electronic component...
Page 258 Electrical System Battery Protection System (option) An electronic battery monitor (“Battery Lifeguard”) may be installed in the electri- cal center. This monitor will disconnect certain circuits if it senses that the battery voltage falls under a safe charging level. Before disconnecting, the monitor will sound a loud and distinct alarm, alternating long and short beeps, for approximately 60 seconds.
Page 259: Electrical Center
Electrical Center The electrical center is located in the mid- dle of the dash. All the relays and fuses in the cab are collected here. The cover panels are fastened with screws that can be turned with a coin. Since the function of some fuses or relays may change for the vehicle application, refer to the list of functions that is attached to the underside of each panel.
Page 260 Electrical System The fuses and relays are all accessible un- der the top cover on the dash. W3002526 One type of fuse in the new electrical cen- ter are termed “mini-fuses” and require a puller tool to remove from the fuse block. The puller tool is part of the Owner’s Pack- age.
Page 261 Power Studs On the passenger side of the dash are power studs for a CB hook-up. These studs are standard equipment. For a proper hook- up, use fork type connectors on the wires or use “banana” plugs. CAUTION If stripped wire ends are used, make sure there are no wire strands that can bridge between the studs.
Page 262: Power Steering
Power Steering General The power steering consists of an inte- grated gear and hydraulic power cylinder, and a power steering pump with ﬂuid con- tainer. The pump, driven by the engine, provides hydraulic pressure to the power steering. If the engine is not working, the steering is only manual.
Page 263: Adjustable Steering Column (Option)
Periodically check the power steering ﬂuid reservoir and keep it ﬁlled to the proper level with the recommended ﬂuid. See the “Operator’s Manual, Maintenance and En- gine” for more information. There is also a ﬁlter inside the reservoir that needs to be changed every 12 months. Adjustable Steering Column (option) The steering column is ﬁxed as standard.
Page 264: Differential Locks
Axles and Wheels Axles Differential Locks The drive axle(s) may be equipped with differential locks. The single drive axle will only have a wheel differential lock. With tandem drive axles, there could be both wheel differential locks and an inter-axle differential lock.
Page 265 Engaging the differential locks must always be done in the following way (see page 104 for switch location): Depress the clutch pedal. Wait for the drive wheels to stop spinning Engage the differential lock Engage a suitable gear Carefully release the clutch pedal Do not drive on dry, paved surface with the differential locks engaged.
Page 266 Axles and Wheels Auxiliary Lift Axle Before raising or lowering any of the auxiliary axles, be certain no one can be trapped by the axle movement. Failure to do so can result in a person being trapped between the wheel and the body, or between the wheel and the ground, resulting in serious personal injury or death.
Page 267: Wheels
General Due to the size, equipment needed and the procedures used to change wheels, this should be done through the Volvo Truck dealer. By having an expert technician per- form this procedure, personal injury and property damage may be avoided.
Page 268: Inflating Tires
Axles and Wheels Inﬂating Tires Always check inﬂation pressures when the tires are cool, using an accurate tire pres- sure gauge. Check the pressures at regular intervals. CAUTION Never bleed the air from hot tires. In- creased tire pressure measured in a hot tire is normal.
Page 269: Wheel Bearing Adjustment
Loose wheel bearings could cause premature tire wear and possibly affect ve- hicle handling. See your Volvo Truck dealer for proper servicing. Watch carefully for oil leaks and listen for unusual noises. These are indications of worn bearings, bad seals or misadjusted bearings.
Page 270: Fifth Wheel Instructions
Fifth Wheel Instructions Fifth Wheel General Information The standard ﬁfth wheel is manufactured by ASF. Other ﬁfth wheels available as op- tions are Holland and Fontaine. Things to think about with trailer hook-up: • Check the load distribution between axles. •...
Page 271: Safety Information
Safety Information Follow the instructions on the advisory la- bels attached to the various manufacturers’ ﬁfth wheels. An operator’s manual from the manufacturer is supplied with each ﬁfth wheel and is provided in the Owner’s pack- age. If the ﬁfth wheel is equipped with a sliding mounting, follow the advisory labels at- tached to the component.
Page 272 Fifth Wheel Instructions Locked — This is the position that the ﬁfth wheel will be in with a trailer hooked up. In the locked position, the operating rod is retracted and the safety latch will freely swing back and forth. Lockset —...
Page 273: Fifth Wheel Slider (Option)
Fifth Wheel Instructions Fifth Wheel Slider (option) The ﬁfth wheel comes standard with an air operational slider. To remain within legal weight limits, this feature allows the driver to distribute the load easily on the axles. The air operated slider takes the work out of adjusting the tractor for various trailer loads.
Page 274: Unlocking The Fifth Wheel
Fifth Wheel Instructions Unlocking the Fifth Wheel Always check out the entire ﬁfth wheel equipment before attempting to couple to a trailer (ASF ﬁfth wheel is shown): • If not lubricated properly, add grease to the top of the ﬁfth wheel plate. •...
Page 275 When the shoulder of the operating rod is outside of the operating slot, raise the oper- ating rod handle to its maximum upward position. Release the operating rod. The upper shoul- der of the operating rod should now be in contact with the plate casting above the op- erating slot.
Page 276: Trailer Coupling Procedures
Fifth Wheel Instructions Trailer Coupling Procedures This procedure covers vehicles with and without air suspension. Failure to properly couple the tractor and trailer can result in their separation, causing death and property damage. It is important that the operating procedures contained in this manual are fully under- stood and closely followed.
Page 277 Fifth Wheel Instructions Make sure the mounting of the ﬁfth wheel to the tractor frame is tight and in good condition. If using a sliding ﬁfth wheel, make sure the slide locking plungers are fully engaged. W9000205 Chock the trailer wheels. Use two chocks (both on the front and rear of the wheel) on both sides of the trailer.
Page 278 Fifth Wheel Instructions Connect the air brake lines and the electri- cal power cord. Make sure that any slack in the lines is supported so that the brake lines do not become entangled. Set the trailer brakes by pulling out the Trailer Supply control on the dashboard.
Page 279 CAUTION A direct visual check is required to en- sure proper coupling. Several types of improper couplings will pass the initial pull test. Sound is not reliable. Do not take for granted that you are properly coupled. Get out of the cab and look. Make sure the trailer kingpin is in the jaw slot and that the jaw is closed behind the pin.
Page 280 Fifth Wheel Instructions Make sure the operating rod is fully re- tracted, the safety latch is positioned above the handle and the latch swings freely. If the ﬁfth wheel is equipped with a manual secondary lock, check to see that it is prop- erly engaged.
Page 281: Trailer Uncoupling Procedures
Fifth Wheel Instructions Trailer Uncoupling Procedures For Tractors With Air Ride Suspension: Set the system park brake on the tractor. Set the trailer brakes by pulling out the trailer air supply knob. W5000921 Chock the trailer wheels. Use two chocks (one on the front and one on the rear of the wheel) on both sides of the trailer.
Page 282 Fifth Wheel Instructions Disconnect the light cord and air brake lines. Use the dummy air couplings to keep foreign material from entering the brake lines. Unlock the ﬁfth wheel. NOTE! If the operating rod is too difﬁcult to pull, back the tractor up slightly to re- lieve any kingpin load against the ﬁfth wheel jaw.
Page 283 Wait about 30 seconds for the air springs to deﬂate. With the suspension lowered, pull clear of the trailer and immediately select the “RIDE” position (press the top part of the switch in) on the suspension control. This restores the suspension to operating height. CAUTION The vehicle must never be driven with the air springs deﬂated.
Page 284 Fifth Wheel Instructions For Tractors Without Air Ride Suspension: Set the system park brake on the tractor. Set the trailer brakes by pulling out the trailer air supply knob. W5000921 Chock the trailer wheels. Use two chocks (both on the front and rear of the wheel) on both sides of the trailer.
Page 285 Fifth Wheel Instructions Disconnect the light cord and air brake lines. Use the dummy air couplings to keep foreign material from entering the brake lines. Unlock the ﬁfth wheel. NOTE! If the operating rod is too difﬁcult to pull, back the tractor up slightly to re- lieve any kingpin load against the ﬁfth wheel jaw.
Page 286: Operating The Fifth Wheel Slider
Fifth Wheel Instructions Operating the Fifth Wheel Slider WARNING The trailer must be stopped and the trailer brakes locked, or damage to the tractor and/or trailer may result from un- controlled sliding of the ﬁfth wheel. Stop the tractor and trailer in a straight line on level ground.
Page 287 Slowly drive the tractor forward or back- ward to position the ﬁfth wheel. After sliding the ﬁfth wheel to the desired position, engage the slide locking plungers by moving the cab switch to the “LOCK” position (press in the top part of the switch). WARNING Do not operate the vehicle if the plungers are not fully engaged and the...
Page 288: Emergency Information
Emergency Information Towing Procedure General CAUTION The driveshaft must be removed before towing the vehicle. Failure to remove the driveshaft may result in damage to the transmission. Remove the drive shaft from the rear axle before moving the vehicle, unless it only needs to be moved a small distance for safety reasons.
Page 289 WARNING Do not tow a vehicle backwards when equipped with roof air fairings. The fair- ings act as an air scoop and may break off. Failure to follow this warning may lead to personal injury and vehicle dam- age. WARNING Vehicles with air fairings or large super- structures are tall.
Page 290: Towing Instructions
Emergency Information Towing Instructions WARNING If the vehicle becomes disabled, it is very important to tow it properly. Failure to do so can cause damage to the frame and body parts. Follow the instructions below to avoid damage. In the event that the vehicle cannot be reached to place the wrecker lift bar under the front axle, use the tow hooks in the front of the vehicle.
Page 291: Caging Spring Brake Chambers
Caging Spring Brake Chambers The parking spring brake chambers may be released mechanically if there is no com- pressed air available. Always start by chocking the wheels to prevent the vehicle from rolling. Chock- ing the wheels is important since you have to work under the vehicle.
Page 292 Emergency Information Install the washer and nut. Tighten the nut. This compresses the brake chamber spring and releases the parking brake. Do not attempt in any way to disassem- ble or tamper with the spring brake chamber. If the force stored on the spring is suddenly released, it can cause serious personal injury or death.
Page 293: Service Information
Volvo vehicle. Your dealer has direct access to Volvo Trucks North America, Inc. for technical help, parts or service information. There is also a direct number to Volvo Ac- tion Service (VAS), staffed 24 hours a day, if you are in need of assistance. The num- ber to the Customer Support Center is: 1 (800) 528–6586 [or (800) 52–VOLVO].
Page 294 To order a single Service Manual or a Ser- vice Manual Set for your vehicle, you should contact your authorized Volvo Truck dealer or fax a request to the Volvo Truck North America, Inc. publications warehouse [Fax: (336) 668–3625]. They will help you locate the manual(s) you need.
Page 295: Index
Engine Brake ..101 Engine Break-In ..210 Engine Cold Start, Volvo . . . 202 Engine Idling ..213 Engine Jump Start .
Page 296 Index Engine Serial Number Location, Volvo Engine ..18 Engine Shut-Down System . . 211 Engine Start and Operation . . 197 Engine Start Procedure ..197 Engine Stopping ..200 Entering Behind Cab .
Page 297 Raise Hood ..26 Rear Axle Serial Number Loca- tions, Volvo ..18 Road Relay ..189 Roadside Assistance .
Page 298 Vehicle Access ..19 Vendor Component Information . 1 Voltmeter ..119 Volvo Action Service ..287 Volvo Standard Seat ..182...
Page 299 7 days per week at 1-877-978-6586. This assistance is available to assist you with solving technical issues and parts issues regarding the Volvo Heavy Duty (VHD) model vehicle. A trained Volvo VHD Specialist for Technical and Parts Support will give you the assistance you need to resolve your problem.
Page 300 Volvo Trucks North America, Inc. P.O. Box 26115, Greensboro, NC 27402-6115 Volvo Trucks Canada, Inc. 6490 Vipond Drive, Mississauga, Ontario L5T 1W8 http://www.volvotrucks.volvo.com Volvo Trucks North America, Inc. 2000 PV776-TSP20 139484 Publication Date - 8/2000...
