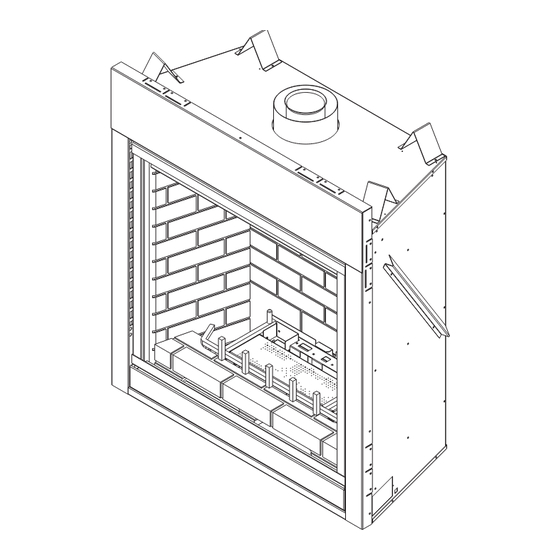

DVBL SERIES
DIRECT VENT GAS
FIREPLACE
INSTALLATION AND
OPERATING INSTRUCTIONS
MODELS: 400DVBL & 500DVBL
WARNING
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT
FOLLOWED ExACTLY, A FIRE OR ExPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INjURY OR LOSS OF LIFE.
–
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
–
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
– Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING: Improper installation, adjustment, alteration,
services or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional
information consult a qualified installer, service agency
or the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from the
manufacturer.
READ BEFORE INSTALLING. SAVE THESE INSTRUCTIONS
FRONT COVER IMAGE
PLEASE ADD LOGS INSIDE
D U E TO H I G H T E M P E R AT U R E S , T H E
APPLIANCE SHOULD BE LOCATED OUT OF
TRAFFIC AND AWAY FROM FURNITURE AND
DRAPERIES.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTHING
IGNITION.
YOUNG CHILDREN SHOULD BE SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE
APPLIANCE.
C L O T H I N G O R O T H E R F L A M M A B L E
MATERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLIANCE.
K E E P T H E R O O M A R E A C L E A R A N D
FREE FROM COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE
VAPORS AND LIqUIDS.
Advertisement
Table of Contents
Related Manuals for Majestic 400DVBL
Summary of Contents for Majestic 400DVBL
-
Page 1: Operating Instructions
DVBL SERIES DIRECT VENT GAS FIREPLACE INSTALLATION AND OPERATING INSTRUCTIONS MODELS: 400DVBL & 500DVBL WARNING IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED ExACTLY, A FIRE OR ExPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INjURY OR LOSS OF LIFE. -
Page 2: Table Of Contents
CONTENTS Important Safety Information ......3 Operating Instructions (Milli-Volt) ....32 Lighting Pilot for the First Time....3 Product Features ..........5 Lighting Pilot..........33 Code Approval ..........5 Lighting Burner ..........34 Pre-Installation Information Checking Gas Pressure - Installing Above 000 Feet . -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION INSTALLER OWNER Please leave these instructions with the appliance. Please retain these instructions for future reference. • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. • Any change to this fireplace or its controls can be dangerous. • Improper installation or use of this fireplace can cause serious injury or death from fire, burns, explosions, electrical shock and carbon monoxide poisoning. This fireplace is a vented product. This fireplace must be 4. Never install the fireplace properly installed by a qualified service person. The glass door • in a recreational vehicle • where curtains, furniture, clothing, or other flammable must be properly seated and sealed. If this unit is not properly... - Page 4 IMPORTANT SAFETY INFORMATION Continued from page 3 IMPORTANT: 12. Do not use this fireplace to cook food or burn paper or PLEASE READ THE FOLLOWING CAREFULLY other objects. It is normal for fireplaces fabricated of steel to give off some expansion and/or contraction noises 13. Never place anything on top of fireplace. during the start up or cool down cycle. Similar 14. Do not use any solid fuels (wood, coal, paper, cardboard, noises are found with your furnace heat exchanger etc.) in this fireplace. Use only the gas type indicated on...
-
Page 5: Product Features
PRODUCT FEATURES CODE APPROVAL PRODUCT SPECIFICATIONS • This appliance has been certified for use with either natural or propane gas. See appropriate data plates. • This appliance is not for use with solid fuels. • The appliance is approved for bedroom or bedsitting room installations. • The appliance must be installed in accor- dance with local codes if any. If none exist use the current installation code. ANSI Z223.1/NFPA 54 in the USA, CSA B149 in Canada. -
Page 6: Pre-Installation Information
PRE-INSTALLATION INFORMATION INSTALLING ABOVE 2000 FEET • In the USA, the appliance must be derated 4% for every 1,000 ft above 2,000 ft elevations. Where the heating value of the gas has been reduced, these rules do not apply. • In Canada, these appliances are certified for altitudes of 0 – 2000 ft, and must be de-rated by 10 percent for installations between 2000 and 4,500 ft. (derate an additional 4% for every 1,000 ft. above 4,500 ft. elevations). ORIFICE SIZES, PRESSURES AND BTUs NATURAL GAS PROPANE GAS Manifold Press: (W.C.) 3.5" Manifold Press: (W.C.) 10" Maximum Supply Pressure 10.5" Maximum Supply Pressure 13" Minimum Supply Pressure 4.5" Minimum Supply Pressure 11" Model 400DVBLNV 400DVBLPV 500DVBLNV 500DVBLPV 400DVBLNS 400DVBLPS 500DVBLNS 500DVBLPS Number... -
Page 7: Fireplace Framing
(as you are facing it) and your electricity will come in on the left side. The firebox may be installed directly on a combustible floor or raised on a platform of an appropriate height. When the firebox is installed directly on carpeting, tile, or other com- bustible material, other than wood flooring, the firebox shall be installed on a metal or wood panel extending the full width Do not fill spaces around firebox with and depth of the enclosure. insulation or other materials. This could cause a fire. 400DVBL 500DVBL " " " " " " " "... -
Page 8: Fireplace Dimensions
PRE-INSTALLATION INFORMATION FIREPLACE DIMENSIONS 31 7/8 15/16 11 3/8 Figure 3 - Fireplace Dimensions DESCRIPTION Key Letter 400DVBL 500DVBL Overall Front Width " " Inside Width " " Glass Width 9" 33" CTR Pipe (L/R) " " Rear Width "... -
Page 9: Fireplace Location
PRE-INSTALLATION INFORMATION COLD CLIMATE INSULATION If you live in a cold climate, seal all cracks around your appliance, and wherever cold air could enter the room, with noncombustible material. It is especially important to insulate the outside chase cavity between the studs and under the floor on which the appliance rests, if the floor is above ground level. FIREPLACE LOCATION Plan for the installation of your appliance. This includes determining where the unit is to be installed, the vent configuration to be used, framing and finishing details, and whether any optional accessories (i.e. blower, wall switch, or remote control) are desired. Consult your local building code agency to ensure compliance with local codes, including permits and inspec- tions. The following factors should be taken into consideration: • Clearance to side-wall, ceiling, woodwork, and windows. Minimum clearances to combustibles must be maintained. • This fireplace may be installed along a wall, across a corner, or use an exterior chase. See Figure 4 for suggested loca- tions. • Location should be out of high traffic areas and away from furniture and draperies due to heat from appliance. • Never obstruct the front opening of the fireplace. • Do not install in the vicinity where gasoline or other flammable liquids may be stored. • Vent pipe routing. See Venting section found in this manual for allowable venting configurations. • These units can be installed in a bedroom. See National Fuel Gas Code ANSI Z233.1/NFPA 54 — (current edition), the Uniform Mechanical Code — (current edition), and Local Building Codes for specific installation requirements. • These units can be installed in a bathroom. Flat on Wall Cross Corner Island**... -
Page 10: Clearances
CLEARANCES CLEARANCES TO COMBUSTIBLES Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. The appliance cannot be installed on a carpet, tile or other combustible material other than wood flooring. If installed on carpet or vinyl flooring, the appliance shall be installed on a metal, wood or noncombustible material panel extending full width and depth of the appliance. All mantel shelves, regardless of depth, should be a mini- mum of 13" from top opening of fireplace. Mantel shelf shall not exceed 12" maximum depth at 13" minimum height from opening. -
Page 11: Securing Fireplace To Floor Or Framing
SECURING FIREPLACE TO FLOOR OR FRAMING The fireplace must be secured to the floor and/or to framing studs as shown in Figure 6. Use two (2) wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws to attach fireplace to framing. The side nailing flanges are 1/2" or 5/8" to accommodate different wall thickness. Framing Nailing Flange Framing Screws Nailing Nailing Flange Flange Screws Nailing Flange Screws Figure 6 - Securing Fireplace to Floor and Framing Studs 74D0010... -
Page 12: Installation Information
INSTALLATION INFORMATION FINISHING MATERIAL NOTE: Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to final finishing to avoid costly reconstruction. Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating of Zero) may be used to cover the black painted face of the appliance. It is permissible to bring combustible wall board to the top and side edges of the black painted face. A 300°F minimum adhesive may be used to attach facing materials to the black surface. If joints between the finished wall and the fireplace surround are sealed, a 300°F minimum sealant material (General Electric RTV103 or equivalent) must be used. VENT INSTALLATION Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life. -
Page 13: Vent Installation
VENT INSTALLATION Horizontal sections of this vent system require a minimum of 3" clearances to combustibles at the top of the flue and 1" clearance at the sides and bottom until the flue penetrates the outside wall. A minimum 1" clearance all around the flue is acceptable at this point of penetration. Vertical sections of this vent system require a minimum of 1"... -
Page 14: Installation Planning
VENT INSTALLATION INSTALLATION PLANNING There are two basic types of direct-vent installation: • Horizontal Termination • Vertical Termination It is important to select the proper length of vent pipe for the type of termination you choose. It is also important to note the wall thickness. FOR HORIZONTAL TERMINATION Select the amount of vertical rise desired. All horizontal run Never run the vent pipe level or of venting must have " rise for every 12" of run towards the downward. This may cause excessive termination. temperatures which could cause You may use up to three 90° elbows in this vent configuration. See a fire. Horizontal Termination Configurations on pages 17 and 18. - Page 15 VENT INSTALLATION FOR HORIZONTAL TERMINATION Inside Corner Detail Fixed Closed Opera- Fixed Closed Operable Vent Terminal Air Supply Inlet Area Where Terminals Not Permitted Figure 8 - Horizontal Vent Termination Location MINIMUM DISTANCES A = Clearance above the grade, a veranda, porch, deck, or balcony [*12" (305 mm) minimum]. B = Clearance to window or door that may be opened [*12" (305 mm) minimum]. C = Clearance to permanently closed window [*minimum 12" (305 mm) recommended to prevent condensation on window] D = Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of two (2) feet (610 mm) from the centerline of the terminal [18" (457 mm) minimum].
- Page 16 VENT INSTALLATION TERMINATION CLEARANCES FOR BUILDINGS WITH COMBUSTIBLE AND NONCOMBUSTIBLE ExTERIORS G=6" (152mm) F=6" (152mm) Combustible – 6" (152 mm) Noncombustible – 2" (51mm) Inside Corner Outside Corner C = Maximum depth of 48" (1219mm) for alcove location D = Minimum width for back wall of alcove location Combustible - 38"...
-
Page 17: Rear (Through-The-Wall) Applications
VENT INSTALLATION REAR (THROUGH-THE-WALL) APPLICATIONS Female Locking Lugs Sealant is not required to assemble fireplace venting. Do not use silicone sealant at the flue exhaust connections. NOTE: Horizontal runs 1. Find the pipe section's direction label. The label arrow shall of vent must be sup- be pointed away from the firebox and toward the termina- ported every three feet tion. Firmly insert the initial rigid section/elbow into the (914 mm). Use wall firebox outer collar. Simpson "GS" and Selkirk "DT" outer straps for this purpose. walls are hemmed and will snap into the collar's tabs. Attach Simpson's DirectVent Pro by fully inserting into the Male Slots collar and securing with self-tapping screws. The screws shall only penetrate the flue outer wall. - Page 18 VENT INSTALLATION REAR (THROUGH-THE-WALL) APPLICATIONS (continued) 4. Apply a bead of non-hardening mastic around the outside edge of vent cap. Position the vent cap in the center of hole on the exterior wall with the word "HOT" on the vent cap facing up. Insure proper clearance of 1" to combustibles is maintained to the flue. Attach the vent cap with four wood screws supplied. See Figure 13. Do not recess vent Vent Cap termination into any wall. This will cause a fire hazard. NOTE: Replace the wood screws with appropriate fasteners for stucco, brick, concrete, or other types of siding.
-
Page 19: Vertical/Horizontal Termination Configuration
VENT INSTALLATION VERTICAL/HORIZONTAL TERMINATION CONFIGURATIONS Since it is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust, certain limitations as to vent configurations apply and must be strictly adhered to. The Vent Graph, showing the relationship between vertical and horizontal side wall venting, will help to determine the vari- ous dimensions allowable. See Figure 10. - Page 20 VENT INSTALLATION VERTICAL/HORIZONTAL TERMINATION 90° CONFIGURATIONS (continued) • If a 90° elbow is used in the horizontal vent run (level height maintained) the horizontal vent length is reduced by 36". See Figures 16 and 17, page 19. This does not apply if the 90° elbows are used to increase or redirect a vertical rise. See Figure 19. Example: According to the vent graph (page 16) the maximum horizontal vent length in a system with a 10' vertical rise is 20’ (6m) and if a 90° elbow is required in the horizontal vent it must be reduced to 17' (5.2 m).
-
Page 21: Below Grade Installation
VENT INSTALLATION BELOW GRADE INSTALLATIONS When it is not possible to meet the required vent terminal clearances of 12" above grade level, a snorkel kit is recommended. It allows installation depth down to 7" (178mm) below grade level. The 7" (178mm) is measured from the center of the horizontal vent pipe as it penetrates through the wall. Ensure that sidewall venting clearances are observed. If venting system is installed below ground, we recommend a window well with adequate and proper drainage to be installed around the termination area. If installing a snorkel, a minimum 24" vertical rise is necessary. The maximum horizontal run with the 24” vertical pipe is 36". This measurement is taken from the collar of the fireplace (or transition elbow) to the face of the exterior wall. See the Sidewall Venting Graph for extended horizontal run if the vertical exceeds 24". -
Page 22: Vertical Through-The-Roof Applications
VENT INSTALLATION VERTICAL (THROUGH-THE-ROOF) APPLICA- TIONS This Gas Fireplace has been approved for, • Vertical installations up to 40' (12m) in height. Up to a 10' (3m) horizontal vent run can be installed within the vent system using a maximum of two 90° elbows. See Figure 40' Maximum Height Maximum 8' Minimum Height 1" NOTE: Horizontal sections of this vent system require Support Straps a minimum of 3" clearances to combustibles at the top Every 3' of the flue and 1"... - Page 23 VENT INSTALLATION INSTALLATION FOR VERTICAL TERMINATION 1. Determine the route your vertical venting will take. If ceiling joist, Roof roof rafters or other framing will obstruct the venting system, Flashing consider an offset. See Figure 25 to avoid cutting load bearing members. For optimal flame appearance, a restrictor disk is necessary on straight Wall vertical runs of 20' of more. Strap • Runs may not incorporate elbows. • The disk is part number 45D0551 and is included in instal- 45° Elbows lation manual packet. • Drop the disk into a 4" inner collar before installing the first section of flue or install at the last section before installing the termination. • An additional disk may be installed on runs of 35' or more. Rotate disks perpendicular to each other. NOTE: Pay special attention to these installation Ceiling Firstop instructions for required clearances (air space) to combustibles when passing through ceilings, walls, roofs,...
- Page 24 VENT INSTALLATION 3. Cut a hole in the roof using the locating hole as a center point. (Cover any exposed open vent pipes before cutting hole in 1/ 2 roof). The 9 "x9 " (241mm x 241mm) hole must be measured on the horizontal. Actual length may be larger depending on the pitch of the roof. There must be a 1" minimum clearance from the vent pipe to combustible materials. (Insulation should be considered a combustible material). 4. Connect a section of pipe and extend up through the hole. NOTE: If an offset is needed to avoid obstructions, you must support the vent pipe every three (3) feet. Use wall straps for this purpose. See Figure 23, page 22. Whenever possible, use 45° elbows instead of 90°...
-
Page 25: Flex Vent Installation
FLEx VENT INSTALLATION 1. Flexible UL177 listed venting may be used in any venting application where rigid direct vent components can be used. All restrictions, clearances and allowances that pertain to the rigid piping apply to the flexible UL177 venting. Flex kits may not be modified. Flex kits may be added to the Flex Vent end of a vent run made of rigid vent sections using pipe manufactur- er's approved flex to pipe adapters. This may occur only if doing so does not violate any of the venting length, height, routing, horizontal to vertical ratio requirements or clearance consid- erations detailed in this manual. 2. The flex adapter starter kit (DVFA/8) is used to attach flex venting to the appliance starting collar. It includes 4" " Flex- inner and 7" outer adapter rings. (Refer to Figure 29) ible Pipe • The inner and outer adapter rings are required to start and Adapter Securing all flex runs. - Page 26 FLEx VENT INSTALLATION 3. Do not allow the flexible vent to bend in radius tighter than 5" (127 mm). Refer to Figure 30. 4. Horizontal runs of flexible vent shall be supported at maximum 2 foot intervals; vertical runs, five feet intervals. Metal strapping, properly secured, is an acceptable means to support the flexible vent. 5. Flexible vent spacers are to be installed at intervals prescribed by the flexible vent manufacturer; and in such a way as to maintain concentric inner and outer vent spacing. D. Attaching flexible venting to vertical termination assemblies. 1. When using Simpson pipe, an MHSC flex-to-pipe adapter and/or rigid pipe section(s) is required to connect the flexible vent assembly to the vertical termination by using three self-penetrating screws. 2. Review Figure 32 and corresponding instructions for proper overlap, clamp and screw placement. 3. Three each self-penetrating screws are drilled opposite one another and below the gear clamp. 4. Use only listed and approved terminations and accessories, installed per the installation instruc- tions and Figure 31. E. Installing flexible venting to horizontal termination assemblies. 1. Connect the 4" flexible vent to the horizontal termination as in Figure 33. 2. Slide termination cap adapter ring over the termination cap's outside pipe and secure with three screws. 3. Connect the 7" flexible vent to the termination adapter ring as in Figure 33. 4. Review Figure 33 for proper overlap and clamp placement. 5. Three each self-penetrating screws are drilled opposite one another and below the gear lamp. 6. Use only listed an approved terminations and accessories, installed per the termination instructions and Figure 33.
-
Page 27: Fireplace Installation
FIREPLACE INSTALLATION CHECK GAS TYPE Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type or conversion kit. INSTALLING GAS PIPING TO FIREPLACE / BURNER SYSTEM LOCATION A qualified installer or service person must connect appliance to gas supply. Follow all local codes. For propane/LP units, never connect fireplace directly to the propane/LP supply. This burner system requires an external regulator (not supplied). Install the external regulator between the burner system and propane/LP supply. INSTALLATION ITEMS NEEDED Before installing fireplace and burner system, make sure you have the items listed below. • External regulator (supplied by installer) • Piping (check local codes) • Sealant (resistant to propane/LP gas) • Equipment shutoff valve*... - Page 28 FIREPLACE INSTALLATION Only persons licensed to work with A manual shutoff valve must be gas piping may make the necessary installed upstream of the appliance. gas connections to this appliance. Union tee and plugged 1/8" NPT pressure tapping point should be installed upstream of the appliance.
-
Page 29: Checking Gas Pressure (Millivolt)
MILLIVOLT - CHECKING GAS PRESSURE ELECTRICAL INSTALLATION 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. 2. To ease installation, a 24" (610 mm) flex line with manual shut-off valve has been provided with on this appliance. Install and attach " gas line onto shut-off valve. Pressure Test “IN” 3. After completing gas line connection, purge air from gas line and test all gas joints from the gas meter to Pressure the fireplace for leaks. Use a solution of 50/50 water Test “OUT” and soap solution or a gas sniffer. 4. To adjust flame height, turn HI/LO knob to HI to get HI/LO Knob maximum pressure to burner. Turn HI/LO knob to LO... -
Page 30: Remote Wall Switch Installation
REMOTE WALL SWITCH INSTALLATION REMOTE WALL MOUNTED SWITCH A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance. Attach the wall OPTIONAL REMOTE WALL SWITCH switch in a junction box at the desired location on the wall. See Figure 37. Do not extend beyond the wall switch wire length provided. PILOT TH/TP NOTE: Extended lengths of wire may cause the fireplace not to function properly. Longer length of OPTIONAL REMOTE WALL SWITCH wire is permitted if the wire is made out of larger gauge (diameter) wire. - Page 31 OPTIONAL FAN/BLOWER SYSTEM Fan Light Variable Switch Fan Control (Hi Temp) (N.O.) Blower Motor 110/115V AC Black Blower Plug Black Blower White Motor Green White Figure 38 - Junction Box Wiring Diagram the side walls of the fireplace. Install blowers with the Figure 38a - Blower Wiring Diagram blower discharge vent facing upwards and centered on the blower channel. See Figure 38b.
-
Page 32: Operating Instructions (Milli-Volt)
OPERATING INSTRUCTIONS (MILLI-VOLT) FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following these instructions exactly. B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor. WHAT TO DO IF YOU SMELL GAS: • Turn off all gas to the appliance. • Open windows. -
Page 33: Lighting Pilot
OPERATING INSTRUCTIONS (MILLI-VOLT) LIGHTING PILOT FOR THE FIRST TIME APPROVED LEAK TESTING METHOD If using a soap and water You may check for gas leaks with the following methods only: solution to test for leaks, • Soap and water solution DO NOT spray solution onto control body. • An approved leak testing spray • Electronic sniffer NOTE: Remove any excessive pipe compound from the connections. -
Page 34: Lighting Burner
OPERATING INSTRUCTIONS (MILLI-VOLT) LIGHTING BURNER MAIN BURNER SWITCH The “ON/OFF/RS” switch for the main burner can be found behind door of the fireplace. This switch allows you to turn on and to turn off the main burner without using the gas valve knob. Make sure the button is in the “ON” position to light the main burner. See Figure 40 LIGHTING THE BURNER Figure 40 - Depress and turn the knob counterclockwise to the “ON” position. On/Off/RS Switch It will take less than four (4) seconds for the burner to ignite. Figure 41. PILOT POSITION Depress and turn knob to pilot position to keep burner off while maintaining the pilot light. See Figure 42. P I L Figure 41 - On Position P I L Figure 42 - Pilot Position TO TURN OFF GAS... -
Page 35: Checking Gas Pressure - (Signature Command System)
SIGNATURE COMMAND - CHECKING GAS PRESSURE ELECTRICAL INSTALLATION 1. Check gas type. The gas supply must be the same as Pressure Inlet stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. 2. To ease installation, a 24" (610 mm) flex line with manual shut-off valve has been provided with on this appliance. Install and attach 1/2" gas line onto shut-off valve. 3. After completing gas line connection, purge air from gas line and test all gas joints from the gas meter to the fireplace for leaks. Use a solution of 50/50 water and soap solution or a gas sniffer. -
Page 36: Optional Fan/Blower System (Signature Command System)
OPTIONAL FAN BLOWER SYSTEM OPTIONAL AC BOX TO JUNCTION BOX IN FIREPLACE PILOT OPTIONAL LIGHT WHITE BLACK OPTIONAL WHITE BLOWER BLACK BLACK OPTIONAL WHITE GREEN CONNECTOR PIN TO CONTROL BOX INPUT 300 WATT MAX EACH Figure 45 - Signature Command Wiring Diagram RF RECEIVER ON/OFF BUTTON CONTROL BOX... -
Page 37: Junction Box Wiring
OPTIONAL FAN BLOWER SYSTEM Figure 46a - Blower Installation 10V AC 60Hz Factory Supplied Not Supplied Junction Box Figure 46 - Junction Box Wiring Diagram FP1912 3. Remove logs. Junction box wiring 4. Remove grate from engine by lifting upwards. 8/08 5. Remove hearthbrick and wall brick panels. 6. Disconnect the gas line to the valve. 7. Remove screws securing engine base to firebox floor and lift engine upwards to remove. 8. Two Velcro strips are supplied to secure each blower to the firebox wall and two magnetic strips are supplied to secure each blower to the firebox floor. Blowers can be inserted through the hole in the firebox floor and mount flat against the side walls of the fireplace. Install blowers with the blower discharge vent facing upwards and centered on the blower channel. See Figure 46a. - Page 38 OPTIONAL FAN BLOWER SYSTEM OPTIONAL AC BOX TO JUNCTION BOX IN FIREPLACE BLOWER OPTIONAL RIGHT LIGHT WHITE BLACK WHITE BLACK BLACK OPTIONAL WHITE GREEN BLOWER CONNECTOR LEFT PIN TO CONTROL BOX Input 300 Watt Max. Each CONTROL BOX Figure 46c - Blower Wiring Diagram FP1915 AC box wiring Electrical Grounding Instructions: This appliance is...
-
Page 39: Operating Instructions (Signature Command System)
OPERATING INSTRUCTIONS - SIGNATURE COMMAND FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition device which automatically lights the pilot. Refer to the instructions for match lightin. -
Page 40: To Turn Off Gas To Appliance
OPERATING INSTRUCTIONS - SIGNATURE COMMAND OPERATING INSTRUCTIONS 1. STOP! Read the safety information above. 2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand. 3. With five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Fol- low "B" in the safety information on page 38. If you do not smell gas, go to next step. 4. Install four (4) "AA" batteries (provided in your Homeowner's Manual bag) into the command center box. Make sure the batteries orientation match. 5. Press the master switch to the "ON" (-) position. Within eight (8) seconds it will beep once. This indicates the sys- tem is ready. 6. Press "ON " button. Sparker will spark and pilot flame will light. 7. Once pilot flame is established, the main burner flame will light automatically. 8. If the pilot will not stay lit after several tries, turn the master switch to "OFF" and call your service technician or gas supplier. Master Switch Switch Box FP1913 Switch box 8/08 TO TURN OFF GAS TO APPLIANCE 1. Turn master switch to "OFF". -
Page 41: Signature Command System Operation
SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS FEATURES Command Center To Thermopile RF Receiver • Easy Access Function Operation and System Configuration ON/OFF To Sensor • Operation Confirmation/Fault Diagnostic Indications (LED/ To Sparker Buzzer) • ON/OFF/HI/Low Operation NG/LP Conversion Control Board • Electronic Ignition To Command • Pilot Lockout safety feature Center Control • Electric Power Regeneration from Thermopile to save battery To Stepper Motor Board •... -
Page 42: Signature Command System Operation Instructions
SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS SYSTEM CONFIGURATION/SETUP (continued) 1. When the master switch is in the ON position (“-”), pressing the ON button and the OFF button on the Command Center simultaneously will toggle between enabling and disabling the six-hour shutdown option. 2. After the above operation, one beep (for enabling the six-hour shutdown option) or two beeps (for disabling the six-hour shutdown option) will be given as confirmation. Remote Transmitter Learn Function (Default OFF) 1. The RF receiver button located on the control board must be in the on position before the learn function can begin. Use paper clip to depress button. One beep for RF receiver ON or two beeps for RF receiver OFF will be given as confirmation. 2. Holding the OFF button on the Command Center while turning on the master switch will activate the learn function for the transmitter. 3. After the above operation, two beeps will be given and the green LED on the Command Center will flash for 10 seconds. 4. During the 10 seconds, press the OFF button on a transmitter to learn. Another two beeps will be given to confirm a successful learning. Shutting Off the Standing Pilot To shut off the standing pilot for service or summer shut down, press and hold the ON button on the Command Center for 3 seconds when the master switch is in the ON position (“-”) and the main burner is off. - Page 43 SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS FUNCTIONS/OPERATION (continued) Flame Height Control 1. Press the ON button (on the Command Center) once to turn on the main burner with maximum flame height. 2. Press the OFF button to decrease flame height. The first two presses will decrease the flame height to medium and low. 3. The third press on OFF will turn off the main burner. In standing pilot configuration, the pilot will stay; in intermittent pilot configuration, the pilot will be shut off. Turning the Fireplace Off There are three ways to turn the fireplace off. 1. Flip the master switch to the off (“O”) position 2. Press the OFF button to Medium, Low, then Off. 3. Hold the OFF button anytime for three seconds. This command of OFF will remember all last settings before turning off. The next time the fireplace is turned on, all settings will resume. Command Center Operations: The following functions are available on the Command Center. Function Operation Power Up Flip the master switch to the ON ("_") position to power up the system Fireplace ON Press the ON ▲...
-
Page 44: Glass Removal
GLASS REMOVAL GLASS FRAME REMOVAL 1. Remove access panel by lifting up and out. 2. Release two clamps (500 model has three clamps) on bottom of fireplace. See Figure 48. 3. Tilt glass frame out and lift glass frame up until it clears three tabs on top of fireplace. 4. Set glass frame aside. Glass Frame Clamps Figure 48 - Removing Glass Frame Each clamp has a quick spring force. When reinstalling clamps, keep fingers clear. 74D0010... -
Page 45: Final Installation
FINAL INSTALLATION HEARTH BRICK PLACEMENT Place the hearth brick centered in front of burner and slide back until it hits the stops on the right and left of burner. ROCK WOOL PLACEMENT 1. Place rock wool on burner to provide glowing embers. Burner For best results, pull the rock wool apart into pieces the size of a dime or smaller. 2. Distribute one layer of rock wool to cover the burner. See Figure 49. Cover with 3. Place the logs on the burner. See Log Placement below. Rock Wool Light unit and after 15 minutes, check burner flame and glow. See Burner Flame, page 47. If the flame is blue and only in the center, turn off unit and let cool. After unit cools, remove logs. If the back holes Figure 49 - Placement of Rock Wool on Burner are clear, add more rock wool to the center of the burner. - Page 46 FINAL INSTALLATION 6. Place the small twig (#4) by having the small pointed end of the log toward the front of the fireplace and the fat end rest- ing evenly with the pointed ends of the right and left front logs. Also, the notch on this log will match the middle tong on the grate. Rear Log #1 Right Front Log #3 Step 2 - Right Front Log (#3) Step 1 - Rear Log (#1) LG530 LG530 Left Front Log #5 Right Upper Log #2 BLDV rear log BLDV rear log 8/08 8/08 Step 3 - Left Front Log (#5)
-
Page 47: Cleaning And Maintenance
CLEANING AND MAINTENANCE Turn off gas before servicing fireplace. It is recommended that a qualified service technician perform these check-ups at the beginning of each heating season BURNER, PILOT AND CONTROL COMPARTMENT Keep the control compartment, logs, and burner areas surrounding the logs clean by vacu- uming or brushing at least twice a year. Make sure the burner porting, pilot air opening and burner air opening are free of obstructions at all times. Thermocouple Sparker Sensor Thermopile PILOT FLAME The flames from the pilot should be visually checked as soon as the heater is installed and periodically during normal operation. The pilot flame must always be present when the fireplace is in operation. -
Page 48: Vent System
CLEANING AND MAINTENANCE VENT SYSTEM The fireplace and venting system should be inspected before initial use and at least annually by a quali- fied field service person. Inspect the external vent cap on a regular basis to make sure that no debris is interfering with the airflow. Inspect entire venting system to ensure proper function. GLASS DOOR Thoroughly clean the inside of the glass door after using the fireplace for ten hours. Periodically clean the glass door as necessary. When cleaning the glass, remember: • Do not remove the glass when hot. Allow glass to cool before removal. • NEVER use abrasive materials. • Keep children and pets a safe distance away. • Never operate the fireplace without the glass door properly secured. • Never operate the fireplace if the glass is broken. • Replace any glass that is chipped, cracked, or broken. Replacement glass door assemblies MUST be supplied by the fireplace manufacturer – No substitute materials may be used. • Handle glass door with care to avoid striking or scratching it on hard objects. To clean glass door, follow “Glass Removal” procedure outlined in the Final Installation section. Film deposit on the inside of the glass should be cleaned off using a nontoxic, non-corrosive, non-abrasive, mild-cleaning solution. Simply apply an adequate amount to the glass and wipe off with a damp cloth. -
Page 49: Troubleshooting
TROUBLESHOOTING STANDING PILOT IGNITION SYMPTOM POSSIBLE CAUSE ACTION 1. Spark ignitor will A. Wire disconnected. A. Open door and check to make sure wire is connected to ignitor. not light pilot after B. C heck for spark at electrode and pilot. If no spark and electrode repeated triggering of B. Defective ignitor. wire is properly connected, replace pilot assembly. piezo. C. Check remote/manual shut off valve from fireplace. Low pres- C. No gas or low gas pressure. sure can be caused by bent lines, restricted lines, low pressure line pressure. Consult with plumber or gas supplier. D. No Propane/LPG in tank D. Check Propane/LPG tank. Refill tank. 2. Pilot will not stay lit A. Defective thermocouple A. Check that thermocouple flame impinges on thermocouple. after carefully follow- Clean and/or adjust pilot for maximum flame impingement. - Page 50 TROUBLESHOOTING STANDING PILOT IGNITION SYMPTOM POSSIBLE CAUSE ACTION 4. Frequent pilot outage A. Pilot flame may be too high or A. Clean and adjust the pilot flame for maximum flame impinge- problem. too low, causing pilot safety ment on thermocouple. to drop out 5. The pilot and main A. Inner vent pipe leaking A. Check for flue product leak. Replace defective pipe section. burner extinguish exhaust gases back into while in operation system B. Horizontal vent improperly B. Check horizontal-venting piping is running upward 1/4" per foot. pitched Do not run the pipe level or downward. C. Improper vent cap installation C. Check for proper installation and freedom from debris or block- age. 6. Glass Soots A. Flame impingement on logs A. Install log set per the instructions Inspect the injector and air intake area. Make sure this area does...
-
Page 51: Signature Command System
TROUBLESHOOTING SIGNATURE COMMAND SYSTEM OPERATION FAULT ACTION DIAGNOSIS Using Battery polarity wrong? Re-install batteries battery? Make sure Command Install batteries and/or Battery voltage low? Change batteries Center and plug in the AC board No beep in about the control 8 seconds board are connected by a 2 feet or 15... -
Page 52: Illustrated Parts Lists
ILLUSTRATED PARTS LISTS FIREBOx COMPONENTS 74D0010... - Page 53 ILLUSTRATED PARTS LISTS FIREBOx COMPONENTS Item Description 400DVBL 500DVBL Standard Features Junction Box Assembly (not shown) 26D2128K 26D2128K Front Brick (Black) 74D0052K 74D0127 Glass Frame Assembly 74D0096K 74D0204 Control Cover 74D0038K 74D0119 Accessories/Field Installed Options T-stat Blower with Speed Control BLOTBLDV...
-
Page 54: Standing Pilot Millivolt Control
ILLUSTRATED PARTS LISTS STANDING PILOT — MILLIVOLT CONTROL 11,12,13, 14 74D0010... - Page 55 ILLUSTRATED PARTS LISTS STANDING PILOT – MILLIVOLT CONTROL Item Description 400DVBLNV 400DVBLPV 500DVBLNV 500DVBLPV Gas Valve Assembly 37D0117 37D0118 37D0117 37D0118 Pilot Assembly 37D0018 37D0019 37D0018 37D0019 2C Replacement Thermocouple 37D1067 37D1067 37D1067 37D1067 I Replacement Igniter and Wire 37D1069 37D1069 37D1069 37D1069...
-
Page 56: Signature Command System
ILLUSTRATED PARTS LISTS SIGNATURE COMMAND SYSTEM 13, 14, 15 0009 SG parts 8/08 74D0010... -
Page 57: Illustrated Parts List
ILLUSTRATED PARTS LIST SIGNATURE COMMAND SYSTEM Item Description qty. 400DVBLNS 400DVBLPS 500DVBLNS 500DVBLPS Gas Valve Assembly 80D0001 80D0002 80D0001 80D0002 Pilot Assembly 80D0006 80D0007 80D0006 80D0007 Control Box 80D0018 80D0019 80D0018 80D0019 Command Center 80D0005 801D0005 80D0005 80D0005 Burner Tube 74D0604 74D0604 74D0604... -
Page 58: Vent Components
ILLUSTRATED PARTS LIST VENT COMPONENTS For more information about, or instructions for, the venting components referenced above, please contact the component manufaturer: Selkirk Corporation: www. selkirkcorp.com or 800-992-8368 Simpson Duravent: www. duravent.com or 800-835-4429 74D0010... - Page 59 ILLUSTRATED PARTS LIST Current Current Simpson Simpson Duravent Duravent qty./ or MHSC or MHSC Selkirk Item Box Description Part no. Part no. Part no. Side Wall Flexible Pipe Termination Kit BHSFTKA BHSFTK Includes termination cap with built-in vinyl siding standoff, heat deflector, firestop, 20" to 48" flexible pipe and adapter. Horizontal Pipe Termination Kit with Horizontal Termination Cap BLBHSTK BLBHSTK...
-
Page 60: Logs
ILLUSTRATED PARTS LISTS LOGS Item Description qty 400DVBL 500DVBL Log #1 74D0053 74D0053 Log #2 74D0054 74D0054 Log #3 74D0055 74D0055 Log #4 74D0056 74D0056 Log #5 74D0057 74D0057 Log #6 74D0058 74D0058 74D0010... -
Page 61: Mass Residents Only
MASSACHUSETTS RESIDENTS ONLy: NOTES PLEASE READ AND FOLLOW THESE SPECIAL REQUIREMENTS NOTE REGARDING VENTED PRODUCTS This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachu- setts. Any residence with a direct vent product must have a CO detector installed in the residence. Installation of the fireplace or vented gas log in the State of Massachusetts requires the damper to be permanently removed or welded in the fully open position. In addition, a naturally vented gas log may not be installed in a bedroom or bathroom in the State of Massachusetts. Flex line installation must not exceed 36 inches and must have a T shutoff valve. NOTE REGARDING VENT FREE PRODUCTS This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachu- setts. In addition, vent free products may not be installed in a bedroom or bathroom regardless of size or type in the State of Mas- sachusetts. Flex line installation must not exceed 36 inches and must have a T shutoff valve. CARBON MONOXIDE DETECTOR REQUIREMENTS (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied: 1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide... - Page 62 SPECIAL REqUIREMENTS (continued) 2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified. 3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLy BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.” 4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4. (b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4: 1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and 2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.
-
Page 63: Warranty
LIMITED LIFETIME WARRANTy POLICy LIFETIME WARRANTY The following components are warranted for life to the original owner, subject to proof of purchase: Firebox, Combustion Chamber, Heat Exchanger, Grate and Stainless Steel Burners. FIVE YEAR WARRANTY The following components are warranted five (5) years to the original owner, subject of proof of purchase: Ceramic Fiber Logs. BASIC WARRANTY MHSC warrants the components and materials in your gas appliance to be free from manufacturing and material defects for a period of two years from date of installation. After installation, if any of the components manufactured by MHS in the appliance are found to be defective in materials or workmanship, MHSC will, at its option, replace or repair the defective components at no charge to the original owner. MHS will also pay for reasonable labor costs incurred in replacing or repair- ing such components for a period of two years from date of installation. Any products presented for warranty repair must be accompanied by a dated proof of purchase. This Limited Lifetime Warranty will be void if the appliance in not installed by a qualified installer in accordance with the installation instructions. The Limited Lifetime Warranty will also be void if the appliance is not operated and maintained according to the operating instructions supplied with the appliance, and does not extend to (1) firebox/burner assembly damage by accident, neglect, misuse, abuse, alterations, negligence of others, including the installation thereof by unquali- fied installers, (2) the costs of removal, reinstallation or transportation of defective parts on the appliance, or (3) incidental or consequential damage. All service work must be performed by an authorized service representative. - Page 64 MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com SEPTEMBER 2008 74D0010 • Rev. 10 74D0010...
