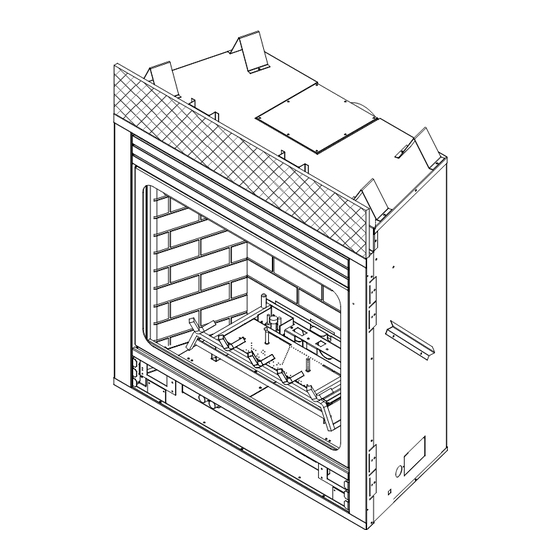

DIRECT VENT GAS FIREPLACE
INSTALLATION AND OPERATING INSTRuCTIONS
WARNINGS
IF THE INFORMATION IN THESE INSTRuCTIONS ARE
NOT FOLLOWED ExACTLy, A FIRE OR ExPLOSION
MAy RESuLT CAuSING PROPERTy DAMAGE,
PERSONAL INjuRy OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–
WHAT TO DO IF yOu SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WARNING: Improper installation, adjustment,
alteration, services or maintenance can cause injury or
property damage. Refer to this manual. For assistance
or additional information consult a qualified installer,
service agency or the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
READ BEFORE INSTALLING. SAVE THESE INSTRuCTIONS
DVBH SERIES
MODELS: 300DVBH & 400DVBH
DuE TO HIGH TEMPERATuRES, THE
APPLIANCE SHOuLD BE LOCATED
OuT OF TRAFFIC AND AWAy FROM
FuRNITuRE AND DRAPERIES.
CHILDREN AND AD uLTS SHOuLD
BE ALERTED TO THE HAZARDS OF
HIGH SuRFACE TEMPERATuRE AND
SHOuLD STAy AWAy TO AVOID BuRNS
OR CLOTHING IGNITION.
y O u N G C H I L D R E N S H O u L D B E
SuPERVISED WHEN THEy ARE IN THE
SAME ROOM AS THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOuLD NOT BE PLACED ON
OR NEAR THE APPLIANCE.
KEEP THE ROOM AREA CLEAR AND
FREE FROM COMBuSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE
VAPORS AND LIquIDS.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Majestic 300DVBH
Summary of Contents for Majestic 300DVBH
-
Page 1: Installation And Operating Instructions
DVBH SERIES DIRECT VENT GAS FIREPLACE MODELS: 300DVBH & 400DVBH INSTALLATION AND OPERATING INSTRuCTIONS WARNINGS IF THE INFORMATION IN THESE INSTRuCTIONS ARE NOT FOLLOWED ExACTLy, A FIRE OR ExPLOSION MAy RESuLT CAuSING PROPERTy DAMAGE, PERSONAL INjuRy OR LOSS OF LIFE. -
Page 2: Table Of Contents
CONTENTS Important Safety Information ......3 Glass Removal & Brick Installation ....32 Product Features ..........5 Final Installation ........33–35 Placement of lava rock, rock wool Code Approval ..........5 and logs..........33–35 Pre-Installation Information ......6–9 Installing Andirons ........35 High Elevation Installation ......6 Operating Instructions (Millivolt) ....36 Orifice Sizes, Pressures and BTUs . -
Page 3: Important Safety Information
IMPORTANT SAFETy INFORMATION INSTALLER OWNER Please leave these instructions with the appliance. Please retain these instructions for future reference. • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. • Any change to this fireplace or its controls can be dangerous. • Improper installation or use of this fireplace can cause serious injury or death from fire, burns, explosions, electrical shock and carbon monoxide poisoning. This fireplace is a vented product. This fireplace must be 4. Never install the fireplace properly installed by a qualified service person. The glass door • in a recreational vehicle • where curtains, furniture, clothing, or other flammable must be properly seated and sealed. If this unit is not properly objects are less than 42" from the front, top, or sides installed by a qualified service person with glass door properly seated and sealed, combustion leakage can occur. of the fireplace • in high traffic areas CARBON MONOxIDE POISONING: Early signs of • in windy or drafty areas carbon monoxide poisoning are similar to the flu with head- aches, dizziness and/or nausea. If you have these signs, the... - Page 4 IMPORTANT SAFETy INFORMATION Continued from page 3 IMPORTANT: 12. Do not use this fireplace to cook food or burn paper or PLEASE READ THE FOLLOWING CAREFuLLy other objects. It is normal for fireplaces fabricated of steel to give off some expansion and/or contraction noises 13. Never place anything on top of fireplace. during the start up or cool down cycle. Similar 14. Do not use any solid fuels (wood, coal, paper, cardboard, noises are found with your furnace heat exchanger etc.) in this fireplace. Use only the gas type indicated on...
-
Page 5: Product Features
Off/Pilot/On Knob Thermal efficiency up to 75% On/Off/RS Switch AFUE efficiency up to 71% Ignitor Optional Remote Receiver Blower Control Figure 1 - 300DVBH and 400DVBH Fireplace CODE APPROVAL Direct Vent type appliances draw all combustion air from outside of the dwelling through the vent pipe. These appliances have been tested by CSA and found to comply with the established standards for DIRECT VENT GAS FIREPLACE HEATERS in the USA and Canada as follows: LISTED VENTED GAS FIREPLACE HEATER TESTED TO: ANSI Z21.88-2007/CSA 2.33-2007 STANDARDS A manufactured home (USA only) or mobile home OEM installation must conform with the Manufactured Home Con- struction and Safety Standard, Title 24 CFR, Part 3280, or when such a standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped Recreational Vehicles and... -
Page 6: Pre-Installation Information
ORIFICE SIZES, PRESSuRES AND BTus NATuRAL GAS PROPANE GAS Manifold Press: (W.C.) 3.5" Manifold Press: (W.C.) 10" Maximum Supply Pressure 10.5" Maximum Supply Pressure 13" Minimum Supply Pressure 4.5" Minimum Supply Pressure 11" Model Number 300DVBH 400DVBH Natural Propane Natural Propane Max. Btu/hr Input 23,000 23,000 27,000 26,000 Min. Btu/hr Input 16,000 18,000 19,000 20,000 Orifice size 2.35mm... -
Page 7: Fireplace Framing
PRE-INSTALLATION INFORMATION FIREPLACE FRAMING Firebox framing can be built before or after the appliance is set in place. Construct firebox framing following Figure 2 and the chart below for your specific installation requirements. See Figure 3 on Page 8 for firebox dimensions. The framing headers may rest on the top of the firebox standoffs. Do not bring headers below top of standoffs. The firebox may be installed directly on a combustible floor or raised on a platform of an appropriate height. When the firebox is installed directly on carpeting, tile, or other combustible material, other than wood flooring, the firebox shall be installed on a metal or wood panel extending the full width and depth of the enclosure. Do not fill spaces around firebox with insulation or other materials. This could cause a fire. " " " " " " " " " " " " " " " " Corner Installation Inside Chase Installation Stud Location Recessed Installation Figure 2 - Framing Dimensions Figure 2 - Framing Dimensions 54D5032... -
Page 8: Fireplace Dimensions
PRE-INSTALLATION INFORMATION FIREPLACE DIMENSIONS ⅝" ½" ½" ⅝" 3½" 8¼" Figure 3 - Fireplace Dimensions DESCRIPTION Letter 300DVBH 400DVBH DESCRIPTION Letter 300DVBH 400DVBH Overall Front Width " " Height to Standoffs 37" " Inside Width " 3" CTR Pipe Height Rear "... -
Page 9: Fireplace Location
PRE-INSTALLATION INFORMATION FIREPLACE LOCATION Plan for the installation of your appliance. This includes determining where the unit is to be installed, the vent configuration to be used, framing and finishing details, and whether any optional accessories (i.e. blower, wall switch, or remote control) are desired. Consult your local building code agency to ensure compliance with local codes, including permits and inspec- tions. The following factors should be taken into consideration: • Clearance to side-wall, ceiling, woodwork, and windows. Minimum clearances to combustibles must be maintained. • This fireplace may be installed along a wall, across a corner, or use an exterior chase. See Figure 4 for suggested loca- tions. • Location should be out of high traffic areas and away from furniture and draperies due to heat from appliance. • Never obstruct the front opening of the fireplace. • Do not install in the vicinity where gasoline or other flammable liquids may be stored. • Vent pipe routing. See Venting section found in this manual for allowable venting configurations. • These units can be installed in a bedroom. See National Fuel Gas Code ANSI Z233.1/NFPA 54 — (current edition), the Uniform Mechanical Code — (current edition), and Local Building Codes for specific installation requirements. Flat on Wall Cross Corner Island** Room Divider* Flat on Wall Corner* Chase Installation 4"... -
Page 10: Clearances
CLEARANCES CLEARANCES TO COMBuSTIBLES Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. The appliance cannot be installed on a carpet, tile or other combustible material other than wood flooring. If installed on carpet or vinyl flooring, the appliance shall be installed on a metal, wood or noncombustible material panel extending full width and depth of the appliance. All mantel shelves, regardless of depth, should be a mini- mum of 12" from top opening of fireplace. Mantel shelf shall not exceed 12" maximum depth at 12" minimum height from opening. 71"Minimum 0"–12" Maximum Depth 12" Minimum STUD COMBUSTIBLE MATERIAL AREA... -
Page 11: Securing Fireplace To Floor Or Framing
SECuRING FIREPLACE TO FLOOR OR FRAMING The fireplace must be secured to the floor and/or to framing studs as shown in Figure 5. Use two (2) wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws to attach fireplace to framing. The side nailing flanges are 1/2" or 5/8" to accommodate different wall thickness. DO NOT REMOVE INSuLATION BOARD Framing Insulation Board Screws Nail Flange Screws Screws Nail Flange Screws Screws Figure 6 - Securing Fireplace to Floor and Framing Studs 54D5032... -
Page 12: Installation Information
INSTALLATION INFORMATION FINISHING MATERIAL NOTE: Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to final finishing to avoid costly reconstruction. Never obstruct or modify the air inlet or outlet grills (louvers). This may create a fire hazard. -
Page 13: Vent Installation
VENT INSTALLATION This fireplace must be vented to the outside. The venting system must NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each gas appliance must use a separate vent system. Do not use common vent systems. Horizontal sections of this vent system require a minimum of 3" clearances to combustibles at the top of the flue and 1" clearance at the sides and bottom until the flue penetrates the outside wall. A minimum 1" clearance all around the flue is acceptable at this point of penetration. -
Page 14: Optional Top Vent Application
4. Remove the six (6) screws securing the flue pipe to the back of the intake box and remove the pipe and gasket. See Figure 10. 5. Replace flue pipe to top of firebox. Ensure the gasket is in place and undamaged. Secure with six (6) screws. See Figure 11. 6. Place the flue pipe cover and gasket removed in step 3 over 300DVBH 400DVBH the flue opening in back of the intake box. Figure 8 - Removing top box and insulation 7. Refit the flue pipe adapter and gasket to the top of fire- place. Secure the adapter with eight (8) screws removed in step 1. -
Page 15: Installation Planning
VENT INSTALLATION INSTALLATION PLANNING There are two basic types of direct-vent installation: • Horizontal Termination • Vertical Termination It is important to select the proper length of vent pipe for the type of termination you choose. It is also important to note the wall thickness. FOR HORIZONTAL TERMINATION Never run the vent pipe level or Select the amount of vertical rise desired. All horizontal run downward. This may cause excessive of venting must have " rise for every 12" of run towards the temperatures which could cause termination. a fire. You may use up to three 90° elbows in this vent configuration. See Horizontal Termination Configurations on pages 20 and 21. - Page 16 VENT INSTALLATION FOR HORIZONTAL TERMINATION Inside Corner Detail Fixed Closed Opera- Fixed Closed Operable Vent Terminal Air Supply Inlet Area Where Terminals Not Permitted Figure 12 - Horizontal Vent Termination Location MINIMuM DISTANCES A = Clearance above the grade, a veranda, porch, deck, or balcony [*12" (305mm) minimum]. B = Clearance to window or door that may be opened [*12" (305mm) minimum]. C = Clearance to permanently closed window [*minimum 12" (305mm) recommended to prevent condensation on window] D = Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of two (2) feet (610mm) from the centerline of the terminal [18" (457mm) minimum].
-
Page 17: How To Use The Vent Graph
VENT INSTALLATION TERMINATION CLEARANCES FOR BuILDINGS WITH COMBuSTIBLE AND NONCOMBuSTIBLE ExTERIORS G=6" (152mm) F=6" (152mm) Inside Corner Outside Corner C = Maximum depth of 48" (1219mm) for alcove location D = Minimum width for back wall of alcove location Combustible - 38" (965mm) Noncombustible - 24"... -
Page 18: Rear (Through The Wall) Applications
VENTING INSTALLATION REAR (THROUGH THE WAll) APPlICATIONS When installed as a rear vent unit this appliance may be vented directly to a termination located on the rear wall behind the appliance • The maximum horizontal distance between the rear of the appliance and the outside of termination is 20" (508 m). See Figure 14. • Only one 45° elbow is allowed in these installations. Female Maximum Locking Lugs 20" Note: Horizontal runs of vent must be supported every three Top View Flat Installation feet (914mm). Use wall straps Figure 15 - Rear Vent Application, for this purpose. - Page 19 VENT INSTALLATION REAR WALL VENT INSTALLATION (continued) 4. Apply a bead of non-hardening mastic around the outside edge of vent cap. Position the vent cap in the center of hole on the exterior wall with the word “HOT” on the vent cap facing up. Insure proper clearance of 1" to combustibles is Vent Cap maintained to the flue. Attach the vent cap with four wood screws supplied. See Figure 18. Wood Screw Do not recess vent termination into any wall. This will cause a Apply Mastic to fire hazard. All Four Sides Figure 18 - Installing Horizontal Termination NOTE: Replace the wood screws with appropriate fasteners for stucco, brick, concrete, or other types of siding.
-
Page 20: Horizontal Termination Configurations
VENT INSTALLATION HORIZONTAL TERMINATION CONFIGuRATIONS Since it is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust, certain limitations as to vent configurations apply and must be strictly adhered to. The Vent Graph, showing the relationship between vertical and horizontal side wall venting, will help to determine the vari- ous dimensions allowable. See Figure 13, page 17. -
Page 21: Horizontal Termination Configuration
VENT INSTALLATION HORIZONTAL TERMINATION CONFIGuRATION 90° (Continued) • If a 90° elbow is used in the horizontal vent run (level height maintained) the horizontal vent length is reduced by 36". See Figures 21 and 22, page 20. This does not apply if the 90° elbows are used to increase or redirect a vertical rise. See Figure 24. Example: According to the vent graph (page 17) the maximum horizontal vent length in a system with a 7.5' vertical rise is 20’... -
Page 22: Below Grade Installations
VENT INSTALLATION BELOW GRADE INSTALLATIONS When it is not possible to meet the required vent terminal clearances of 12" above grade level, a snorkel kit is recommended. It allows installation depth down to 7" (178mm) below grade level. The 7" (178mm) is measured from the center of the horizontal vent pipe as it penetrates through the wall. Ensure that sidewall venting clearances are observed. If venting system is installed below ground, we recommend a window well with adequate and proper drainage to be installed around the termination area. If installing a snorkel, a minimum 24" vertical rise is necessary. The maximum horizontal run with the 24” vertical pipe is 36". This measurement is taken from the collar of the fireplace (or transition elbow) to the face of the exterior wall. See the Sidewall Venting Graph for extended horizontal run if the vertical exceeds 24". - Page 23 VENT INSTALLATION VERTICAl (THROUGH-THE-ROOF) APPlICATIONS This Gas Fireplace has been approved for, • Vertical installations up to 40' (12m) in height. Up to a 10' (3m) horizontal vent run can be installed within the vent system using a maximum of two 90° elbows. See Figure 28. NOTE: Horizontal sections of this vent system require a minimum of 3" clearances to combustibles at the top of the flue and 1" clearance at the sides and bottom until the flue penetrates the outside wall.
-
Page 24: Installation For Vertical Termination
VENT INSTALLATION INSTALLATION FOR VERTICAL TERMINATION 1. Determine the route your vertical venting will take. If ceiling joist, Roof roof rafters or other framing will obstruct the venting system, Flashing consider an offset. See Figure 30 to avoid cutting load bearing members. For optimal flame appearance, a restrictor disk is necessary on straight Wall vertical runs of 20' of more. Strap • Runs may not incorporate elbows. • The disk is part number 45D0551 and is included in 45° Elbows installation manual packet. • Drop the disk into a 4" inner collar before installing the first section of flue or install at the last section before installing the termination. - Page 25 VENT INSTALLATION 3. Cut a hole in the roof using the locating hole as a center point. (Cover any exposed open vent pipes before cutting hole in roof). The 9 "x9 1/ 2 " (241mm x 241mm) hole must be measured on the horizontal. Actual length may be larger depending on the pitch of the roof. There must be a 1" minimum clearance from the vent pipe to combustible materials. (Insulation should be considered a combustible material). 4. Connect a section of pipe and extend up through the hole. NOTE: If an offset is needed to avoid obstructions, you must support the vent pipe every three (3) feet. Use wall straps for this purpose. See Figure 28, page 23. Whenever possible, use 45° elbows instead of 90°...
-
Page 26: Flex Vent Installation
FLEx VENT INSTALLATION UL1777 1. Flexible UL1777 listed venting may be used in any venting Flex vent application where rigid direct vent components can be used. All restrictions, clearances and allowances that pertain to the rigid piping apply to the flexible venting. Flex kits may Securing screws (3 places not be modified. Flex kits may be added to the end of a vent equidistant just run made of rigid vent sections using pipe manufacturer’s above gear clamp) approved flex to pipe adapters. This may occur only if doing so does not violate any of the venting length, height, 1¾ in. flexible pipe Gear clamps routing, horizontal to vertical ratio requirements or and adapter outer... - Page 27 FLEx VENT INSTALLATION 3. Do not allow the flexible vent to bend in radius tighter than 5" (127mm). Refer to Figure 2. 4. Horizontal runs of flexible vent shall be supported at maximum 2 foot intervals; vertical runs, five feet intervals. Metal strapping, properly secured, is an acceptable means to support the flexible vent. 5. Flexible vent spacers are to be installed at intervals prescribed by the flexible vent manufacture; and in such a way as to maintain concentric inner and outer vent spacing. D. Attaching flexible venting to vertical termination assemblies. 1. When using Simpson pipe, a MHSC flex-to-pipe adaptor and/or rigid pipe section(s) is required to connect the flexible vent assembly to the vertical termination by using three self penetrating screws. 2. Review Figure 4 and corresponding instructions for proper overlap, clamp and screw placement. 3. Three each self penetrating screws are drilled opposite one another and below the gear clamp. 4. Use only listed and approved terminations and accessories, installed per the installation instructions and Figure 3. E. Installing flexible venting to horizontal termination assemblies. 1. Connect the 4" flexible vent to the horizontal termination as in Figure 5. 2. Slide termination cap adapter ring over the termination cap’s outside pipe and secure with three screws. 3. Connect the 7" flexible vent to the termination adapter ring as in Figure 5. 4. Review Figure 5 for proper overlap and clamp placement 5. Three each self penetrating screws are drilled opposite one another and below the gear clamp.
-
Page 28: Fireplace Installation
FIREPLACE INSTALLATION CHECK GAS TyPE Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type or conversion kit. INSTALLING GAS PIPING TO FIREPLACE / BuRNER SySTEM LOCATION INSTALLATION ITEMS NEEDED Before installing fireplace and burner system, make sure you have the items listed below. • External regulator (supplied by installer) • Piping (check local codes) • Sealant (resistant to propane/LP gas) • Equipment shutoff valve* • Test gauge connection* • Sediment trap (recommended) • Tee joint • Pipe wrench • approved flexible gas line with gas connector (if allowed by local codes — not provided) * A CSA design-certified equipment shutoff valve with " NPT tap is an acceptable alternative to test gauge connection. - Page 29 FIREPLACE INSTALLATION Only persons licensed to work with A manual shutoff valve must be installed gas piping may make the necessary upstream of the appliance. Union tee gas connections to this appliance. and plugged " NPT pressure tapping point should be installed upstream of the appliance. See Figure 40. NOTE : The gas line connection may be made using "...
-
Page 30: Checking Gas Pressure
CHECKING GAS PRESSuRE ELECTRICAL INSTALLATION 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. 2. To ease installation, a 30" (mm) flex line with manual shut-off valve has been provided with on this appliance. Install and attach " gas line onto shut-off valve. Pressure 3. After completing gas line connection, purge air from Test “IN” gas line and test all gas joints from the gas meter to the fireplace for leaks. Use a solution of 50/40 water Pressure and soap or a gas sniffer. Test “OUT” 4. To adjust flame height, turn HI/LO knob to HI to get maximum pressure to burner. Turn HI/LO knob to LO HI/LO Knob to get minimum pressure. Pilot Adjustment 5. To check gas pressures at valve, turn captured screw Screw counter clockwise 2 or 3 turns and then place tubing to Figure 41 - Gas Pressure Check at Gas Valve pressure gauge over test point. Turn unit to high. See Figure 36. -
Page 31: Remote Wall Mounted Switch
ELECTRICAL INSTALLATION REMOTE WALL MOuNTED SWITCH Do not connect 110V to wall switch. A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance. Attach the wall switch in a junction box at the desired location on the wall. See Figure 42. Do not extend beyond the wall switch wire length provided. NOTE: Extended lengths of wire may cause the fireplace not to function properly. longer length of wire is permitted if the wire is made out of larger gauge (diameter) wire. Always check with local code. OPTIONAL WALL SWITCH OPTIONAL REMOTE BLACK RECEIVER WHITE BLUE PILOT TH/TP BLACK BLACK Figure 42 - Wiring Diagram for Wall Switch REMOTE WALL SWITCH Position the wall switch. Do not extend beyond the 15 feet of wire. -
Page 32: Glass Frame Removal
GLASS REMOVAL & BRICK INSTALLATION GLASS FRAME REMOVAL 1. Release two clamps on bottom of fireplace. See Figure 44. 2. Tilt glass frame out and lift glass frame up until it clears three tabs on top of fireplace. 3. Set glass frame aside. Glass Frame Clamps Figure 44 - Removing Glass Frame CAUTION: Each clamp has a quick spring force. When reinstalling clamps, keep fingers clear. BRICK INSTALLATION 1. Remove glass door frame and log set. 2. Remove the glass heat shield, baffle and rear bracket. 3. Install the center firebrick panel on the back wall first. Stand firebrick panel straight up against the back of fireplace with the bottom edge at bottom of inner firebox. 4. Repeat Step 3 with the left and right side firebrick panels. Secure the top of each side firebrick panel to the fireplace with one retainer bracket and one screw. 5. Use a screw gun to drive in the self-drilling screw into the sheet metal through the hole in the retainer bracket. 6. Re-install glass heat shield, baffle and rear bracket. -
Page 33: Final Installation
FINAL INSTALLATION PLACEMENT OF LAVA ROCK, ROCK WOOL AND LOGS 1. Make sure that the grate is hooked onto the rear bracket. 2. Sprinkle the lava rocks around and in front of the burner at bottom of firebox. 300DVBH 3. Place rock wool in a dime size pieces over the small Cover with Burner holes and partially over large size holes. Do not place Rock Wool any over slots at rear of burner. The rock wool over the large holes may need adjustment after firing the unit to establish yellow flame in the front. See Figure 4. Place log #1 into place by setting the log over the two pins on the grate toward the back. The two round holes... - Page 34 FINAL INSTALLATION Log #3 Log #2 Figure 48 - Placement of Log 2 Figure 49 - Placement of Log 3 6a. For 400 models, place log #3 into place by matching the notch on the side of the log with the protrusion on the rear log. Set the left side of the log over the cross bar of grate by placing the notch of the log on the grate bar. Be sure the log is tilted backward. When this log is in place, it is seated sideways. See Figure 49. 6b. For 300 models, place log #3 into place by matching the notch on the side of the log with the protrusion on the rear log. Set the left side of the log over the grate bar in the front by placing the notch of the log on the grate bar. Make sure the log is tilted backward. When this log is in place, it is seated sideways. See Figure 49. Log #4 Log #5 Figure 51 - Placement of Log 5 Figure 50 - Placement of Log 4 7. Place log #4 into place by matching the two notches on the bottom of this log with the two protrusions on log #1&2.
-
Page 35: Installing Andirons
Log #6 Log #7 Figure 52 - Placement of Log 6 Figure 53 - Placement of Log 7 (HBDV400 only). Figure 54 a & b - Andiron Placement (400DVBH and 300DVBH). INSTALLING uNIVERSAL ANDIRONS Bolt bracket through lower slot into top andiron hole. Slide clip over horizontal fireplace grate bar. See Figure 55. Top andiron hole... -
Page 36: Operating Instructions (Millivolt)
OPERATING INSTRUCTIONS (MIllIVOlT) FOR yOuR SAFETy READ BEFORE LIGHTING If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following these instructions exactly. B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor. WHAT TO DO IF yOu SMELL GAS: • Turn off all gas to the appliance. • Open windows. • Do not attempt to light any appliance. • Do not touch any electric switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions. -
Page 37: Lighting Millivolt Pilot For The First Time
OPERATING INSTRUCTIONS (MIllIVOlT) LIGHTING PILOT FOR THE FIRST TIME APPROVED LEAK TESTING METHOD If using a soap and water You may check for gas leaks with the following methods only: solution to test for leaks, • Soap and water solution DO NOT spray solution onto control body. • An approved leak testing spray • Electronic sniffer NOTE: Remove any excessive pipe compound from the connections. -
Page 38: Lighting Burner
OPERATING INSTRUCTIONS (MIllIVOlT) LIGHTING BuRNER MAIN BuRNER SWITCH The “ON/OFF/RS” switch for the main burner can be found behind door of the fireplace. This switch allows you to turn on and to turn off the main burner without using the gas valve knob. Make sure the button is in the “ON” position to light the main burner. See Figure 57. LIGHTING THE BuRNER Figure 57 - Depress and turn the knob counterclockwise to the “ON” position. See On/Off/RS Switch Figure 58. It will take less than four (4) seconds for the burner to ignite. PILOT POSITION Depress and turn knob to pilot position to keep burner off while maintaining the pilot light. See Figure 59. P I L Figure 58 - On Position P I L Figure 59 - Pilot Position TO TuRN OFF GAS Depress and turn knob clockwise... -
Page 39: Cleaning And Maintenance
CLEANING AND MAINTENANCE Turn off gas before servicing fireplace. It is recommended that a qualified service technician perform these check-ups at the beginning of each heating season BuRNER, PILOT AND CONTROL COMPARTMENT Keep the control compartment, logs, and burner areas surrounding the logs clean by vacuuming or brushing at least twice a year. Make sure the burner porting, pilot air opening and burner air opening are free of obstructions at all times. Thermocouple PILOT FLAME Thermopile The flames from the pilot should be visually checked as soon as the heater is installed and periodically during normal operation. The pilot flame must always be present when the fireplace is in operation. -
Page 40: Vent System
CLEANING AND MAINTENANCE VENT SySTEM The fireplace and venting system should be inspected before initial use and at least annually by a qualified field service person. Inspect the external vent cap on a regular basis to make sure that no debris is interfering with the airflow. Inspect entire venting system to ensure proper function. GLASS DOOR Thoroughly clean the inside of the glass door after using the fireplace for ten hours. Periodically clean the glass door as necessary. When cleaning the glass, remember: • do not remove the glass when hot. Allow glass to cool before removal. • NEVER use abrasive materials. • Keep children and pets a safe distance away. • Never operate the fireplace without the glass door properly secured. • Never operate the fireplace if the glass is broken. • Replace any glass that is chipped, cracked, or broken. Replacement glass door assemblies MUST be supplied by the fireplace manufacturer – No substitute materials may be used. • Handle glass door with care to avoid striking or scratching it on hard objects. To clean glass door, follow “Glass Removal” procedure outlined in the Final Installation section. Film deposit on the inside of the glass should be cleaned off using a nontoxic, non-corrosive, non-abrasive, mild-cleaning solution. Simply apply an adequate amount to the glass and wipe off with a damp cloth. After all maintenance has been completed, re-install glass door. -
Page 41: Troubleshooting
TROuBLESHOOTING STANDING PILOT IGNITION SyMPTOM POSSIBLE CAuSE ACTION 1. Spark ignitor will A. Wire disconnected. A. Open door and check to make sure wire is connected to ignitor. not light pilot after B. C heck for spark at electrode and pilot. If no spark and electrode repeated triggering of B. Defective ignitor. wire is properly connected, replace pilot assembly. piezo. C. Check remote/manual shut off valve from fireplace. Low pres- C. No gas or low gas pressure. sure can be caused by bent lines, restricted lines, low pressure line pressure. Consult with plumber or gas supplier. D. No Propane/LPG in tank D. Check Propane/LPG tank. Refill tank. 2. Pilot will not stay lit A. Defective thermocouple A. Check that thermocouple flame impinges on thermocouple. after carefully follow- Clean and/or adjust pilot for maximum flame impingement. - Page 42 TROuBLESHOOTING STANDING PILOT IGNITION SyMPTOM POSSIBLE CAuSE ACTION 4. Frequent pilot outage A. Pilot flame may be too high or A. Clean and adjust the pilot flame for maximum flame impinge- problem. too low, causing pilot safety ment on thermocouple. to drop out 5. The pilot and main A. Inner vent pipe leaking A. Check for flue product leak. Replace defective pipe section. burner extinguish exhaust gases back into while in operation system B. Horizontal vent improperly B. Check horizontal-venting piping is running upward 1/4" per foot. pitched Do not run the pipe level or downward. C. Improper vent cap installation C. Check for proper installation and freedom from debris or block- age. 6. Glass Soots A. Flame impingement on logs A. Install log set per the instructions Inspect the injector and air intake area. Make sure this area does...
-
Page 43: Replacement Parts
REPLACEMENT PARTS FIREPLACE COMPONENTS 54D5032... - Page 44 REPLACEMENT PARTS FIREPLACE COMPONENTS Item Description 300DVBH 400DVBH Standard Features Junction Box Assembly 26D2128K 26D2128K Black Louver (each) 54D0246 26D0695 Glass Frame Assembly 54D5113 54D5034 Andiron Kit (contains 2) UAI9 UAI9 Accessories/Field Installed Options Brass Louver Assembly (upper and lower)
-
Page 45: Millivolt Engine Components
REPLACEMENT PARTS MILLIVOLT ENGINE 8A (400DVBH) 8B (300HBDV) 11, 12, 13, 14, 15 54D5032... -
Page 46: Vent Components
REPLACEMENT PARTS MILLIVOLT COMPONENTS ITEM DESCRIPTION 300DVBHNV 300DVBHPV 400DVBHNV 400DVBHPV Gas Valve Assembly 37D0117 37D0118 37D0117 37D0118 Pilot Assembly 37D0018 37D0019 37D0018 37D0019 2C Replacement Thermocouple 37D1067 37D1067 37D1067 37D1067 I Replacement Igniter and Wire 37D1069 37D1069 37D1069 37D1069 Replacement Thermopile 37D1068 37D1068 37D1068... -
Page 47: Vent Components
REPLACEMENT PARTS VENT COMPONENTS CONTINuED Refer to illustrations on previous page. CuRRENT PREVIOuS SIMPSON SIMPSON DuRAVENT DuRAVENT qTy/ OR MHSC OR MHS SELKIRK ITEM DESCRIPTION PART NO. PART NO. PART NO. Rear Vent Termination Kit includes Termination Cap with built in vinyl BHRTK9 BHRTK9 —... -
Page 48: Logs
REPLACEMENT PARTS LOGS I tem Description Qty 300DVBH 400DVBH Rear Log 54D5125 54D5040 Right Log 54D5126 54D5041 Left Log 54D5127 54D5042 Mid Top Log 54D5129 54D5043 Right Top Log 54D5128 54D5044 Left Front Log 54D5130 54D5045 Right Front Twig 54D5046... -
Page 49: Massachusetts Residents Requirements
MASSACHuSETTS RESIdENTS oNly: PlEASE REAd ANd Follow THESE SPECIAl REQuIREMENTS NoTE REGARdING VENTEd PRoduCTS This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachu- setts. Any residence with a direct vent product must have a CO detector installed in the residence. Installation of the fireplace or vented gas log in the State of Massachusetts requires the damper to be permanently removed or welded in the fully open position. In addition, a naturally vented gas log may not be installed in a bedroom or bathroom in the State of Massachusetts. Flex line installation must not exceed 36 inches and must have a T shutoff valve. NoTE REGARdING VENT FREE PRoduCTS This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachu- setts. In addition, vent free products may not be installed in a bedroom or bathroom regardless of size or type in the State of Mas- sachusetts. Flex line installation must not exceed 36 inches and must have a T shutoff valve. CARBoN MoNoxIdE dETECToR REQuIREMENTS (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied: 1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. - Page 50 SPECIAL REquIREMENTS CONTINuED 2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified. 3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT dIRECTly BElow. KEEP ClEAR oF All oBSTRuCTIoNS.” 4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a)1 through 4. (b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4: 1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and 2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.
-
Page 51: Limited Lifetime Warranty Policy
lIMITEd lIFETIME wARRANTy PolICy LIFETIME WARRANTy The following components are warranted for life to the original owner, subject to proof of purchase: Firebox, Combustion Chamber, Heat Exchanger, Grate and Stainless Steel Burners. FIVE yEAR WARRANTy The following components are warranted five (5) years to the original owner, subject of proof of purchase: Ceramic Fiber Logs. BASIC WARRANTy MHSC warrants the components and materials in your gas appliance to be free from manufacturing and material defects for a period of two years from date of installation. After installation, if any of the components manufactured by MHSC in the appliance are found to be defective in materials or workmanship, MHSC will, at its option, replace or repair the defec- tive components at no charge to the original owner. MHSC will also pay for reasonable labor costs incurred in replacing or repairing such components for a period of two years from date of installation. Any products presented for warranty repair must be accompanied by a dated proof of purchase. This Limited Lifetime Warranty will be void if the appliance in not installed by a qualified installer in accordance with the installation instructions. The Limited Lifetime Warranty will also be void if the appliance is not operated and maintained according to the operating instructions supplied with the appliance, and does not extend to (1) firebox/burner assembly dam- age by accident, neglect, misuse, abuse, alterations, negligence of others, including the installation thereof by unqualified installers, (2) the costs of removal, reinstallation or transportation of defective parts on the appliance, or (3) incidental or consequential damage. All service work must be performed by an authorized service representative. This warranty is expressly in lieu of other warranties, express or implied, including the warranty of merchantability of fitness for purpose and of all other obligations or liabilities. MHSC does not assume for it any other obligations or liabilities in con- nection with sale or use of the appliance. It states that do not allow limitations on how long an implied warranty lasts, or do not allow exclusion of indirect damage, those limitations of exclusions may not apply to you. You may also have additional rights not covered in the Limited Lifetime Warranty. MHSC reserves the right to investigate any and all the claims against the Limited Lifetime Warranty and decide upon method of settlement. IF WARRANTy SERVICE IS NEEDED... 1. Contact your supplier. Make sure you have your warranty, your sales receipt and the model/serial number of your MHSC product. - Page 52 MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com AuGuST 2008 54D5032 • Rev. 5 54D5032...
