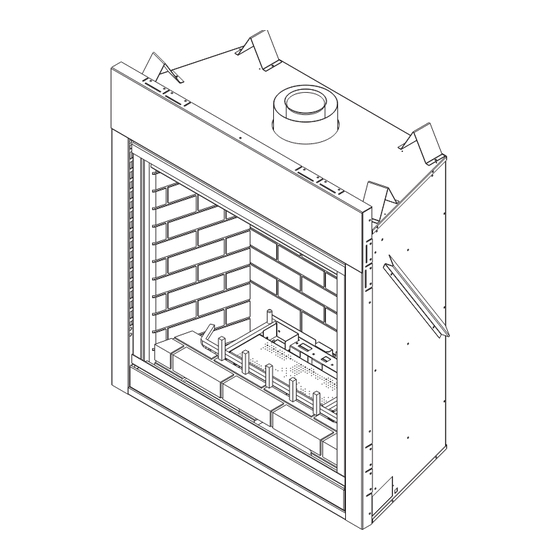

DVBL SERIES
DIRECT VENT GAS
FIREPLACE
INSTALLATION AND
OPERATING INSTRUCTIONS
MODELS: 400DVBL & 500DVBL
WARNING
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT
FOLLOWED ExACTLY, A FIRE OR ExPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INjURY OR LOSS OF LIFE.
–
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
–
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
–
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING: Improper installation, adjustment, alteration,
services or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional
information consult a qualified installer, service agency
or the gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.
* Aftermarket: Completion of sale, not for purpose of resale, from the
manufacturer.
READ BEFORE INSTALLING. SAVE THESE INSTRUCTIONS
740009 BLDV cover
D U E TO H I G H T E M P E R AT U R E S , T H E
APPLIANCE SHOULD BE LOCATED OUT OF
TRAFFIC AND AWAY FROM FURNITURE AND
DRAPERIES.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURE AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTHING
IGNITION.
YOUNG CHILDREN SHOULD BE SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE
APPLIANCE.
C L O T H I N G O R O T H E R F L A M M A B L E
MATERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLIANCE.
K E E P T H E R O O M A R E A C L E A R A N D
FREE FROM COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE
VAPORS AND LIqUIDS.
74D0010 4/09 Rev. 12
Advertisement
Table of Contents
Related Manuals for Majestic 400DVBL
Summary of Contents for Majestic 400DVBL
- Page 1 DVBL SERIES DIRECT VENT GAS FIREPLACE INSTALLATION AND OPERATING INSTRUCTIONS MODELS: 400DVBL & 500DVBL WARNING IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED ExACTLY, A FIRE OR ExPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INjURY OR LOSS OF LIFE.
-
Page 2: Table Of Contents
CONTENTS DVBL Series Gas Fireplace Important Safety Information ......3 Checking Gas Pressure - (Signature Command System) ....36 Product Features ..........5 Electrical Wiring Code Approval ..........5 (Signature Command System) ....36 Pre-Installation Information Command Center Wall Installation ....37 Installing Above 2000 Feet ...... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION DVBL Series Gas Fireplace INSTALLER OWNER Please leave these instructions with the appliance. Please retain these instructions for future reference. • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. •... - Page 4 IMPORTANT SAFETY INFORMATION DVBL Series Gas Fireplace Continued from page 3 IMPORTANT: 10. Have venting system inspected annually by a quali- PLEASE READ THE FOLLOWING CAREFULLY fied service person. If needed, have venting system It is normal for fireplaces fabricated of steel to cleaned or repaired.
-
Page 5: Product Features
PRODUCT FEATURES and CODE APPROVAL DVBL Series Gas Fireplace PRODUCT SPECIFICATIONS • This appliance has been certified for use with either natural or propane gas. See appropriate data plates. • This appliance is not for use with solid fuels. • The appliance is approved for bedroom or bedsitting room installations. -
Page 6: Pre-Installation Information
PRE-INSTALLATION INFORMATION DVBL Series Gas Fireplace HIGH ELEVATIONS Input ratings are shown in BTU per hour and are certified without deration for elevations up to 4,500 feet (1,370 m) above sea level. For elevations above 4,500 feet (1,370 m) in USA, installation must be in accordance with the current ANSI Z223.1/NFPA 54 and/or local codes having jurisdiction. -
Page 7: Fireplace Framing
Do not fill spaces around firebox with extending the full width and depth of the enclosure. insulation or other materials. This could cause a fire. 400DVBL 500DVBL " " "... -
Page 8: Fireplace Dimensions
PRE-INSTALLATION INFORMATION DVBL Series Gas Fireplace FIREPLACE DIMENSIONS 31 7/8 15/16 11 3/8 Figure 3 - Fireplace Dimensions DESCRIPTION Key Letter 400DVBL 500DVBL Overall Front Width " " Inside Width " " Glass Width 29" 33" CTR Pipe (L/R) "... -
Page 9: Fireplace Location
PRE-INSTALLATION INFORMATION DVBL Series Gas Fireplace COLD CLIMATE INSULATION If you live in a cold climate, seal all cracks around your appliance, and wherever cold air could enter the room, with noncombustible material. It is especially important to insulate the outside chase cavity between the studs and under the floor on which the appliance rests, if the floor is above ground level. -
Page 10: Clearances
CLEARANCES DVBL Series Gas Fireplace CLEARANCES TO COMBUSTIBLES Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. The appliance cannot be installed on a carpet, tile or other combustible material other than wood flooring. -
Page 11: Securing Fireplace To Floor Or Framing
SECURING FIREPLACE TO FLOOR OR FRAMING DVBL Series Gas Fireplace The fireplace must be secured to the floor and/or to framing studs as shown in Figure 6. Use two (2) wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws to attach fireplace to framing. The side nailing flanges are 1/2"... -
Page 12: Installation Information
INSTALLATION INFORMATION DVBL Series Gas Fireplace FINISHING MATERIAL NOTE: Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to final finishing to avoid costly reconstruction. Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating of Zero) may be used to cover the black painted face of the appliance. -
Page 13: Vent Installation
VENT INSTALLATION DVBL Series Gas Fireplace Horizontal sections of this vent system require a minimum of 3" clearances to combustibles at the top of the flue and 1" clearance at the sides and bottom until the flue penetrates the outside wall. A minimum 1" clearance all around the flue is acceptable at this point of penetration. -
Page 14: Installation Planning
VENT INSTALLATION DVBL Series Gas Fireplace INSTALLATION PLANNING There are two basic types of direct-vent installation: • Horizontal Termination • Vertical Termination It is important to select the proper length of vent pipe for the type of termination you choose. It is also important to note the wall thickness. - Page 15 VENT INSTALLATION DVBL Series Gas Fireplace FOR HORIZONTAL TERMINATION Inside Corner Detail Fixed Closed Opera- Fixed Closed Operable Vent Terminal Air Supply Inlet Area Where Terminals Not Permitted Figure 8 - Horizontal Vent Termination Location MINIMUM DISTANCES A = Clearance above the grade, a veranda, porch, deck, or balcony [*12" (305 mm) minimum]. B = Clearance to window or door that may be opened [*12"...
-
Page 16: Vent Installation
VENT INSTALLATION DVBL Series Gas Fireplace TERMINATION CLEARANCES FOR BUILDINGS WITH COMBUSTIBLE AND NONCOMBUSTIBLE ExTERIORS G=6" (152mm) F=6" (152mm) Combustible – 6" (152 mm) Noncombustible – 2" (51mm) Inside Corner Outside Corner C = Maximum depth of 48" (1219mm) for alcove location D = Minimum width for back wall of alcove location Combustible - 38"... -
Page 17: Rear (Through-The-Wall) Applications
VENT INSTALLATION DVBL Series Gas Fireplace REAR (THROUGH-THE-WALL) APPLICATIONS Female Locking Lugs Sealant is not required to assemble fireplace venting. Do not use silicone sealant at the flue exhaust connections. 1. Find the pipe section's direction label. The label arrow NOTE: Horizontal runs shall be pointed away from the firebox and toward the of vent must be sup-... - Page 18 VENT INSTALLATION DVBL Series Gas Fireplace REAR (THROUGH-THE-WALL) APPLICATIONS (continued) 4. Apply a bead of non-hardening mastic around the outside edge of vent cap. Position the vent cap in the center of hole on the exterior wall with the word "HOT" on the vent cap facing up.
-
Page 19: Vertical/Horizontal Termination Configuration
VENT INSTALLATION DVBL Series Gas Fireplace VERTICAL/HORIZONTAL TERMINATION CONFIGURATIONS Since it is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust, certain limitations as to vent configurations apply and must be strictly adhered The Vent Graph, showing the relationship between vertical and horizontal side wall venting, will help to determine the various dimensions allowable. - Page 20 VENT INSTALLATION DVBL Series Gas Fireplace VERTICAL/HORIZONTAL TERMINATION 90° CONFIGURATIONS (continued) • If a 90° elbow is used in the horizontal vent run (level height maintained) the horizontal vent length is reduced by 36". See Figures 16 and 17, page 19. This does not apply if the 90° elbows are used to increase or redirect a vertical rise.
-
Page 21: Below Grade Installation
VENT INSTALLATION DVBL Series Gas Fireplace BELOW GRADE INSTALLATIONS When it is not possible to meet the required vent terminal clearances of 12" above grade level, a snorkel kit is recommended. It allows installation depth down to 7" (178 mm) below grade level. The 7" (178 mm) is measured from the center of the horizontal vent pipe as it penetrates through the wall. -
Page 22: Vertical Through-The-Roof Applications
VENT INSTALLATION DVBL Series Gas Fireplace VERTICAL (THROUGH-THE-ROOF) APPLICA- TIONS This Gas Fireplace has been approved for, • Vertical installations up to 40' (12 m) in height. Up to a 10' (3 m) horizontal vent run can be installed within the vent system using a maximum of two 90°... -
Page 23: Installation For Vertical Termination
VENT INSTALLATION DVBL Series Gas Fireplace INSTALLATION FOR VERTICAL TERMINATION 1. Determine the route your vertical venting will take. If ceiling Roof joist, roof rafters or other framing will obstruct the venting Flashing system, consider an offset. Refer to Figure 25 to avoid cut- ting load bearing members. - Page 24 VENT INSTALLATION DVBL Series Gas Fireplace 3. Cut a hole in the roof using the locating hole as a center point. (Cover any exposed open vent pipes before 1/ 2 cutting hole in roof). The 9 " x 9 " (241 mm x 241 mm) hole must be measured on the horizontal. Actual length may be larger depending on the pitch of the roof.
-
Page 25: Flex Vent Installation
FLEx VENT INSTALLATION DVBL Series Gas Fireplace 1. Flexible UL1777 listed venting may be used in any venting application where rigid direct vent compo- nents can be used. All restrictions, clearances and allowances UL1777 that pertain to the rigid piping apply to the flexible venting. Flex Vent Flex kits may not be modified. - Page 26 FLEx VENT INSTALLATION DVBL Series Gas Fireplace 2. Install firestop spacers Figure 31. when penetrating ceiling, attic spaces, or walls. 3. Do not allow the flexible vent to bend in radius tighter than 5" (127 mm). Refer to Figure 30. 4. Horizontal runs of flexible vent shall be supported at maximum 2 foot intervals; vertical runs, five feet intervals.
-
Page 27: Fireplace Installation
FIREPLACE INSTALLATION DVBL Series Gas Fireplace CHECK GAS TYPE Use proper gas type for the fireplace you are installing. If you have conflicting gas type, do not install fireplace. See dealer where you purchased the fireplace for proper fireplace for your gas type or conversion kit. INSTALLING GAS PIPING TO FIREPLACE / BURNER SYSTEM LOCATION A qualified installer or service person must connect appliance to gas supply. - Page 28 FIREPLACE INSTALLATION DVBL Series Gas Fireplace Only persons licensed to work with A manual shutoff valve must be gas piping may make the necessary installed upstream of the appliance. gas connections to this appliance. Union tee and plugged 1/8" NPT pressure tapping point should be installed upstream of the appliance.
-
Page 29: Checking Gas Pressure (Millivolt)
MILLIVOLT - CHECKING GAS PRESSURE ELECTRICAL INSTALLATION DVBL Series Gas Fireplace 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. -
Page 30: Remote Wall Switch Installation
REMOTE WALL SWITCH INSTALLATION DVBL Series Gas Fireplace REMOTE WALL MOUNTED SWITCH A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance. Attach the OPTIONAL REMOTE WALL SWITCH wall switch in a junction box at the desired location on the wall. - Page 31 OPTIONAL FAN/BLOWER SYSTEM DVBL Series Gas Fireplace 8. Two (2) magnetic strips have been supplied to secure each blow- er to the firebox floor. Place on bottom of each blower before installing. Figure 39 9. The blowers are to be inserted flat through the engine cutout in the firebox floor.
- Page 32 OPTIONAL FAN/BLOWER SYSTEM DVBL Series Gas Fireplace Variable Thermal White Fan Control Sensor (Hi Temp) Blower Motor 110/115V AC Black Blower Plug Black Blower White Green Motor White Figure 44 - Blower Wiring Diagram Electrical Grounding Instructions: This appliance is FP1910 SC blower wiring diagram equipped with a three-prong (grounding) plug for...
-
Page 33: Operating Instructions (Milli-Volt)
OPERATING INSTRUCTIONS (MILLI-VOLT) DVBL Series Gas Fireplace FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following these instructions exactly. -
Page 34: Lighting Pilot
OPERATING INSTRUCTIONS (MILLI-VOLT) DVBL Series Gas Fireplace LIGHTING PILOT FOR THE FIRST TIME APPROVED LEAK TESTING METHOD If using a soap and water You may check for gas leaks with the following methods only: solution to test for leaks, • Soap and water solution DO NOT spray solution onto control body. -
Page 35: Lighting Burner
OPERATING INSTRUCTIONS (MILLI-VOLT) DVBL Series Gas Fireplace LIGHTING BURNER MAIN BURNER SWITCH The “ON/OFF/RS” switch for the main burner can be found behind door of the fireplace. This switch allows you to turn on and to turn off the main burner without using the gas valve knob. -
Page 36: Checking Gas Pressure - (Signature Command System)
SIGNATURE COMMAND - CHECKING GAS PRESSURE and ELECTRICAL INSTALLATION DVBL Series Gas Fireplace 1. Check gas type. The gas supply must be the same Pressure Inlet as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. -
Page 37: Command Center Wall Installation
SIGNATURE COMMAND ELECTRICAL INSTALLATION DVBL Series Gas Fireplace OPTIONAL AC BOX TO JUNCTION BOX IN FIREPLACE PILOT OPTIONAL LIGHT WHITE BLACK OPTIONAL WHITE BLOWER BLACK BLACK OPTIONAL WHITE GREEN CONNECTOR PIN TO CONTROL BOX INPUT 300 WATT MAX EACH Figure 51 - Signature Command Wiring Diagram RF RECEIVER ON/OFF BUTTON CONTROL BOX... -
Page 38: Optional Fan/Blower System
OPTIONAL FAN BLOWER SYSTEM DVBL Series Gas Fireplace OPTIONAL FAN/BLOWER SYSTEM (BLOTBCDVSC) Installation Instructions Wiring 1. Before installing the blower, wire the receptacle into an electri- cal circuit. This should be done before framing the fireplace. 120V AC Wire with minimum 60° C wire in accordance with prevailing 60Hz codes. - Page 39 OPTIONAL FAN BLOWER SYSTEM DVBL Series Gas Fireplace Start Position Figure 56 - Blower Installation Position Installed Position Engine Cutout Figure 55 - Insert Blowers through Engine Cutout KT504 KT505 KT504 install blower 15. Plug the AC box plug to the junction box. 16.
- Page 40 OPTIONAL FAN BLOWER SYSTEM DVBL Series Gas Fireplace Optional AC Box To Junction Box In Fireplace Blower Optional Right Light WHITE BLACK WHITE BLACK BLACK Optional WHITE GREEN Blower Connector Left Pin To Control Box Input 300 Watt Max. Each Control Box Figure 58 - Blower Wiring Diagram FP1915...
-
Page 41: Operating Instructions (Signature Command System)
OPERATING INSTRUCTIONS - SIGNATURE COMMAND DVBL Series Gas Fireplace FOR YOUR SAFETY READ BEFORE LIGHTING If you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition device which automatically lights the pilot. Refer to the instructions for match lighting. -
Page 42: Operating Instructions
OPERATING INSTRUCTIONS - SIGNATURE COMMAND DVBL Series Gas Fireplace OPERATING INSTRUCTIONS 1. STOP! Read the safety information above. 2. This appliance is equipped with an ignition device which automatically lights the burner. Do not try to light the burner by hand. 3. -
Page 43: Signature Command System Operation
SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS DVBL Series Gas Fireplace FEATURES To Thermopile RF Receiver Command Center ON/OFF To Sensor • Easy Access Function Operation and System Configuration To Sparker • Operation Confirmation/Fault Diagnostic Indications (LED/ NG/LP Buzzer) Conversion • ON/OFF/HI/Low Operation Control Board To Command •... - Page 44 SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS DVBL Series Gas Fireplace SYSTEM CONFIGURATION/SETUP System configuration/setup is done on the Command Center. Intermittent/Standing Pilot Setup (Default intermittent) 1. Holding the ON button on the Command Center while turning on the master switch will toggle between standing pilot and intermittent pilot.
- Page 45 SIGNATURE COMMAND SYSTEM OPERATION INSTRUCTIONS DVBL Series Gas Fireplace FUNCTIONS/OPERATION Turning on the fireplace 1. Turn on the master switch and wait for a beep. 2. Press the ON button on the Command Center. Pilot will light and burner will come on High setting. Pilot Safety Lockout Function 1.
-
Page 46: Glass Removal
GLASS REMOVAL DVBL Series Gas Fireplace GLASS FRAME REMOVAL 1. Remove access panel by lifting up and out. 2. Release two clamps (500 model has three clamps) on bottom of fireplace. Figure 60 3. Tilt glass frame out and lift glass frame up until it clears three tabs on top of fireplace. 4. -
Page 47: Final Installation
FINAL INSTALLATION DVBL Series Gas Fireplace HEARTH BRICK PLACEMENT Place the hearth brick centered in front of burner and slide back until it hits the stops on the right and left of burner. ROCK WOOL PLACEMENT 1. Place rock wool on burner to provide glowing Burner embers. - Page 48 FINAL INSTALLATION DVBL Series Gas Fireplace 5. Place the middle cross log (#6) by matching the rectangular notch on the bottom of this log with the rectan- gular protrusion of the rear log toward the left. The narrow pointed end will line up between the second left tong and the middle tong on the grate.
-
Page 49: Cleaning And Maintenance
CLEANING AND MAINTENANCE DVBL Series Gas Fireplace Turn off gas before servicing fireplace. It is recommended that a qualified service technician perform these check-ups at the beginning of each heating season BURNER, PILOT AND CONTROL COMPARTMENT Keep the control compartment, logs, and burner areas surrounding the logs clean by vacuuming or brushing at least twice a year. -
Page 50: Vent System
CLEANING AND MAINTENANCE DVBL Series Gas Fireplace VENT SYSTEM The fireplace and venting system should be inspected before initial use and at least annually by a qualified field service person. Inspect the external vent cap on a regular basis to make sure that no debris is interfering with the airflow. -
Page 51: Troubleshooting
TROUBLESHOOTING DVBL Series Gas Fireplace STANDING PILOT IGNITION MILLIVOLT SYSTEM SYMPTOM POSSIBLE CAUSE ACTION 1. Spark ignitor will A. Wire disconnected. A. Open door and check to make sure wire is connected to not light pilot after ignitor. repeated triggering of B. - Page 52 TROUBLESHOOTING DVBL Series Gas Fireplace STANDING PILOT IGNITION MILLIVOLT SYSTEM SYMPTOM POSSIBLE CAUSE ACTION 4. Frequent pilot A. Pilot flame may be too high A. Clean and adjust the pilot flame for maximum flame outage problem. or too low, causing pilot impingement on thermocouple.
-
Page 53: Signature Command System
TROUBLESHOOTING DVBL Series Gas Fireplace SIGNATURE COMMAND SYSTEM ACTION OPERATION FAULT DIAGNOSIS Using Battery polarity wrong? Re-install batteries battery? Make sure Command Install batteries and/or Change batteries Battery voltage low? Center and plug in the AC board No beep in about the control 8 seconds board are... - Page 54 ILLUSTRATED PARTS LISTS DVBL Series Gas Fireplace FIREBOx COMPONENTS 743000 BLDV 7 parts 74D0010...
-
Page 55: Illustrated Parts Lists
ILLUSTRATED PARTS LISTS DVBL Series Gas Fireplace FIREBOx COMPONENTS Item Description 400DVBL 500DVBL Standard Features Junction Box Assembly (not shown) 26D2128K 26D2128K Sheet Metal Base 74D0514 74D0515 Glass Frame Assembly 74D0096K 74D0211TK Control Cover 74D0038K 74D0119 Accessories/Field Installed Options T-stat Blower with Speed Control... -
Page 56: Standing Pilot Millivolt Control
ILLUSTRATED PARTS LISTS DVBL Series Gas Fireplace STANDING PILOT — MILLIVOLT CONTROL 11,12,13, 14 74D0010... - Page 57 ILLUSTRATED PARTS LISTS DVBL Series Gas Fireplace STANDING PILOT – MILLIVOLT CONTROL Item Description 400DVBLNV 400DVBLPV 500DVBLNV 500DVBLPV Gas Valve Assembly 37D0117 37D0118 37D0117 37D0118 Pilot Assembly 37D0018 37D0019 37D0018 37D0019 2C Replacement Thermocouple 37D1067 37D1067 37D1067 37D1067 Replacement Igniter and Wire 37D1069 37D1069...
-
Page 58: Signature Command System
ILLUSTRATED PARTS LISTS DVBL Series Gas Fireplace SIGNATURE COMMAND SYSTEM 13, 14, 15 0009 SG parts 8/08 74D0010... -
Page 59: Illustrated Parts List
ILLUSTRATED PARTS LIST DVBL Series Gas Fireplace SIGNATURE COMMAND SYSTEM Item Description qty. 400DVBLNS 400DVBLPS 500DVBLNS 500DVBLPS Gas Valve Assembly 80D0001 80D0002 80D0001 80D0002 Pilot Assembly 80D0006 80D0007 80D0006 80D0007 Control Box 80D0018 80D0019 80D0018 80D0019 Command Center 80D0005 801D0005 80D0005 80D0005 Burner Tube... -
Page 60: Vent Components
ILLUSTRATED PARTS LIST DVBL Series Gas Fireplace VENT COMPONENTS For more information about, or instructions for, the venting components referenced above, please contact the component manufaturer: Selkirk Corporation: www. selkirkcorp.com or 800-992-8368 Simpson Duravent: www. duravent.com or 800-835-4429 74D0010... - Page 61 ILLUSTRATED PARTS LIST DVBL Series Gas Fireplace Current Simpson Simpson Duravent Duravent qty./ or MHSC or MHSC Selkirk Item Box Description Part no. Part no. Part no. Side Wall Flexible Pipe Termination Kit BHSFTKA BHSFTK Includes termination cap with built-in vinyl siding standoff, heat deflector, firestop, 20"...
-
Page 62: Logs
ILLUSTRATED PARTS LISTS DVBL Series Gas Fireplace LOGS Item Description qty. 400DVBL 500DVBL Rear Log #1 74D0059 74D0059 Top Right Log #2 740010 74D0060 74D0060 Front Upper Log #3 DVBL log parts 74D0061 74D0061 Right Front Log #4 74D0062 74D0157 Left Front Log #5... -
Page 63: Mass Residents Only
MASSACHUSETTS RESIDENTS ONLY: NOTES DVBL Series Gas Fireplace PLEASE READ AND FOLLOW THESE SPECIAL REqUIREMENTS NOTE REGARDING VENTED PRODUCTS This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts. Any residence with a direct vent product must have a CO detector installed in the residence. Installation of the fireplace or vented gas log in the State of Massachusetts requires the damper to be permanently removed or welded in the fully open position. - Page 64 SPECIAL REqUIREMENTS (continued) DVBL Series Gas Fireplace 2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in ac- cordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified. 3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the build- ing at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment.
- Page 65 DVBL Series Gas Fireplace 74D0010...
- Page 66 DVBL Series Gas Fireplace 74D0010...
-
Page 67: Warranty
LIMITED LIFETIME WARRANTY POLICY DVBL Series Gas Fireplace LIFETIME WARRANTY The following components are warranted for life to the original owner, subject to proof of purchase: Firebox, Combustion Chamber, Heat Exchanger, Grate and Stainless Steel Burners. FIVE YEAR WARRANTY The following components are warranted five (5) years to the original owner, subject of proof of purchase: Ceramic Fiber Logs. - Page 68 DVBL Series Gas Fireplace MHSC 149 Cleveland Drive • Paris, Kentucky 40361 www.mhsc.com APRIL 2009 74D0010 • Rev. 12 74D0010...
