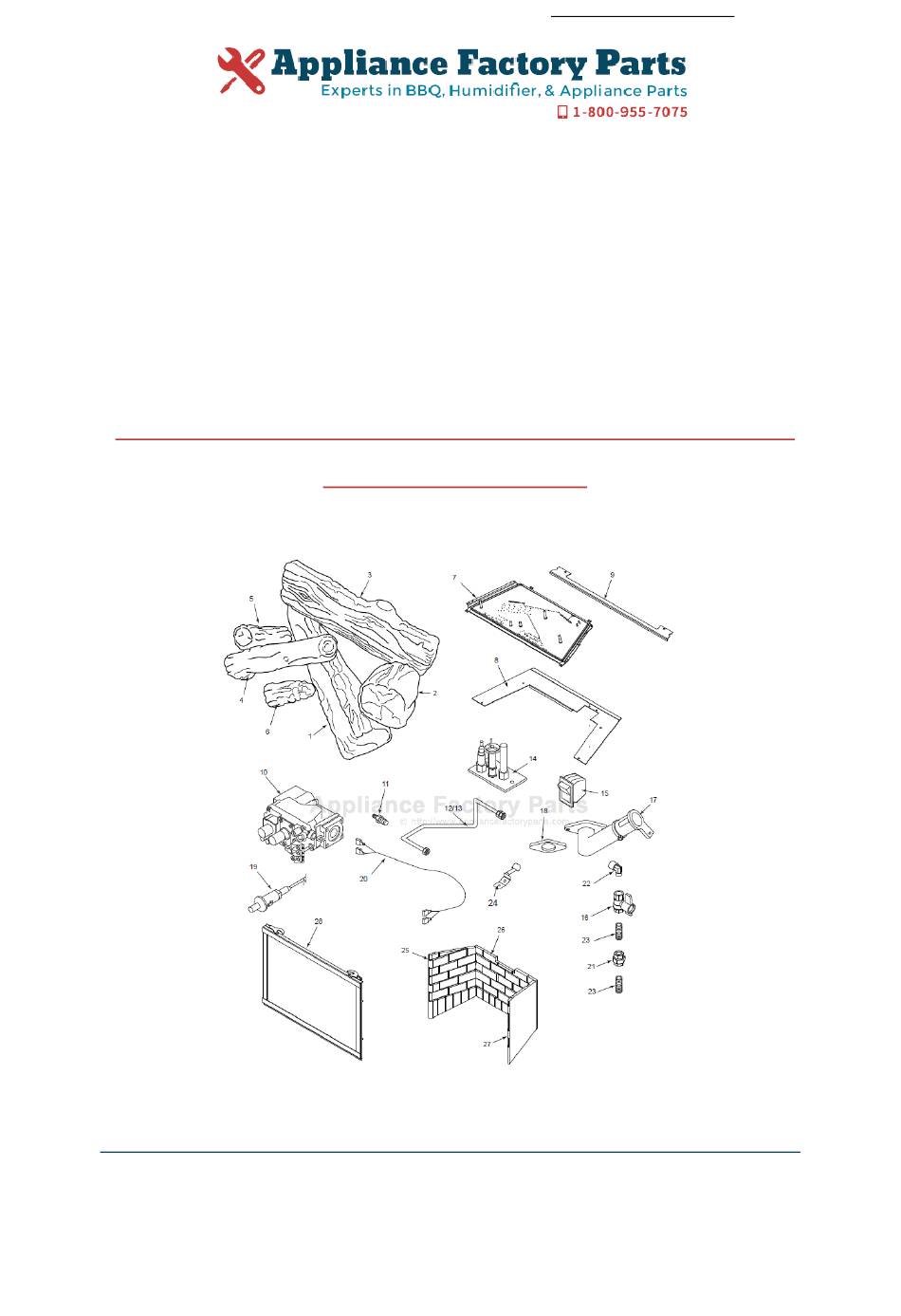

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. MAJESTIC 201LDVNV TOPAZ Owner's Manual Shop genuine replacement parts for MAJESTIC 201LDVNV TOPAZ Find Your MAJESTIC Fireplace Parts - Select From 585 Models -------- Manual continues below --------...
- Page 2 iLDV Series Direct Vent Gas Fireplace insert Models: 20iLDVNV & 20iLDVPV 30iLDVNV & 30iLDVPV 40iLDVNV & 40iLDVPV WARNiNG iF the iNFORMAtiON iN theSe iNStRuctiONS iS NOt FOLLOWeD exActLy, A FiRe OR exPLOSiON MAy ReSuLt cAuSiNG PROPeRty DAMAGe, PeRSONAL iNjuRy OR LOSS OF LiFe. installation and –...
-
Page 3: Table Of Contents
20/30/40ILDV Fireplace Insert cONteNtS important Safety information ........3 check Gas Pressure...........18 code Approval ..............4 electrical installation..........19 Electrical Wiring .............19 Product Features Remote Wall Mounted Switch ........19 High Elevations ............5 Hand Held Remote Control ........19 Gas Pressures ............5 Log Placement ............20 Gas Specifications ...........5 Surround installation ..........23 insert Dimensions ............6... -
Page 4: Important Safety Information
20/30/40ILDV Fireplace Insert iMPORtANt SAFety iNFORMAtiON OWNeR iNStALLeR Please retain these instructions for future reference. Please leave these instructions with the appliance. • Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. • Any change to this fireplace or its controls can be dangerous. -
Page 5: Code Approval
20/30/40ILDV Fireplace Insert iMPORtANt SAFety iNFORMAtiON Continued from page 3 14. Do not use any solid fuels (wood, coal, paper, card- board, etc.) in this fireplace. Use only the gas type iMPORtANt: indicated on rating plate. PLeASe ReAD the FOLLOWiNG cAReFuLLy 15. -
Page 6: Product Features
20/30/40ILDV Fireplace Insert PRODuct FeAtuReS and cODe APPROVAL PRODuct SPeciFicAtiONS • This appliance has been certified for use with either natural or pro- pane gas. Refer to the appropri- ate data plates. • This appliance is not for use with solid fuels. -
Page 7: Insert Dimensions
20/30/40ILDV Fireplace Insert iNSeRt DiMeNSiONS Figure 2 ILDV Fireplace Insert Dimensions Ref. 20iLDV 30iLDV 40iLDV 0511 21Z\v" (540 mm) 25Z\v" (641 mm) 28Z\v" (718 mm) ILDV dims 13C\zn" (335 mm) 16C\zn" (411 mm) 18Z\," (460 mm) 9/08 13M\," (352 mm) 14B\,"... -
Page 8: Installation Information
20/30/40ILDV Fireplace Insert GeNeRAL iNStALLAtiON iNFORMAtiON BeFORe yOu StARt Read this homeowner manual thoroughly and follow all instructions carefully. Inspect all con- tents for shipping damage and immediately inform your dealer if any damage is found. Do not install any unit with damaged, incomplete, or substitute parts. Check your packing list to verify that all listed parts have been received. -
Page 9: Clearances
20/30/40ILDV Fireplace Insert cLeARANceS iNSeRt cLeARANceS No combustibles (ie: drapes, doors) may be within, or swing within 36" of the front of the insert. 12” (305 mm) Maximum Depth Side Wall 12” (305 mm) 3/4” (19 mm) Maximum Depth Combustible Facing 9” (228 mm) NOte: Side clearance to com- bustibles is 10" (254 mm) from opening whether it is side wall or mantel legs. -
Page 10: Installation
20/30/40ILDV Fireplace Insert iNStALLAtiON iNSeRt PLAceMeNt • The insert must be placed within a code-conforming masonry fireplace or a tested and listed zero-clearance (UL-127, solid fuel) fireplace. Repair any fireplace damage prior to installation. • Because the insert uses a circulation blower, clean the fireplace, smoke shelf and chim- ney before installing. -
Page 11: Zero-Clearance Fireplace Requirements
20/30/40ILDV Fireplace Insert iNStALLAtiON ZeRO-cLeARANce (MetAL) FiRePLAce RequiReMeNtS • The damper and grate must be removed. • The smoke shelf, internal baffles, screen, refractory and metal or glass doors may be removed (if applicable). • Do not remove or alter the insulation or any structured rigid frame members (metal sides, floor, door frames, face of the fireplace, etc.). -
Page 12: Venting Installation
20/30/40ILDV Fireplace Insert VeNtiNG iNStALLAtiON Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life. Operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life. -
Page 13: Venting Requirements
20/30/40ILDV Fireplace Insert VeNtiNG iNStALLAtiON VeNtiNG RequiReMeNtS • Make sure the exhaust pipe on heater connects to exhaust portion of cap. Attach flex liners. Figure 6 • Do not crimp or rupture liner when bending it into chimney offsets. • The exhaust vent must reline the entire length of chimney and terminate above chimney top. -
Page 14: Altitude Considerations
20/30/40ILDV Fireplace Insert VeNtiNG iNStALLAtiON ALtituDe cONSiDeRAtiONS This heater has been tested at altitudes ranging from sea level to 4,500 feet (1,370 m). In this testing, heater with standard orifice burns correctly with just an air shutter adjustment. If you need to resize orifice for use at high altitude, contact your dealer. -
Page 15: Venting Configurations
20/30/40ILDV Fireplace Insert VeNtiNG iNStALLAtiON VeNtiNG cONFiGuRAtiONS Termination Kits (Refer to Page 12) Exhaust Inlet 3" (75 mm) Exhaust UL 1777 Gas Liner 3" (75 mm) Inlet Recommended block-off plate (noncombustible metal). Prevents odors from chimney entering room. UL 127 Solid Fuel Z.C Fire- FP1924 Figure 8... -
Page 16: Manifold Removal And Installation
20/30/40ILDV Fireplace Insert VeNtiNG iNStALLAtiON iNtAKe MANiFOLD VeNt iNStALLAtiON Before insert is placed back into fireplace opening, attach intake flex pipe to intake manifold, located in rear lower left corner with hose clamp (not supplied) or other approved method. exhAuSt MANiFOLD ReMOVAL AND VeNt iNStALLAtiON The exhaust manifold is shipped attached to insert. -
Page 17: Insert Installation
20/30/40ILDV Fireplace Insert iNSeRt iNStALLAtiON checK GAS tyPe Use proper gas type for the insert you are installing. If you have conflicting gas type, do not install insert. See dealer where you purchased the insert for proper insert according to your gas type. - Page 18 20/30/40ILDV Fireplace Insert iNSeRt iNStALLAtiON A manual shut-off valve is factory installed Only persons licensed to work with gas upstream of the appliance. union tee and piping may make the necessary gas con- plugged 1/8" NPt pressure tapping point nections to this appliance. should be installed upstream of the appli- ance.
-
Page 19: Check Gas Pressure
20/30/40ILDV Fireplace Insert checKiNG GAS PReSSuRe 1. Check gas type. The gas supply must be the same as stated on the appliance’s rating decal. If the gas supply is different from the fireplace, STOP! Do not install the appliance. Contact your dealer immediately. -
Page 20: Electrical Installation
20/30/40ILDV Fireplace Insert eLectRicAL iNStALLAtiON eLectRicAL WiRiNG This insert will work without any electrical supply. Electricity is only needed to operate blower. electrical connections should only be performed by a qualified, licensed electri- cian. Main power must be off when connecting to main electrical power supply or performing service. -
Page 21: Log Placement
20/30/40ILDV Fireplace Insert LOG PLAceMeNt Before you begin - This unit is supplied with six (6) ceramic fiber logs. Do not handle these logs with your bare hands. Always wear gloves to prevent skin irritation from ceramic fibers. After handling the logs, wash your hands gently with soap and water to remove any traces of fibers. the positioning of the logs is critical to the safe and clean operation of this heater. - Page 22 20/30/40ILDV Fireplace Insert LOG PLAceMeNt Figure 17 - Place Log #6 3. Align the two pin holes on Log #6 onto the burner. Figure 17 LG537 Log #6 LG537 Log #1 ILDV log 6 Figure 18 - 9/08 Place Log #1 4.
- Page 23 20/30/40ILDV Fireplace Insert LOG PLAceMeNt Log #3 Figure 20 - Place Log #3 6. Position log #3 so that the bottom right end is resting on the pad on log #2 and the left end is resting on the flat spot on log #1. Figure 20 LG540 LG540 7.
-
Page 24: Surround Installation
20/30/40ILDV Fireplace Insert SuRROuND iNStALLAtiON iNStALL SuRROuND 1. Remove glass door assembly. Page 29, Figure 34 2. Align cast or beveled surround holes with insert and attach with screws provided. 3. Re-attach glass door assembly. 4. Attach filigree to face by gently pushing into place. Insert Facing Figure 23 -... -
Page 25: Operating Instructions
20/30/40ILDV Fireplace Insert OPeRAtiNG iNStRuctiONS FOR yOuR SAFety ReAD BeFORe LiGhtiNG if you do not follow these instruction exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with a pilot which must be lit with built-in piezo ignitor while following these instructions exactly. -
Page 26: Lighting Pilot
20/30/40ILDV Fireplace Insert OPeRAtiNG iNStRuctiONS LiGhtiNG PiLOt FOR the FiRSt tiMe APPROVeD LeAK teStiNG MethOD You may check for gas leaks with the following meth- if using a soap and water ods only: solution to test for leaks, DO NOt spray solution onto •... -
Page 27: Lighting Burner
20/30/40ILDV Fireplace Insert OPeRAtiNG iNStRuctiONS LiGhtiNG BuRNeR MAiN BuRNeR SWitch The “ON/OFF” switch for the main burner can be found on the right side of insert surround. This switch allows you to turn on and to turn off the main burner without using the gas valve knob. Make sure the button is in the “ON”... -
Page 28: Air Shutter Adjustment
20/30/40ILDV Fireplace Insert AiR ShutteR ADjuStMeNt (NAtuRAL GAS ONLy) ADjuSt the AiR ShutteR The venturi of the burner is equipped with an air shutter. The opening of the venturi has been set at 1/4" for Natural Gas and fully open for Propane installation at sea level. The burner on Natural Gas models may be adjusted for high altitude as follows: •... -
Page 29: Glass Replacement
20/30/40ILDV Fireplace Insert GLASS FRAMe ReMOVAL Make sure the glass panel edges do not Always use gloves when handling broken touch any metal parts during thermal ex- glass. pansion. GLASS FRAMe ReMOVAL 1. Carefully remove upper filigree by pulling straight out. 2. -
Page 30: Blower Removal And Assembly
20/30/40ILDV Fireplace Insert BLOWeR ReMOVAL and ASSeMBLy BLOWeR RePLAceMeNt Turn off the unit and allow to cool completely. Turn off gas at shut-off and disconnect all electricity to unit. 1. Remove the decorative filigree by gently pulling it out. 2. Rotate the cam on the glass toward the center. 3. -
Page 31: Blower Parts
20/30/40ILDV Fireplace Insert BLOWeR ReMOVAL and ASSeMBLy BLOWeR PARtS LiSt: Description qty. 20iLDV 30iLDV 40iLDV Blower 53D2196 56D2196 56D2196 Parts not shown Disc Bracket 39D0098 39D0098 39D0098 Blower Snap Disc 26D2870 26D2870 26D2870 Speed Control 26D0746 26D0746 26D0746 Wire Assembly 34" 83D0521 83D0521 83D0521... -
Page 32: Cleaning And Maintenance
20/30/40ILDV Fireplace Insert cLeANiNG and MAiNteNANce Make sure the gas valve knob is in the “OFF” position. Wait at least five (5) minutes before start-ing maintenance. VeNtiNG SySteM A qualified agency should examine the venting system annually. cLeANiNG GLASS Clean the ceramic glass periodically. Condensation will sometimes form on the glass during a cold startup. -
Page 33: Firebox Cleaning
20/30/40ILDV Fireplace Insert cLeANiNG and MAiNteNANce FiReBOx cLeANiNG • Allow logs to cool completely before cleaning. Logs reach high tem- peratures. • Make sure clearances to combustibles leave enough room for main- tenance and service. • carefully reassemble and reseal insert properly after any cleaning or servicing. -
Page 34: Maintenance
20/30/40ILDV Fireplace Insert MAiNteNANce yeARLy SeRVice PROceDuRe Failure to inspect and maintain heater may lead to improper combustion and a potentially dangerous situation. A qualified technician should do the following once a year. 1. Check pilot flame. Flame should touch approximately 3/8" of the top of thermopile and touch top of thermocouple. -
Page 35: Troubleshooting
20/30/40ILDV Fireplace Insert tROuBLeShOOtiNG turn appliance OFF and allow to cool before servicing. Only a qualified service person should service and repair the heater. NOTE: All troubleshooting items are listed in order of operation. ReMeDy OBSeRVeD PROBLeM POSSiBLe cAuSe 1. Check connections to ignitor. Replace Piezo ignitor will not light the 1. -
Page 36: Replacement Parts
20/30/40ILDV Fireplace Insert RePLAceMeNt PARtS 12/13 0511 ILDV parts 9/08 83D0524... - Page 37 20/30/40ILDV Fireplace Insert RePLAceMeNt PARtS 20iLDVNV 20iLDVPV 30iLDVNV 30iLDVPV 40iLDVNV 40iLDVPV Ref. Description qty. Natural Propane Natural Propane Natural Propane 1. Log #1 83D2026 83D2026 83D1047 83D1047 83D2595 83D2595 2. Log #2 83D2027 83D2027 83D1049 83D1049 83D2596 83D2596 3. Log #3 83D2028 83D2028 83D1045...
-
Page 38: Optional Accessories
20/30/40ILDV Fireplace Insert RePLAceMeNt PARtS OPtiONAL AcceSSORieS Ref. Description 20iLDV 30iLDV 40iLDV Hood Top - Black Texture 20300121 20300119 83D2813 Hood Top - Iron Age 20300198 20300199 83D2814 Assembly Louver - Black Texture 20300193 20300229 83D2815 Assembly Louver - Iron Age 20300194 20300230 83D2816... -
Page 39: For Massachusetts Residents Only
20/30/40ILDV Fireplace Insert Massachusetts Residents Only — Please read and follow these special requirements 2. Approved carbon Monoxide Detectors. Each carbon NOte ReGARDiNG VeNteD PRODuctS monoxide detector as required in accordance with the above This product must be installed by a licensed plumber or gas fitter provisions shall comply with NFPA 720 and be ANSI/UL 2034 when installed within the Commonwealth of Massachusetts. -
Page 40: Limited Lifetime Warranty Policy
LiMiteD LiFetiMe WARRANty POLicy 20/30/40ILDV Fireplace Insert LiFetiMe WARRANty The following components are warranted for life to the original owner, subject to proof of purchase: Firebox, Combustion Chamber, Heat Exchanger, Grate and Stainless Steel Burners. FiVe yeAR WARRANty The following components are warranted five (5) years to the original owner, subject of proof of purchase: Ceramic Fiber Logs. -
Page 41: Efficiencies
20/30/40ILDV Fireplace Insert efficiency Ratings Model enerGuide Ratings Steady State (%) D.O.e. Fireplace efficiency (%) Fan-OFF Fan-ON (AFue%) 20ILDVNV 67.5 73.5 74.5 66.4 20ILDVPV 73.9 79.8 80.8 74.6 30ILDVNV 71.9 76.5 77.5 65.9 30ILDVPV 83.7 88.6 89.6 68.5 40ILDVNV 70.8 75.7 76.7 69.71...
