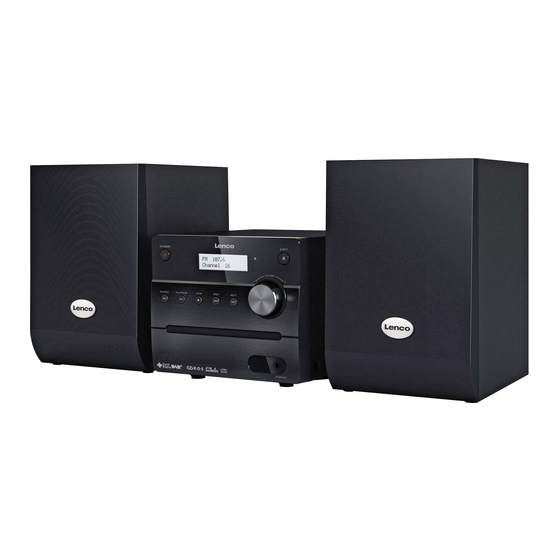

LENCO MC-148 DAB+ User Manual

Cd micro system with dab+
Hide thumbs Also See for MC-148 DAB+:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

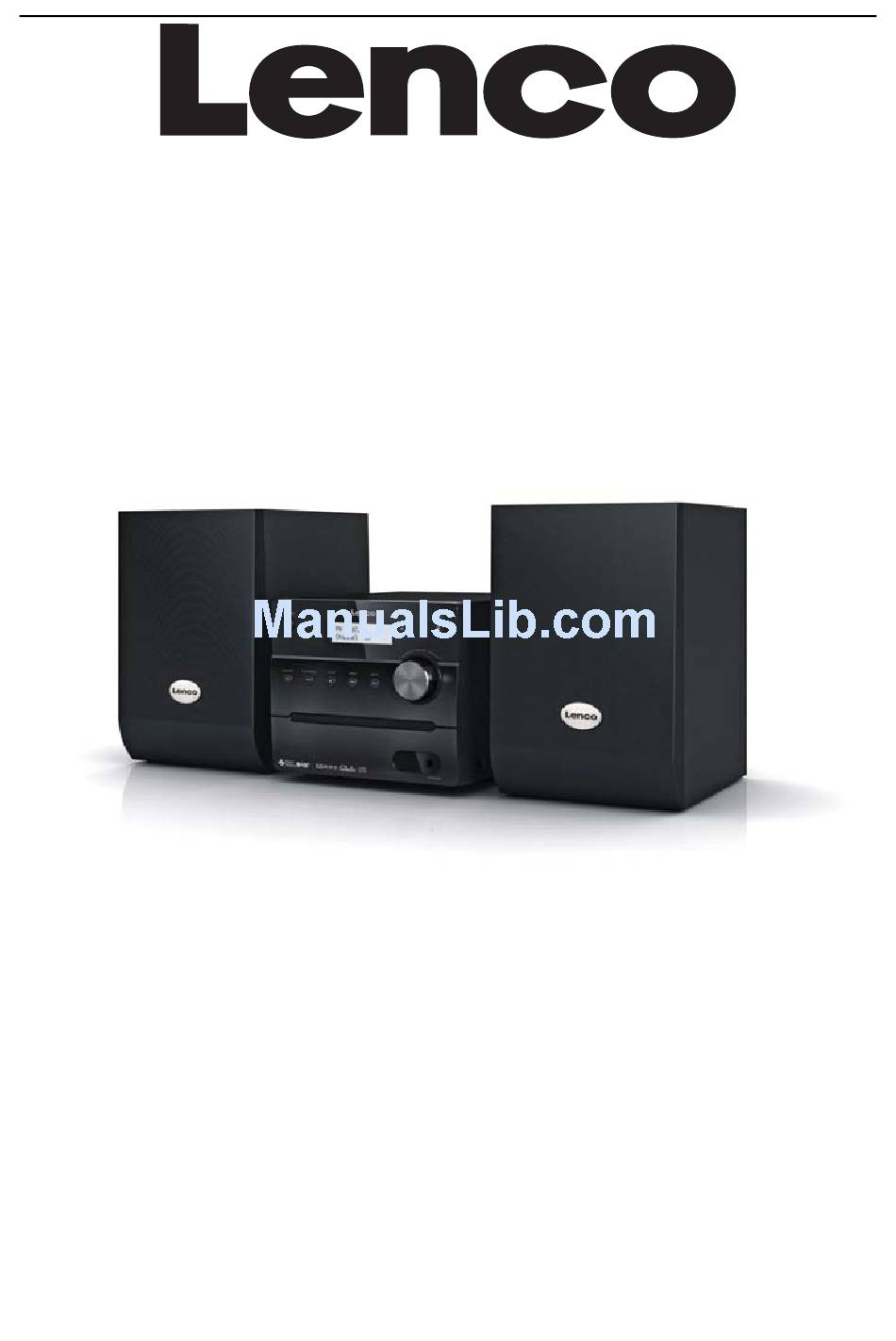

CD Micro System with DAB+
MC-148 DAB+
USER MANUAL
www.lenco.com
Please read this manual carefully before connecting or operating the
appliance. Save it for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-148 DAB+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LENCO MC-148 DAB+

Summary of Contents for LENCO MC-148 DAB+

  • Page 1 CD Micro System with DAB+ MC-148 DAB+ USER MANUAL www.lenco.com Please read this manual carefully before connecting or operating the appliance. Save it for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTION ............2   PANELS AND CONTROL ................4   PREPARATION FOR USE ................5   GENERAL OPERATION ................6   CD OPERATION ................... 7   DAB+ OPERATION ..................10   FM OPERATION ..................14  ...

  • Page 3: Important Safety Instruction

    IMPORTANT SAFETY INSTRUCTION CAUTION! RISK OF ELECTRIC SHOCK DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) • When using electrical equipments basic safety precautions should always be followed. • This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge.
  • Page 4 IMPORTANT SAFETY INSTRUCTION • Refer all serving to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture.

  • Page 5: Panels And Control

    PANELS AND CONTROL 1. Indicator FRONT PANEL 2. STANDBY mode 3. Display 4. PLAY/PAUSE button 5. SOURCE button STOP/MENU 6. STOP/MENU button 7. CD loading drawer 8. EJECT button 9. IR sensor AUDIO IN 10. VOLUME knob 11. PREVIOUS/NEXT button 12.

  • Page 6: Preparation For Use

    PREPARATION FOR USE CONNECT WITH SPEAKERS PEAR PANEL LEFT SPEAKER AN T ENN A SPEAKER S (8 Ω ) RIGHT SPEAKER 1. Unwarp the speaker wires. 2. Place a speaker on either side of the main unit, preferably at the same height, and with at least 150mm between each speaker and the main unit.

  • Page 7: General Operation

    GENERAL OPERATION STANDBY MODE Press the STANDBY button on the unit or the remote control to turn on the system or to put the system into standby mode. To resume normal operation, press either button again. VOLUME CONTROLS Rotate the VOLUME control clockwise or press the VOLUME+ button to increase the volume level.

  • Page 8: Cd Operation

    CD OPERATION PLAYBACK 1. Make sure you are in CD mode, if not press the CD button on the remote or press the SOURCE button until you reach CD. 2. Press the EJECT button, when the disc drawer pops out insert a disc (label side facing upwards), press the EJECT button again to close.
  • Page 9 NUMERIC BUTTONS 0-9 While listening to a CD a specific track number can be played by pressing the relative digit on the number buttons. e.g.: track 6 would be 06. To play track 12 you would press the 1 button then 2. CD OPERATION PROGRAM PLAYBACK You may wish to play back tracks of a CD in a different order than the...
  • Page 10 NOTE: The SHUFFLE play is only available on standard music Cds, not Mp3 Cds.

  • Page 11: Dab+ Operation

    DAB+ OPERATION Switch to DAB+ mode by pressing SOURCE button on the unit or DAB/FM button on the remote control. AUTO SCAN MODE 1. To activate the full scan press the STOP/MENU button. 2. When you see the <Autoscan> option, press the PLAY/PAUSE or ENTER button.
  • Page 12 DAB+ OPERATION RECALLING A STATION PRESET To select a preset, just press the required numeric button while in DAB+ mode to activate the station you stored. DISPLAY MODES Every time you press the INFO button on the remote control, the display will cycle through the following display modes: The information is displayed on the lower segment of the LCD display.
  • Page 13 DAB+ OPERATION Channel Frequency Displays the frequency information for the current station. Signal Error Displays information regarding the error rate in the signal. Bit Rate This displays the type of broadcast you are receiving e.g. mono or stereo and what bit rate is being used. SECONDARY SERVICES On some occasions you will see a “>>”...
  • Page 14 DAB+ OPERATION DRC (DYNAMIC RANGE CONTROL) This causes the radio to reduce the dynamic range of the audio signal. The purpose of this is to adapt the dynamic range of the audio signal to listening in a noisy environment. NOTE: this is not available on some DAB+ stations. 1.

  • Page 15: Fm Operation

    FM OPERATION Switch to the FM mode. SCANNING FOR STATIONS 1. You can scan up or down the frequency range manually by pressing the / buttons on the remote or pressing / buttons on the unit to increase or decrease the frequency in 0.05MHZ increments. To scan through the frequency range quickly press and hold the /...
  • Page 16 FM OPERATION RECALLING A STATION PRESET To select a preset, just press the required numeric button while in FM mode to activate the station you stored. DISPLAY MODES Every time you press the INFO button on the remote control, the display will cycle through the following display modes: The information is displayed on the lower segment of the LCD display.

  • Page 17: External Input

    EXTERNAL INPUT CONNECTING AN EXTERNAL AUDIO DEVICE External audio sources such as iPod's & MP3 players can be connected using a 3.5mm to 3.5mm audio cable (not supplied). Mp3 player 1. Connect one end of the cable to the AUDIO devices headphone/Line output and the other end to the AUDIO IN input on the front of the unit.

  • Page 18: Troubleshooting

    Speaker Size 130 x 186.5 x 125 mm Net Weight 3.0kg(Approximate) TROUBLESHOOTING In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below. Problem Reason(s) Solution(s) No Power Power cable not Make sure the plug is connected to wall connected.

  • Page 19: Service And Support

    SERVICE AND SUPPORT For information: www.lenco.com Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly.
