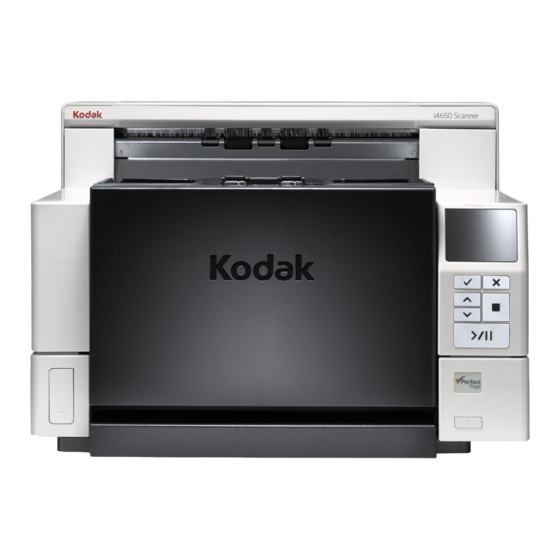

Summary of Contents for Kodak i4x50 Series

  • Page 2: Table Of Contents

    The ISIS driver is software that communicates with the scanner. This driver is created and maintained by EMC Captiva and is provided with the scanner by Kodak Alaris Inc. This driver can be used to interface with many scanning applications that support ISIS drivers.

  • Page 3: Starting The Scan Validation Tool

    Starting the Scan NOTE: The Scan Validation Tool is provided by Kodak Alaris and is a diagnostic tool only. Kodak Alaris does not support the use of Validation Tool the Scan Validation Tool as a scanning application. 1. Select Start>Programs>Kodak>Document Imaging>Scan Validation Tool.

  • Page 4: Scan Validation Tool Dialog Box

    Kodak i4x50 Scanners. The Kodak Capture Pro Software Limited Edition scanning application that is included with this scanner is a good choice for basic scanning. Kodak Capture Pro Software Limited Edition can be upgraded to the full version of Kodak Capture Pro Software as your scanning needs increase.
  • Page 5 Toolbar buttons Setup — displays the user interface for the selected driver. Start Scanning — scans the documents in the input elevator. Scan One Page — scans only one page. Stop Scanning — ends the scan session. Change — switches between the TWAIN Datasource and ISIS Driver.

  • Page 6: Configuring Image Settings

    Options include: Front Image #1, Front Image #2, Back Image #1 and Back Image #2. The Kodak Scanner drivers allow you to control the camera settings independently. Some settings apply only to black and white images, others apply to color/grayscale images.
  • Page 7 Mode — select one of the following modes: • Black and White: if you want your electronic image to represent all elements of your document in black and white. • Grayscale: if you want your electronic image to have a range of varying shades of gray from black to white.

  • Page 8: Main Tab

    Main tab The Main tab provides the following options: Dots per inch (dpi) or resolution ⎯ indicates the scanning resolution, which largely determines the quality of the scanned image. The greater the resolution, the better the reproduction. However, scanning at a higher resolution also increases scanning time and file size.
  • Page 9 • Relative to Document: (zone processing): (used for batches of same-sized documents) — zone processing is a floating fixed crop window (the zone) located relative to the upper left corner of a document. It allows you to select an area on the document to be delivered in either color/grayscale or black and white format (a separate window for both black and white and color/grayscale may be defined).

  • Page 10: Layout Tab

    Layout tab The Layout tab provides the following options: Page Size ⎯ the default page size is set when a scanner is first selected. You can choose a different page size using the drop-down list. Page size should be set to the Scanner’s maximum when using the Automatic or Aggressive cropping option.

  • Page 11: Scan Area Dialog Box

    Scan Area dialog box The Scan Area dialog box allows you to define the amount of image data which is returned to the host. NOTES: • Select the Image Mode (either Normal or Merge) based on the cropping option selected on the Main tab. If you select Normal, select the side(s) (i.e., Front Image #1, Front Image #2, Back Image #1 and/or Back Image #2) to be defined.
  • Page 12 Page Layout • Portrait: displays the image orientation in the shape of a conventional portrait, where height is greater than width. • Landscape: displays the image orientation in the shape of a conventional landscape painting, where width is greater than height. Area •...

  • Page 13: Image Processing Tab

    Barcode Image Enhancement does not effect barcode reading that is enabled in the ISIS Driver, as the barcode reading functionality that Kodak Alaris provides is performed using high resolution grayscale data during image processing. • Hole Fill — allows you to fill in the holes that are around the edges of your document.
  • Page 14 • Invert Image ⎯ allows you to select how the black pixels will be stored in the image. By default the black pixels are stored as black and the white pixels are stored as white. Turn this option on if you want the black pixels stored as white and the white pixels stored as black.
  • Page 15 Noise Filter • None • Lone Pixel: reduces random noise by converting a single black pixel to white when it is completely surrounded by white pixels or by converting a single white pixel to black when it is completely surrounded by black pixels. •...

  • Page 16: Auto Color Detect Tab

    Auto Color Detect tab The Auto Color Detect tab provides the following options: Color Content • Off: this is the default. No color content will be detected. • Low: documents requiring only a small amount of color to be saved as color or grayscale images.
  • Page 17 • Custom: allows you to manually adjust the Color Amount and/or Color Threshold. NOTE: When setting Auto Color Detect values, it is suggested that you start with the Medium option and scan a typical job set. If too many documents were returned as color/grayscale vs. black and white, then change to the High option and re-run the job.

  • Page 18: Dropout Tab

    Dropout tab The Dropout tab provides the following options: Color Dropout — used to eliminate a form's background so that only the entered data is included in the electronic image (e.g., remove the form’s lines and boxes). For black and white images, these settings effect the grayscale version of the document which the scanner analyzes to produce that electronic image.

  • Page 19: Adjustments Tab

    Adjustments tab The Adjustments tab provides the following options: Color Adjustment — available options are: For Black and White, Grayscale or Auto Detect Grayscale mode: Available options are: • (none) • Manual • Automatic If you select Manual you can adjust the Brightness, Contrast and Sharpen values.
  • Page 20 For Color or Auto Detect Color mode: Available options are: • (none) • Manual • Automatic If you select Manual you can adjust the Brightness, Contrast and Sharpen values. • Brightness — changes the amount of white in the color or grayscale image.

  • Page 21: Background Tab

    Background tab The Background tab provides the following options: NOTE: The options on the Background tab are not available for black and white mode. Background Smoothing — using this option for documents or forms with a background color will help produce images with a more uniform background color.
  • Page 22 Foreground Boldness — use this option for documents or forms where you want the foreground (e.g., text, lines, etc.) to be more prominent. When Foreground Boldness is enabled, gray and neutral colors are darkened. NOTE: Foreground Boldness is not intended for use with photographs. Before After •...

  • Page 23: Image Edge Fill Tab

    Image Edge Fill tab This option fills the edges of the final electronic image by covering the area with the specified color. Image Edge Fill is performed after all other image processing options have been applied. Fill Color — allows you to select the color to fill the edges with. •...

  • Page 24: Blank Image Detection Tab

    Blank Image Detection tab Blank Image Detection allows you to configure the scanner to not give blank images to the scanning application. Select the image size (KB), below which an image is determined to be blank. Images with sizes less than the number you select will not be created.

  • Page 25: Barcode Reading Tab

    Barcode Reading tab The Barcode Reading tab allows you to configure the scanner to search your images for barcodes and return the information to the scanning application. Configure Barcodes • On: turns barcode reading on. When you select On, all barcode types are selected.
  • Page 26 • Search Area: select the area of the image to search. Entire Document Part of Document − Origin (x, y): (x) is the distance from the left edge of the image and (y) is the distance from the top edge of the image. −...

  • Page 27: About Tab

    About tab The About tab displays information about your scanner and driver. A-61838/ISIS June 2015...

  • Page 28: Configuring Scanner Settings

    Configuring Scanner To access scanner settings from the ISIS Driver, go into the Scan Validation tool as described earlier in this guide and access the ISIS settings driver. • Click Scanner to configure settings associated with the scanner. The following sections provide descriptions and procedures for configuring Scanner settings.

  • Page 29: Scanner Tab

    Scanner tab The Scanner tab provides the following options: Document Feeder Paper Source • Automatic: looks for paper in the ADF first. If there are no documents in the input elevator, the scanner will scan from the flatbed. This option is only available if a flatbed is attached. •...
  • Page 30 • Automatic - 100 Sheets: looks for paper in the input elevator first, if there are no documents in the input elevator, the scanner will scan from the flatbed. This selection is recommended when you are scanning between 25 and 100 sheets from the input elevator. This option is only available if a flatbed is attached.
  • Page 31 Document Handling — allows you to select how the scanner transports documents through the scanner. This affects how the documents are fed into the scanner, how fast they move through the scanner, and how they are placed in the output tray. •...

  • Page 32: Multifeed Detection Tab

    Multifeed Detection tab Multifeed detection aids in document processing by detecting documents that may go through the feeder overlapped. Multifeed can happen due to stapled documents, adhesives on documents or electrostatically charged documents. The Multifeed Detection tab provides the following options. Ultrasonic Detection —...
  • Page 33 Three sensors cover the width of the paper path. In order for multifed documents to be detected correctly, they must pass under one of these sensors. • Left, Center, Right: this allows you to select which sensor(s) you want to have turned on. For example, if you know that the left side of the document has a “sticky”...
  • Page 34 • Pause Scanning - leave paper in path: scanning will stop immediately (i.e., making no attempt to clear the paper path) but the scanning application will be waiting for additional images (i.e., stops the feeder). Image(s) of the multifed document will not be generated. Clear any documents from the paper path prior to resuming the scan session.

  • Page 35: Imprinter Tab

    Imprinter tab The Enhanced Printer operates at full scanner speed. The printer can add a date, time, document sequential counter, and custom messages. The print string can be configured to include both literal (static) information (e.g., information that stays the same for each document, such as batch name or operator) and dynamic information (e.g., information that may change for each page scanned, such as the document sequential counter).
  • Page 36 Offset for Image’s Left — select a value to determine how far the printed information will appear from the left edge of the document. Format Template — the format template is used to build the print string. The print string is what is printed on documents as they travel through the transport.
  • Page 37 - Display Leading Zeros (default): “004” - Suppress Leading Zeros: “4” - Compress Leading Zeros: “ 4” • Increment, Reset and Reset value are only for the Kodak i4850 Scanner. - Increment: allows you to configure when the counter is incremented.
  • Page 38 Top Margin — select a value for the distance from the top edge of the document. NOTES: • Printing automatically stops 6.3 mm (1/4-inch) from the trailing edge of the document even if the information has not been completely printed. •...

  • Page 39: Imprinter Format Table

    Rotation — you can select either 0 or 90 degrees. - Orientation: while the characters are printed vertically (starting at the lead edge of the document) this allows you to select the orientation of the print string. Available options are: 0, 90, 180, 270. Feed Direction Imprinter Format table...

  • Page 40: Log Tab

    Log tab The Log tab provides a listing of any errors that have been encountered. The scanner error log can be saved to a file by clicking the Save icon, or copy the information to the clipboard which can then be pasted into a document.
