Note:
1. After setting the intelligent airflow function, the louver
position is fixed.
2. In cooling, it is better to select the
3. In heating, it is better to select the
4. In cooling and dry modes, using the air conditioner for a
long period of time under high humidity conditions, con-
densate water may form on the grille/louver.
E) Right and left airflow setting
This will adjust the left and right airflow of the unit. Press
the Extra Function
will adjust the left and right positioning of the louvers.
Press the Confirm/Cancel
ting.
F) A-B Yard - This will allow you to control two seperate units
with a single remote control.
Note: this feature would be setup at the time of installation
by the contractor.
G) 50°F low temperature heating - Feature not available on
this series.
H) Sleep mode
Press the Extra Function
options, cycle the button to display the
icon will flash. Press the Confirm/Cancel
enter the sleep function.
Sleep Operation Mode
1. SLEEP mode during COOL, DRY modes
One hour after SLEEP mode starts, the temperature will
rise 2°F above set temperature, after another hour, the
temperature rises an additional 2°F. The unit will run for an
additional six hours, then turns off. The final temperature
is 4°F higher than the initial set temperature. Using this
feature will help with achieving maximum efficiency and
comfort from your unit while you sleep.
SLEEP operation starts
SLEEP operation stops
Approx.6hrs
Rises 2
O
F
1 hr
Rises 2
O
F
1 hr
Temp.setting
Unit stop
In COOL, DRY mode
2. SLEEP mode during HEAT mode
One hour after SLEEP mode starts, the temperature will
decrease 4°F below set temperature, after another hour,
the temperature will decrease an additional 4°F. After an
additional three hours, the temperature will rise by 2°F.
The unit will run for an additional three hours, then turns
off. The final temperature is 6°F lower than the initial set
temperature. Using this feature will help with achieving
maximum efficiency and comfort from your unit while you
sleep.

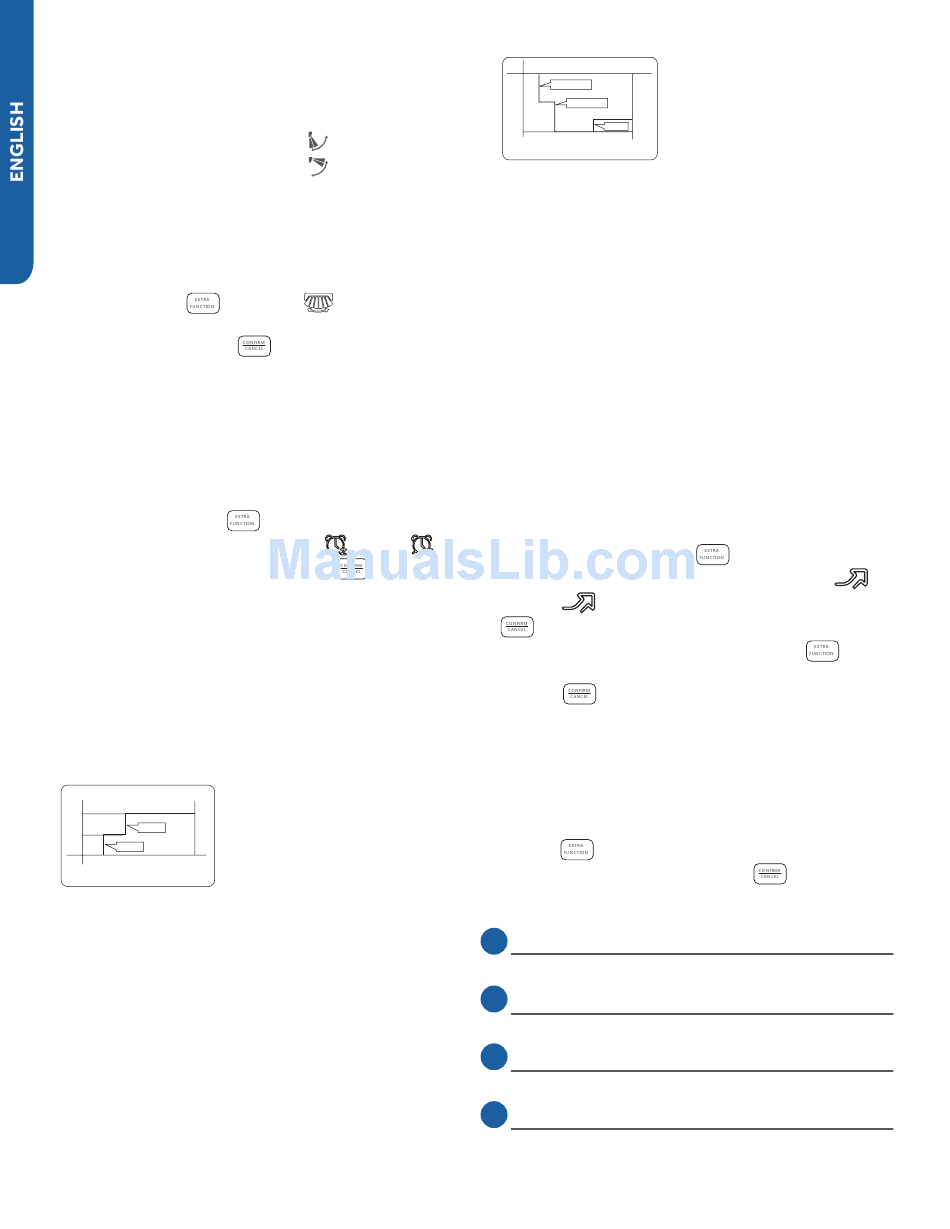

PAGE 4
mode.
mode.
button until
is displayed. This
button to apply the set-
button to enter additional
icon, the
button to
CONTROLLER FEATURES & SETTINGS
Temp.setting
Unit stop
1 hr
Decreases 4
F
O
1 hr
Decreases 4
F
O
3 hrs
3 hrs
Rises 3
O
F
SLEEP
SLEEP
operation stops
operation starts
In HEAT mode
3. In AUTO mode
The unit operates in corresponding sleep mode adapted
to the automatically selected operation mode.
Note:
When the unit is set to sleep mode, the fan speed will be
set to low speed and cannot be changed.
Note: When the TIMER function is set, the sleeping
function cannot be set. If the sleeping function has been
set, and the user sets the TIMER function, the sleeping
function will be canceled, and the unit will be set to the
timer function.
I) Electrical heating - Feature not available on this series.
J) Refresh air - Feature not available on this series.
K) Turbo
Use this function when rapid heating or cooling is needed.
Press the EXTRA FUNCTION
additional options, cycle the button to display the
icon, the
icon will flash. Press the CONFIRM/CANCEL
button to enter the power function. To cancel the
power function, press the EXTRA FUNCTION
again to enter additional options , press the CONFIRM/
CANCEL
button or select a different mode to cancel
the power function.
Note:
During POWER operation, in rapid HEAT or COOL mode,
the room may have uneven temperature distribution.
L) Fahrenheit/Celsius mode shift on unit and remote -
To switch between Fahrenheit and Celsius press the EXTRA
FUNCTION
button until either Celsius or Fahrenheit is
displayed. Press the CONFIRM/CANCEL
the change.
HEALTH Button
13
Feature not available on this series.
Confirm/Cancel Button
14
Function: Setting and canceling timer and other functions.
LOCK Button
15
Used to lock buttons and LCD display
16
LIGHT Button
Turns indoor unit display on and off
button to enter
button
button to apply
