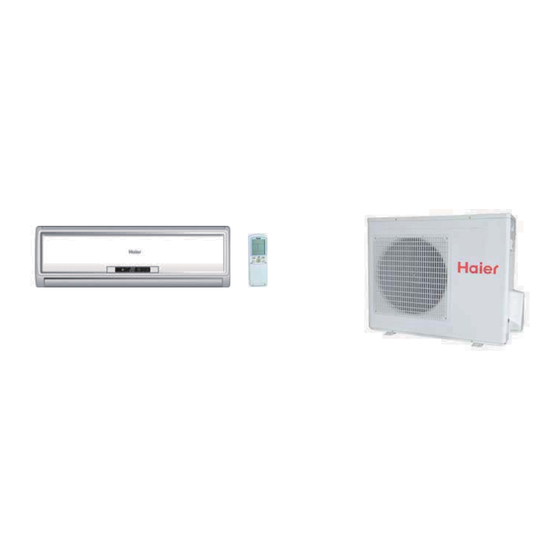

Haier HSU09VHJ Service Manual

Ea-series dc inverter wall mounted type
Hide thumbs Also See for HSU09VHJ:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death
©
(Qingdao Haier Air Conditioner General corp.,Ltd)
All right reserved .Unauthorized copying and distribution is a violation of law
