3. C onnect Cables
4. C onnect Power

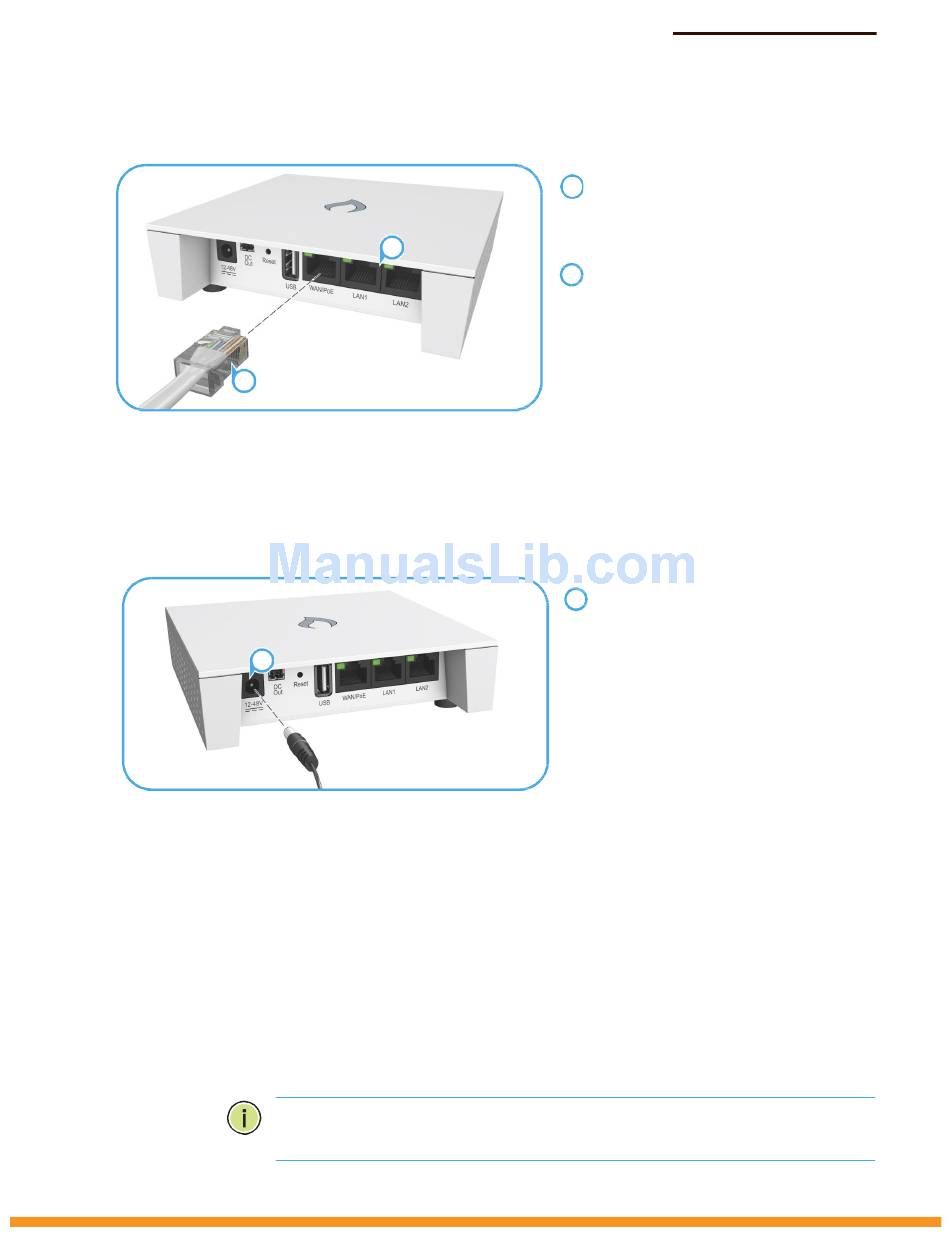

Connect Ethernet cable to the 1000BASE-­T (WAN/PoE) port on the unit.
2
1
The AP can be powered either by the AC/DC power adapter provided in the
package, by a PoE power injector (Spark AC750 and N300), or by an
802.3af/at PoE switch (Spark AC750-­3AF and N300-­3AF).
Powering the AP with the AC/DC Power Adapter
1
Powering the AP with a PoE Injector or PoE Switch
Connect Ethernet cable from the WAN/PoE port of the AP to a port on the
PoE power s ource d evice:
Spark AC750 and N300 — a PoE power injector (passive PoE, 24-­48 VDC).
◆
Spark AC750-­3AF and N300-­3AF — an 802.3af/at-­compliant PoE
◆
switch. Make sure that the PoE power injector or switch is connected to
the LAN.
Note: Connecting the Ethernet cable from the AP to a PoE injector or PoE
switch powers on the unit.
Connect Category 5e or better cable to the
1
WAN/PoE RJ-­45 port.
Connect the other end of this cable to a
PoE injector or LAN P oE switch
(depending on AP model).
2 (Optional) Connect local LAN devices
to any of the other RJ-­45 ports on the
AP using Category 5 or better cable.
These 100BASE-­TX ports are labeled LAN1
and LAN2.
1
Connect the cable from the power
adapter to the DC power jack on the
AP.
Connect the power adapter to a nearby
AC power source (100-­240 VAC, 50/60
Hz).
