Quick Star t Guide
Cloud-Enabled Enterprise Access Point
www.ignitenet.com
The Spark AC750 are dual AP. The units are designed to be operated either placed
on a desk or mounted on a wall or ceiling. The package includes a mounting plate
for attaching the AP to a wall or ceiling T-bar. The APs can be powered either by the
universal power supply included in the package, through an Ethernet cable
connection from a Power-over-Ethernet (PoE) injector, or from a 802.3af-compliant
PoE switch.
The Cloud-Enabled Enterprise Access Point includes these models:

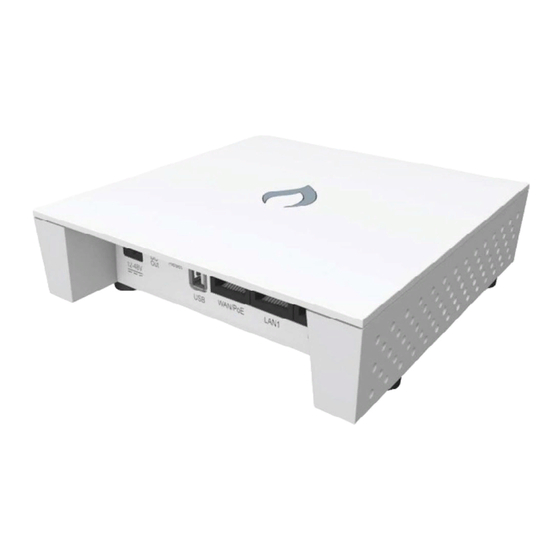

IR-AC750 & IR-AC750-EU — dual-band concurrent enterprise AP with
integrated antennas plus passive Power-over-Ethernet (PoE)
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
– 1 –
Advertisement
Table of Contents
Related Manuals for IgniteNet Spark IR-AC750
Summary of Contents for IgniteNet Spark IR-AC750

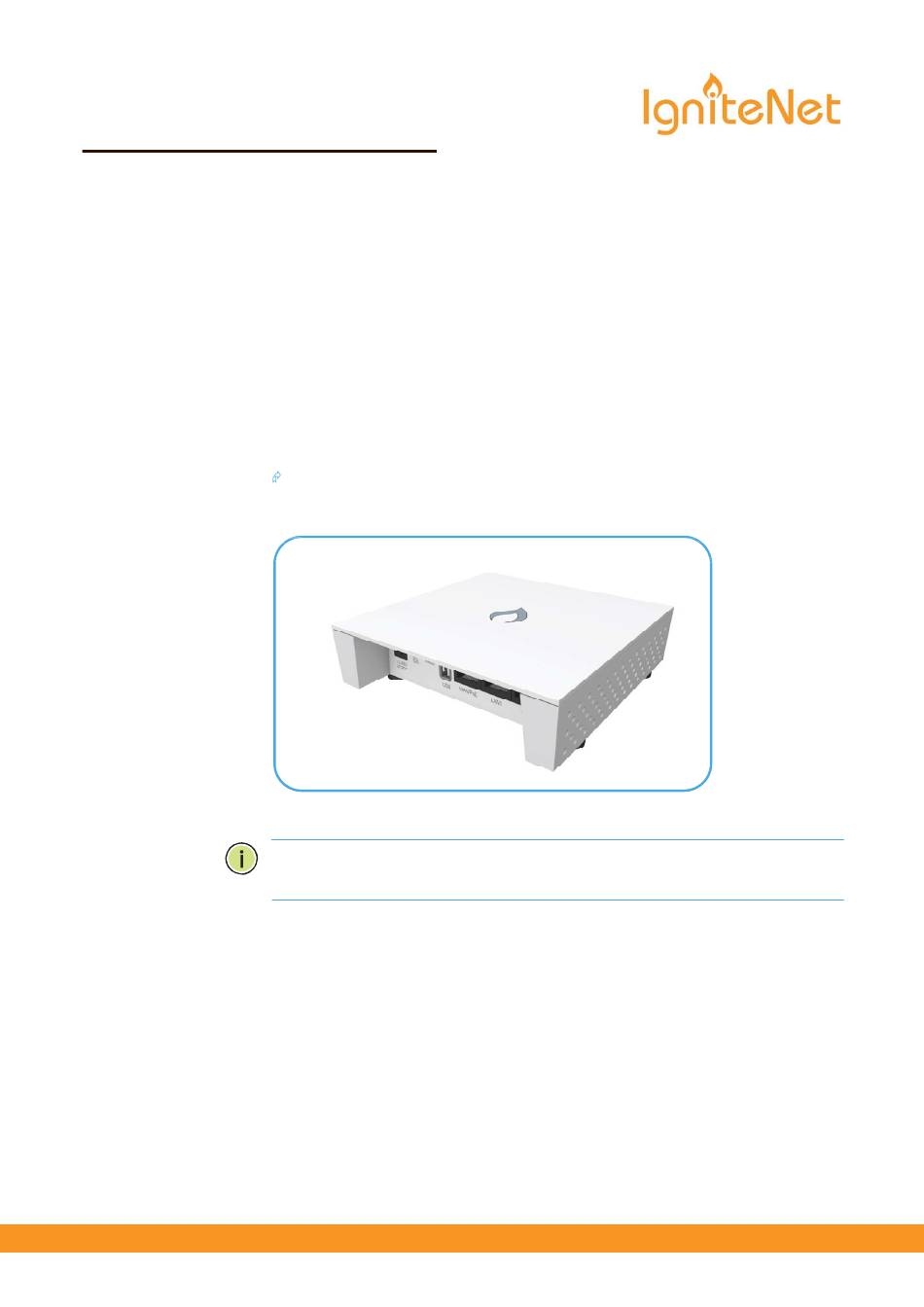

- Page 1 The Cloud-Enabled Enterprise Access Point includes these models: IR-AC750 & IR-AC750-EU — dual-band concurrent enterprise AP with integrated antennas plus passive Power-over-Ethernet (PoE) Note: For Safety and Regulatory information, refer to the Safety and Regulatory Information document included with the AP. www.ignitenet.com – 1 –...
- Page 2 Quick Start Guide Follow the steps in this guide to install the AP in your network. Caution: The planning and installation of the AP requires professional personnel that are trained in the installation of radio transmitting equipment. The user is responsible for compliance with local regulations concerning items such as antenna power for instance.
-
Page 3: Mounting The Ap On A Wall
Quick Start Guide Mounting the AP on a wall Mount the unit on a wall using the mounting plate, screws, and wall plugs provided in the mounting kit. Wall Mounting At the installation location, hold the mounting plate against the wall with its release tab pointing down. - Page 4 Quick Start Guide Mounting the AP on the ceiling If the room is equipped with a suspended ceiling, use the mounting plate provided in the package to attach the AP to the metal ceiling T-bars. The mounting plate supports two different sizes of suspended ceiling T-bars. The position illustrated below is for 15 mm bars.
-
Page 5: Connect Cables
Quick Start Guide 3. Connect Cables Connect Ethernet cable to the 1000BASE-T (WAN/PoE) port on the unit. Connect Category 5e or better cable to the WAN/PoE RJ-45 port. Connect the other end of this cable to a PoE injector or LAN PoE switch (depending on AP model). -
Page 6: User Interface
If cloud-managing the AP, go directly to “Manage the AP with the IgniteNet Cloud Controller” on page To access the web interface, connect a PC directly to the AP’s LAN1 or LAN2 RJ-45 port. - Page 7 Select the country of operation for the AP. Setting the correct country ensures that the radios operate within local regulations specified for Wi-Fi networks. Manage the AP with the IgniteNet Cloud Controller Go to cloud.ignitenet.com to register your AP. Log in and select Devices from the menu. Click Add Device and enter the AP serial number and MAC address to register the AP with your cloud network.
-
Page 8: Hardware Specifications
Quick Start Guide Hardware Specifications Item Specification Chassis Size (L x W x H:) 121 x 121 x 30.5 mm (4.76 x 4.76 x 1.2 inches) Weight 196 g (0.43 lb) Temperature Operating: -20 °C to 65 °C Humidity Operating: 10% to 90% (non-condensing) Network Interfaces Ports WAN/PoE RJ-45 Port: 1000BASE-T, passive PoE... - Page 9 Quick Start Guide Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 10: Professional Installation Instruction
Quick Start Guide Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Note: The country code selection is for non-US model only and is not available to all US model.
