IgniteNet SunSpot AC Wave2 Quick Start Manual

Q ui c k Sta r t G u id e
Cloud-Enabled Indoor/Outdoor Access Point
SunSpot™ Wave2 AC2600
1. Unpack the AP
◆
SunSpot™ Wave2 AC2600
◆ Wall/Ceiling mounting bracket and
securing screw
◆
Wall-mount kit — 4 screws, 4 wall plugs
◆
Universal AC/DC power adapter

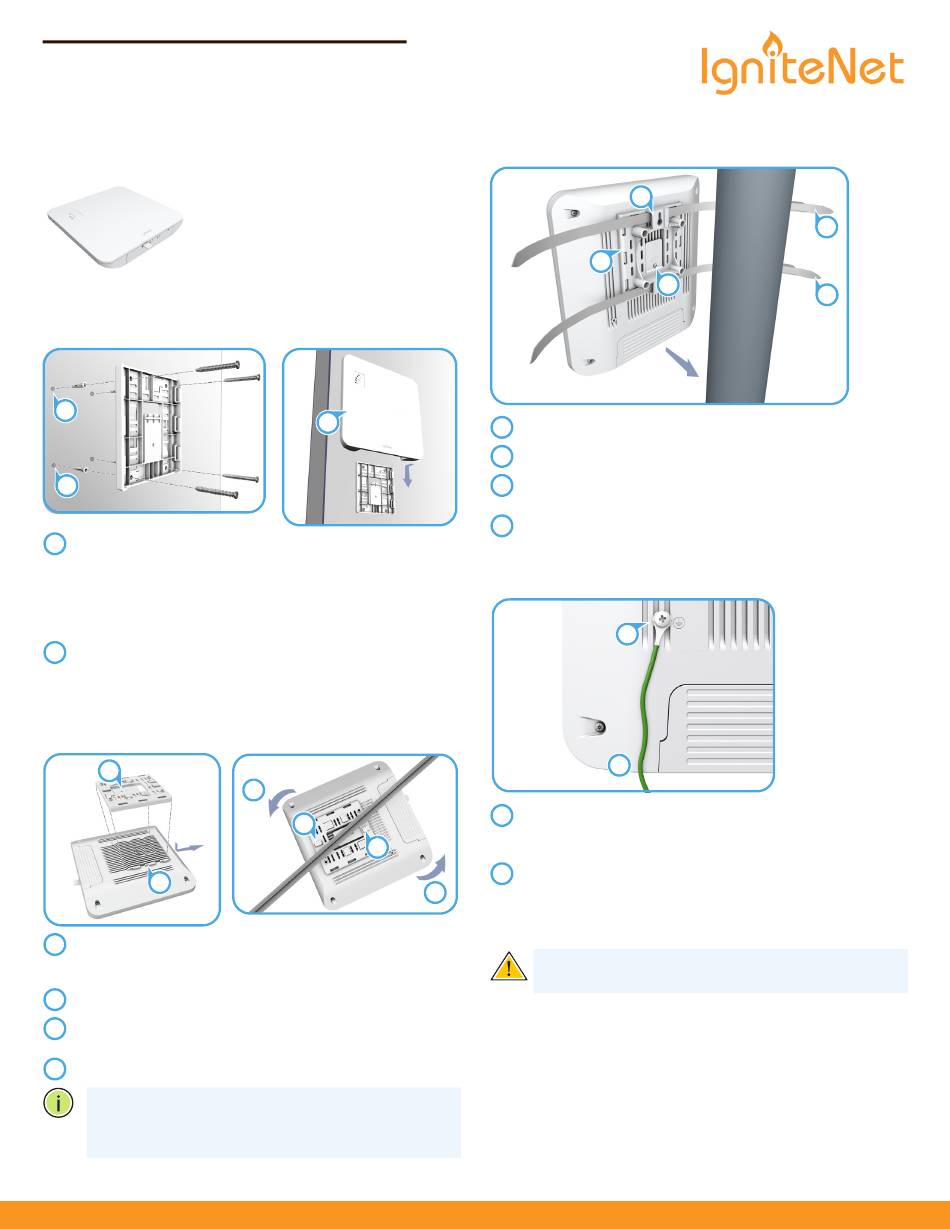

2. Mount the AP
a. Mounting the AP on a Wall
1
1
1 At the installation location on the wall, use the wall/ceiling-
mount bracket to mark four holes for the wall plugs and
screws (included in wall-mount kit).
Drill four holes for the wall plugs, and then insert the plugs
and tap them flush with the wall surface.
Use the four screws to secure the bracket to the wall.
2 With its ports facing down, place the AP over the bracket
flanges and then slide it down until it snaps into its secured
position.
Do not let go of the AP until you confirm that it is secure.
b. Mounting the AP on a Ceiling
2
1
1 Place the wall/ceiling-mount bracket over the mounting
flanges on the back of the AP, and then slide it up until it
snaps into its secured position.
2 Use the included screw to secure the bracket to the AP.
3 Press the retention clips of the wall/ceiling-mount bracket
against the ceiling T-bar.
4 Rotate the AP until the T-bar snaps into place.
Note:
The wall/ceiling-mount bracket supports two
different sizes of suspended ceiling T-bars. The position
illustrated above is for 15 mm bars. Use the position at a 90
degrees angle for 24.5 mm bars.
ignitenet.com
2
4
3
3
c. Mounting the AP on a Pole (requires optional pole-mount kit)
1
1
Attach the pole-mount bracket to the back of the AP.
2
Use the included screw to secure the bracket to the AP.
3 Feed the two steel-band clamps through the pole-mount
bracket mounting points.
4 Fasten the steel-band clamps around the pole to secure the
AP to the pole.
3. Ground the AP
1
Ensure the structure on which the unit is to be mounted is
properly grounded and in compliance with local and
national electrical codes.
2 Verify that there is a good electrical connection to a
grounding point (no paint or isolating surface treatment).
4
Use the included (M4) screw to attach a grounding wire (not
included) to the grounding point on the unit, and then to
ground.
Caution: The earth connection must not be removed
unless all supply connections have been disconnected.
– 1 –
