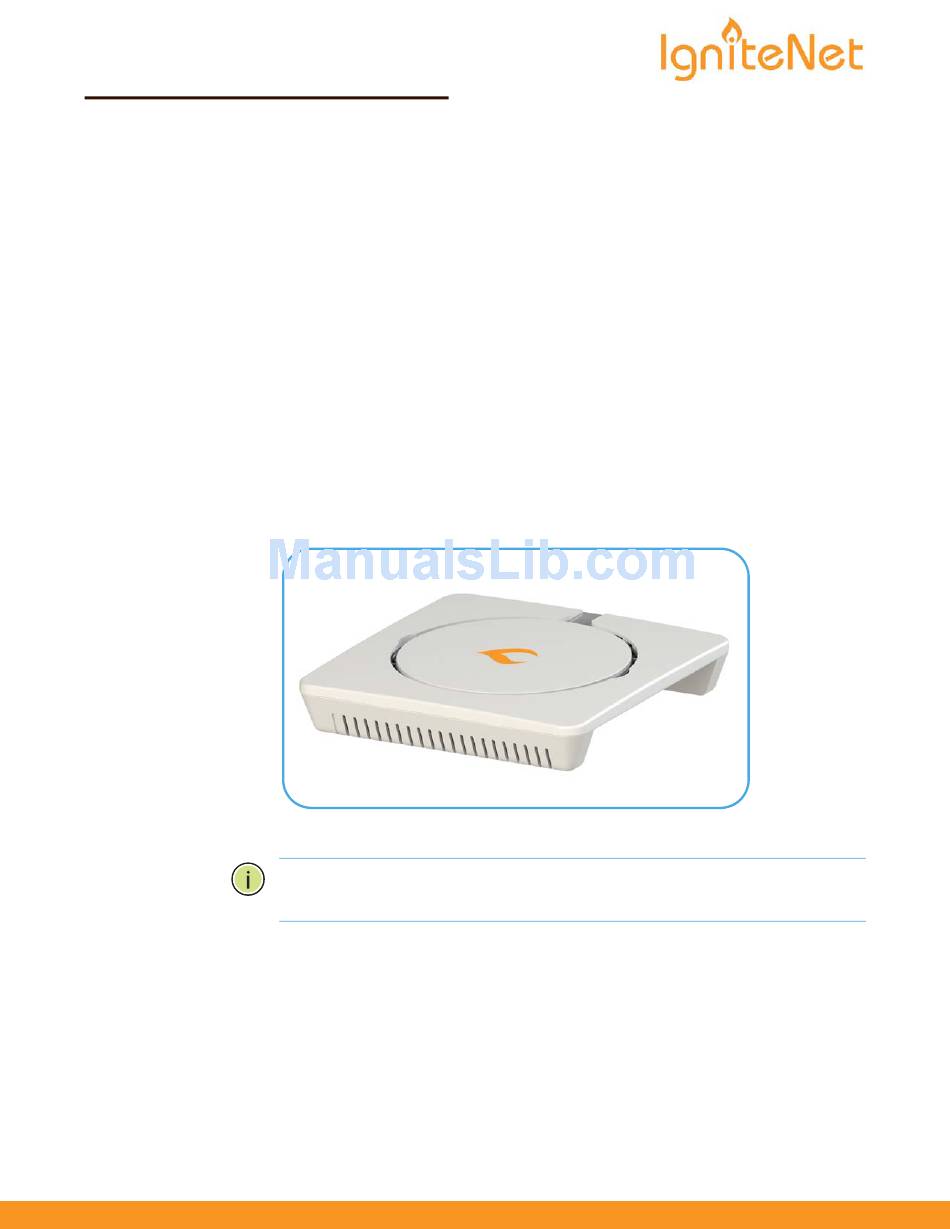

Quick Star t Guide
Indoor Stand-Alone Access Point
SunSpot™ AC1200 and SunSpot™ N300
www.ignitenet.com
The SunSpot N300 and the SunSpot AC1200 are single- and dual-band concurrent
access points (AP's) respectively. The units are designed to be operated either
laying on a desk or mounted on a wall or ceiling. The box includes a mounting plate
for attaching the AP to the ceiling. The access point can be powered either by the
universal power supply included in the box or through an Ethernet cable
connection from an optional PoE switch.
The Indoor Stand-Alone Access Points include these models:
◆
SS-AC1200 — dual-band w/integrated 2.4 GHz and 5 GHz antennas
◆
SS-N300 — single-band w/integrated 2.4 GHz antenna
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
– 1 –

Advertisement

loading

Related Manuals for IgniteNet SunSpot AC120

Summary of Contents for IgniteNet SunSpot AC120

  • Page 1 SS-AC1200 — dual-band w/integrated 2.4 GHz and 5 GHz antennas ◆ SS-N300 — single-band w/integrated 2.4 GHz antenna Note: For Safety and Regulatory information, refer to the Safety and Regulatory Information document included with the AP. www.ignitenet.com – 1 –...
  • Page 2 Quick Start Guide Follow the steps in this guide to install the AP in your network. Caution: The planning and installation of the AP requires professional personnel that are trained in the installation of radio transmitting equipment. The user is responsible for compliance with local regulations concerning items such as antenna power for instance.

  • Page 3: Wall Mounting

    Quick Start Guide Mounting the AP on a wall Mount the unit on a wall using the provided screws. Wall Mounting Drill holes in the wall at an horizontal distance of 116 mm from each other. This distance corresponds to the distance between the mounting holes on the back of the AP.

  • Page 4: Connect Cables

    Quick Start Guide The ceiling mounting plate supports two different kinds of ceiling bars. The position illustrated above is for 15 mm bars. Use the other position at a 90 degrees angle for 24.5 mm bars. 3. Connect Cables Connect Ethernet cable to the 1000BASE-T (PoE) port on the unit. Connect Category 5e or better cable to the leftmost RJ-45 port.

  • Page 5: Verify Ap Operation

    Quick Start Guide Powering the AP with a PoE switch (optional) Simply connect the Ethernet cable from the ETH0 port of the AP to a PoE port on a 802.3af/at compliant switch. Make sure that this switch is connected to the LAN. Note: Connecting the Ethernet cable from the AP to the injector module powers on the unit.

  • Page 6: User Interface

    Quick Start Guide 6. Connect to the Web The stand-alone APs offer a web-based management interface for the User Interface configuration of all the unit’s features. You can make initial configuration changes by connecting a PC directly to the AP’s ETH1 RJ-45 port.

  • Page 7: Hardware Specifications

    Quick Start Guide Hardware Specifications Item Specification Chassis Size (H x W x D:) 200 x 200 x 39 mm (7.87 x 7.87 x 1.53 inches) Weight 626 g (1.38 lb) Temperature Operating: -20 °C to 65 °C (-4 °F to 149 °F) Storage: -30 °C to 80 °C (-22 °F to 176 °F) Humidity Operating: 15% to 95% (non-condensing)
