IgniteNet Spark AC750 Quick Start Manual

Cloud-enabled enterprise access point sp-ac750;sp-ac750-3af; sp-n300;sp-n300-3af
Hide thumbs Also See for Spark AC750:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Quick Star t Guide
Cloud-Enabled Enterprise Access Point
Spark™ AC750 and Spark™ N300
www.ignitenet.com

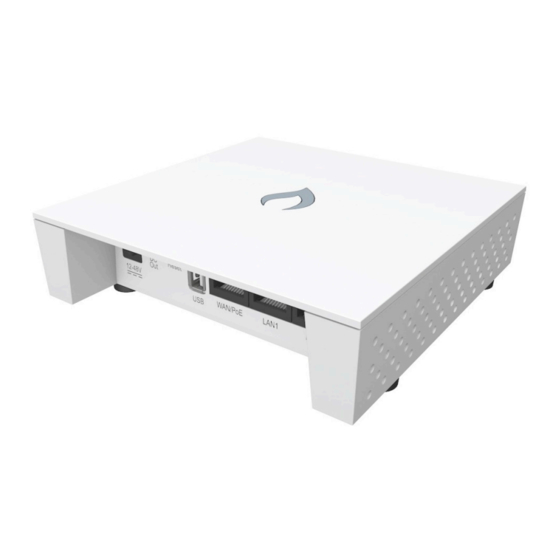

The Spark AC750 and Spark N300 are dual- and single-band enterprise access
points (APs). The units are designed to be operated either placed on a desk or
mounted on a wall or ceiling. The package includes a mounting plate for attaching
the AP to a wall or ceiling T-bar. The APs can be powered either by the universal
power supply included in the package, through an Ethernet cable connection from
a Power-over-Ethernet (PoE) injector, or from a 802.3af-compliant PoE switch.
The Cloud-Enabled Enterprise Access Point includes these models:
◆
SP-AC750 — dual-band concurrent enterprise AP with integrated antennas
plus passive Power-over-Ethernet (PoE)
◆
SP-AC750-3AF — dual-band concurrent enterprise AP with integrated
antennas plus 802.3af Power-over-Ethernet (PoE)
◆
SP-N300 — single-band enterprise AP with integrated antennas plus passive
Power-over-Ethernet (PoE)
◆
SP-N300-3AF — single-band enterprise AP with integrated antennas plus
802.3af Power-over-Ethernet (PoE)
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
– 1 –

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spark AC750 and is the answer not in the manual?

Questions and answers

Related Manuals for IgniteNet Spark AC750

Summary of Contents for IgniteNet Spark AC750

  • Page 1 Cloud-Enabled Enterprise Access Point Spark™ AC750 and Spark™ N300 The Spark AC750 and Spark N300 are dual- and single-band enterprise access points (APs). The units are designed to be operated either placed on a desk or mounted on a wall or ceiling. The package includes a mounting plate for attaching the AP to a wall or ceiling T-bar.
  • Page 2 1. Unpack the AP Unpack the AP and check the package contents. ◆ Cloud-Enabled Enterprise Access Point Spark AC750, AC750-3AF, N300, or N300-3AF ◆ Mounting plate ◆ Mounting kit — 4 screws, 4 wall plugs, and 4 rubber feet ◆...

  • Page 3: Mounting The Ap On A Wall

    Quick Start Guide Mounting the AP on a wall Mount the unit on a wall using the mounting plate, screws, and wall plugs provided in the mounting kit. Wall Mounting At the installation location, hold the mounting plate against the wall with its release tab pointing down.

  • Page 4: Suspended Ceiling Mounting

    Quick Start Guide Mounting the AP on the ceiling If the room is equipped with a suspended ceiling, use the mounting plate provided in the package to attach the AP to the metal ceiling T-bars. The mounting plate supports two different sizes of suspended ceiling T-bars. The position illustrated below is for 15 mm bars.

  • Page 5: Connect Cables

    4. Connect Power The AP can be powered either by the AC/DC power adapter provided in the package, by a PoE power injector (Spark AC750 and N300), or by an 802.3af/at PoE switch (Spark AC750-3AF and N300-3AF). Powering the AP with the AC/DC Power Adapter Connect the cable from the power adapter to the DC power jack on the AP.

  • Page 6: Verify Ap Operation

    If cloud-managing the AP, go directly to “Manage the AP with the IgniteNet Cloud Controller” on page To access the web interface, connect a PC directly to the AP’s LAN1 or LAN2 RJ-45 port.
  • Page 7 Select the country of operation for the AP. Setting the correct country ensures that the radios operate within local regulations specified for Wi-Fi networks. Manage the AP with the IgniteNet Cloud Controller Go to cloud.ignitenet.com to register your AP. Log in and select Devices from the menu. Click Add Device and enter the AP serial number and MAC address to register the AP with your cloud network.

  • Page 8: Hardware Specifications

    Output: 12, 24, 36, 48 VDC, 1.5 A maximum @ 12 VDC Passive PoE Input Power 24, 36, 48 VDC, 0.76 A maximum @ 24 VDC (Spark AC750, N300) 802.3af PoE Input Power 48 VDC, 0.35 A maximum (Spark AC750-3AF, N300-3AF) Power Consumption 16.2 W maximum...
  • Page 9 Federal Communication Commission Interference Statement    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two  conditions:  (1)  This  device  may  not  cause  harmful  interference,  and  (2)  this  device  must  accept any interference received, including interference that may cause undesired operation.    This  equipment  has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B  digital  device,  pursuant  to  Part  15  of  the  FCC  Rules.    These  limits  are  designed  to  provide  reasonable ...
