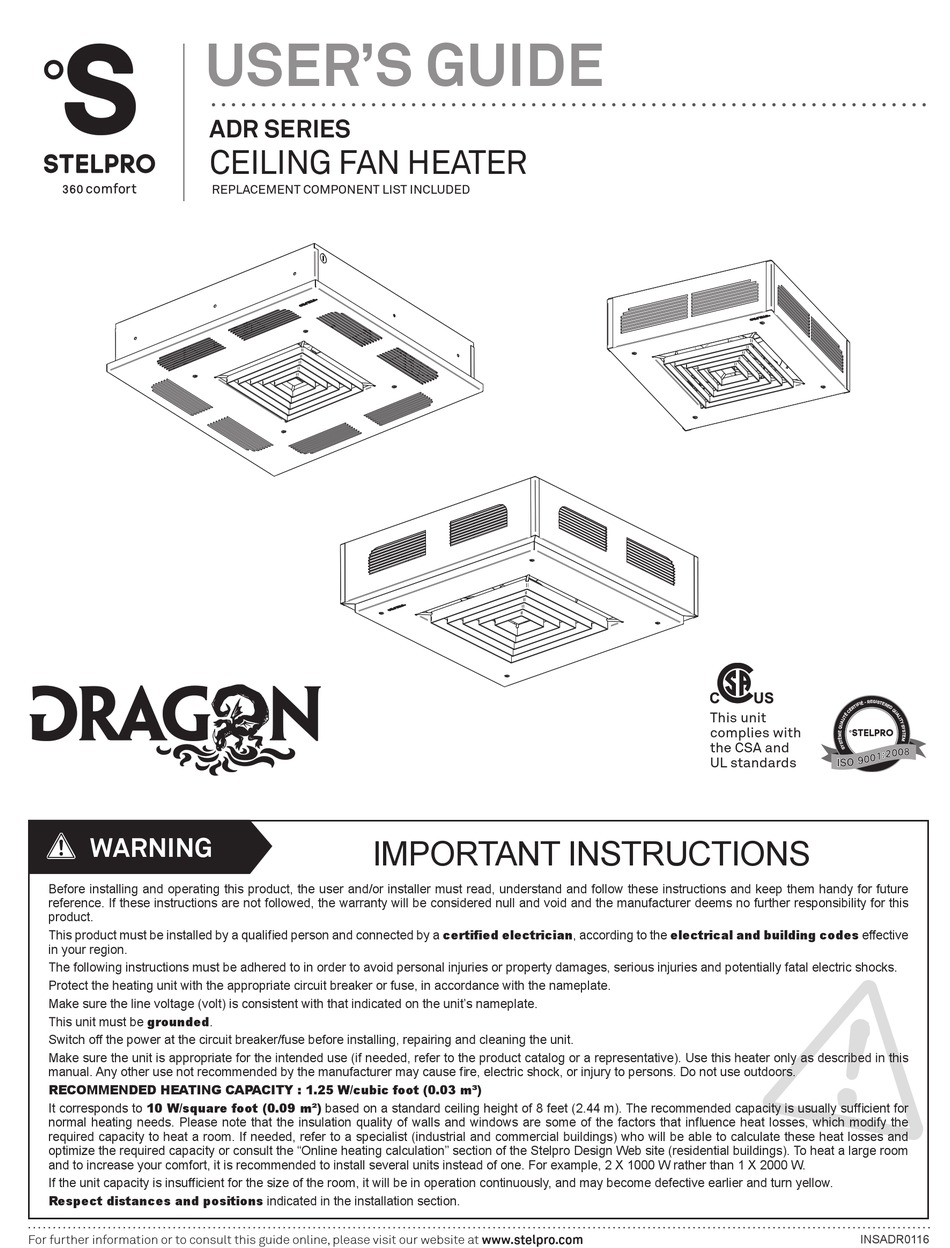

USER'S gUidE
AdR SERiES

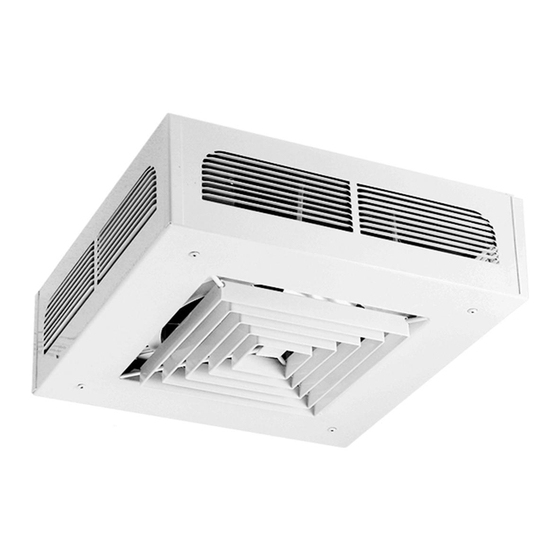

Ceiling fan heater
wARning
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future
reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this
product.
This product must be installed by a qualified person and connected by a certified electrician, according to the electrical and building codes effective
in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit's nameplate.
This unit must be grounded.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative). Use this heater only as described in this
manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. Do not use outdoors.
Recommended heating capacity : 1.25 W/cubic foot (0.03 m³)
It corresponds to 10 W/square foot (0.09 m²) based on a standard ceiling height of 8 feet (2.44 m). The recommended capacity is usually sufficient for
normal heating needs. Please note that the insulation quality of walls and windows are some of the factors that influence heat losses, which modify the
required capacity to heat a room. If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and
optimize the required capacity or consult the "Online heating calculation" section of the Stelpro Design Web site (residential buildings). To heat a large room
and to increase your comfort, it is recommended to install several units instead of one. For example, 2 X 1000 W rather than 1 X 2000 W.
If the unit capacity is insufficient for the size of the room, it will be in operation continuously, and may become defective earlier and turn yellow.
Respect distances and positions indicated in the installation section.
For further information or to consult this guide online, please visit our website at www.stelpro.com
replaCement Component list inCluded

IMPORTANT INSTRUCTIONS

this unit
complies with
adesmarais
CRÉÉ PAR | CREATED BY :
the Csa and
2009-02-10
CRÉÉ LE | CREATED ON :
2013-09-11 / adesmarais
MIS À JOUR | UPDATED :
ul standards
TOLÉRANCES SI NON-SPÉCIFIÉES | TOLERANCES IF NOT SPECIFIED
|
L'INFORMATION CONTENU E DANS CE
LINÉAIRE
LINEAR:
ANGULAIRE
DOCUMENT E ST LA PROPRIÉTÉ DE
STELPRO DESIGN. EN AUCUN CAS,
.XX
±.03"
[ ±.76mm ]
XX°
=
L'INFORMATION NE PEUT ÊTRE
UTILISÉE, SAUF SOUS AUTORISATION
.XXX
=
±.015"
[ ±.38mm ]
XX.X°
ÉCRITE DE STELPRO DESIGN.
THE INFORMATION IN THI S DOCUMENT
IS THE PROPERTY OF STEL PRO DESIGN.
IN ANY CASE, THE INFORMATION CAN'T
BE USED, EXCEPT BY THE WRITTEN
EMPLACEMENT:
X:\01_PRODUITS\FAMILLES\DR\DOCUMENTATION\DR_COUVERTURE MANUEL.dft
CONSENT OF STELPRO DESIGN.
# PIÈCE | PART # :
DR-1, DR-R & DR-2
DESCRIPTION :
MATÉRIEL | MATERIAL :
|
ANGULAR:
=
±1°
B
TROISIÈME ANGLE DE
FORMAT | SIZE :
=
±0.5°
PROJECTION
1 / 1
FEUILLE | SHEET :
THIRD ANGLE PROJECTION
INSADR0116

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dragon ADRI and is the answer not in the manual?

Questions and answers

Summary of Contents for Stelpro Dragon ADRI

  • Page 1: Important Instructions

    If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one.
  • Page 2: Specifications

    SpEcIfIcAtIOnS AnD tEchnIcAL DRAwIngS wARning If the installer or the user modifies the unit, he will be held responsible for any damage resulting from this modification, and the CSA certification could be void. This unit must not come into contact with a water source and must be protected from splashes. Do not use it if any part has been immersed. When mounting the unit, make sure that the anchorage used can support the total weight of the unit with the mounting brackets.
  • Page 3: Specifications And Installation

    SpEcIfIcAtIOnS AnD InStALLAtIOn teChniCal drawings ADRII 6 9/16" 167mm FRONT 2 7/16" 3 3/16" 62mm 81mm 22 3/8" 568mm 1 7/16" 37mm 7/8" 22mm 22 3/8" 568mm BOTTOM 22 1/2" ADRR 571mm 1" 1 1/4" 25mm 32mm 4 3/16" 4 15/16" 106mm 125mm 7/8"...
  • Page 4: Operation

    InStALLAtIOn, OpERAtIOn AnD MAIntEnAncE adRi and adRii adRR 1. Remove the external cover of the unit and set it aside (4 screws). N.B. This product has been designed to be installed into a suspended ceiling, not into a closed ceiling. keep in mind that if you intend on recessing it 2.
  • Page 5: Troubleshooting

    LISt Of REpLAcEMEnt cOMpOnEntS troubleshooting pRoBLem deFectiVe paRt oR paRt to checK • Defective thermostat or wrong thermostat setting • Open circuit breaker or fuse The unit does not work • The thermal protection has been activated • Faulty connections •...
  • Page 6: Limited Warranty

    Moreover, it does not cover the cost of disconnection, transport, and installation. The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period.
