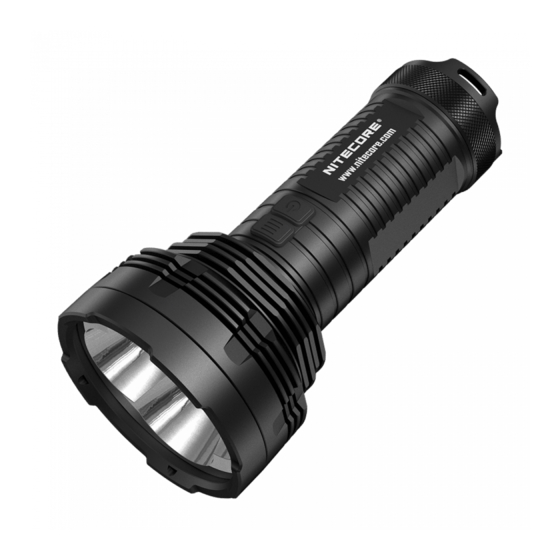

Nitecore TM16GT User Manual

The All-Round Flashlight Expert
Features
· Utilizes 4 CREE XP-L HI V3 LEDs
· Maximum output up to 3600 lumens
· Features advanced temperature regulation (ATR) technology
· Boasts a peak beam intensity of 252,000cd and a throw distance up to
1003 meters
· Dual-switch user interface ensures easy one-handed operation
· Features 5 brightness levels and 3 special modes
· High efficiency circuit board provides max runtime up to 610 hours
· Integrated power indicator light displays remaining battery power
(Chinese Patent: ZL201220057767.4)
Built-in power indicator displays battery voltage (accurate to 0.1V)
·
· Direct access to ultra-low or turbo ensures flexibility and convenience
· Reverse polarity protection prevents damage from incorrectly inserted
batteries
· Rear tripod receptacle brings extra funtionality
· Toughened ultra-clear mineral glass with anti-reflective coating
·
Constructed from aerograde aluminum alloy
·
Sturdy HAIII military grade hard-anodized
·
Waterproof in accordance with IPX-8 (two meters submersible)
·
Impact resistant to 1.5 meters
·
Tail stand capability
Dimensions
Length: 182mm (7.17")
Head diameter: 89mm (3.5")
Tube diameter: 53mm (2.09")
Weight: 521g (18.38oz)(without battery)
Battery Options
18650 Rechargeable Li-ion battery 18650
Primary Lithium battery CR123
Rechargeable Li-ion battery RCR123
*Warning: Do not use the TM16 with RCR123 or CR123 batteries.
Output & Runtime
TURBO HIGH
3600 1500
LUMENS LUMENS
1 3 15
h h min
1,003m
252,000cd
1.5m
IPX-8, 2m
NOTICE:
The above data has been measured in accordance with the international
flashlight testing standards ANSI/NEMA FL1 using 4 x 18650 (3.7V
3400mAh) batteries under laboratory conditions. The data may vary
slightly during real-world use due to battery type, individual usage habits
and environmental factors.
Accessories
Lanyard, spare O-ring
Type Nominal voltage Compatible
3.7V Yes (Recommended)
3V NO
3.7V NO
MID LOW LOWER
500 210 5
LUMENS LUMENS LUMENS
21h
7
610
h15min
(Beam Distance)
(Peak Beam Intensity)
(Impact Resistant)
(Waterproof AND Submersible)
Thanks for purchasing NITECORE!
® TM16GT

Operating Instructions

Battery Installation

1. Insert batteries with the positive (+) and negative (-) ends
corresponding to the diagram on the inside of the battery compartment.
2. Tighten the tailcap by aligning the two gold pins on the inside of the
tailcap with the corresponding holes on the flashlight body, and rotate
clockwise.
NOTE: Upon battery installation, the power indicator light will blink to
indicate the battery voltage. Please refer to the "Power Tips" section of
this manual for details.
WARNING:
1. Do not mix batteries of different types/brands.
2. When the TM16GT is stored in a backpack or left unused for extended
periods, Nitecore recommends that batteries are removed to cut off the
power entirely, thus preventing battery drain or accidental activation of
the flashlight.
On/Off Operation
h
To turn on: press the on/off switch
To turn off: press the on/off switch
Standby Mode
With the light turned on, press and hold the on/off switch
one second to turn off the light and activate location indication. The blue
power indicator built in the side switches will blink once every three
seconds to indicate the location of the TM16GT. In this mode, the
TM16GT will operate for approximately 6 months. With the power
indicator off in standby mode, the TM16GT can run for over 6 months.
Brightness Levels
With the light turned on, press the mode switch
brightness levels of lower, low, medium, high and turbo. The TM16GT
memorizes the brightness level last used when turned off, and enters the
memorized brightness level directly upon next activation.
User Manual
to turn the light on.
again to turn the light off.
for more than
to cycle through
