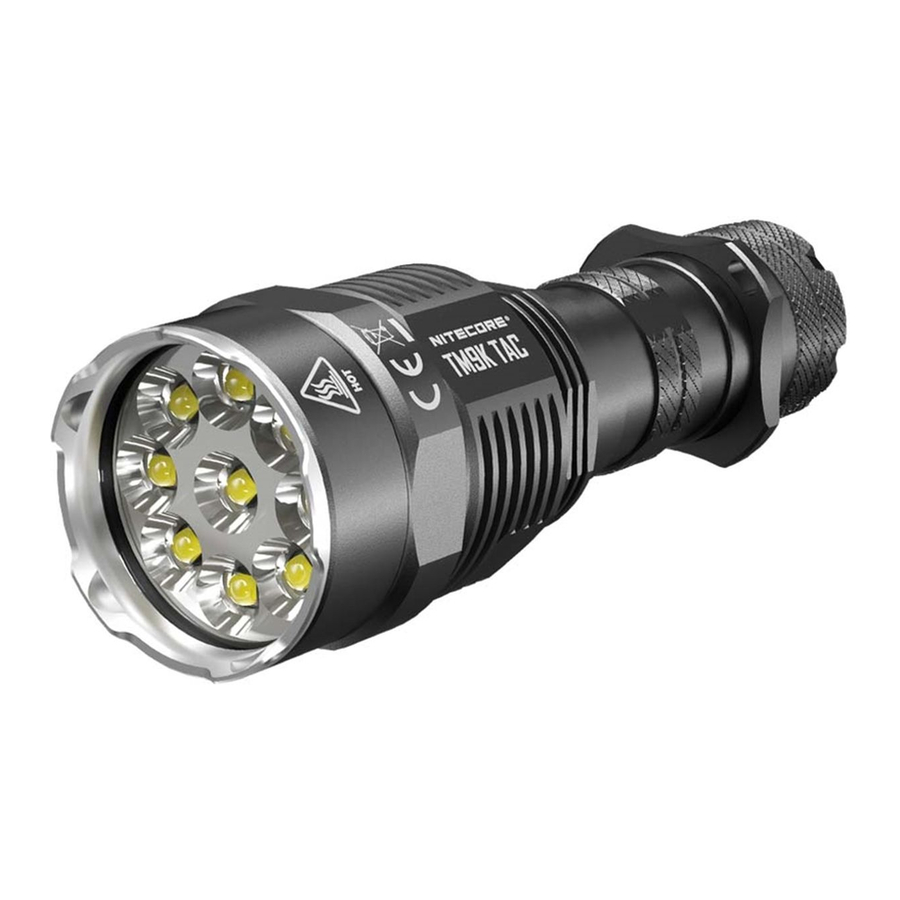

Nitecore TM9K - Flashlight Manual

Features

• TurboReady™ Technology
• USB-C Rechargeable
• Lockout Mode Available
• Utilizes 9 x CREE XP-L HD V6 LEDs with a max output of 9,500 lumens
• Maximum beam intensity of 18,000cd and maximum throw of 268 meters
• An optical system combined with crystal coating and "Precision Digital Optics Technology" (PDOT)
• Lightweight and rigid CNC machined unibody design provides superior heat dissipation capability
• Built-in 5,000mAh 21700 rechargeable Li-ion battery
• Intelligent Li-ion battery charging circuit with a USB-C port
• Highly efficient constant current circuit provides a stable output for up to 60 hours
• Dual tail switches enable intuitive operations for tactical applications
• TurboReady™ Technology (9,500 Lumens)
• The power indicator beside the dual switches indicates the remaining battery power
• The power indicator can display the battery voltage (±0.1V)
• Optical lenses with double-sided scratch resistant coating
• Constructed from aero grade aluminum alloy
• HA III military grade hard-anodized finish
• Rating in accordance with IP68 (2 meters submersible)
• Impact resistant to 1 meter

Specifications

Accessories

Clip, Lanyard, USB-C Charging Cable, Holster

Technical Data

Note: The stated data is measured using the built-in battery (1 x 5,000mAh 21700 Li-ion battery) under laboratory conditions.
The data may vary in real world use due to different battery usage or environmental conditions.

Charging Function

The TM9K is equipped with intelligent charging function. Please recharge the product before the first use.

The TM9K is available for both Standard Mode and QC Mode.
As illustrated, uncap the charging port and connect it to a USB adapter (available as an optional accessory) via the USB charging cable.

• When charged via a QC adapter, the TM9K will automatically access the QC Mode and the blue power indicator will flash quickly to inform the user. When using the Standard Mode, the indicator will flash slowly to inform the user.
• When the product is fully charged, it will automatically cease the charging process and the indicator will become steadily turned on to inform the user.
• When the light is on, connecting to a power source will automatically turn the light off. The light will return to its previous status when it is disconnected from the power source.
• The charging time in QC Mode is approx. 3h 15min. The charging time in Standard Mode is approx. 5h (5V/2A Adapter).
• The TM9K will be automatically unlocked when charged in the Lockout Mode.
• The standby time is approx. 12 months after the flashlight is fully charged.

Operating Instructions

Tactical Momentary Illumination

Half press and hold the Power Button to turn on the light momentarily. Release to turn it off.

On / Off

On: When the light is off, press the Power Button until a click sound is heard to turn it on.
Off: When the light is on, press the Power Button until a click sound is heard to turn it off.
(The TM9K has mode memory. When reactivated, the flashlight will automatically access the previous memorized brightness level or STROBE Mode.)

Brightness Levels

When the light is on, short press the Mode Button to cycle through "ULTRALOW – LOW – MID – HIGH".

TurboReady

When the light is on/off, press and hold the Mode Button to directly access TURBO of 9,500 lumens. Release to return to the previous status.

STROBE Mode

When the light is on/off, double press the Mode Button to access the STROBE Mode.
When the STROBE Mode is on, either short press the Mode Button or click the Power Button to exit the STROBE Mode.

Lockout / Unlock

Lockout: When the light is on, click the Power Button while holding the Mode Button and release both buttons to access Lockout Mode. The flashlight will flash once before turning off to indicate this process. After that, the power indicator will flash to show the battery voltage. (Please refer to the "Power Indication" section of this manual for more details.)
Unlock: In Lockout Mode, triple press the Mode Button to exit Lockout Mode. The flashlight will flash once to indicate this process.

Thermal Protection Function

The TM9K has Thermal Protection Function. It will automatically lower its output to avoid overheating when accessing the TURBO or HIGH Level for a prolonged time.

Power Indication

When the light is on, click the Power Button while holding the Mode Button and release both buttons to access Lockout Mode.
The flashlight will flash once before turning off to indicate this process. After that, the power indicator will flash to show the battery voltage (±0.1V). For example, when the battery voltage is at 4.2V, the power indicator will flash 4 times followed by a 1.5-second pause and 2 more flashes. Different voltages represent the corresponding remaining battery power levels:

When the light is on and the power level is close to 50%, the blue power indicator will flash every 2 seconds to inform the user. When the light is on and the power is near to depletion, the blue power indicator will flash quickly and continuously to inform the user.

Cautions

1. DO NOT cover the head of the flashlight or put it close to other objects when turned on to avoid accidents.
2. DO NOT submerge the flashlight into any liquid when it is hot. Doing so may cause irreparable damage to the light due to the difference of air pressure inside and outside of the tube.
3. When the flashlight is kept in the backpack or the holster, please activate the Lockout Mode.
4. DO NOT direct the beam towards naked eyes.
5. Please recharge the product with the original charging cable and a 5V/2A adapter or a QC adapter.
6. Please recharge the product before the first use.
7. Please recharge the product every 6 months when left unused for a long time.
