Source Audio soundblox 2 User Manual page 8

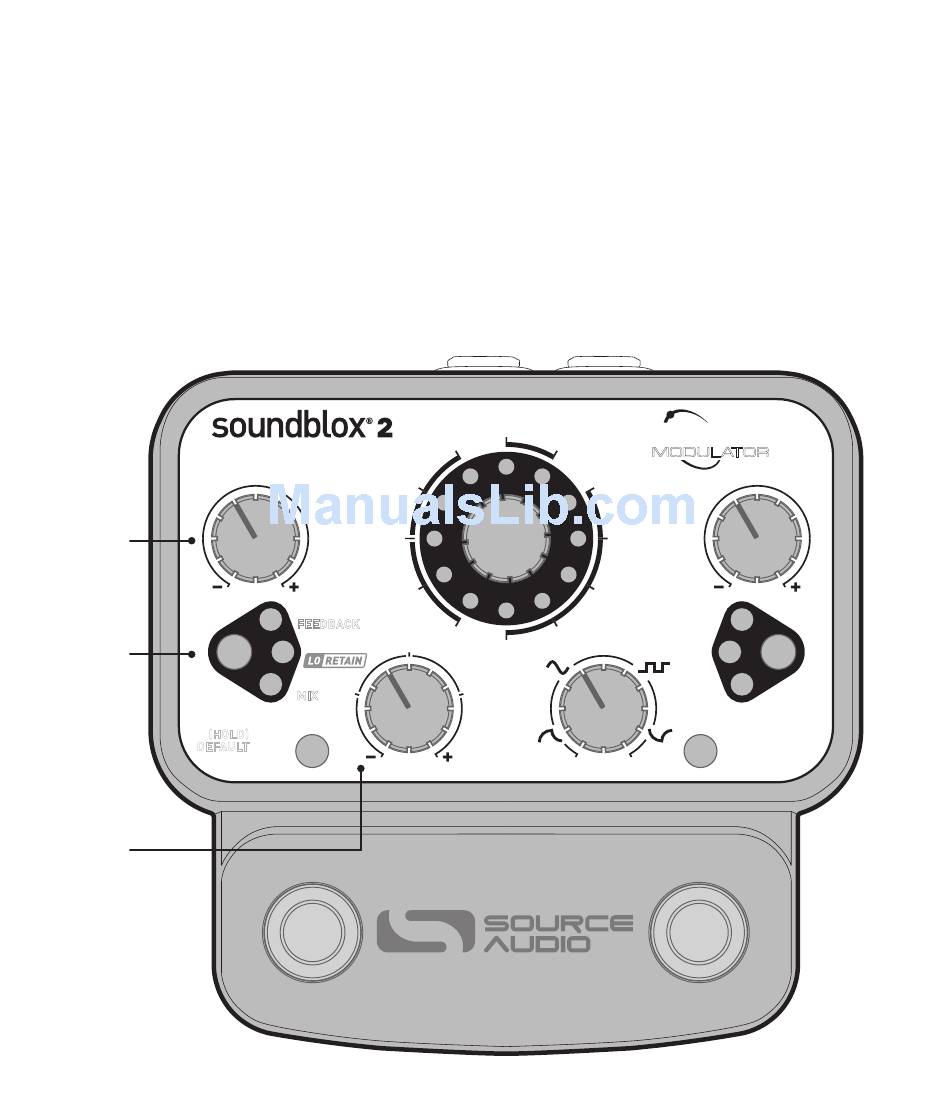

DEPTH Knob (A)
The DEPTH knob adjusts the range of the modulating signals.
OPTION Knob (B)
The OPTION knob controls six different parameters. Press the OPTION
SELECT button (C) (located just above the OPTION knob) to cycle through
all six choices. The selected parameter is indicated by the three red/
green LEDs. Green indicates the upper parameter (black print), and red
the lower parameter (white print).
DEPTH
A
C
OPTION
SELECT
(HOLD)
DEFAULT
B
8 | Contols: Knobs
SHADOW
THRU
ZERO
FLANGER
CLASSIC
CHORUS
QUAD
DELAY/FREQ
FEEDBACK
DUAL
VOLUME
TREMOLO
MIX
1
OPTION
RESONATOR
ORBITAL
RES 1
RES 2
MODULA TOR
VIBE
PHASER
4 STAGE
6 STAGE
8 STAGE
12 STAGE
ENV+ ENV-
MOD SOURCE
SPEED
HH
MIDI
EXP
CONTROL
INPUT
2
