Source Audio soundblox 2 User Manual page 6

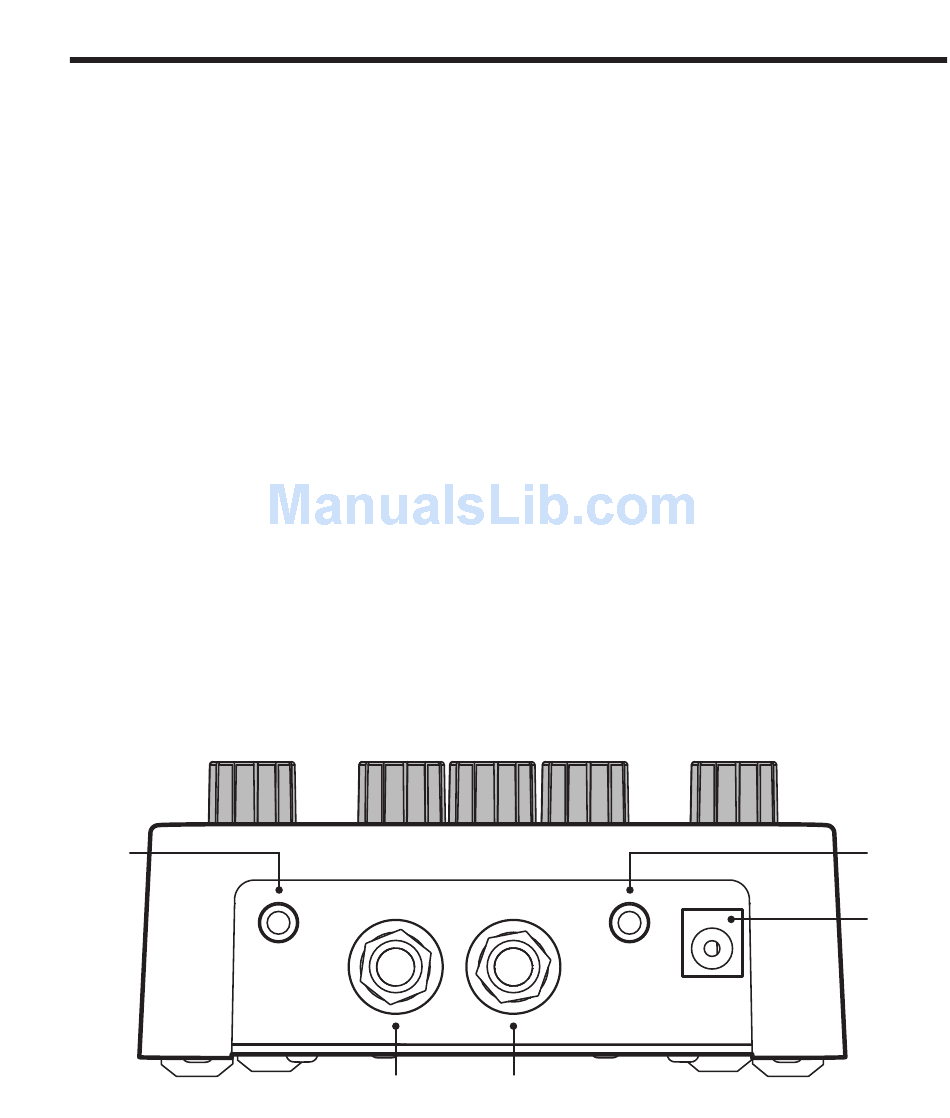

CONNECTIONS
GUITAR IN (A): Connect your guitar, bass, or other instrument via a
MONO ¼" cable.
GUITAR OUT (B): Connects to your amp, pedal, or other audio device via
a MONO ¼" cable.
MULTI-FUNCTION IN (C) (optional): The multi-function input is a flexible
control input for use with external controllers. It accepts digital or analog
signals which allow the Orbital Modulator to interface with the following
accessories:
SA110/SA115 Hot Hand Wireless Adapter
•
SA111 Hot Hand Wired Sensor
•
SA161 Source Audio Dual Expression Pedal
•
Source Audio Soundblox 2 MIDI Adapter
•
MULTI-FUNCTION OUT (D) (optional): Use a Source Audio daisy-chain
cable to connect this jack to the sensor/multi-function input of another
Soundblox pedal.
9V DC (D): Connects to the included 9 Volt DC power supply.
C
FUNCTION
6 | Connections
GUITAR IN
MULTI-
IN
A
GUITAR OUT
MULTI-
FUNCTION
OUT
B
9V DC
E
D
